Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2019 - 2026 GMC Sierra 1500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

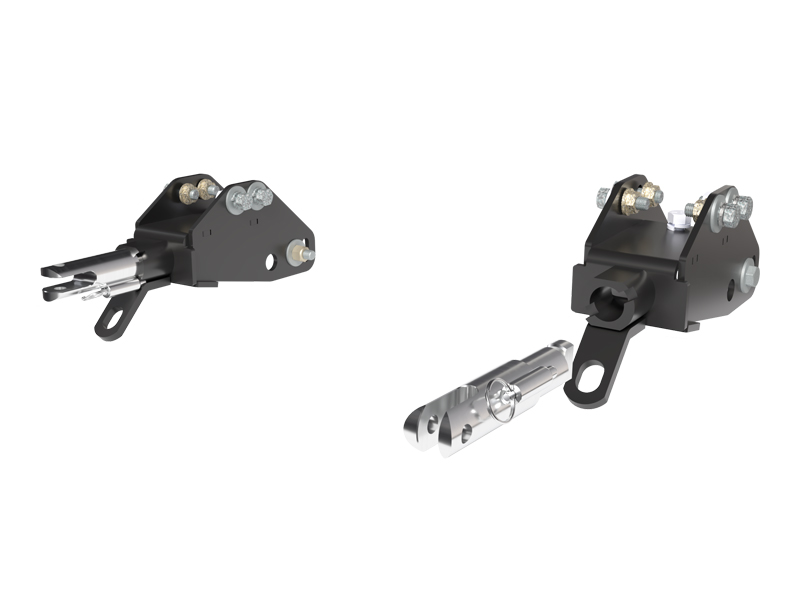

Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | GMC Sierra 1500 | New Style, No AEV Bumper, Comes with Removable Attachment Tabs, Install Rating 2, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The Blue Ox Tow Bar Base Plate BX1753 (Part #FDRWBX1753) fits the following vehicles: 2019-2026 GMC Sierra 1500. Always verify your specific year, make, and model before ordering.
Yes, the Blue Ox Tow Bar Base Plate BX1753 (Part #FDRWBX1753) is designed to fit the 2019-2026 GMC Sierra 1500.
The Blue Ox Tow Bar Base Plate BX1753 (Part #FDRWBX1753) fits 2019-2026 GMC Sierra 1500 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Blue Ox Tow Bar Base Plate BX1753 (Part #FDRWBX1753) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX1753 is designed for 2019-2026 GMC Sierra 1500 New Style (All Models) with no AEV bumper. If your vehicle has an AEV bumper, this baseplate is not compatible.
The attachment tab height is 21.5" and the attachment tab width is 30".
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Required tools include: torque wrench, drill with 1/2" drill bit, flat head screwdriver, T15 Torx, Loctite Red, and the following sockets and wrenches: 7MM, 10MM, 11MM, 13MM, 15MM, 18MM sockets; 7/16", 11/16", 3/4" sockets; 18MM, 3/4" wrenches; and 7/16" wrench.
The bumper, grille, fascia, and fascia cover must be removed during installation. All items are reinstalled after the baseplate is installed. Additionally, the factory tow hooks are removed and will not be reinstalled. Place all removed components on a flat, sturdy surface during the installation process.
Yes. Some drilling is required. Using a 1/2" drill bit, you must drill the top rear hole on one side of the baseplate and the bottom hole on the other side, using the baseplate as a template. This is done on both sides of the vehicle. Additionally, a hole must be drilled according to the tail light wiring kit instructions.
Yes. The manual states that some trimming is required. Specific trimming details are shown in the removal and installation sections, including unclipping fender flares, unclipping plastic pieces, and slotting plastic shrouds as needed to allow component removal.
The manual provides general torque specifications for metric and inch bolts by grade. For metric bolts: 6MM Grade 8.8 = 6 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs, 12MM Grade 8.8 = 54 ft-lbs, 14MM Grade 8.8 = 89 ft-lbs, 16MM Grade 8.8 = 161 ft-lbs, 18MM Grade 8.8 = 222 ft-lbs. For inch bolts: 1/4" Grade 5 = 10 ft-lbs, 5/16" Grade 5 = 19 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 7/16" Grade 5 = 54 ft-lbs, 1/2" Grade 5 = 78 ft-lbs, 5/8" Grade 5 = 154 ft-lbs, 3/4" Grade 5 = 257 ft-lbs. Use Loctite Red on all bolt threads before tightening.
The kit includes: 10 x 1/2"-13 Whiz Nuts with 10" wire (61-4029), 2 x BX1753 Baseplates (61-8551), 2 x Attachment Tab Assemblies with hole (62-3468), 1 x 90° Electrical Bracket (101-6135), 10 x 1/2"-13 x 1-1/2" Grade 5 hex head bolts (201-0051), 5 x 1/4"-20 x 1" Grade 5 hex head bolts (201-0071), 2 x #10-32 1/2" round slotted head screws (201-0192), 2 x 1/2"-13 x 5" Grade 5 hex head bolts (201-0786), 2 x #10-32 hex nuts (202-0047), 2 x 1/2"-13 hex nylon insert lock nuts (202-0094), 5 x 1/4"-20 hex nylon nuts (202-0102), 5 x 1/4" flat washers (203-0001), 20 x 1/2" flat washers (203-0005), 10 x 1/2" lock washers (203-0012), 2 x #10 lock washers (203-0054), 2 x Class IV safety cables (226-0049), 2 x 1/2" quicklinks (229-0512), and 2 x black cap plug receivers (290-0437).
The BX8869 Tail Light Wiring Kit is recommended for vehicles without LED lights, and the BX8848 Tail Light Wiring Kit is recommended for vehicles with LED lights. A hole must be drilled according to the tail light wiring kit instructions.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not be mounted against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. It is recommended to remove the attachment tabs when not in use, if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. If a bolt is lost or needs replacement, you must use a replacement bolt of the same grade as the original. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct replacement bolt will void the manufacturer's warranty.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting.
Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
The first step is to slide the baseplate onto the tow hook housing so that the back slotted hole of the baseplate lines up with the back hole on the housing. Insert the one 1/2" x 5" bolt as shown and leave it loose at this time. Do this on both sides of the vehicle. Note: On some vehicles, the bracket on the tow hook housing must be removed for the baseplate to fit on the vehicle.
Apply Loctite Red on all bolt threads before tightening. The manual specifically notes to remove the back lower bolt, apply Loctite Red, and reinstall it during the installation process. Use Loctite Red on all bolts and tighten all bolts to the appropriate torque.
Yes. The manual provides separate removal procedures for 2019-2022 Limited Models (pages 4-9) and 2022-2025 Models (pages 10-17). The procedures differ in the number and location of bolts and clips to be removed. Follow the procedure that matches your vehicle's model year.
The BX1753 fits 2019-2026 GMC Sierra 1500 New Style (All Models) without an AEV bumper. If your vehicle has an AEV bumper, this baseplate is not compatible.
Use the BX8869 Tail Light Wiring Kit for non-LED vehicles or the BX8848 for LED vehicles. A hole must be drilled according to the kit instructions.
Yes. You must drill the top rear hole on one side and the bottom hole on the other side of the baseplate using a 1/2" drill bit, plus a hole for the tail light wiring kit.
The bumper, grille, fascia, and fascia cover must be removed. All are reinstalled after baseplate installation. Factory tow hooks are removed and not reinstalled.
1/2" Grade 5 bolts should be torqued to 78 foot-pounds. Use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes. Two Class IV safety cables and two 1/2" quicklinks are included. Cables must be connected from the baseplate to the frame and must not rub against hoses or moving parts.
Yes. Register at www.blueox.com to receive alerts about updates, upgrades, maintenance bulletins, and recalls.
