Custom Design: Specifically tailored for each vehicle model, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

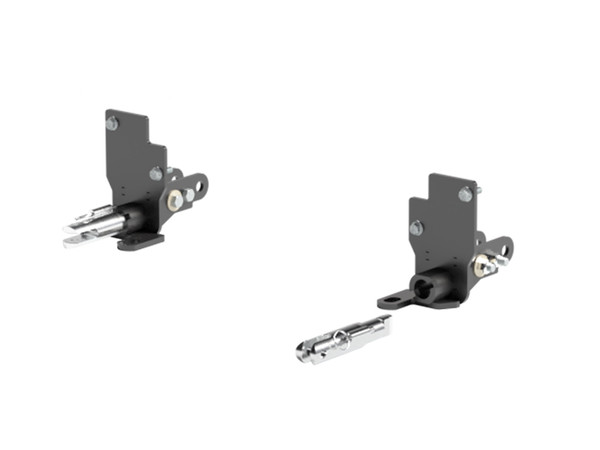

Ensure a safe and secure towing experience with the Blue Ox BX1746 Tow Bar Bracket. This high-quality bracket is custom designed for your towed vehicle, ensuring a perfect fit and optimal performance. Made from sturdy steel and finished with a durable black powder coat, it's designed to withstand the rigors of the road. The bracket is easy to install, with a bolt-on mounting type and included hardware. With the Blue Ox BX1746 Tow Bar Bracket, towing has never been easier or more reliable.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
The Blue Ox Tow Bar Base Plate BX1746 (Part #FDRWBX1746) fits 2015-2022 Chevrolet Colorado models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Blue Ox Tow Bar Base Plate BX1746 (Part #FDRWBX1746) is designed to fit the 2015-2022 Chevrolet Colorado.
The Blue Ox Tow Bar Base Plate BX1746 (Part #FDRWBX1746) fits the following vehicles: 2015-2022 Chevrolet Colorado; 2015-2022 GMC Canyon. Always verify your specific year, make, and model before ordering.
The Blue Ox Tow Bar Base Plate BX1746 (Part #FDRWBX1746) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1746 fits 2015-2022 Chevy Colorado models with 4WD. If you have a 2021 model, follow the specific fascia removal instructions for 2021 Chevy Colorado on page 12 of the manual, which differ from earlier model years.
Yes, the BX1746 is compatible with 2021-2022 GMC Canyon models, including the AT4 variant. Follow the 2021-22 GMC Canyon fascia removal instructions on page 10 of the manual.
Yes, the BX1746 is compatible with 2017-2022 Chevy Colorado ZR2 models, with the exception of ZR2 models equipped with the Bison package. Follow the 2017-20 Chevy Colorado ZR2 fascia and bumper removal instructions on page 7.
No. The BX1746 is designed only for 4WD models. The manual specifies compatibility with 2015-2022 Chevy Colorado (4WD) only.
Yes, the BX1746 fits 2015-2020 GMC Canyon models with 4WD, including Denali variants. For 2021-2022 GMC Canyon models, follow the different fascia removal instructions on page 10.
The attachment tab height is 13.5"-17" and the attachment tab width is 30.5".
Required tools include: utility knife, torque wrench, 7MM socket, 10MM socket, 15MM socket, 18MM socket, 18MM wrench, 7/16" socket, 7/16" wrench, 3/4" socket, 3/4" wrench, and T15 Torx. You will also need Loctite Red for all bolt threads.
Yes. The manual states: "Be sure to use a sufficient amount of Loctite Red on all bolt threads before tightening." Loctite Red must be applied to all bolts and they must be tightened to the appropriate torque specifications.

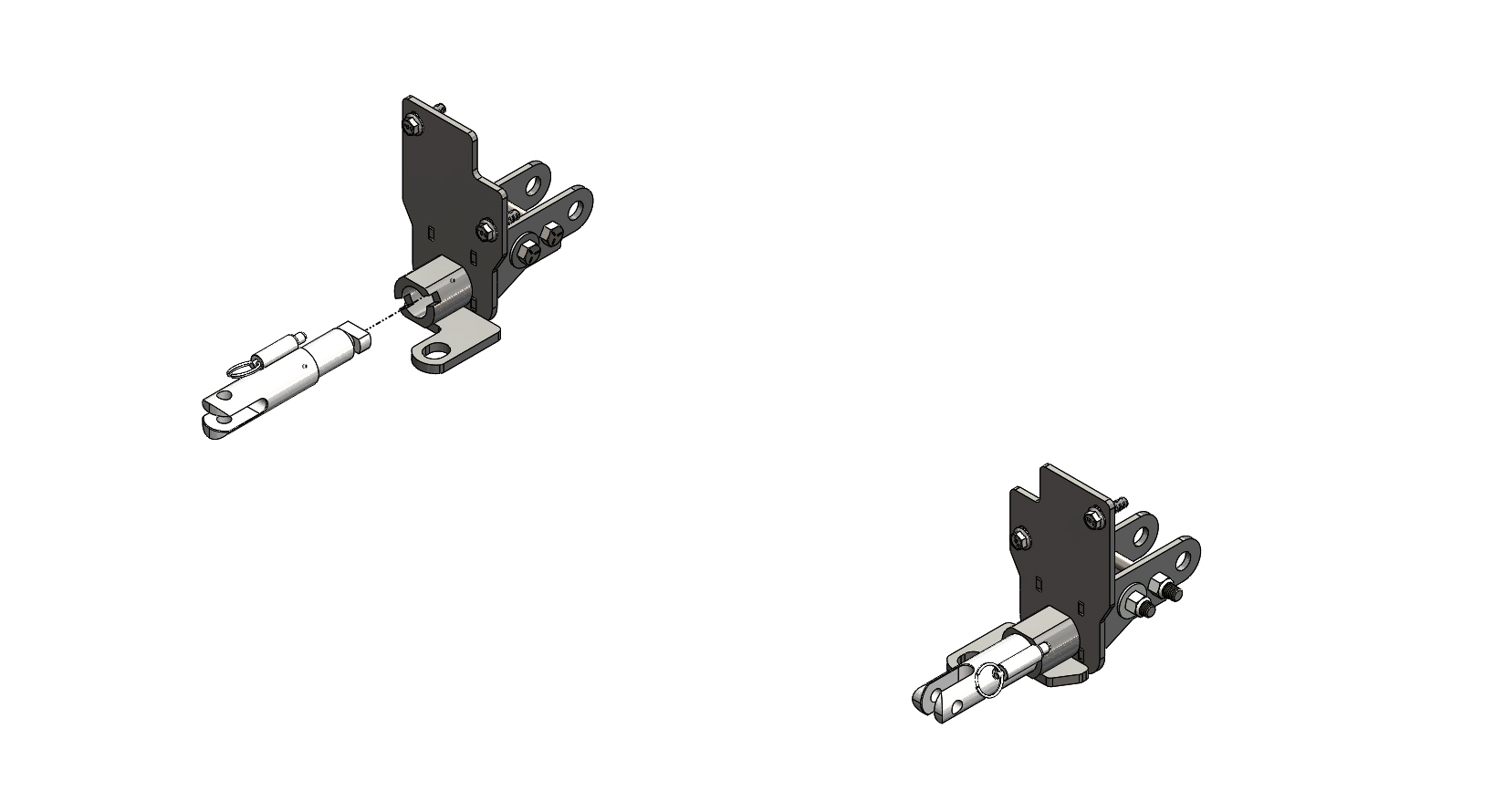

The kit includes: 4 existing 10MM x 35MM long flanged bolts (reused from vehicle), 2 baseplate assemblies (driver and passenger side), 2 attachment tab assemblies, 1 electrical bracket, 2 x 1/4"-20 x 3/4" hex head bolts (Grade 5), 2 x #10-32 1/2" round slotted head screws, 4 x 1/2"-13 x 3-1/2" hex head bolts (Grade 5), 3 x 1/4"-20 x 1-1/2" hex head bolts (Grade 5), 2 x #10-32 hex nuts, 4 x 1/2"-13 hex nylon insert lock nuts, 5 x 1/4"-20 hex nylon nuts, 3 x 1/4" flat washers, 4 x 1/2" flat washers, 2 x #10 lock washers, 2 class IV safety cables, 2 x 1/2" quicklinks, and 2 black cap plug receivers.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. If you use it, you will need to drill a hole according to the tail light wiring kit instructions.
Yes. The bumper must be removed before baseplate installation. Using a 15MM socket, remove the four bolts from the bumper (two on each side), then set it aside. The bumper is reinstalled after the baseplate is secured.
Yes. The fascia must be removed before baseplate installation. The removal procedure varies by model year and model. For 2015-22 Chevy Colorado and 2015-20 GMC Canyon, follow the instructions on page 5-6. For 2017-20 Chevy Colorado ZR2, follow page 7. For 2021-22 GMC Canyon, follow page 10. For 2021 Chevy Colorado, follow page 12. The fascia is reinstalled after the baseplate is secured.
Yes. Using an 18MM socket and wrench, remove the two bolts from the tow hook on each side of the vehicle. Remove the tow hooks and set them aside—they will not be reinstalled.
Skid plate removal is required for some model years. For 2021 Chevy Colorado, using a 15MM socket, remove the five bolts from the skid plate (two towards the front and three towards the back), then set it aside to be reinstalled later. For other model years, follow the specific fascia removal instructions for your vehicle.
Some drilling is required. The manual states "some drilling and trimming is required" and notes that if you use the recommended BX8869 Tail Light Wiring Kit, you will need to drill a hole according to that kit's instructions. Additionally, when reinstalling the fascia, you may need to trim around tabs and convenience links for proper fit.
Yes. The manual notes: "May need to trim around tabs and convenience links for proper fit" when reinstalling the fascia and fascia cover (or fascia and skid plate, depending on model year).
Yes. The manual states: "Use a good quality paint to spray cut edges of frame to prevent rusting."
For Grade 5 bolts (which are used in the BX1746 kit), the torque specification for 1/2"-13 bolts is 78 foot-pounds. For Grade 8 bolts, it is 119 foot-pounds. The BX1746 uses four 1/2"-13 x 3-1/2" Grade 5 hex head bolts.
For Grade 5 bolts, the torque specification for 1/4"-20 bolts is 10 foot-pounds. For Grade 8 bolts, it is 14 foot-pounds. The BX1746 kit includes Grade 5 1/4"-20 bolts.
For Grade 8.8 metric bolts, the torque specification for 10MM bolts is 31 foot-pounds. For Grade 10.9 bolts, it is 40 foot-pounds. The BX1746 uses existing 10MM x 35MM long flanged bolts from the vehicle.
1. Slide the baseplate into place and insert two 1/2" x 3-1/2" bolts into the side holes (use a flat washer with the front bolt). Do not install nuts at this time. 2. Start the two existing 10MM bolts into the front holes; may need to lift the baseplate for holes to line up. Tighten bolts but do not use Loctite Red at this time. 3. Remove the two side bolts, add Loctite Red, and reinstall. Tighten fully at this time. 4. Remove the two front bolts, reinstall the bumper, then reinstall the existing bolts using Loctite Red. Tighten fully at this time.
Do not apply Loctite Red when first tightening the front 10MM bolts. Apply Loctite Red when reinstalling the two side bolts (step 5) and when reinstalling the front bolts after the bumper is back in place (step 7). All bolts must have Loctite Red applied to their threads before final tightening.
No. The manual specifies using a flat washer only with the front bolt when inserting the two 1/2" x 3-1/2" side bolts. The hardware list includes 3 x 1/4" flat washers and 4 x 1/2" flat washers, which are used as specified in the installation steps.
The BX1746 kit includes an electrical bracket (90° bend), 2 black cap plug receivers, and provisions for a 6-pin connector and 4-pin connector (shown in the parts diagram). The manual recommends the BX8869 Tail Light Wiring Kit for this vehicle, which requires drilling a hole according to that kit's instructions.
Yes. The manual states: "Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia."
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You should reference your vehicle owner's manual for the manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1746 kit includes 2 class IV safety cables and 2 x 1/2" quicklinks. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. The cables must remain installed as long as the baseplate is installed. However, these permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame of the vehicle. The manual shows two recommended options: Option #1 for baseplates with convenience link tabs, and Option #2 for baseplates without convenience link tabs. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do NOT use the baseplate if it is damaged or missing parts.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure that all electrical connections are plugged in and accessories are functioning properly. Verify that the safety cables do not rub against any hoses or moving parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use (if applicable).
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable and does not cover loss of use, loss of time, inconvenience, or other consequential damages.
The BX1746 fits 2015-2022 Chevy Colorado (4WD), 2017-2022 Chevy Colorado ZR2 (except Bison), 2015-2020 GMC Canyon (4WD), and 2021-2022 GMC Canyon. It does not fit 2WD models or ZR2 Bison variants.
You need: torque wrench, 7MM/10MM/15MM/18MM sockets, 7/16" and 3/4" sockets, 18MM wrench, 7/16" and 3/4" wrenches, T15 Torx, utility knife, and Loctite Red.
Yes. Both the bumper and fascia must be removed. The tow hooks must also be removed and not reinstalled. The fascia is reinstalled after baseplate installation.
Yes, some drilling and trimming is required. If using the recommended BX8869 Tail Light Wiring Kit, you must drill a hole per that kit's instructions. You may also need to trim around tabs and convenience links when reinstalling the fascia.
Use the torque chart on page 2: 1/2"-13 Grade 5 bolts = 78 ft-lbs; 1/4"-20 Grade 5 bolts = 10 ft-lbs; 10MM Grade 8.8 bolts = 31 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
Permanent baseplate safety cables are strongly recommended and included in the kit. They must be connected from the baseplate to the vehicle frame and must not touch hoses or wires. They do not replace legally required safety cables between towing and towed vehicles.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections work. Use Loctite Red on all bolts and tighten to spec. Remove attachment tabs when not in use.
You may need to lift the baseplate to align the holes with the existing 10MM bolt holes. The manual states: "May need to lift baseplate for holes to line up." Once aligned, start the two existing 10MM bolts and tighten them (without Loctite Red initially).
The manual notes: "May need to trim around tabs and convenience links for proper fit." Use a utility knife to carefully trim the fascia around the attachment tabs and convenience links on the baseplate.
Reposition the cables so they do not rub against any hoses or moving parts. The manual states: "Be sure the safety cables do not rub against any hoses or moving parts." If necessary, secure the cables to a different solid piece of the frame as described in the General Information sheet.
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2016 | Chevrolet Colorado | 4WD Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2017 - 2022 | Chevrolet Colorado | Also ZR2 4WD Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2015 - 2020 | GMC Canyon | 4WD Also Denali Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2022 | GMC Canyon | ncludes AT4 and Shutters Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2021 | GMC Canyon | Vehicles with AT4 and Shutters Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
