{'feature': 'High Quality Material', 'description': 'Made from top-grade steel to ensure superior strength and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

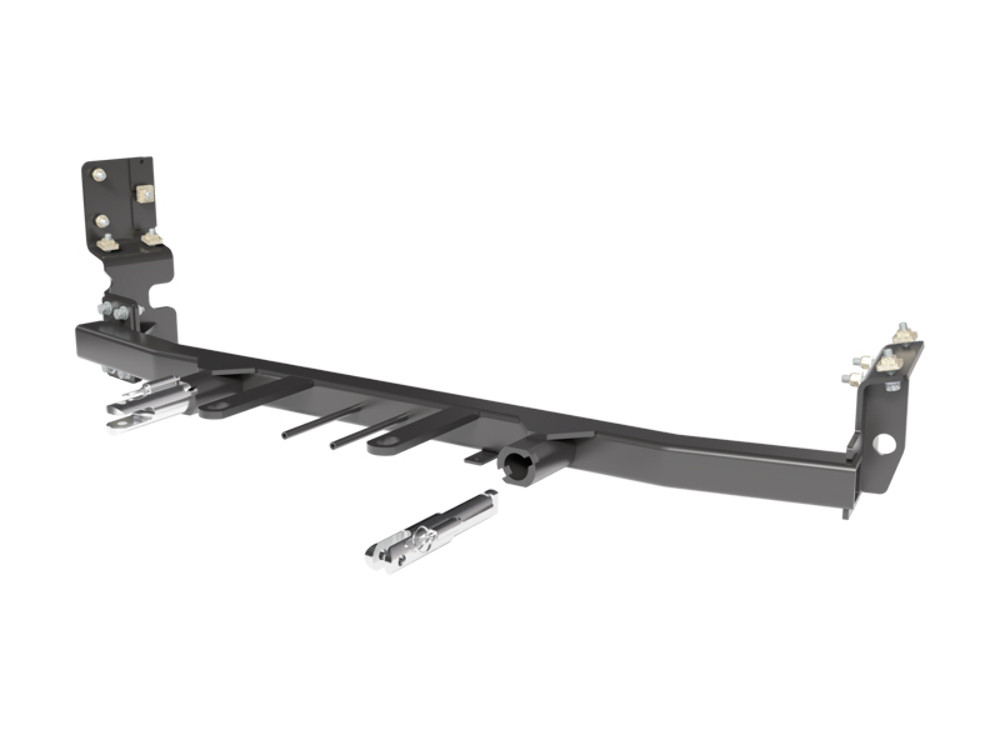

The Blue Ox BX1735 Tow Bar Bracket - a reliable and robust solution for towing needs. Constructed from high-quality steel, this sturdy bracket offers the perfect blend of strength and durability. Its black powder coat finish not only enhances its aesthetic appeal but also provides an extra layer of protection against rust and corrosion. Designed with a bolt-on mounting type, this tow bar bracket ensures a secure and tight fit on your vehicle. The package includes all the necessary hardware, making the installation process a breeze. With Blue Ox, you can trust that you're getting a product that meets the highest standards of quality and performance.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | Chevrolet Blazer | Vehicles with RS, Adaptive Cruise Control and Shutters, Comes with Removable Attachment Tabs, Install Rating 4, Bumper/Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate For Select Adaptive Cruise Control/Sh BX1735 (Part #FDRWBX1735) is designed to fit the 2019-2026 Chevrolet Blazer.
The BlueOx Tow Bar Base Plate For Select Adaptive Cruise Control/Sh BX1735 (Part #FDRWBX1735) fits the following vehicles: 2019-2026 Chevrolet Blazer. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select Adaptive Cruise Control/Sh BX1735 (Part #FDRWBX1735) fits 2019-2026 Chevrolet Blazer models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate For Select Adaptive Cruise Control/Sh BX1735 (Part #FDRWBX1735) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX1735 is designed for 2019-2026 Chevy Blazer models without turbo engines only. It is compatible with RS, ACC (Adaptive Cruise Control), and Shutter-equipped models, but turbo versions are not supported.
Yes. The BX1735 is compatible with Chevy Blazer models equipped with Adaptive Cruise Control. However, the ACC bracket on the driver side will require trimming with a reciprocating saw to allow clearance for the baseplate. The manual specifies trimming approximately 1/4 inch or more from the back of the ACC bracket.
The BX1735 attachment tab height is 13.5 inches and the width is 20 inches.
Required tools include: large vise grip, 7MM socket, flat screwdriver, 10MM socket, utility knife, 15MM socket, reciprocating saw, 7/16" socket, torque wrench, 7/16" wrench, drill, 9/16" socket, Loctite Red, 3/8" drill bit, 9/16" wrench, and T15 Torx. A reciprocating saw is essential for trimming the ACC bracket and temperature sensor bracket.
No. The BX8848 Tail Light Wiring Kit is recommended for this vehicle but is not included. It must be ordered separately.
Yes. The fascia cover, fascia, and windshield washer fluid reservoir must be removed during installation and then reinstalled after the baseplate is mounted. The fascia cover is held by twelve push pins (six on each side), the fascia is secured by multiple Torx bolts, and the windshield washer fluid reservoir is held by four 10MM bolts on the driver side.
Yes. Drilling is required. The manual specifies using a 3/8" drill bit to drill nine holes total: two bottom holes on the passenger side, four holes on the driver side, and three holes on the passenger side. The end plates are used as templates for drilling locations.
The back of the Adaptive Cruise Control (ACC) bracket on the driver side must be trimmed using a reciprocating saw. The manual specifies trimming approximately 1/4 inch or more to allow clearance for the baseplate.
Yes. The plastic shroud must be removed during installation. It is held by three 10MM bolts on the underside and two 7MM bolts from above. After the baseplate is installed, the shroud is reinstalled with trimming as needed around the baseplate.
Yes. The temperature sensor bracket on the back side of the fascia must be cut using a reciprocating saw. The temperature sensor is then relocated and connected to the upper loom using two provided zip ties.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds. The manual emphasizes using Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 7MM Grade 8.8 bolts should be torqued to 16 foot-pounds, and 7MM Grade 10.9 bolts to 22 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 10MM Grade 8.8 bolts should be torqued to 31 foot-pounds, and 10MM Grade 10.9 bolts to 40 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 15MM bolts are not listed. The manual references 15MM socket in the tools required and Step 17 mentions removing two 15MM bolts from the bumper, but no torque specification is provided for 15MM fasteners. Refer to the General Information sheet or contact Blue Ox Technical Service at (402) 385-3051 for the correct torque value.
The manual does not provide detailed electrical wiring instructions in the installation steps. However, it notes that all electrical connections must be plugged in and accessories must be functioning properly before reinstalling the fascia. The BX8848 Tail Light Wiring Kit is recommended for this vehicle. Refer to the General Information sheet and the BX8848 kit instructions for complete electrical guidance.
The BX1735 baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and your specific GVWR.
Yes. Permanent baseplate safety cables are strongly recommended and are included with the BX1735 (part numbers 226-0049 for Class IV Safety Cables and 229-0512 for 1/2" Quicklinks). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are in addition to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
No. If the baseplate is involved in an accident, it must be replaced and cannot be reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. The fascia should be held as close to its original position as possible, and it must be marked and trimmed around the convenience links and attachment tabs before reinstallation.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use.
Yes. You should register your BX1735 baseplate online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX1735 has a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To be valid, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty is non-transferable.
The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust, or loss of use, time, inconvenience, or consequential damages. The warranty is also void if the baseplate is used beyond the vehicle's GVWR or if it is reused after an accident.
Yes, the BX1735 fits 2019-2026 Chevy Blazer models without turbo, including RS, ACC, and Shutter-equipped versions. Turbo models are not supported.
You will need a reciprocating saw, drill with 3/8" bit, torque wrench, T15 Torx, various sockets (7MM, 10MM, 15MM, 7/16", 9/16"), and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
Yes. You must drill nine 3/8" holes using the end plates as templates. You also need to trim the ACC bracket and temperature sensor bracket with a reciprocating saw, and trim the plastic shroud and fascia as needed.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening. Refer to the torque chart for other bolt grades and sizes.
Yes. Two Class IV Safety Cables and two 1/2" Quicklinks are included. They must be routed from the baseplate to the vehicle frame, away from hoses and wires, and are in addition to legally required towing vehicle safety cables.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your specific GVWR and towing capacity.
Before each towing trip, inspect the baseplate for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are torqued to specification with Loctite Red. Remove attachment tabs when not in use.
The fascia must be marked and trimmed around the convenience links and attachment tabs before reinstallation. Hold the fascia as close to its original position as possible and trim as needed. If trimming does not resolve the fit, verify that all baseplate bolts are torqued correctly and that the baseplate is positioned as high and as far forward as possible, as specified in the installation steps.
After the baseplate is installed, hold the plastic shroud in place, mark, and trim as needed around the baseplate before reinstalling. The shroud may require trimming to clear the baseplate and its mounting hardware.
Ensure you are using Loctite Red on all bolt threads before tightening. Tighten all bolts to the appropriate torque specification from the torque chart. Inspect all bolts before each towing trip and retighten if necessary. Failure to use Loctite Red and proper torque is a common cause of bolt loosening.
