The bracket is made from heavy-duty steel for superior strength and durability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

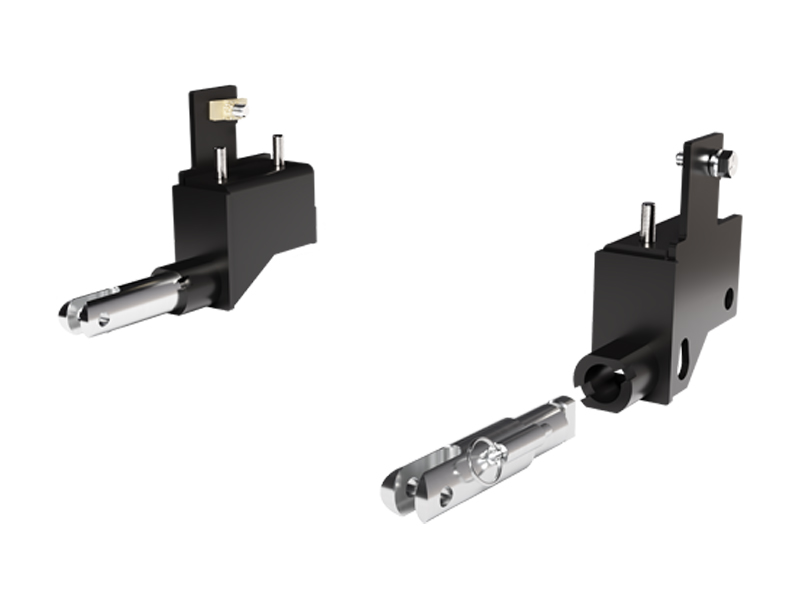

Enhance your towing capabilities with the Blue Ox BX1843 Tow Bar Bracket. With superior strength and durability, this heavy-duty steel bracket is designed to last. Its black powder coat finish not only gives it a sleek and stylish appearance but also adds an extra layer of protection against rust and corrosion. The bracket is custom fit for each specific towed vehicle, ensuring a perfect fit and easy installation every time. All necessary mounting hardware is included with your purchase, along with comprehensive installation instructions. This makes for a hassle-free, do-it-yourself installation process.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007, 2009 - 2010, 2013, 2015, 2018 | Nissan Frontier | Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Tow Hooks Must be Removed and Remain off the Vehicle After Installation Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs |
| 2005 - 2006, 2008, 2011 - 2012, 2014, 2016 - 2017, 2019 | Nissan Frontier | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
| 2005, 2011 | Nissan Pathfinder | Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Tow Hooks Must be Removed and Remain off the Vehicle After Installation Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs |
| 2005, 2008 - 2010, 2012 | Nissan Pathfinder | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PATHFINDER (Part #FDRWBX1843) is designed to fit the 2005-2019 Nissan Frontier.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PATHFINDER (Part #FDRWBX1843) fits the following vehicles: 2005-2019 Nissan Frontier; Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PATHFINDER (Part #FDRWBX1843) fits 2005-2019 Nissan Frontier models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PATHFINDER (Part #FDRWBX1843) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1843 baseplate is designed for 2005-19 Nissan Frontier with manual transmission only. If your Frontier has an automatic transmission, this baseplate is not compatible. Always verify your transmission type before purchasing.
The BX1843 is compatible with 2005 Nissan Pathfinder LE, SE, and XE models. If your Pathfinder is a different trim level or year outside the 2005, 2008-12 range, contact Blue Ox at (402) 385-3051 to confirm compatibility.
No. The BX1843 is designed for 2008-12 Nissan Pathfinder only. For 2013 and newer models, you will need a different baseplate. Contact Blue Ox at (402) 385-3051 or visit www.blueox.com to find the correct baseplate for your vehicle.
The BX1843 attachment tab height is 12-1/2 inches and the width is 33-1/2 inches. These dimensions are important for ensuring compatibility with your tow bar and hitch setup.
Required tools include: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 17/32" drill bit, 1-1/4" hole saw, 10MM socket, 17MM socket, 19MM socket, 7/16" socket, 3/4" socket, and 5/16" nut driver. You will also need Loctite Red for all bolt threads.
The kit includes: two BX1843 baseplates (driver and passenger side), two 1/2"-13 nut plates with 10" wire, two 1/2"-13 x 1-1/2" Grade 5 hex head bolts, two 1/2" lock washers, four 12MM-1.25 x 40MM Grade 8.8 hex head bolts, four 12MM lock washers, two 1/4"-20 x 3/4" Grade 5 hex head bolts, two 1/4" lock washers, two 1/4"-20 hex flange whiz lock nuts, two #10-32 x 1/2" round slot head screws, two #10 lock washers, two #10-32 hex nuts, two 4-way connector adapters, two electrical brackets, two #10-16 x 1" self-drilling screws, two attachment assemblies, one breakaway bracket, two class III safety cables, and two 3/8" quicklinks.
Blue Ox recommends that the BX1843 baseplate be installed by Blue Ox dealers who are familiar with the product and have the equipment and knowledge necessary for fit work. If you need a dealer, visit www.blueox.com or contact Blue Ox Technical Service at (402) 385-3051. Professional installation is strongly recommended due to the complexity of the removal and reinstallation of grille, fascia, bumper, and the drilling and trimming required.
The grille, fascia, and metal bumper must be removed during installation and reinstalled after the baseplate is mounted. The tow hook on the passenger's side will be removed and not reinstalled. All other removed components are reinstalled unless otherwise noted in the instructions.
Yes. Drilling is required. You must drill a 17/32" hole into the side of the frame rail on both sides (step 14) and a 1-1/4" hole saw hole into the driver's side frame for nut plate access (step 13). A 1-1/4" hole saw and 17/32" drill bit are required tools.
Yes. Trimming of the fascia and shroud is required. For older models, you must trim the lower fascia piece where the tow hooks come through on the driver's side, cutting out the lip and circle, then continuing to trim an additional 1-1/2" straight down and next to the opening. For newer models, trim the recessed area on the driver's side of the shroud to match the passenger side.
Yes. Using a vise grip, you must bend the frame support approximately 1/2" up from the bottom, back and forth until it snaps off on both the front and back supports on both sides. On 2011-12 models only, you must also snap off the area in front of the supports for additional baseplate clearance on both sides.
Yes. The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting. This is important for protecting the frame from corrosion after drilling and trimming.
The 1/2"-13 hex bolts are Grade 5 and should be torqued to 78 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The 12MM-1.25 hex bolts are Grade 8.8 and should be torqued to 54 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The 1/4"-20 hex bolts are Grade 5 and should be torqued to 10 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The manual states that a hole should be drilled according to the tail light wiring kit instructions. Contact your Blue Ox dealer or call (402) 385-3051 to determine if this kit is necessary for your specific installation.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. This is critical to avoid electrical issues after the fascia is reinstalled.
The BX1843 baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1843 kit includes two class III safety cables. These cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member and must not rub against hoses or moving parts. Safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables should be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines, as this could cause fluid leaks or electrical shorts. Additional mounting options may interfere with suggested mounting; in such cases, secure the cables to a solid piece of the frame as described in the General Information sheet.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure that Loctite Red has been used on all bolts and that they are tightened to the recommended torque specifications. This regular inspection is the owner's responsibility and is critical for safe towing.
Yes. Remove the attachment tabs when not in use. This helps protect the baseplate and attachment points when the vehicle is not being towed.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. Contact Blue Ox at (402) 385-3051 for replacement options.
Yes. It is crucial to register your baseplate online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. If a bolt is lost or needs replacement, you must use a replacement bolt of the same grade as the original. In most cases, this will be Grade 5. Using non-matching bolts could compromise the safety and integrity of the baseplate. Replacement parts may be ordered through your nearest Blue Ox dealer or distributor. Failing to use the correct grade bolts will void the manufacturer's warranty.
Handling of some cosmetic parts when installing the BX1843 may require the use of protective covers, rags, and specialty tools to prevent damage. Take care to protect the grille, fascia, and bumper during removal and reinstallation.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. These precautions are important to prevent injury during the installation process.
The BX1843 fits 2005-19 Nissan Frontier (manual transmission only), 2005 Pathfinder LE/SE/XE, and 2008-12 Pathfinder. Verify your exact year, model, and transmission before purchasing.
You need a torque wrench, drill with 17/32" and 1-1/4" hole saw bits, vise grip, sockets (10MM, 17MM, 19MM, 7/16", 3/4"), 5/16" nut driver, screwdrivers, tape measure, utility knife, and Loctite Red.
Yes. You must drill a 17/32" hole and a 1-1/4" hole saw hole into the frame, and trim the fascia and shroud. Frame supports must also be bent and snapped off.
Use the torque chart on page 1: Grade 5 bolts (1/2"-13 = 78 ft-lbs, 1/4"-20 = 10 ft-lbs); Grade 8.8 bolts (12MM = 54 ft-lbs). Always apply Loctite Red before tightening.
Yes. Two class III safety cables are included. They must be attached to the baseplate and frame rail and must not rub against hoses or moving parts. They supplement, not replace, legally required towing safety cables.
Yes. Blue Ox recommends installation by Blue Ox dealers familiar with the product and fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
Yes. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with Loctite Red applied.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If alignment issues occur, contact Blue Ox Technical Service at (402) 385-3051 for guidance on adjusting the baseplate fit.
If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. During installation, watch for oil cooler and air conditioner lines, electrical wires, and hoses to ensure the baseplate does not contact them.
Safety cables can cause problems if they rub against hoses or moving parts, or if they are mounted against wires, hoses, or brake lines. This could result in fluid leaks or electrical shorts. Ensure cables are routed away from all hoses, wires, and moving parts, and are secured to a solid piece of the frame as recommended in the installation instructions.
