Custom-made design: The Blue Ox BX1854 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a seamless fit and optimal functionality.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox BX1854 Tow Bar Bracket is a robust and reliable accessory, specifically designed for your towing needs. It's custom-made for each towed vehicle, ensuring a perfect fit and optimal performance. The bracket is constructed from high-quality steel, offering unmatched strength and durability. It's finished with a black powder coat, providing excellent resistance to rust and corrosion. The product comes with all necessary mounting hardware, along with comprehensive instructions for a hassle-free, DIY installation. This tow bar bracket is a bolt-on type, making it easy and quick to install.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 | Nissan Micra | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select NISSAN MICRA (Part #FDRWBX1854) fits 2016 Nissan Micra models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select NISSAN MICRA (Part #FDRWBX1854) is designed to fit the 2016 Nissan Micra.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select NISSAN MICRA (Part #FDRWBX1854) fits the following vehicles: 2016 Nissan Micra. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select NISSAN MICRA (Part #FDRWBX1854) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

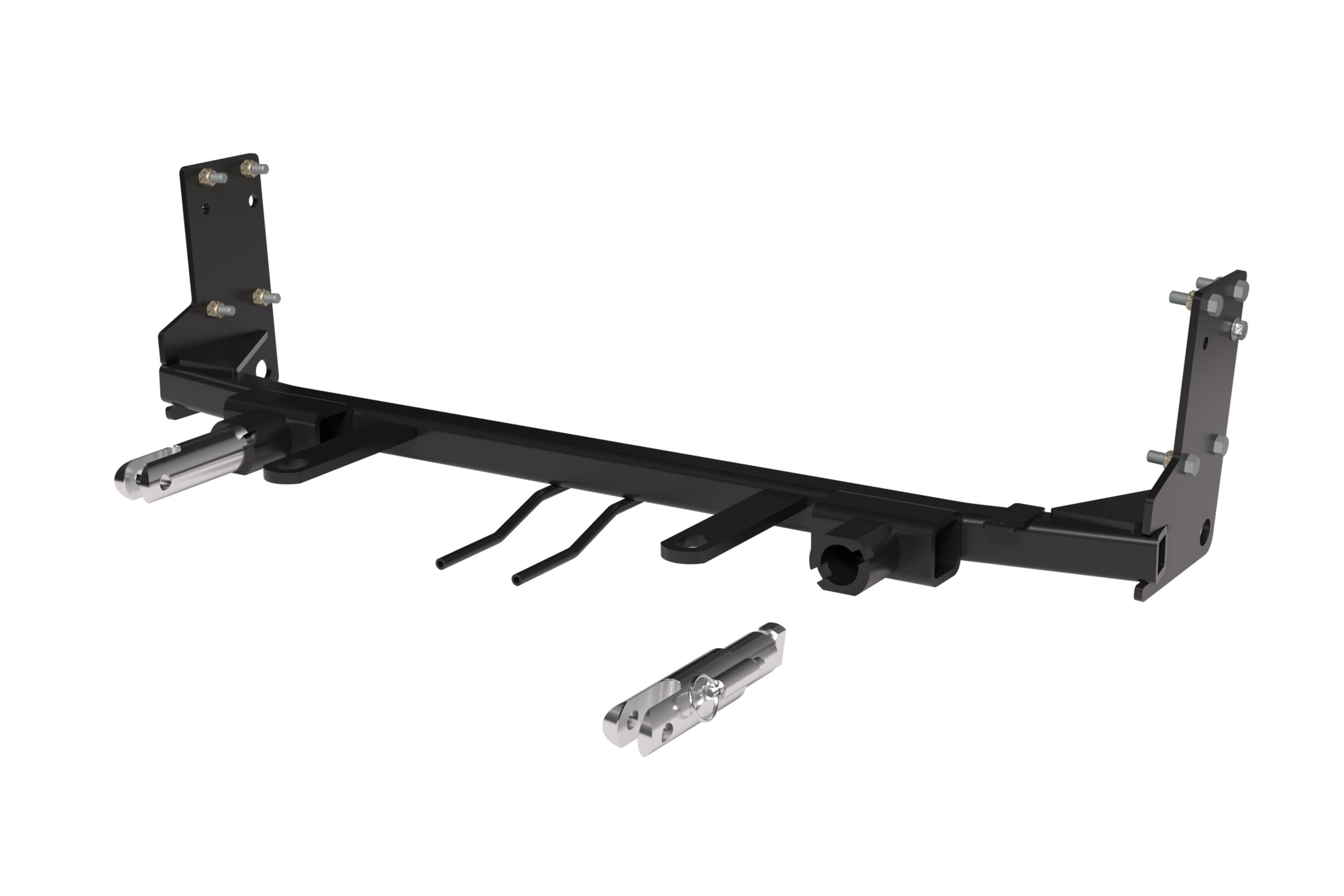

The BX1854 is a Blue Ox towing baseplate designed specifically for the 2016 Nissan Micra. It is a permanent frame-mounted attachment point for towing the vehicle behind a motorhome or RV using a tow bar system.
The BX1854 is designed for the 2016 Nissan Micra. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
Required tools include: large vise grip, flat screwdriver, Phillips screwdriver, utility knife, torque wrench, drill with 3/8" drill bit, 10MM socket, 13MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, T20 Torx, 5/16" nut driver, and Loctite Red. A reciprocating saw is also needed for cutting the driver side bracket.
The kit includes: one BX1854 baseplate (61-7858), two attachment tab assemblies (62-3468), one 1/4"-20 x 3/4" Grade 5 hex head bolt, two #10-32 1/2" round slotted head screws, eight 3/8"-16 x 1-1/4" Grade 5 hex head bolts, one 6MM-1" x 30MM Grade 8.8 hex head bolt, two #12-14 x 1" self-drilling screws, two #10-32 hex nuts, eight 3/8"-16 hex nylon insert lock nuts, one 1/4"-20 hex nylon nut, one 1/4" flat washer, two #10 lock washers, one 4-way bracket, two Class III safety cables (226-0046), two 3/8" quicklinks (229-0359), and two black cap plug receivers (290-0437). One existing 8MM x 1.25" flange bolt from the vehicle is also used.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The manual instructs to drill a hole according to the tail light wiring kit instructions, but does not explicitly state whether the kit is mandatory or optional. Contact your Blue Ox dealer or (402) 385-3051 for clarification on whether it is required for your specific application.
Blue Ox recommends that towing products be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. However, the manual does not explicitly state that professional installation is mandatory.
The fascia (front bumper cover) and windshield washer fluid reservoir must be removed and reinstalled after baseplate installation. The fascia is secured by five push pins at the top edge, one push pin in the wheel well on each side, four T20 Torx screws on the underside, and four push pins along the bottom center. The washer reservoir is secured by one Phillips screw at the top and three 10MM bolts.
Yes, drilling is required. Using a 3/8" drill bit, you must drill four holes: two on top and two on bottom of the baseplate mounting points on both sides of the vehicle. The baseplate is first aligned using existing holes, then the additional holes are drilled. The manual also requires drilling a hole for the tail light wiring kit according to that kit's instructions.
Yes, trimming and cutting are required. The driver side bracket must be cut using a reciprocating saw as indicated in the installation instructions (step 12). Additionally, the fascia must be marked and trimmed to accommodate the attachment tabs and convenience links before reinstallation (step 16). The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting.
The drilling of four holes in the frame is permanent. The cutting of the driver side bracket with a reciprocating saw is permanent. The trimming of the fascia for the attachment tabs and convenience links is permanent. These modifications cannot be easily reversed without professional welding or replacement of components.
Torque specifications depend on bolt grade and size. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs. For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs. For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs. All bolts must be tightened with Loctite Red applied to the threads.
The attachment tab height is 15 inches and the attachment tab width is 23 inches.
The manual states that the baseplate is computer tested to your vehicle's GVWR and that exceeding this weight will void the manufacturer's warranty. However, the specific GVWR rating is not provided in the installation instructions. Refer to your vehicle owner's manual for the GVWR specification.
The manual references a 4-pin connector and 6-pin connector, and a breakaway switch in the parts diagram. The BX8869 Tail Light Wiring Kit is recommended and requires drilling a hole according to that kit's instructions. The manual emphasizes ensuring all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. Specific wiring details are not provided in the baseplate installation instructions; refer to the tail light wiring kit instructions for electrical connection details.
Two Class III safety cables (part number 226-0046) are included. These are permanent baseplate safety cables that must be attached to the baseplate and secured to the vehicle frame. The cables are strongly recommended and must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. The cables must not be mounted against wires, hoses, or brake lines.
The safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables should be attached to the provided convenience link on the baseplate. The recommended installation shows cables on the inside of the frame support. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
If the baseplate is in an accident, it must be replaced and not reused. Do not use the baseplate if it is damaged or missing parts. An accident can cause unseen damage, and using it again could result in more damage or serious injury. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications with Loctite Red applied. The owner is responsible for inspecting all towing equipment before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut edges of the frame to prevent rusting. The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use if applicable. Register your product at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty registration must be completed within 30 days of purchase. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable and does not cover consequential damages such as loss of use, inconvenience, or transportation costs.
Yes, the BX1854 is designed specifically for the 2016 Nissan Micra. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
Yes. You must drill four holes (two on top, two on bottom) using a 3/8" drill bit on both sides of the vehicle. You must also drill a hole for the tail light wiring kit. The driver side bracket must be cut with a reciprocating saw, and the fascia must be trimmed for the attachment tabs.
Essential tools include: torque wrench, drill with 3/8" bit, reciprocating saw, 10MM/13MM/7/16"/9/16" sockets and wrenches, T20 Torx, 5/16" nut driver, large vise grip, screwdrivers, utility knife, and Loctite Red.
The fascia (front bumper cover) and windshield washer fluid reservoir must be removed. The fascia is held by five push pins at the top, one push pin per wheel well, four T20 Torx screws on the underside, and four push pins at the bottom center. The washer reservoir is held by one Phillips screw and three 10MM bolts.
33 foot-pounds for Grade 5 bolts. For Grade 8 bolts, use 47 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
Yes, two Class III safety cables are included and are strongly recommended. They must be attached to the baseplate and secured to the vehicle frame on both sides. They must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. Verify all bolts are tightened to the correct torque specifications with Loctite Red applied. Inspect for cracked welds, missing parts, and loose bolts.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox Technical Service at (402) 385-3051 before proceeding. Do not force the baseplate into position.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. If connections are not working, verify that the washer reservoir connector is properly reconnected and that all wiring from the tail light wiring kit is correctly installed according to that kit's instructions. If problems persist, contact Blue Ox Technical Service at (402) 385-3051.
Ensure Loctite Red is applied to all bolt threads before tightening. Tighten all bolts according to the torque chart provided. The manual emphasizes using a sufficient amount of Loctite Red on all bolt threads. If bolts continue to loosen, verify that the correct torque specification for the bolt grade and size is being used, and reapply Loctite Red.
