Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2004 Nissan Frontier
Confirmed to Fit
2003 - 2004 Nissan Frontier
Confirmed to Fit
2000, 2002 - 2004 Nissan Xterra
Confirmed to Fit
2001 Nissan Xterra
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

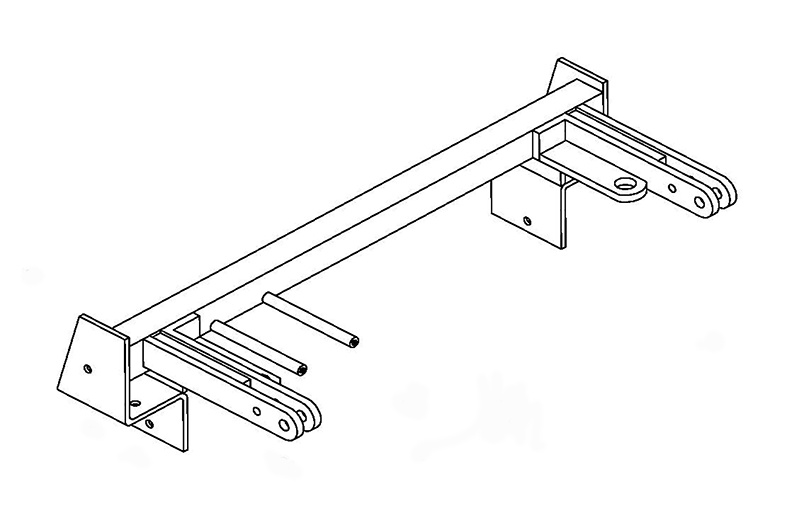

Custom-designed fit: Each Blue Ox BX1825 Tow Bar Bracket is specifically designed for each towed vehicle to ensure a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Get the most out of your towing experience with the Blue Ox BX1825 Tow Bar Bracket. This high-quality, durable bracket is meticulously designed for each specific towed vehicle, ensuring a perfect fit and optimized performance. It's made with heavy-duty steel and finished in a resilient black powder coat, providing the strength and durability needed for all your towing needs. This Blue Ox bracket is a bolt-on type, meaning installation is straightforward and hassle-free. The package comes complete with all the necessary hardware and easy-to-follow instructions for a do-it-yourself installation. Enhance your towing capabilities with the robust and reliable Blue Ox BX1825 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2004 | Nissan Frontier | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required |
| 2003 - 2004 | Nissan Frontier | Minor Drilling Required Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Standard Attachment Tabs |
| 2000, 2002 - 2004 | Nissan Xterra | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required |
| 2001 | Nissan Xterra | Minor Drilling Required Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Standard Attachment Tabs |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN XTERRA (Part #FDRWBX1825) fits 2001-2004 Nissan Frontier models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN XTERRA (Part #FDRWBX1825) is designed to fit the 2001-2004 Nissan Frontier.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN XTERRA (Part #FDRWBX1825) fits the following vehicles: 2001-2004 Nissan Frontier; 2000-2004 Nissan Xterra. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN XTERRA (Part #FDRWBX1825) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1825 baseplate fits 2001-04 Nissan Frontier models with both 2WD and 4WD drivetrains. If your Frontier is a 2000 model or earlier, or 2005 or later, this baseplate is not compatible. Confirm your model year and drivetrain before purchasing.
The BX1825 baseplate fits 2000-04 Nissan XTerra models equipped with the V-6 engine. If your XTerra has a different engine or is outside the 2000-04 model years, this baseplate is not compatible.
You will need: 10MM wrench, 10MM socket, 12MM wrench, 12MM socket, Phillips screwdriver, small pry bar, 3/8" drill bit, 1" hole saw, and Loctite Red. A drill and vise grips are also necessary for installation.
The kit includes: one weldment baseplate (61-5449), six 3/8" wire nuts (61-4902), eight 3/8-16 x 1 1/4" hex bolts Grade 5 (201-0368), two 3/8" hex nuts (202-0003), eight 3/8" lock washers (203-0010), two #12-14 x 1" self-drilling screws (201-0979), two 4-way connector adapters (101-5822), two #10-32 x 1/2" screws (201-0192), two #10-32 hex nuts (202-0047), and two #10 lock washers (203-0054).
Six 13/32" holes must be drilled for baseplate installation. Some models may also require a 1" hole to be drilled into the frame end cap using a 1" hole saw if an end cap is welded to the frame.
Yes. Six 13/32" holes must be drilled into the frame. Additionally, some models have an end cap welded to the frame that requires a 1" hole to be drilled using a 1" hole saw. The manual states that some models may not have existing holes in the top of the frame, requiring all holes to be drilled using the baseplate as a template.
Yes. The bumper must be removed to access the frame for baseplate installation. Step 1 requires removing the bolt holding the rod support to the bumper ends, removing push pins from the bumper bottom, and removing bolts that fasten the bumper to the frame and brackets. The bumper is then reinstalled in Step 5 after the baseplate is bolted to the frame.
On 2000 models only, a plastic molded guard located directly behind the bumper is permanently removed and not replaced. The installer must give this removed piece to the vehicle owner. This step does not apply to 2001-04 models.

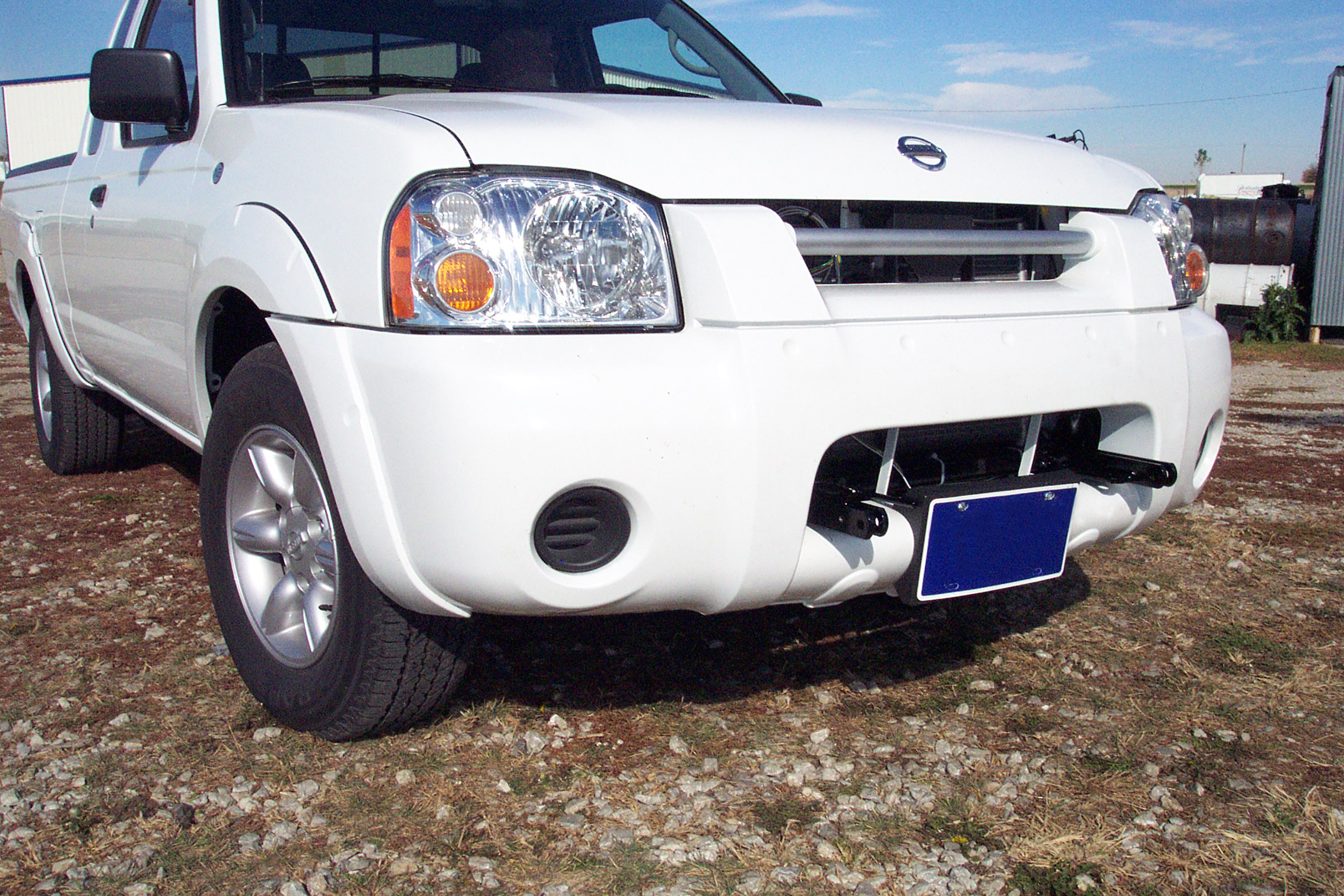

The attachment tabs extend through the grill opening four inches.
Inside the frame is a piece of metal obstructing the top back holes. A screwdriver must be used to push this metal back so a bolt can be inserted. On the front of each frame, a piece of metal must be pried open to create a gap large enough for the wire nuts to be inserted.
The manual requires using Loctite Red on all bolts before tightening and states that all bolts must be tightened according to a torque chart in the General Instruction sheet. However, the specific torque values are not provided in this installation manual. Consult the separate General Instruction sheet or contact Blue Ox for the exact torque specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their function is to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member. However, they are not a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They must not be mounted against wires, hoses, or brake lines. The manual references illustrations showing possible recommended arrangements, but does not provide detailed routing instructions in this document.
The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses, or brake lines.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite Red. This is the owner's responsibility.
Yes. Loctite Red must be used on all bolts before tightening. The bolts must then be tightened to the recommended specifications. This applies both during initial installation and during pre-towing inspections.
Yes. Blue Ox strongly recommends registering your product online at www.blueox.com. Registration is crucial so you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes. The attachment tabs may be removed when not in use, if applicable to your model.
BX1825 fits 2001-04 Nissan Frontier (2WD/4WD) and 2000-04 Nissan XTerra (V-6 only). Confirm your exact model year and engine before purchasing.
Yes. Six 13/32" holes must be drilled into the frame. Some models with welded end caps also require a 1" hole drilled using a 1" hole saw.
Required tools: 10MM and 12MM wrenches and sockets, Phillips screwdriver, small pry bar, 3/8" drill bit, 1" hole saw, vise grips, drill, and Loctite Red.
Yes. The bumper must be removed to access the frame for baseplate installation and then reinstalled after the baseplate is bolted to the frame.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to recommended specifications using Loctite Red.
Permanent baseplate safety cables are strongly recommended to prevent the towed vehicle from breaking loose if the baseplate connection fails. They are not a replacement for legally required safety cables between vehicles.
