Custom-designed for each specific towed vehicle, ensuring perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
From the renowned automotive brand Blue Ox, the BX2691 Tow Bar Bracket is a high-standard, robust solution designed specifically for your towed vehicle. This top-of-the-line product, made from superior steel material, is built to last and ensure the utmost security. The black powder coat finish not only gives the bracket a sleek look but also adds an extra layer of protection against corrosion and wear. The product is designed for bolt-on mounting, simplifying the installation process. With included mounting hardware and comprehensive instructions, the BX2691 Tow Bar Bracket by Blue Ox empowers you to complete the installation yourself, saving both time and money.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2022 | Ford Escape | No Hybrid Plug: in Vehicles With Adaptive Cruise Control & Shutters Comes with Removable Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

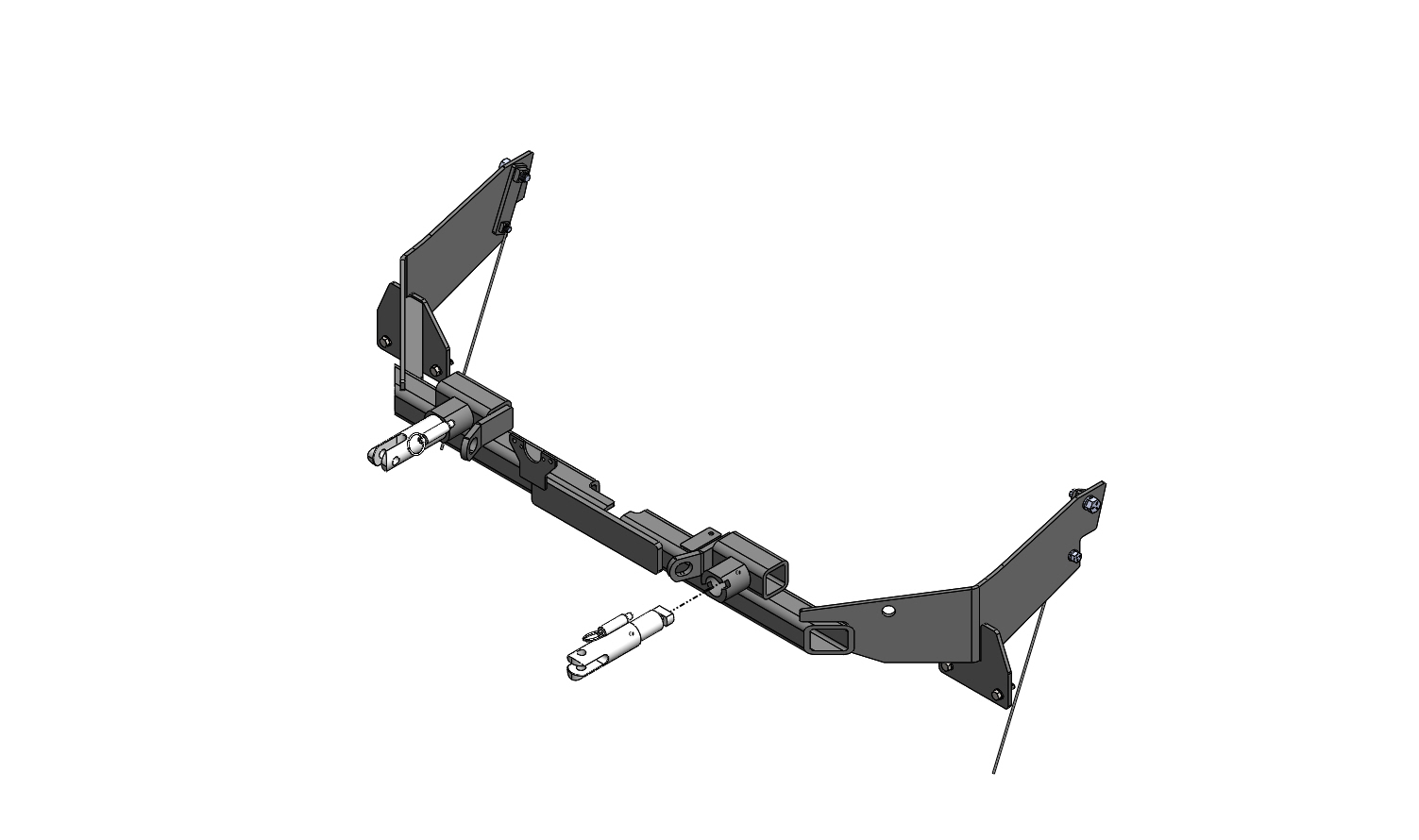

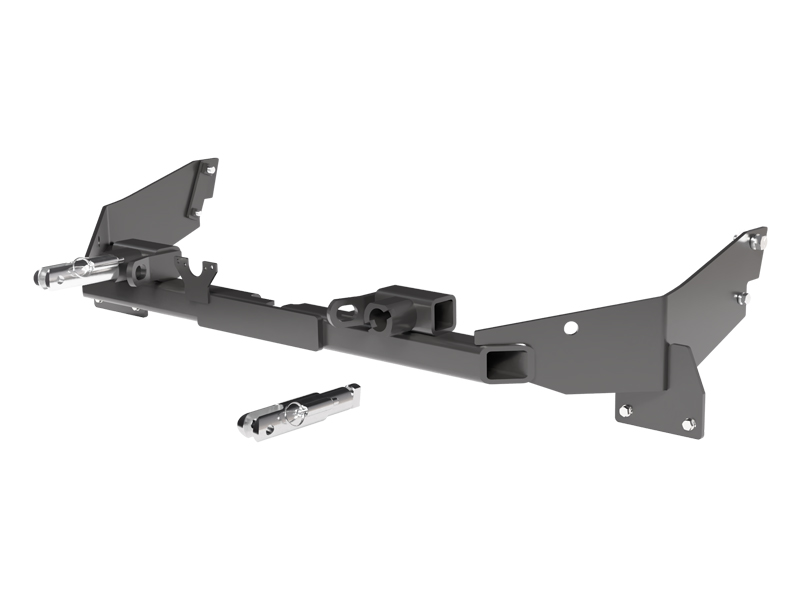

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCAPE HYBIRD (Part #FDRWBX2691) fits 2020-2022 Ford Escape models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCAPE HYBIRD (Part #FDRWBX2691) is designed to fit the 2020-2022 Ford Escape.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCAPE HYBIRD (Part #FDRWBX2691) fits the following vehicles: 2020-2022 Ford Escape. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCAPE HYBIRD (Part #FDRWBX2691) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2691 baseplate is designed for 2020-22 Ford Escape Hybrid vehicles with no plug-in hybrid option and equipped with Adaptive Cruise Control and Shutters. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
The attachment tab height is 15 inches and the attachment tab width is 20 inches.
Required tools include: flat screwdriver, utility knife, torque wrench, drill, pliers, Loctite Red, 3/8-inch drill bit, 5/16-inch nut driver, 7MM socket, 10MM socket, 13MM socket, 9/16-inch socket, 9/16-inch wrench, 3/4-inch socket, and T30 Torx. A power drill and reciprocating saw may be used, but be aware of torque dangers and drill bit length when using power tools, and be aware of objects behind the cutting surface when using a reciprocating saw.
The kit includes: 4 existing 8MM bolts, 4 existing 8MM washers, 2 nut plates (61-8344), 1 baseplate (61-8554), 2 attachment tab assemblies (62-3468), 1 x 1/4-20 x 3/4-inch hex head bolt Grade 5, 2 x 1/2-13 x 1-1/2-inch hex head bolts Grade 5, 2 x 1/4-20 x 1-inch hex head bolts Grade 5, 2 x #10-32 1/2-inch round slotted head screws, 2 x 3/8-16 x 1-1/4-inch hex head bolts Grade 5, 2 x #10-32 hex nuts, 3 x 1/4-20 hex nylon nuts, 2 x 1/4-inch flat washers, 2 x 3/8-inch lock washers, 2 x 1/2-inch lock washers, 2 x #10 lock washers, 2 class III safety cables, 2 x 3/8-inch quicklinks, 2 x 8-inch nylon cable ties, and 2 black cap plug receivers.
Blue Ox recommends that towing products and accessories be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The fascia and windshield washer fluid reservoir must be removed for baseplate installation and then reinstalled after the baseplate is installed. Additionally, the wheel well trim, wheel well liner, foam pieces, and belly pan must be removed or loosened during installation. All removed items should be placed on a flat, sturdy surface and reinstalled unless otherwise noted.
Yes, drilling is required. You must drill out the bottom hole on the side of the frame using a 3/8-inch drill bit and the baseplate as a guide on both sides of the vehicle. When using a power drill, be aware of the dangers of torque and drill bit length.
Trimming and cutting required includes: using a utility knife to trim the plastic shroud on both sides of the vehicle; notching plastic on the passenger side for baseplate clearance; notching plastic on the driver side for baseplate clearance; unsnapping and cutting a plastic piece from the back of the fascia; removing two horizontal slats between white marks on the grille to allow room for removable tabs and convenience links; and trimming indicated areas on the back of the fascia on both sides for baseplate clearance (cutting only through the first layer of plastic, not all the way through the fascia). When cutting, be aware of objects behind the cutting surface.
Yes, bending is required. Using pliers, you must bend back the metal piece on the side of the frame to create an access hole for the nut plate on both sides of the vehicle. Additionally, if the black box touches the baseplate bolt head after reinstallation, the back plate must be bent slightly to create clearance.
Two people may be needed to slide the baseplate onto the vehicle, as noted in the installation instructions.
Loctite Red must be used on all bolt threads before tightening. All bolts must be tightened according to the torque chart provided in the manual. For metric bolts: 8MM Grade 5 = 16 ft-lbs, 10MM Grade 5 = 31 ft-lbs, 13MM Grade 5 = 54 ft-lbs. For inch bolts: 1/4-20 Grade 5 = 10 ft-lbs, 3/8-16 Grade 5 = 33 ft-lbs, 1/2-13 Grade 5 = 78 ft-lbs. Specific torque values for the 1/2-13 and 3/8-16 bolts used in nut plate installation are not separately specified beyond the general torque chart.
Yes, a charge line from the RV to the car's battery is needed for this vehicle to prevent draining the car battery while towing.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not specify whether it is required.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must have an adequate weight rating for the towing system. The cables must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables must be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The attachment tabs should be removed when not in use.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut edges of the frame with good quality paint to prevent rusting. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these requirements will void the manufacturer's warranty.
Yes, the BX2691 fits 2020-22 Ford Escape Hybrid (non-plug-in) with Adaptive Cruise Control and Shutters. If your vehicle front looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
You need: flat screwdriver, utility knife, torque wrench, drill, pliers, Loctite Red, 3/8-inch drill bit, 5/16-inch nut driver, 7MM, 10MM, 13MM, 9/16-inch, and 3/4-inch sockets, 9/16-inch wrench, and T30 Torx.
Yes. You must drill a 3/8-inch hole in the frame on both sides using the baseplate as a guide. Trimming and bending of plastic and frame components are also required.
Yes. The fascia and windshield washer fluid reservoir must be removed for installation and then reinstalled after the baseplate is installed.
Yes. A charge line from the RV to the car's battery is needed to prevent draining the car battery while towing.
Use Loctite Red on all bolt threads. For 8MM bolts: 16 ft-lbs. For 1/4-20 bolts: 10 ft-lbs. For 3/8-16 bolts: 33 ft-lbs. For 1/2-13 bolts: 78 ft-lbs. Refer to the torque chart in the manual for other sizes.
Permanent baseplate safety cables are strongly recommended and must be used in conjunction with legally required safety cables. They must not rub against hoses or moving parts.
Verify all electrical connections are plugged in and accessories function properly before reinstalling the fascia. Inspect for cracked welds, missing or worn parts, and loose bolts before each towing trip.
If the black box touches the baseplate bolt head, bend the back plate slightly to create clearance.
After baseplate installation is complete, there may be limited clearance between the baseplate and the fascia during reinstallation. The manual notes this as a normal condition but does not provide a specific corrective action. Ensure that the fascia is properly aligned and that all trimming steps have been completed as specified.
