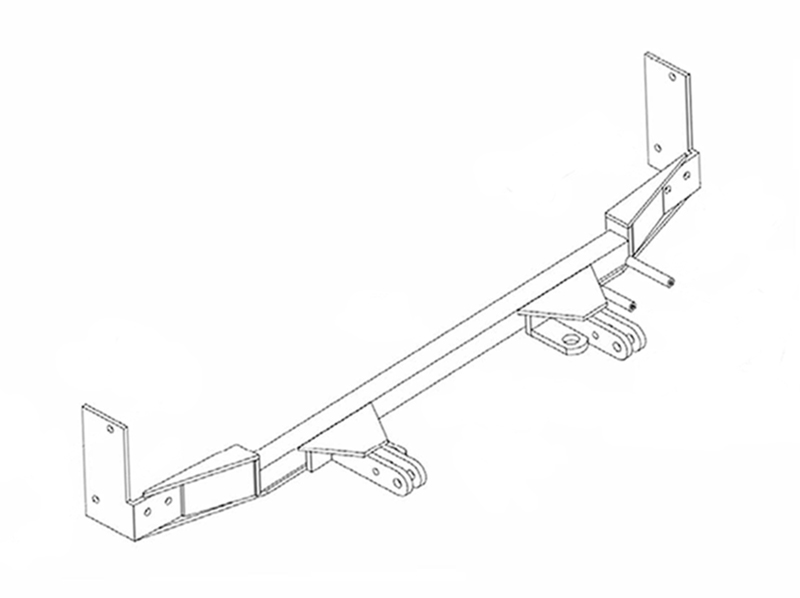

Custom Designed: Each Blue Ox BX1950 Tow Bar Bracket is meticulously designed to fit your specific vehicle, providing an excellent fit and reliable performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Tailored for your specific vehicle, the Blue Ox BX1950 Tow Bar Bracket is a sturdy, reliable choice for your towing needs. This high-quality base plate is made from robust steel and features a resilient black powder coat finish, ensuring durability in even the toughest conditions. The bracket is designed for easy, bolt-on installation, with all necessary hardware included. Whether you're a seasoned mechanic or a do-it-yourself enthusiast, the Blue Ox BX1950 Tow Bar Bracket provides all the instructions and resources you need for a hassle-free set-up. Enhance your towing capability with the Blue Ox BX1950 Tow Bar Bracket - your reliable partner for safe and secure towing.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2004 | Chrysler 300M | Comes with Standard Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX1950 is designed for 2002-03 Chrysler 300M vehicles. The attachment tabs are 18 inches center to center with a height of 13½ inches. Note that dimensional variations between otherwise identical cars can be considerable, so you may need to file a hole slightly to allow a bolt to clear during installation.
Yes, the BX8869 is available for the vehicle and is designed to work with the BX1950. It is located on the driver's side tail light assembly.
The following tools are required: 7MM socket, 10MM socket, 9/16" socket, 13/32" drill bit, side cutters, vise grips, plastic pop rivet gun, and Loctite Blue. A drill is also needed to drill the frame holes.
The BX1950 includes: 8× 3/8-16 x 1¼" Grade 5 bolts (part 201-0368), 8× 3/8 lock washers (203-0010), 8× 3/8-16 hex nuts (202-0003), 2× #12-14 x 1" self-drilling screws (201-0979), 2× #10-32 x ½" slot round-head screws (201-0192), 2× #10 lock washers (203-0054), 2× #10-32 hex nuts (202-0047), 2× 4-way connector adapters (101-5822), and 4× 6.3 plastic rivets (229-0536).
Yes, the front fascia and headlights must be removed for baseplate installation. The removal process involves removing three push pins from the top of the fascia, two metric bolts from the headlight assembly, two pop rivets in the wheel well, two metric bolts and nuts from the wheel well, and seven push pins from the bottom of the fascia.
Yes, the bracket on the driver's side of the radiator just under the metal bumper must be removed using a 10MM socket. The bolt is replaced, but the bracket will not be reinstalled.
Yes, drilling is required. You must drill holes in the vehicle's frame using a 13/32" drill bit. The baseplate is aligned with the ribbing on the top side of the frame, and upper holes are drilled first, followed by remaining lower holes. Both sides of the vehicle require drilling.
You must measure 3 inches down from the top of the air dam and cut a corner out to relieve the area for the baseplate on both sides of the vehicle. This is a permanent modification required for proper baseplate fitment.
Trimming of the lower grille is optional. After reinstalling the fascia and headlight assemblies, you hold the fascia in place, mark areas that need to be trimmed, and trim the lower opening accordingly. Alternatively, you can optionally remove the lower grille from the back side of the fascia.
The installation sequence is: (1) remove fascia and headlights, (2) remove radiator bracket, (3) cut corner from air dam, (4) align and clamp baseplate to frame ribbing, (5) drill upper holes with 13/32" bit, (6) drill remaining lower holes, (7) insert bolts and tighten with Loctite Blue, (8) reinstall fascia and headlights, (9) trim lower opening as needed, (10) install tow bar and safety cables per their instructions.
The top of the baseplate is aligned even with the ribbing on the top side of the frame. Once aligned, the baseplate is clamped in place with vise grips on both sides before drilling the upper holes.
The baseplate is secured using 3/8-16 x 1¼" Grade 5 bolts (part 201-0368) with 3/8 lock washers (203-0010) and 3/8-16 hex nuts (202-0003). Eight of each fastener are included. All bolts must be treated with Loctite Blue before tightening.
Yes, Loctite Blue must be used on all bolts before tightening during installation. After installation, the manual recommends using Loctite Red on all bolts and tightening to recommended specifications before each towing trip.
Yes, when reinstalling the headlight assemblies after baseplate installation, all electrical terminals must be plugged in. The baseplate kit includes 2× 4-way connector adapters (part 101-5822) for compatibility with towing equipment.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. However, permanent baseplate safety cables are not a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not mount permanent baseplate safety cables against wires, hoses, or brake lines. Improper installation against these components could cause fluid leaks or electrical shorts some time after baseplate installation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are treated with Loctite Red and tightened to recommended specifications.
After installation, verify that the fascia and headlight assemblies are properly reinstalled with all electrical terminals plugged in. Ensure all baseplate bolts are tightened with Loctite Blue. Check that the lower opening has been trimmed as needed for proper fitment. Verify that permanent safety cables are installed and routed away from wires, hoses, and brake lines.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or nontypical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from your Blue Ox dealer or distributor.
Yes, it is crucial to register your product online at www.blueox.com. Registration ensures you are alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes, remove the attachment tabs when not in use, if applicable.
The BX1950 is designed for 2002-03 Chrysler 300M vehicles.
Yes, you must drill holes in the frame using a 13/32" drill bit on both sides. You must also cut a 3" corner from the top of the air dam on both sides.
You need: 7MM and 10MM sockets, 9/16" socket, 13/32" drill bit, side cutters, vise grips, plastic pop rivet gun, and Loctite Blue.
Yes, the front fascia and headlights must be removed. They are reinstalled after the baseplate is secured.
Eight 3/8-16 x 1¼" Grade 5 bolts with lock washers and hex nuts. All bolts must be treated with Loctite Blue before tightening.
Permanent baseplate safety cables are strongly recommended. They must be routed away from wires, hoses, and brake lines and are not a replacement for legally required towing safety cables.
File the hole slightly to allow the bolt to clear. Dimensional variations between otherwise identical vehicles can be considerable, and minor filing may be necessary for proper fitment.
