Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2003 - 2005 Dodge Ram 1500
Confirmed to Fit
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
On Sale Today
Original price was $699.99. Current price is $609.00.You save $90.99 (13%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
{'feature_1': 'Custom Design: Specifically designed for each individual towed vehicle, ensuring a perfect fit and seamless integration.
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Material: Steel
Color: Black
Finish: Powder Coat

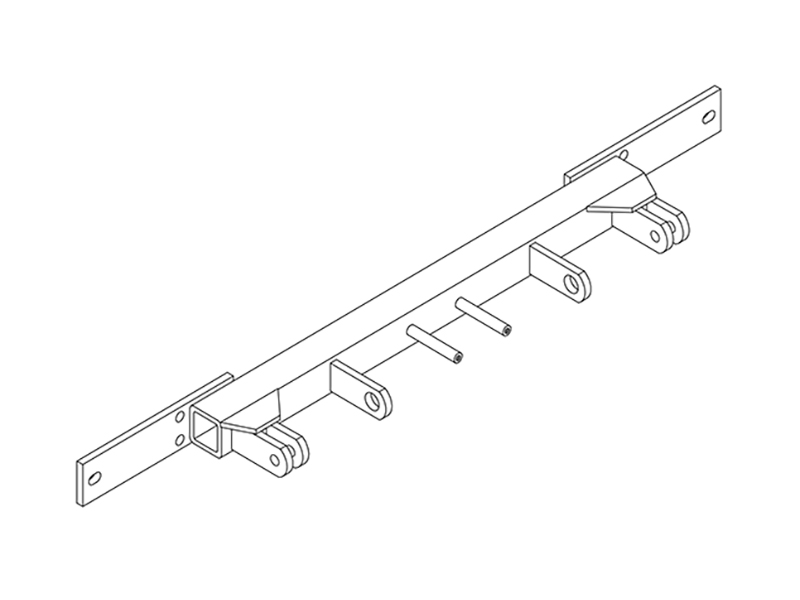

The Blue Ox BX1957 Tow Bar Bracket is a highly durable, custom-designed base plate for your towed vehicle. Crafted from robust steel and finished in sleek black powder coat, this tow bar bracket offers top-tier strength and durability. The bolt-on mounting type makes installation easy, and with all necessary hardware included, you'll be set up and ready to go in no time. Whether you're an RV enthusiast, a weekend adventurer, or a professional hauler, Blue Ox BX1957 Tow Bar Bracket ensures a safe, secure, and effortless towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2005 | Dodge Ram 1500 | 2WD/4WD Also Sport Comes with Standard Attachment Tabs Install Rating 1 Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
Yes, the BX1957 is designed for the 2003 Dodge Ram 1500. Installation differs depending on whether your truck has factory tow hooks. Vehicles with tow hooks use existing bolts and nutplates; vehicles without tow hooks require removal of a plastic trim piece and use of 1/2-13 x 1 1/2 hex bolts. No drilling or fascia trimming is necessary.
The kit includes the baseplate weldment (61-5887), six 1/2-13 x 1 1/2 hex bolts (Grade 5, zinc-plated), six 1/2-13 hex nuts, six 1/2 lock washers, two 4-way connector adapters, fasteners for the adapters, two 36-inch Class IV baseplate safety cables, and four 1/2-inch quicklinks. The tow bar and its safety cables are not included and must be ordered separately.
You will need a 15MM socket, a 3/4-inch socket, and Loctite Red. A file may also be useful, as the manual notes that it may be necessary to file a hole slightly to allow a bolt to clear, depending on dimensional variations between vehicles.
No. Drilling is not necessary. The baseplate uses existing holes in the frame. For vehicles with tow hooks, the existing tow hook bolt holes are used. For vehicles without tow hooks, the existing frame holes are used after removing the plastic trim piece.
No. No trimming of the fascia is needed. The baseplate is designed to fit without modification to the vehicle's front end.
1. Remove the six 15MM bolts that secure the tow hooks. 2. Apply Loctite Red to the existing metric bolts. 3. Fasten the baseplate to the truck using the existing bolts and nutplates. 4. Tighten and torque all bolts according to the chart on the General Instruction Sheet. 5. Install the tow bar and safety cables per their package instructions.
1. Remove the plastic trim piece from the front of the vehicle. 2. Apply Loctite Red to six 1/2-13 x 1 1/2 hex bolts. 3. Bolt the baseplate to the existing holes in the frame using the hex bolts, lockwashers, and hex nuts (items 2, 3, and 4 from the parts list). 4. Tighten and torque all bolts according to the chart on the General Instruction Sheet. 5. Install the tow bar and safety cables per their package instructions.
The attachment tabs are 24 inches center to center and have a height of 23 1/2 inches.
Torque specifications are provided on the General Instruction Sheet, which is not included in this installation manual. Contact your Blue Ox dealer or distributor for the torque chart, or visit www.blueox.com. All bolts must be treated with Loctite Red before tightening.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. If a bolt does not clear a hole, it may be necessary to file the hole slightly to allow proper alignment. This is a minor adjustment and does not constitute a major modification.
Permanent baseplate safety cables are strongly recommended. The kit includes two 36-inch Class IV safety cables. These cables must be connected from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and are not a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle.
The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual provides illustrations showing possible recommended arrangements. Do not mount the cables against wires, hoses, or brake lines, as this could cause fluid leaks or electrical shorts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are treated with Loctite Red and tightened to the recommended specifications. The permanent baseplate safety cables should remain installed as long as the baseplate is on the vehicle. Remove the attachment tabs when not in use (if applicable).
Do not substitute other devices if the tow bar pin and clip are lost. Order replacement parts through your nearest Blue Ox dealer or distributor to ensure safety and proper function.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or nontypical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Yes. Register your product online at www.blueox.com. Registration is crucial so you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes. The BX1957 is designed for the 2003 Dodge Ram 1500. Installation varies by whether your truck has factory tow hooks, but no drilling or fascia trimming is required.
You need a 15MM socket, a 3/4-inch socket, Loctite Red, and possibly a file for minor hole adjustments.
No. Drilling is not necessary. The baseplate uses existing holes in the frame.
No. No trimming of the fascia is needed.
Torque specifications are on the General Instruction Sheet (not included here). Contact your Blue Ox dealer for the torque chart. All bolts must be treated with Loctite Red.
Yes. Two 36-inch Class IV permanent baseplate safety cables are included and strongly recommended. They must be connected from the baseplate to the frame rail or cross member and not mounted against wires, hoses, or brake lines.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are treated with Loctite Red and tightened to specification.
