Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2011 Ford Ranger
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $699.99. Current price is $639.00.You save $60.99 (9%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

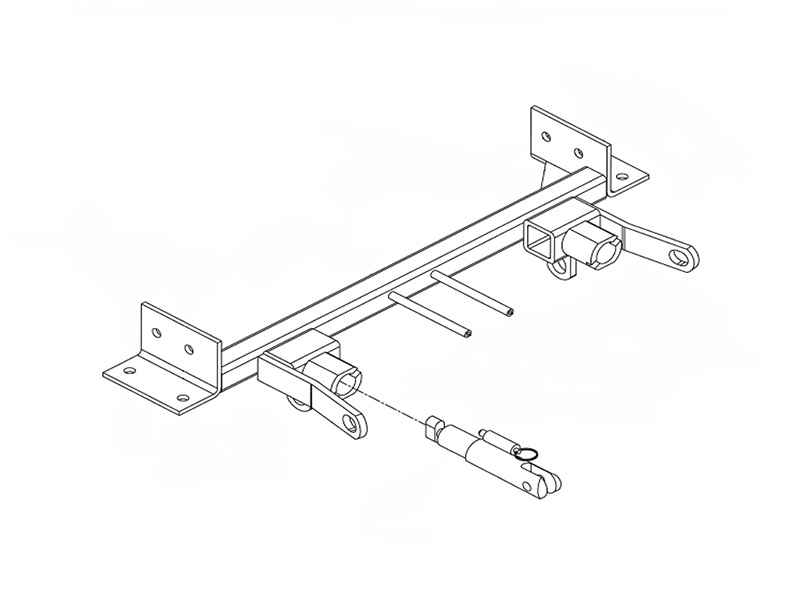

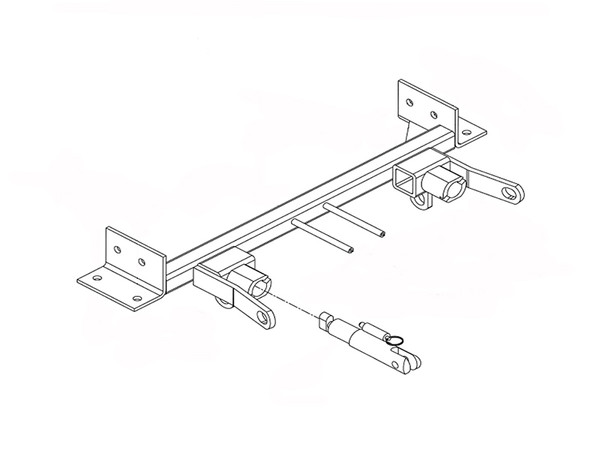

Custom Design: The BX2195 Tow Bar Bracket is tailored to fit each specific towed vehicle, ensuring a secure and precise fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2195 Tow Bar Bracket is a robust, custom-designed solution for your towing needs. Crafted from high-quality steel and finished with a durable black powder coat, this tow bar bracket is built to last and resist everyday wear and tear. The bolt-on mounting type ensures a secure fit for your towed vehicle, with all necessary hardware included for a hassle-free, DIY installation. With the Blue Ox BX2195, you can trust in a secure connection and smooth towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Ford Ranger | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of the Air Dam Tow Hooks Must be Removed and Remain off the Vehicle After Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BX2195 baseplate is designed for the 2007-11 Ford Ranger XLT 4WD and the 2011 Ford Ranger Edge 2WD. If your Ranger is a different model year, trim level, or drivetrain configuration, it may not fit. Contact Blue Ox Customer Care at (402) 385-3051 to confirm fitment for your specific vehicle.
No. The RangeFinderII, Adventurer, Acclaim, and Ambassador tow bars cannot be used with the BX2195 baseplate due to the design of the removable tabs. Motorhome mount tow bars are recommended for use with this baseplate. Adapters, except the BX8833 and BX88151, also cannot be used.
The Acclaim tow bar may be used with the BX2195 baseplate, but it will not fold and store on the front of the vehicle. Motorhome mount tow bars are the recommended choice for this baseplate.
Required tools are: 13MM socket, 15MM socket, 18MM socket, 3/4" socket, 3/8" socket, 17/32" drill bit, drill, flat screwdriver, hammer, vise grips, and Loctite RED. A power drill is acceptable but be aware of torque and drill bit length dangers.
The hardware kit includes: 8 pieces of 1/2-13 X 1 1/2" Hex Bolts Grade 5 (201-0051), 8 pieces of 1/2" Lock Washers (203-0012), 2 pieces of #12-14 x 1" Self Drilling Screws (201-0979), 2 pieces of #10-32 X 1/2" Slot Round Head Screws (201-0192), 2 pieces of #10 Lock Washers (203-0054), 2 pieces of #10-32 Hex Nuts (202-0047), 2 pieces of 4 Way Connector Adapters (101-5822), 2 pieces of Attachment Tab Assemblies (62-3468), 2 Cap Plugs (290-0437), 2 Quicklinks 3/8" (229-0359), and 2 Baseplate Safety Cables 36" Class III (226-0046).
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. The manual does not state whether it is required or optional. Contact Blue Ox at (402) 385-3051 to confirm whether it is necessary for your installation.
Yes. The front bumper must be removed. Using an 18MM socket, remove two hex nuts from underneath the vehicle on the backside of the bumper on both sides. Unplug the foglights if available. The bumper will be reinstalled after baseplate installation.
Yes. The belly pan must be removed. Using a 13MM socket, remove two bolts and one push pin (gray arrow) with a flat screwdriver from both sides. Set these aside for later reinstallation.
Yes. The tow hooks must be removed and will not be reinstalled. Place cardboard over the radiator to prevent bending fins. Using a 15MM socket, remove three bolts behind the tow hooks (shown in inset circle) on both sides.
Yes. The fascia and air dam must be removed for installation. They will be reinstalled after the baseplate installation is complete.
Yes. Two holes must be drilled using a 17/32" drill bit. While using the baseplate as a template, drill the two holes located inside the baseplate closest to the radiator on both sides. Additionally, drill the last hole on the end of the baseplate using the same 17/32" drill bit on both sides.
A 17/32" drill bit is required. This is used to drill holes in the frame for the nut plates.
Minor adjustments may be necessary to compensate for manufacturer tolerances. These may include filing a hole slightly, bending electrical rods, or bending end plates. If the hole in the frame end is not quite big enough to install the nut plate, use a hammer to widen the opening.
The manual provides a generic torque chart showing 1/2" Grade 5 bolts should be torqued to 78 foot-pounds and Grade 8 bolts to 119 foot-pounds. However, the specific torque value for the 1/2-13 X 1 1/2" Grade 5 bolts used in the BX2195 is referenced as being on page 3 of the Baseplate Towing General Instructions, which is not included in this document. Apply Loctite RED to all bolts before tightening and refer to the complete General Instructions for the exact specification.
Yes. Loctite RED must be applied to all bolts before tightening. This is a required step in the installation process.
The attachment tab height is 21" and the attachment tab width is 17".
Unplug the foglights if available before removing the front bumper.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Two 36" Class III safety cables are included with the BX2195. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not mount against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate (gray arrow). The recommended installation attaches the cables to the frame of the vehicle (white arrow). If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications.
Be sure that all electrical connections are plugged in properly and functioning before installing the fascia. After installation, remove the cardboard used to protect the radiator and reinstall the belly pan, bumper, bolts, and pushpin. The installation is then complete. Install the tow bar and safety cables according to the instructions provided in their packages.
Yes. Remove the attachment tabs when not in use if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions will void the manufacturer's warranty.
The warranty will be voided if: (1) you fail to follow or alter the installation instructions in either installation or required equipment, or (2) you tow behind a non-motorized vehicle.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
If the front of your vehicle looks different than shown in the manual, call Blue Ox Customer Care at (402) 385-3051 to confirm fitment and receive guidance.
The BX2195 is designed for 2007-11 Ford Ranger XLT 4WD and 2011 Ford Ranger Edge 2WD only. Contact Blue Ox at (402) 385-3051 to confirm fitment for your specific model.
You need: 13MM, 15MM, 18MM, 3/4", and 3/8" sockets; 17/32" drill bit; drill; flat screwdriver; hammer; vise grips; and Loctite RED.
You must remove the belly pan, front bumper, fascia, air dam, and tow hooks. All except the tow hooks will be reinstalled after installation.
Yes. Two 36" Class III permanent baseplate safety cables are included. They must be attached to the baseplate convenience link and frame, and must not contact wires, hoses, or brake lines.
Do not use the baseplate after an accident. It must be replaced, as accidents can cause unseen damage that could result in separation during towing.
