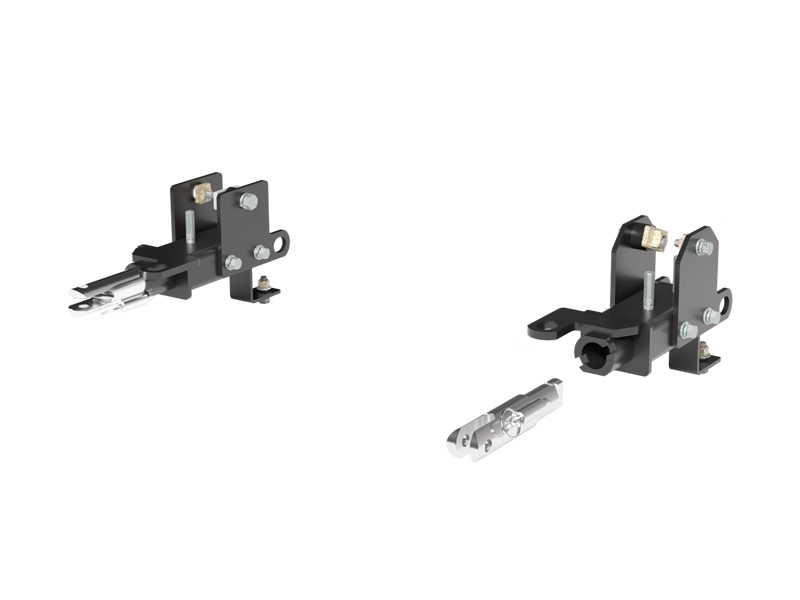

Custom Designed: The Blue Ox BX2689 Tow Bar Bracket is custom designed for each specific vehicle, ensuring a perfect fit and optimal towing performance.
Material: Steel
Finish: Powder Coat
Color: Black
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2689 Tow Bar Bracket is a superior-quality, custom-made towing solution designed to fit your specific vehicle. Built with robust steel and finished with a durable powder coat, this bracket promises longevity and optimum performance. The black color adds a touch of elegance to its sturdy build. The bolt-on mounting type ensures easy installation for any DIY enthusiast. With all necessary hardware included, you don't need to worry about finding compatible parts. This bracket is everything you need for a safe and secure towing setup.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Ford Ranger | Vehicles With Adaptive Cruise Control Removable Attachment Tabs Install Rating 3 Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Base Plate, Ford Ranger Xlt BX2689 (Part #FDRWBX2689) is designed to fit the 2019-2023 Ford Ranger.
The BlueOx Base Plate, Ford Ranger Xlt BX2689 (Part #FDRWBX2689) fits 2019-2023 Ford Ranger models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Base Plate, Ford Ranger Xlt BX2689 (Part #FDRWBX2689) fits the following vehicles: 2019-2023 Ford Ranger. Always verify your specific year, make, and model before ordering.
The BlueOx Base Plate, Ford Ranger Xlt BX2689 (Part #FDRWBX2689) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2689 is a tow baseplate manufactured by Blue Ox designed specifically for 2019–2023 Ford Ranger Pickup trucks, including models with Adaptive Cruise Control. It attaches to the frame of the vehicle to provide a connection point for a tow bar. The baseplate includes attachment tabs with a height of 17 inches and width of 31 inches.
The BX2689 is designed for 2019–2023 Ford Ranger Pickup trucks, including those with Adaptive Cruise Control. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If your vehicle's front looks different from the manual illustration, contact Blue Ox technical service at (402) 385-3051 before proceeding.
Yes. The BX2689 is compatible with Ford Rangers that have a plastic shroud. During installation, the shroud is removed, the baseplate is installed, and then the shroud is reinstalled. You will need to mark and trim the shroud as needed to allow clearance for the baseplate before reinstalling it.
Required tools are: utility knife, torque wrench, 10MM socket, 15MM socket, 9/16" socket, 9/16" wrench, 3/4" socket, and 3/4" wrench. You will also need Loctite Red to apply to all bolt threads before tightening.
The kit includes two baseplates (driver side and passenger side), two side plates (driver and passenger), two attachment tab assemblies, an electrical bracket, two plates, four existing M12 × 1.75 mm bolts, two 1/2"-13 nut plates with 10" wire, two 3/8" nut plates with 14" wire, various hex head bolts (1/4"-20, 3/8"-16, 1/2"-13), slot truss head screws, round slotted head screws, hex nuts, nylon lock nuts, flat washers, lock washers, Class IV safety cables, quick links, and black cap plug receivers. See the parts list on page 4 for complete details and part numbers.
Yes. The kit includes two Class IV safety cables (part 226-0049) and two 1/2" quick links (part 229-0512) for permanent baseplate safety cable installation. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and are strongly recommended when towing.
The tail light wiring kit is not included with the baseplate. Blue Ox recommends the BX8869 tail light wiring kit for standard vehicles or the BX8848 for vehicles with LED lights. These must be ordered separately and installed according to their own instructions.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with their products and have the equipment and knowledge necessary to do fit work. Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. The installation involves removal of the belly pan, plastic shroud (if equipped), and factory tow hooks, as well as precise torquing of fasteners and potential trimming of the shroud.
Before installation, remove the plastic shields from both tow hooks. If your vehicle has a plastic shroud, it will be removed during installation and reinstalled afterward. The belly pan will also be removed and reinstalled. Place all removed components on a flat, sturdy surface. Ensure you have all required tools (10MM, 15MM, 9/16", and 3/4" sockets and wrenches), a torque wrench, Loctite Red, and a utility knife. Have the tail light wiring kit instructions available if you plan to install wiring.
The installation sequence is: (1) remove plastic shields from tow hooks; (2) if equipped, remove plastic shroud bolts and set shroud aside; (3) remove and set aside belly pan; (4) remove factory tow hooks; (5) identify and attach the correct support brackets (tapered edge for driver side, square edge for passenger side); (6) attach inner and outer side plates, leaving bolts loose; (7) reinstall existing tow hook bolts; (8) attach baseplates to side plates and tighten all bolts with Loctite Red; (9) attach permanent safety cables; (10) reinstall belly pan; (11) trim and reinstall plastic shroud if equipped. All bolts must be tightened to the appropriate torque specification using Loctite Red.
There are two support bracket styles. The tapered edge brackets are for the driver side of the vehicle, and the square edge brackets are for the passenger side. The plates with the welded spacer are installed toward the inside of the vehicle. Ensure you use the correct bracket style for each side.
During installation, the inner and outer side plates are attached with bolts left loose. Once the baseplates are attached to the side plates using 3/8" × 1-1/4" bolts, all bolts are tightened at that time. All bolts must be tightened with Loctite Red applied to the threads and torqued to the appropriate specification. The belly pan bolts are also tightened after attachment.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual shows two recommended installation options. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle. These cables are supplementary to and not a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Yes, if your vehicle has a plastic shroud. After the baseplate is installed, hold the shroud up to the vehicle as close to the original position as possible, mark where trimming is needed to allow clearance for the baseplate, and trim as needed before reinstalling the shroud.
The baseplate installation instructions do not require drilling into the vehicle frame. However, if you are installing a tail light wiring kit, you will need to drill a hole according to the tail light wiring kit instructions. The manual notes that when using power drills, be aware of the dangers of torque and drill bit length.
If your vehicle has a plastic shroud, you will need to mark and trim it to allow clearance for the baseplate before reinstalling it. No cutting or trimming of the frame or other structural components is required. The manual recommends using a good quality paint to spray any cut edges of the frame to prevent rusting.
The manual provides general torque charts for metric and inch bolts in Grade 5, Grade 8, Grade 8.8, and Grade 10.9. For example, 3/8"-16 Grade 5 bolts torque to 33 foot-pounds, and 1/2"-13 Grade 5 bolts torque to 78 foot-pounds. However, the manual does not specify which grade applies to each individual bolt size used in this baseplate assembly. All bolts must be tightened with Loctite Red applied to the threads. Refer to the torque charts on page 1 and consult the parts list on page 4 to identify the grade of each bolt, or contact Blue Ox Technical Service at (402) 385-3051 for clarification on specific bolt torque values.
The attachment tabs have a height of 17 inches and a width of 31 inches.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must refer to your vehicle owner's manual for your specific vehicle's GVWR and towing specifications.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. If you suspect damage, contact Blue Ox at (402) 385-3051.
No. The permanent baseplate safety cables are supplementary to and not a replacement for legally required safety cables that attach the towed vehicle to the towing vehicle. Both sets of cables must be used when towing. The permanent baseplate safety cables prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected.
The permanent safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. The manual shows two recommended installation options. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame. Ensure the cables do not rub against any hoses or moving parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Verify that all bolts are tightened to the appropriate torque with Loctite Red applied. Check that the plastic shroud (if equipped) is properly reinstalled with adequate clearance for the baseplate. Ensure the safety cables are properly attached and do not rub against hoses or moving parts. Verify that the belly pan is properly reinstalled and tightened.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten them to the recommended specifications. The attachment tabs should be removed when not in use, if applicable. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To be covered, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty does not cover improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/.
Yes, the BX2689 is designed for 2019–2023 Ford Ranger Pickups, including those with Adaptive Cruise Control. If your vehicle's front looks different from the manual illustration, contact Blue Ox at (402) 385-3051 before installing.
You need a torque wrench, utility knife, 10MM, 15MM, 9/16", and 3/4" sockets and wrenches, and Loctite Red. A tail light wiring kit (BX8869 or BX8848 for LED) must be ordered separately.
Yes. Blue Ox recommends installation by Blue Ox Dealers familiar with fit work and equipped to do so. Find a dealer at www.blueox.com or call (402) 385-3051.
Height: 17 inches; Width: 31 inches.
If the baseplate is damaged or involved in an accident, it must be replaced and not reused. Do not use a damaged or incomplete baseplate.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts with Loctite Red to the recommended torque. Register your product at www.blueox.com for updates and recalls.
Hold the shroud up to the vehicle as close to the original position as possible. Mark where trimming is needed to allow clearance for the baseplate. Trim the shroud as needed and reinstall it. The manual notes that dimensional variations between vehicles can be considerable, so some tailoring of fit may be necessary.
Reposition the cables so they do not rub against any hoses or moving parts. The cables must be connected from the baseplate to the frame rail or cross member. If the recommended mounting options interfere with other components, secure the cables to a solid piece of the frame as described in the General Information sheet. Ensure adequate clearance before finalizing the installation.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If connections are not working, check that all connectors are fully seated and that no wires were damaged during removal of the belly pan or shroud. If you installed a tail light wiring kit, verify that the kit connections are properly made according to the kit instructions. If problems persist, contact Blue Ox Technical Service at (402) 385-3051.
