Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2011 Ford Ranger
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Made from high-strength steel, ensuring superior durability and long-lasting use.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

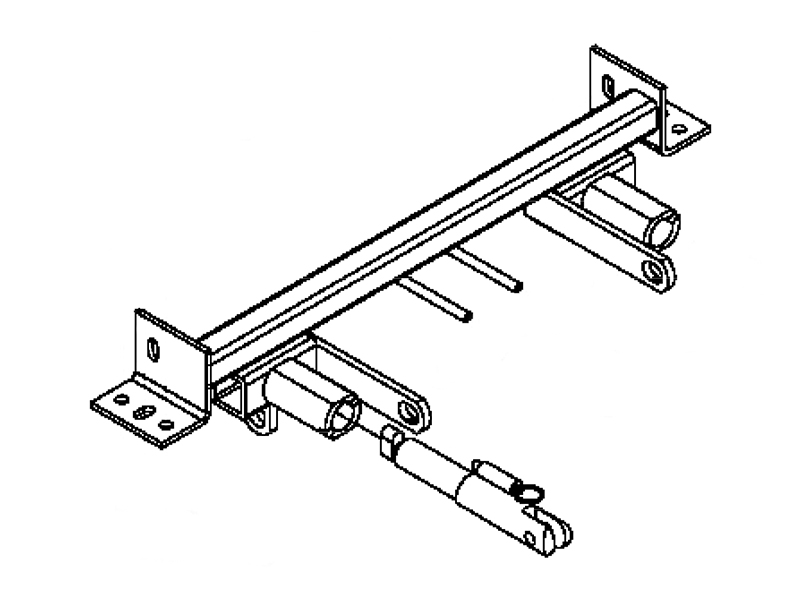

The Blue Ox BX2187 Tow Bar Bracket is a must-have for anyone looking for a reliable and efficient solution to their towing needs. Crafted from high-strength steel, this robust tow bar bracket ensures long-lasting durability and resilience. This custom-designed bracket is perfectly tailored to fit your towed vehicle and boasts an elegant black powder coat finish that resists corrosion and enhances its overall look. The bolt-on mounting type makes installation a breeze, and with all necessary hardware included, you can set it up on your own. The Blue Ox BX2187 Tow Bar Bracket adds strength and stability to your towing system, making your towing experience safe and hassle-free.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Ford Ranger | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

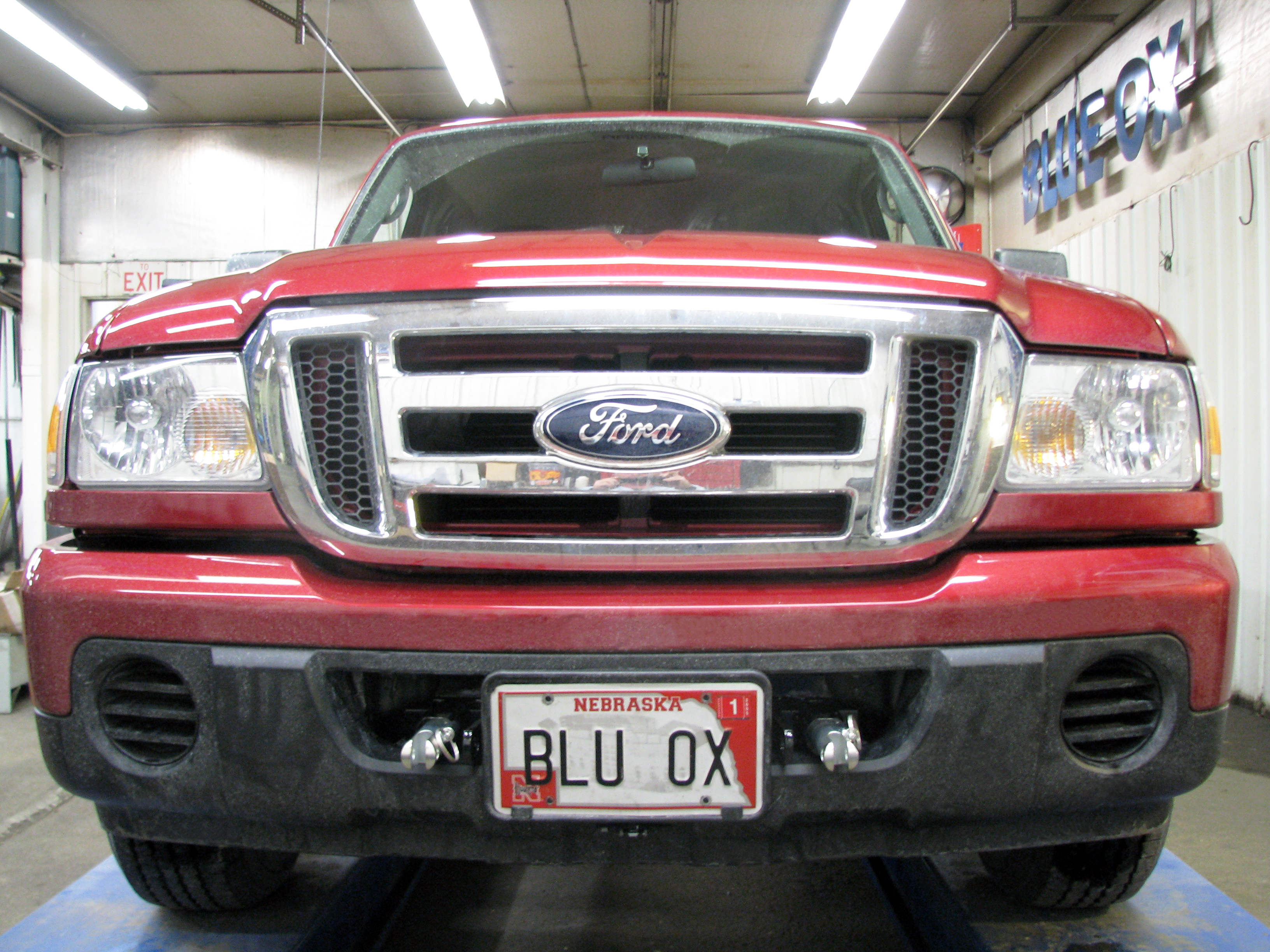

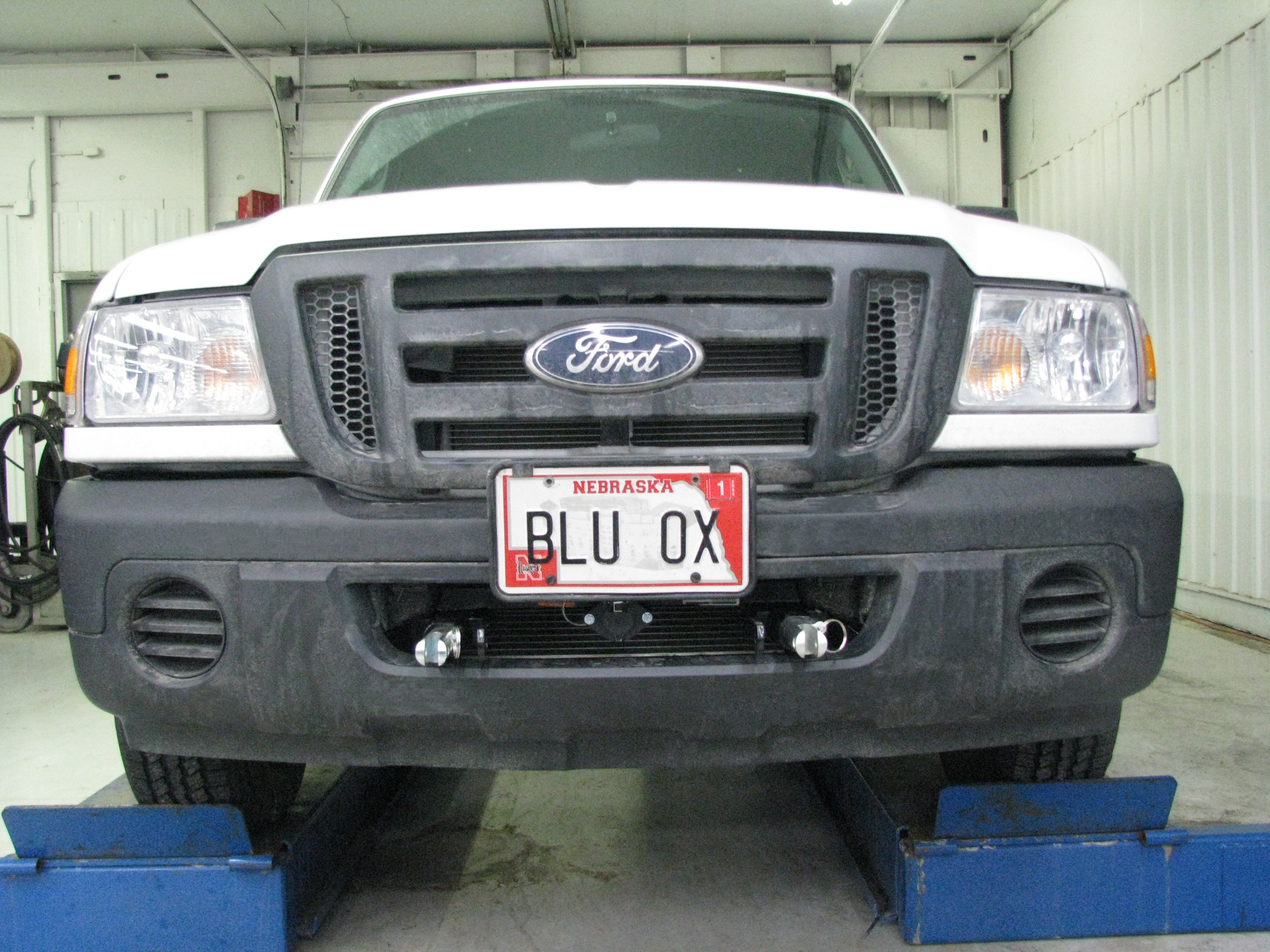

Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD RANGER 2WD (Part #FDRWBX2187) is designed to fit the 2007-2011 Ford Ranger.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD RANGER 2WD (Part #FDRWBX2187) fits the following vehicles: 2007-2011 Ford Ranger. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD RANGER 2WD (Part #FDRWBX2187) fits 2007-2011 Ford Ranger models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD RANGER 2WD (Part #FDRWBX2187) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2187 is designed specifically for 2007-11 Ford Ranger (2WD). The baseplate has an attachment tab height of 18-1/2" and width of 18". If the front of your vehicle looks different than shown in the manual, contact Blue Ox Customer Care at (402) 385-3051 before proceeding with installation.
No. Due to the design of removable tabs on the BX2187, the RangeFinder II, Acclaim, Adventurer and Ambassador tow bars cannot be used with this baseplate.
Most adapters cannot be used with the BX2187. Only the BX8833 and BX88151 adapters are compatible with this baseplate.
Required tools include: 18MM socket, 7/16" socket, 3/4" socket, 17/32" drill bit, vise grips, hammer, Loctite RED, and a hack saw blade. Optional tools (if vehicle has front-mount license plate) include a 1" hole saw and 9/32" drill bit. A smaller pilot drill bit is recommended to start holes before using the 17/32" drill bit.
No, the BX8869 Bulb and Socket Wiring Kit is not included. It is recommended for this vehicle and must be ordered separately.
Yes. The metal bumper must be removed for installation. Using an 18MM socket, remove two metric bolts from the back of the metal bumper on both sides of the vehicle, then pull the bumper forward to remove it. Set the bolts and bumper aside for reinstallation after baseplate installation is complete.
Yes, drilling is required. You must drill two holes into the bottom of the frame rail using a 17/32" drill bit. A smaller pilot drill bit may be used to start the holes first. The baseplate is used as a template to mark the drilling locations.
Using a hack saw blade, cut 3/8" off the plastic radiator shield on both sides of the vehicle, getting as close to the flat washer as possible. Additionally, you must cut out an area approximately 1-1/2" in width and depth from the air dam on both sides to accommodate the baseplate.
1. Remove metal bumper using 18MM socket. 2. Cut 3/8" from plastic radiator shield with hack saw blade on both sides. 3. Mark and cut out approximately 1-1/2" area from air dam on both sides, snap lower push pin in place. 4. Align baseplate to existing holes on frame rail, clamp with vise grips on both sides. 5. Insert 1/2"-13 nut plates through frame end holes, install bolts with washers, tighten on both sides. 6. Drill two remaining holes using 17/32" drill bit, insert whiz nuts, install bolts with washers, tighten on both sides. 7. Reinstall metal bumper and bolts. 8. Attach permanent baseplate safety cables to frame. 9-12. If vehicle has front-mount license plate, relocate license plate or electrical connector as needed.
Align the baseplate to the existing holes on the bottom and inside of the frame rail. Using vise grips, clamp the baseplate into place on both sides of the vehicle. This holds the baseplate in the correct position while you drill the remaining holes.
The baseplate uses 1/2"-13 nut plates and 1/2"-13 x 1-3/4" hex bolts with 1/2" flat washers and 1/2" lock washers. Four bolts total are installed: two in existing holes (one with a plate washer in the top hole) and two in newly drilled holes. All bolts must be treated with Loctite RED before tightening.
The manual references a torque chart on the front page and page 3 of the Baseplate Towing General Instructions for specific torque values. However, these referenced pages are not included in this installation manual. Contact Blue Ox Customer Care at (402) 385-3051 for the exact torque specification, or consult the General Towing Instructions that should accompany this product.
For inch bolts: 1/4" Grade 5 = 10 ft-lbs, Grade 8 = 14 ft-lbs; 5/16" Grade 5 = 19 ft-lbs, Grade 8 = 29 ft-lbs; 3/8" Grade 5 = 33 ft-lbs, Grade 8 = 47 ft-lbs; 7/16" Grade 5 = 54 ft-lbs, Grade 8 = 78 ft-lbs; 1/2" Grade 5 = 78 ft-lbs, Grade 8 = 119 ft-lbs; 5/8" Grade 5 = 154 ft-lbs, Grade 8 = 230 ft-lbs. For metric bolts: 6MM Grade 8.8 = 6 ft-lbs, Grade 10.9 = 8 ft-lbs; 8MM Grade 8.8 = 16 ft-lbs, Grade 10.9 = 22 ft-lbs; 10MM Grade 8.8 = 31 ft-lbs, Grade 10.9 = 40 ft-lbs; 12MM Grade 8.8 = 54 ft-lbs, Grade 10.9 = 70 ft-lbs; 14MM Grade 8.8 = 89 ft-lbs, Grade 10.9 = 117 ft-lbs.
Attach the permanent baseplate safety cables to the provided convenience link (3/8" quick link) on the baseplate. The cables should be secured to a solid piece of the frame of the vehicle. The manual recommends specific mounting locations shown in the installation photos. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle. These cables are strongly recommended and must be used in conjunction with, not as a replacement for, legally required safety cables.
If your vehicle has a front-mount license plate, you have two options: (1) Move the license plate front mount by removing two push pins from the top opening, turning the fascia face down, lifting off the license bracket, cutting off the single tube in the middle with a hack saw blade, turning the bracket upside down, and reattaching it using 1-3/8" self-tapping screws with the bottom holes used for the license plate; or (2) Relocate the electrical connector by drilling a 1" hole through the bottom of the fascia, inserting the electrical connector, drilling two 9/32" holes into the fascia using the connector as a template, and installing 1/4"-20 x 3/4" hex bolts with 1/4" flat washers, lock washers and hex nuts.
Apply Loctite RED to all bolts before tightening. This is required for all bolts used in the baseplate installation.
When using power drills, be aware of the dangers of torque and drill bit length. A smaller pilot drill bit may be used to start holes before using the 17/32" drill bit to reduce these risks.
If the baseplate is in an accident, it must be replaced and not used again. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are treated with Loctite Red and tightened to the recommended specifications.
Yes, the attachment tabs should be removed when not in use.
The BX2187 has an attachment tab height of 18-1/2" and an attachment tab width of 18".
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow this requirement will void the manufacturer's warranty.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX2187 is designed for 2007-11 Ford Ranger (2WD) with attachment tabs 18-1/2" high and 18" wide. It is not compatible with RangeFinder II, Acclaim, Adventurer or Ambassador tow bars.
Yes. You must drill two holes into the frame rail using a 17/32" drill bit. You also need to cut 3/8" from the plastic radiator shield and cut out approximately 1-1/2" from the air dam on both sides using a hack saw blade.
Required tools: 18MM socket, 7/16" socket, 3/4" socket, 17/32" drill bit, vise grips, hammer, Loctite RED, and hack saw blade. Optional (for front-mount license plate): 1" hole saw and 9/32" drill bit.
Yes. Remove two metric bolts from the back of the metal bumper on both sides using an 18MM socket, then pull the bumper forward to remove it. Reinstall it after baseplate installation is complete.
Apply Loctite RED to all bolts before tightening. Tighten all bolts according to the torque chart referenced in the General Towing Instructions.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are treated with Loctite Red and tightened to recommended specifications.
