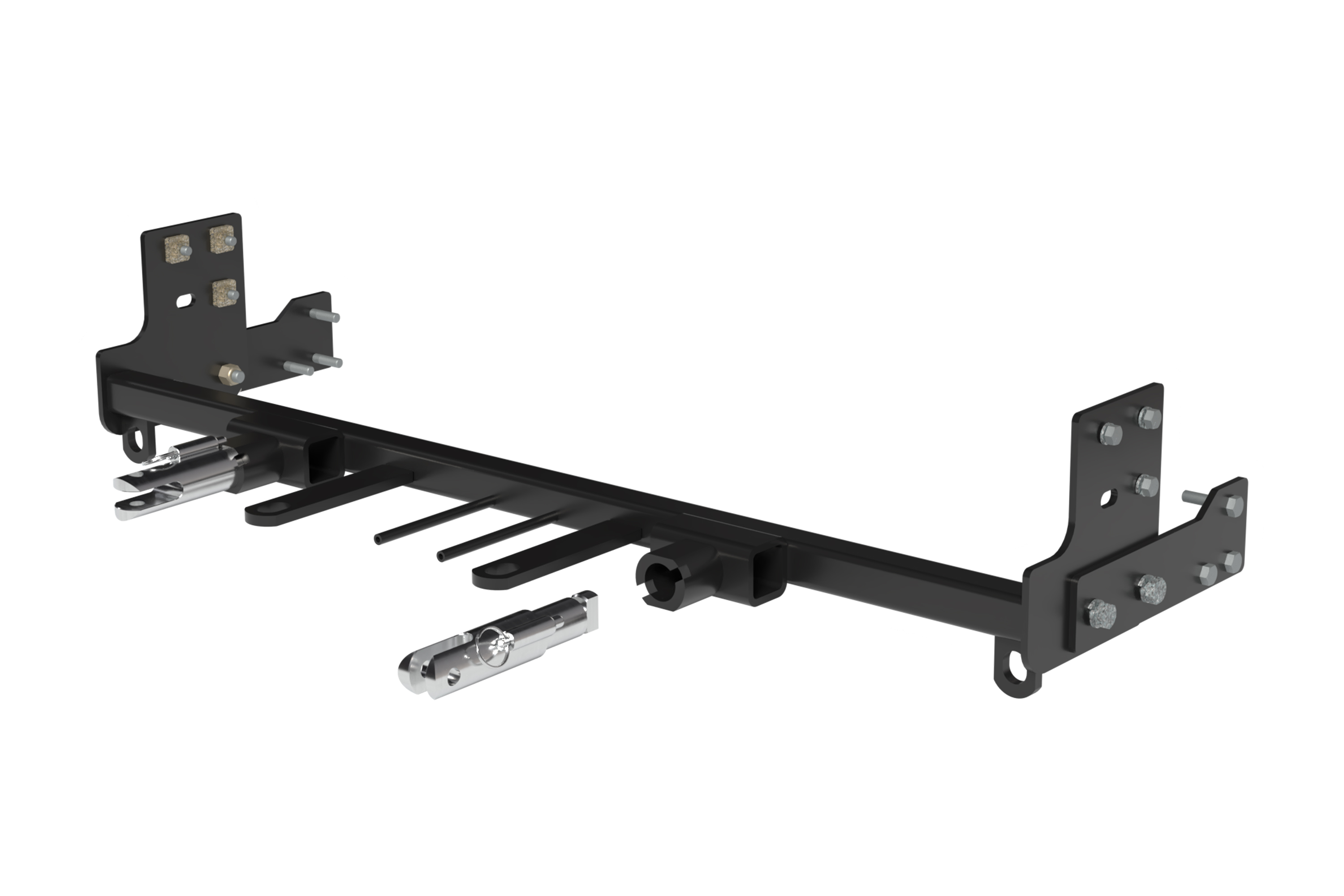

1. Custom Design: Each Blue Ox BX2328 Tow Bar Bracket is custom designed for a specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Upgrade your towing experience with the Blue Ox BX2328 Tow Bar Bracket. Custom designed for each specific towed vehicle, this top-of-the-line product from Blue Ox provides seamless integration and ultimate convenience. Crafted from robust steel with a black powder coat finish, it ensures superior durability and resistance to rust and corrosion. The bolt-on mounting type simplifies installation, making it a perfect choice for do-it-yourself enthusiasts. The package comes complete with all necessary hardware and easy-to-follow instructions.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2012 | Hyundai Elantra | Touring Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2328 baseplate is designed for 2010-2012 Hyundai Elantra Touring vehicles. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods, or bending end plates may be necessary to compensate for manufacturer tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
The BX2328 is rated for Class III towing with a 5,000 lb. maximum rating. The manual notes that the weight of the 2010-2012 Hyundai Elantra Touring is near this limit, and some models with options may exceed 5,000 lbs. You must confirm the weight of your individual vehicle before towing. If your vehicle exceeds 5,000 lbs., you must use the Aventa II tow bar (rated 10,000 lbs.) instead of tow bar adapters.
The kit includes: one BX2328 baseplate (61-6748), two attachment tabs with holes (62-3468), two plate supports (101-7548), one 5" spacer flat (102-7081), six 3/8"-16 nut plate weldments with 14" wire (61-5208), various hex head bolts and screws in multiple sizes, lock washers, hex nuts, self-drilling screws, an electrical bracket, two 36" Class III baseplate safety cables (226-0046), two 3/8" quicklinks (229-0359), and two black cap plug receivers (290-0437). See the parts list on page 2 for complete details and part numbers.
Required tools include: large vise grip, Phillips screwdriver, pliers, needle nose pliers, utility knife, reciprocating saw, tape measure, drill, 1-1/4" hole saw, 13/32" drill bit, 17/32" drill bit, 5/16" drill bit, sockets (8MM, 10MM, 14MM, 7/16", 9/16", 3/4"), wrenches (7/16", 9/16", 3/4"), and Loctite RED. The manual also recommends protective covers and rags to prevent damage to cosmetic parts during installation.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051. The installation involves drilling, trimming, and welding of nut plates, which may require specialized equipment and expertise.
The first step is to remove five plastic push pins from the top front of the fascia on both sides of the vehicle using a Phillips screwdriver. Set the pins aside to be reinstalled later. This provides access to the components underneath.
Yes, drilling is required. The installation involves drilling a 5/16" hole to relocate ground wires (step 7), drilling three holes using the baseplate as a template (step 16), and drilling a 1-1/4" hole saw hole in the bottom of the frame for nut plates on both sides (step 14). A reciprocating saw is also required to trim the area below the bumper.
Trimming of the fascia is required. Using a reciprocating saw, trim out the area below the bumper by measuring in 1-3/4" from the side of frame below the metal bumper, cutting under the bumper then straight down (step 11). On the back side of the plastic piece remaining, cut from the top straight down the center and trim away the backing to leave a flat surface (step 13). Additionally, align the fascia to its original position and mark and remove the area needed for the attachment tab receiver to come through (step 20).
The following must be removed: five plastic push pins from the fascia top (step 1), two metric bolts from the air intake housing (step 2), one screw from each wheel well (step 3), five metric bolts from the belly pan (step 4), three plastic push pins from the fascia bottom edge (step 5), the washer reservoir with its bolts, hoses, and wires (step 6), the plastic guard using a utility knife and then a 10MM bolt (steps 8-9), the tow hook bolts using a 14MM socket (step 12). All removed items should be set aside for reinstallation.
Using a 5/16" drill bit, drill a hole and attach the ground wires with a 1/4"-20 x 3/4" bolt and a 1/4"-20 whiz nut on the back. This must be done on both sides of the vehicle. The manual shows the relocation from position 7A to 7B in the installation diagram.
The baseplate is secured in multiple stages: (1) Slide the baseplate up level with the frame and clamp it with vise grips (step 15). (2) Put support plates on and start three existing bolts, aligning two holes with the baseplate on both sides. (3) On the driver side, insert 1/2-13 x 1-1/4" bolts with 1/2" lock washers and tighten with 1/2-13 lock nuts on the inside. (4) On the passenger side, insert the spacer flat between the baseplate and support plate, then insert 1/2-13 x 2" bolts with lock washers and nuts. (5) Using the baseplate as a template, drill three holes and insert nut plates, aligning with 3/8-16 x 1-1/4" hex bolts and 3/8" lock washers (step 16). All bolts must be treated with Loctite RED before tightening.
Remove the existing three bolts holding the tow hook (step 12) and replace them with 10MM-1.25 x 45MM hex bolts and 10MM lock washers (step 17). Tighten the bolts and be sure to use Loctite RED on all bolts. This must be done on both sides of the vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate (shown in gray in step 19). The cables should be secured to a solid piece of the frame as shown in white in the diagram. The manual notes that additional options may interfere with suggested mounting; in such cases, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. These cables are strongly recommended and must remain installed as long as the baseplate is installed.
The manual provides a torque chart on the front page for metric and inch bolts. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. For metric Grade 8.8 bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs. All bolts must be treated with Loctite RED before tightening according to these specifications.
The baseplate kit includes an electrical bracket (299-0685), six 3/8"-16 nut plate weldments with 14" wire (61-5208), and two black cap plug receivers (290-0437). The manual recommends the BX8869 Bulb & Socket Wiring Kit for this vehicle. All electrical connections must be plugged in properly and functioning before installing the fascia.
Two 36" Class III baseplate safety cables (part 226-0046) and two 3/8" quicklinks (part 229-0359) are included in the kit. These permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must have an adequate weight rating for the towing system; the weight rating of the two cables together will not qualify as a single cable. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Additionally, do not use the baseplate if it is damaged or missing parts.
Before installing the fascia, ensure that all electrical connections are plugged in properly and functioning. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use. It is also recommended that you register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The attachment tab height is 15" and the attachment tab width is 20".
No. The manual explicitly states: "Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts." If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions will void the manufacturer's warranty.
No. The manual explicitly states: "Even though bolts are there, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions." This is a critical safety point, as improper fastening could result in separation of the towed vehicle from the tow bar.
If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances.
The manual notes that "in some cases it may be easier to remove the front reinforcement bar to install nut plates" (step 14), but does not state that removal is required. This decision should be made based on your specific vehicle and installation circumstances.
The BX8869 Bulb & Socket Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required. Contact Blue Ox at (402) 385-3051 or consult with your Blue Ox Dealer for clarification on whether this kit is necessary for your specific installation.
Yes, the BX2328 is designed for 2010-2012 Hyundai Elantra Touring. Minor adjustments may be needed due to manufacturer tolerances. If your vehicle looks different, contact Blue Ox at (402) 385-3051.
The BX2328 is Class III rated for 5,000 lbs. maximum. Confirm your vehicle's weight before towing; some models may exceed this limit. If over 5,000 lbs., use the Aventa II tow bar instead.
Yes. Installation requires drilling a 5/16" hole for ground wires, three holes for nut plates using the baseplate as a template, and a 1-1/4" hole saw hole in the frame. A reciprocating saw is also needed for trimming.
Required tools include: reciprocating saw, drill, 1-1/4" hole saw, multiple drill bits (5/16", 13/32", 17/32"), sockets (8MM, 10MM, 14MM, 7/16", 9/16", 3/4"), wrenches, Phillips screwdriver, pliers, utility knife, vise grip, tape measure, and Loctite RED.
Yes. Blue Ox recommends installation by Blue Ox Dealers familiar with the products and equipped for "fit work." Find a dealer at www.blueox.com or call (402) 385-3051. Installation involves drilling, trimming, and welding.
Torque 1/2" Grade 5 bolts to 78 foot-pounds. All bolts must be treated with Loctite RED before tightening.
Permanent baseplate safety cables are strongly recommended and must remain installed as long as the baseplate is on the vehicle. Two 36" Class III cables are included. They are not a replacement for legally required safety cables between towing and towed vehicles.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning. Tighten all bolts to specification using Loctite RED.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may include filing a hole slightly, bending electrical rods, or bending end plates to compensate for manufacturer tolerances. If alignment issues persist or the vehicle front looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
Do not allow the safety cables to rub against any hoses or moving parts. Reposition the cables to secure them to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. The installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses to prevent fluid leaks or electrical shorts.
