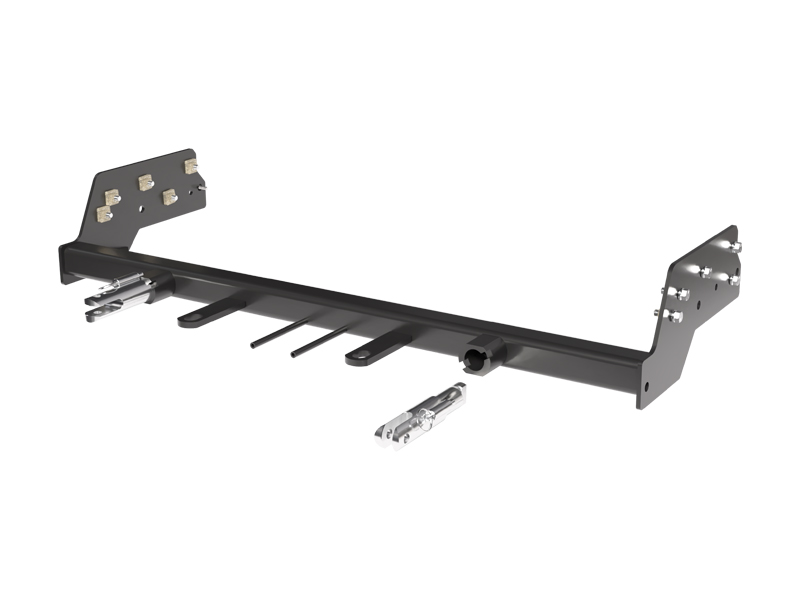

Custom Design: Blue Ox BX2329 Tow Bar Bracket is custom designed for each specific vehicle, ensuring a perfect fit and secure connection.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2329 Tow Bar Bracket is the ultimate solution for all your towing needs. Built to perfectly fit your specific vehicle, this high-quality base plate ensures a secure and stable connection. Crafted from durable steel with a sleek black powder coat finish, it offers superior resistance to rust and corrosion. The package includes all necessary mounting hardware and comprehensive instructions for a hassle-free, do-it-yourself installation. With its bolt-on mounting type, you can easily attach and detach it as needed, making it a convenient and reliable addition to your vehicle.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2015 | Hyundai Tucson | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2329 baseplate is designed for 2010-2015 Hyundai Tucson vehicles. The attachment tab height is 16-1/2" and width is 24". However, dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances.
The BX2329 is a towing baseplate that attaches to the frame of a 2010-2015 Hyundai Tucson to enable towing with a tow bar. It includes attachment tabs (16-1/2" height, 24" width) and is computer tested to your vehicle's GVWR. The baseplate must be installed by a Blue Ox Dealer familiar with the product and fit work.
Required tools include: large vise grip, flat screwdriver, Phillips screwdriver, torque wrench, drill, reciprocating saw, tape measure, 1-1/4" hole saw, 5/16" nut driver, 13/32" drill bit, 8MM socket, 10MM socket, and 12MM socket. You will also need Loctite Red for all bolts.
The kit includes: 10 nut plates (61-5208) with 14" wire, 1 baseplate (61-6752), 2 attachment tabs with holes (62-3468), 2 four-way connector adapters (101-5822), 2 round slotted head screws (201-0192), 10 hex head bolts 3/8"-16 Grade 5 (201-0368), 2 self-drilling screws (201-0979), 1 self-tapping screw (201-0654), 1 hex head bolt 6MM-1.0 x 30MM Grade 8.8 (201-0655), 2 hex nuts (202-0047), 1 flat washer 5/16" (203-0002), 1 lock washer 5/16" (203-0009), 10 lock washers 3/8" (203-0010), 2 lock washers #10 (203-0054), 2 safety cables 36" Class III (226-0046), 2 quicklinks 3/8" (229-0359), and 2 black cap plug receivers (290-0437).
Yes. The fascia must be removed and reinstalled during baseplate installation. The removal process involves removing plastic push pins from the top edge between headlights, the upper corners, underneath the fascia, and the lower corners. You will also need to remove the windshield washer fluid reservoir and disconnect the temperature sensor from the bumper.
Yes. The bumper must be removed to access the frame and perform the necessary trimming and drilling. The bumper is held by bolts that must be removed using a 10MM socket (center bolts) and 12MM socket (outside bolts) on both the top and bottom of the bumper bracket on both sides of the vehicle. The bumper is then reinstalled after trimming.
Yes, drilling is required. You must drill five holes total using a 13/32" drill bit: one top front hole and four additional holes to mount the baseplate to the frame using nut plates. A 1-1/4" hole saw is also used to create openings in the bumper bracket for wire nut installation on both sides. Drill bit length and torque dangers should be considered when using power drills.
Yes, significant trimming is required. You must trim 2-1/2" inward on the front side of the frame cap toward the center of the vehicle using a reciprocating saw, making two horizontal cuts and one vertical cut on both sides. You must also trim the bumper on the back side as marked, cut a marked area 1-3/4" up on the plastic guard on both sides, cut off tabs on each side of the radiator, and cut the grille around the removable tab receivers. Be aware of objects behind the cutting surface when using the reciprocating saw.
When trimming the frame cap 2-1/2" inward toward the center of the vehicle, measure and mark 6 inches down. Make the two horizontal cuts first, with the bottom cut just above the lip on the backside flush with the bottom edge. Then make the vertical cut flush on the outside edge of the frame rail, being careful not to cut into the air baffle. Do this on both sides. After trimming, use good quality paint to spray cut edges of frame to prevent rusting.
The manual provides a general torque chart for metric and inch bolts by size and grade. For the 3/8"-16 hex bolts (Grade 5) used to attach the baseplate, the torque specification is 33 foot-pounds. For the 6MM-1.0 x 30MM hex bolt (Grade 8.8) used to reinstall the washer reservoir, the torque specification is 8 foot-pounds. All bolts must be tightened according to the torque chart provided, and Loctite Red must be used on all bolts before tightening.
The torque specification for 3/8"-16 Grade 5 bolts is 33 foot-pounds. Loctite Red must be applied to all bolts before tightening.
The torque specification for the 6MM-1.0 x 30MM Grade 8.8 hex bolt is 8 foot-pounds. This bolt is used with a 5/16" lock washer and 5/16" flat washer when reinstalling the washer reservoir on the passenger side.
Slide the baseplate onto the frame to align the existing holes and clamp, keeping the baseplate level with the frame on both sides. Using the baseplate as a template, drill the top front hole with a 13/32" drill bit. Insert a 3/8" nut plate into the 1-1/4" hole to align with the drilled hole, then tighten a 3/8"-16 x 1-1/4" bolt and 3/8" lock washer into the nut plate using Loctite Red. The baseplate should be flush with the bottom of the frame rail. Repeat this process for four additional holes. Tighten all bolts according to the torque chart (33 foot-pounds for 3/8"-16 Grade 5 bolts).
After tightening all bolts, cover the 1-1/4" holes with tape and paint on both sides to protect them from rust and weather.
Reinstall the washer reservoir on the passenger side using the existing bolts and a 6MM-1.0 x 30MM hex bolt, 5/16" lock washer, and 5/16" flat washer as shown in the parts diagram on page 2. Be sure all electrical components and hoses are plugged in properly before reinstalling the fascia.
On the driver's side only, remove the ground wires from their present location (marked as 14A in the diagram). Use the #10-16 x 1" self-tapping screw included in the kit to relocate the wires to the new position (marked as 14B). This is necessary to clear the baseplate installation area.
Attach the permanent baseplate safety cables (36" Class III, part 226-0046) to the provided convenience link on the baseplate using the quicklinks (part 229-0359). If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
The permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principle function is to prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. Each cable must have an adequate weight rating for the towing system; the weight rating of the two cables together will not qualify as a single cable. These cables must remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the permanent baseplate safety cables against wires, hoses or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Also ensure that all towing equipment is hooked up per manufacturer's instructions and recommendations.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You should reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. This includes verifying that the washer reservoir hoses and electrical lines are properly connected on the passenger side.
Yes. It is recommended to remove the attachment tabs when not in use.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The manual instructs to drill a hole according to the tail light wiring kit instructions, but does not explicitly state whether the kit is required or optional.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051. The installation involves significant removal of vehicle components, drilling, trimming with a reciprocating saw, and precise torque specifications.
No. Even though bolts may exist on the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Do not substitute homemade or non-typical parts.
If the front of your vehicle looks different than shown in the manual, please contact Blue Ox at (402) 385-3051 before proceeding with installation.
Ensure that your product is registered online at www.blueox.com. It is crucial to register your product so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX2329 is designed for 2010-2015 Hyundai Tucson. Attachment tabs are 16-1/2" height × 24" width. Minor tailoring may be needed for manufacturer tolerance variations.
Yes. You must drill five holes using a 13/32" drill bit and create two 1-1/4" holes using a hole saw. Trimming with a reciprocating saw is also required on the frame cap, bumper, plastic guard, radiator tabs, and grille.
Required tools: large vise grip, flat and Phillips screwdrivers, torque wrench, drill, reciprocating saw, tape measure, 1-1/4" hole saw, 13/32" drill bit, 5/16" nut driver, 8MM/10MM/12MM sockets, and Loctite Red.
Yes. Both the fascia and bumper must be removed to access the frame for drilling and trimming. The windshield washer reservoir must also be removed and reinstalled.
Use 33 foot-pounds for 3/8"-16 Grade 5 bolts. Use 8 foot-pounds for the 6MM-1.0 x 30MM Grade 8.8 bolt. Apply Loctite Red to all bolts before tightening.
Inspect for cracked welds, missing or worn parts, and loose bolts. Verify all electrical connections are plugged in. Ensure permanent safety cables are installed on both sides and do not rub hoses or moving parts. Do not exceed vehicle GVWR.
Yes. Blue Ox recommends installation by Blue Ox Dealers familiar with fit work and equipped with necessary tools. Contact (402) 385-3051 to find a dealer.
Do not use the baseplate. The baseplate must be replaced. Do not attempt to repair or reuse a damaged baseplate, as an accident or damage can cause unseen damage and using it again could result in more damage or serious injury.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. Contact a Blue Ox Dealer at (402) 385-3051 for assistance with fit adjustments.
