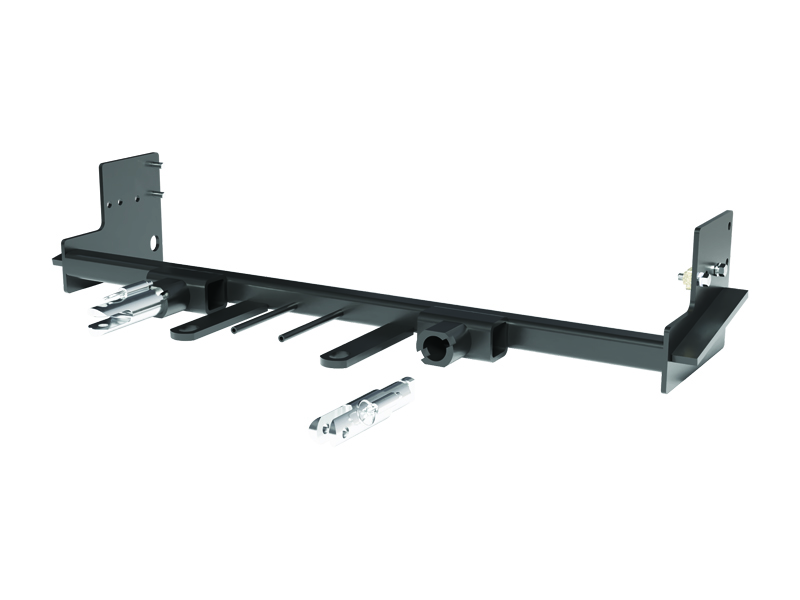

Custom Designed: Each Blue Ox BX2332 Tow Bar Bracket is tailored to fit your specific vehicle perfectly, ensuring a secure and stable connection.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2332 Tow Bar Bracket is a superior towing solution, meticulously designed for your specific vehicle. With its robust steel construction and sleek black powder coat finish, it offers a perfect blend of durability and style. This bracket is designed for a straightforward bolt-on mounting, making installation a breeze. The package includes all the necessary hardware, so you don't need to worry about finding the right parts. The Blue Ox BX2332 Tow Bar Bracket is the ultimate choice for a reliable and hassle-free towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|

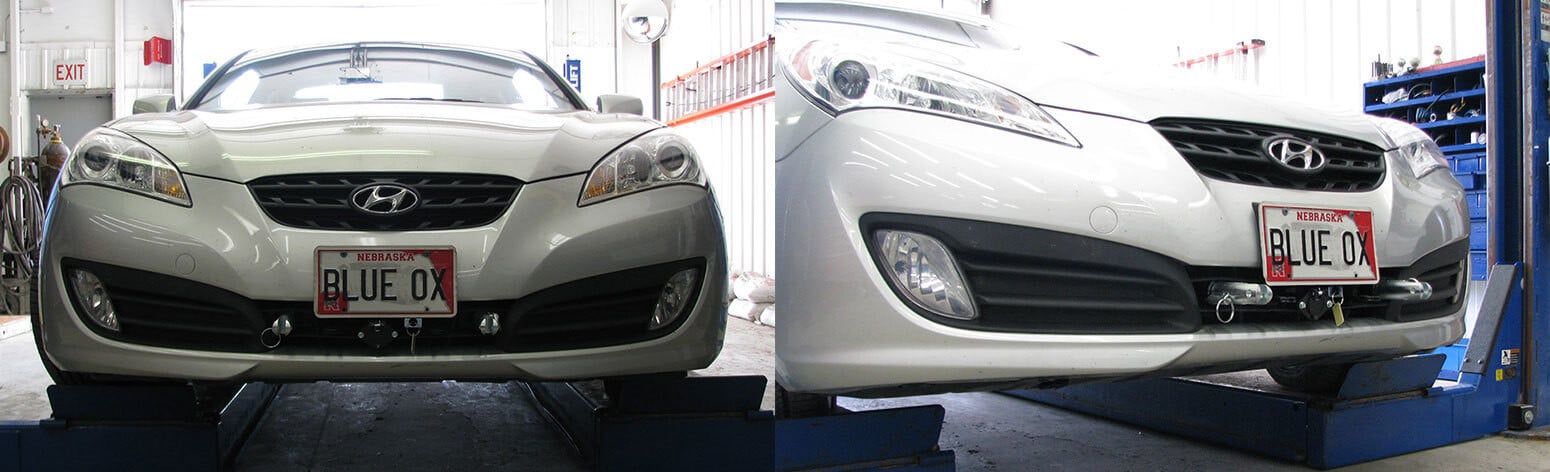

| 2010 | Hyundai Genesis Coupe | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
No. Due to the design of the removable attachment tabs on the BX2332, the RangeFinder II, Adventurer, Acclaim and Ambassador tow bars cannot be used with this baseplate.
Adapters are not compatible with the BX2332 baseplate, with the exception of the BX8833 and BX88151. All other adapters cannot be used.
Required tools are: 8MM socket, 10MM socket, 12MM socket, 14MM socket, 17MM socket, 9/16" socket, utility knife, reciprocating saw, flat screwdriver, Phillips screwdriver, drill, 13/32" drill bit, 9/32" drill bit, torque wrench, and Loctite RED.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do 'fit work'. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service Department at (402) 385-3051.
The fascia, washer reservoir, metal bumper, coax hose, Christmas tree plug and air bag sensor must be removed during installation.
Yes. Drilling is required. The installation involves drilling two holes into the frame rail on each side of the vehicle using a 13/32" drill bit.
Yes. Trimming of the air dams and frame webbing is required as part of the installation process.
The drill bit size is 13/32". This bit is used to drill two holes into the frame rail on each side of the vehicle.
Torque specifications for metric bolts are: 6MM Grade 8.8 = 6 ft-lbs, Grade 10.9 = 8 ft-lbs; 8MM Grade 8.8 = 16 ft-lbs, Grade 10.9 = 22 ft-lbs; 10MM Grade 8.8 = 31 ft-lbs, Grade 10.9 = 40 ft-lbs; 12MM Grade 8.8 = 54 ft-lbs, Grade 10.9 = 70 ft-lbs; 14MM Grade 8.8 = 89 ft-lbs, Grade 10.9 = 117 ft-lbs; 16MM Grade 8.8 = 161 ft-lbs, Grade 10.9 = 230 ft-lbs; 18MM Grade 8.8 = 222 ft-lbs, Grade 10.9 = 318 ft-lbs.
Torque specifications for inch bolts are: 1/4" Grade 5 = 10 ft-lbs, Grade 8 = 14 ft-lbs; 5/16" Grade 5 = 19 ft-lbs, Grade 8 = 29 ft-lbs; 3/8" Grade 5 = 33 ft-lbs, Grade 8 = 47 ft-lbs; 7/16" Grade 5 = 54 ft-lbs, Grade 8 = 78 ft-lbs; 1/2" Grade 5 = 78 ft-lbs, Grade 8 = 119 ft-lbs; 5/8" Grade 5 = 154 ft-lbs, Grade 8 = 230 ft-lbs; 3/4" Grade 5 = 257 ft-lbs, Grade 8 = 380 ft-lbs.
Attachment tab height is 13 inches. Attachment tab width is 17 inches.
No. The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle but is not included. It must be ordered separately.
Yes. Loctite RED must be used on all bolts before tightening. All bolts must be tightened according to the torque chart specifications.
Yes. Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They must remain installed as long as the baseplate is installed on the vehicle. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses or brake lines. The manual shows recommended arrangements; additional options may interfere with suggested mounting. If interference occurs, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes. Remove the attachment tabs when not in use.
The hardware kit includes: 4 nut plates (61-5208), 2 attachment assemblies (62-3468), 1 coolant bracket (102-7056), 2 hex bolts 1/4"-20 x 3/4" Grade 5 (201-0050), 2 slot round head screws #10-32 x 1/2" (201-0192), 4 hex head bolts 3/8"-16 x 1-1/4" Grade 5 (201-0368), 4 hex bolts 10MM-1.25 x 30MM Grade 8.8 (201-0422), 2 self-drilling screws #12-14 x 1" (201-0979), 2 hex nuts #10-32 (202-0047), 2 hex nylon nuts 1/4"-20 (202-0102), 4 lock washers 3/8" (203-0010), 2 lock washers #10 (203-0054), 4 flat washers 10MM (203-0103), 4 lock washers 10MM (203-0104), 1 electrical bracket (299-0685), 2 baseplate safety cables 36" (226-0046), 2 quicklinks 3/8" (229-0359), and 2 receiver cap plugs (290-0437).
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering them will void the manufacturer's warranty.
Yes. Towing behind a non-motorized vehicle will void the warranty.
If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods or bending end plates.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage.
When using power drills, be aware of the dangers of torque and drill bit length.
It is the installer's responsibility to watch for: oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation.
The manual identifies the BX2332 as designed for the 2010 Hyundai Genesis Coupe. However, the detailed installation instructions appear to reference a different vehicle. Contact Blue Ox at (402) 385-3051 or visit www.blueox.com to confirm you have the correct manual before purchasing.
Most adapters cannot be used with the BX2332. Only the BX8833 and BX88151 adapters are compatible. The RangeFinder II, Adventurer, Acclaim and Ambassador tow bars cannot be used.
Required tools include: 8MM, 10MM, 12MM, 14MM, 17MM and 9/16" sockets; utility knife; reciprocating saw; flat and Phillips screwdrivers; drill; 13/32" and 9/32" drill bits; torque wrench; and Loctite RED.
Yes. Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge necessary for 'fit work'. Find a dealer at www.blueox.com or call (402) 385-3051.
10MM Grade 8.8 bolts should be torqued to 31 foot-pounds. 10MM Grade 10.9 bolts should be torqued to 40 foot-pounds. Always use Loctite RED on all bolts before tightening.
Yes. Permanent baseplate safety cables are strongly recommended and must be used in conjunction with legally required safety cables. They must be connected from the baseplate to the vehicle's frame rail or cross member and must not rub against hoses or moving parts.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications using Loctite RED.
