1. Manufactured from top-grade steel material, guaranteeing long-lasting durability and high load-bearing capacity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3621 Tow Bar Bracket is a robust, custom-fit solution for your vehicle towing needs. Engineered with high-quality steel, this tow bar bracket boasts an exceptional durability and strength that stands the test of time. It features a powder coat finish for superior corrosion resistance, ensuring it withstands even the harshest of weather conditions. With the mounting hardware included, this black bolt-on tow bar bracket makes for a straightforward, do-it-yourself installation process. The Blue Ox design team ensures that each base plate is specifically tailored to fit your towed vehicle, providing you with a secure and reliable connection.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2016 | Subaru Outback | Manual Transmission Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

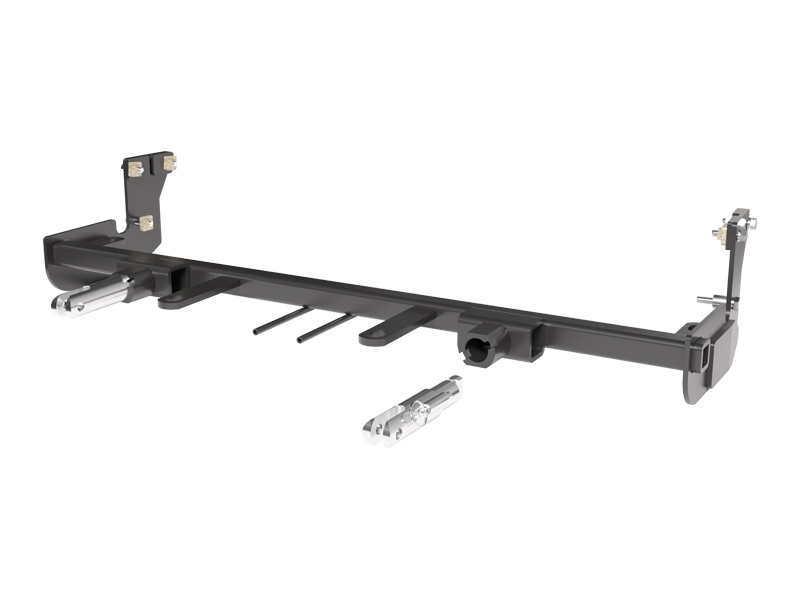

The BX3621 is a tow baseplate manufactured by Blue Ox designed specifically for 2015-2016 Subaru Outback models with manual transmission. It attaches to the vehicle's frame to provide a connection point for a tow bar. The attachment tab height is 17 inches and width is 23 inches.
No. The BX3621 is designed specifically for 2015-2016 Subaru Outback with manual transmission only. If your vehicle has automatic transmission, contact Blue Ox at (402) 385-3051 to confirm compatibility before purchasing.
The BX3621 is designed for 2015-2016 Subaru Outback only. Do not assume it will fit other model years. Contact Blue Ox at (402) 385-3051 or visit www.blueox.com to verify fitment for your specific vehicle.
The kit includes the baseplate (61-7481), two attachment tab assemblies, breakaway bracket, spacer tubes, hardware (bolts, nuts, washers, screws), nut plates, safety cables, quicklinks, and cap plug receivers. A complete parts list with part numbers and quantities is provided in the manual. The BX8848 4-Diode Wiring Kit is recommended but sold separately.
Required tools include: large vise grip, flat screwdriver, utility knife, torque wrench, drill, reciprocating saw, 3/8-inch drill bit, 1-1/4-inch hole saw, 10MM socket, 12MM socket, 14MM socket, 17MM socket, 7/16-inch socket, 7/16-inch wrench, 9/16-inch socket, and Loctite Red. A paint suitable for metal is also recommended to seal cut frame edges.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting (402) 385-3051. Professional installation is strongly recommended due to the complexity of the work, which includes removal of multiple vehicle components, drilling, trimming, and precise torque specifications.
The fascia, bumper, and windshield washer fluid reservoir must be removed during installation and reinstalled afterward. The driver side brace must also be removed and modified (lower arm trimmed off) before reinstallation. All removed components are set aside on a flat, sturdy surface and reinstalled after baseplate installation is complete.
Yes. Drilling is required. A 3/8-inch drill bit is used to drill multiple holes through the frame for baseplate mounting bolts. A 1-1/4-inch hole saw is used to drill an access hole on the passenger side only. All holes are drilled through the frame, and 3/8-inch nut plates are installed on the inside of the frame to secure the bolts.
Yes. A reciprocating saw is used to trim a notch on the driver side only for baseplate clearance. The driver side brace lower arm must be trimmed off and the brace reinstalled. The fascia must be trimmed around the convenience links and attachment tabs. Cut frame edges should be sealed with quality paint to prevent rusting.
The 10MM bolt (part 201-0471) on the driver side should be tightened to 31 foot-pounds (Grade 8.8 metric bolt) or 40 foot-pounds (Grade 10.9 metric bolt), depending on bolt grade. Loctite Red must be applied to all bolt threads before tightening. Refer to the bolt torque specifications table in the manual for the specific grade of bolt being used.
The 3/8-inch bolts (Grade 5) should be tightened to 33 foot-pounds. Loctite Red must be applied to all bolt threads before tightening. The manual provides a complete torque specification table for both metric and inch bolts in different grades.
The 1/4-inch bolts (Grade 5) should be tightened to 10 foot-pounds. Loctite Red must be applied to all bolt threads before tightening. These bolts are used to attach the optional breakaway bracket to the lower valance and to attach the breakaway to the bracket.
1. Remove fascia (six push pins from top, two from wheel wells, nine from underside). 2. Remove windshield washer reservoir. 3. Remove driver side brace. 4. Remove shutter system screws and bumper bolts. 5. Trim notch on driver side with reciprocating saw. 6. Drill access hole on passenger side with 1-1/4-inch hole saw. 7. Position baseplate and install 10MM bolt on driver side with spacer tube. 8. Drill 3/8-inch holes on passenger side and install hardware with nut plates. 9. Install remaining 3/8-inch hardware with spacer tube on lower passenger side. 10. Attach safety cables to frame. 11. Trim driver side brace lower arm and reinstall. 12. Reinstall bumper and washer reservoir. 13. Trim fascia around convenience links and attachment tabs, then reinstall.
Spacer tubes are used to maintain proper spacing between the baseplate and frame. The DS (driver side) spacer tube (3/4 inch x 3/4 inch length) is installed between the baseplate and frame at the 10MM bolt location on the driver side. The PS (passenger side) spacer tube (3/4 inch x 15/16 inch length) is installed between the frame and baseplate at the lower passenger side 3/8-inch bolt location. These ensure proper alignment and load distribution.
The two permanent baseplate safety cables must be attached from the baseplate to the frame rail or cross member of the vehicle's frame using the provided convenience link on the baseplate. The manual shows recommended installation locations. Cables must not rub against hoses or moving parts. Do not mount cables against wires, hoses, or brake lines. The cables must remain installed as long as the baseplate is on the vehicle and are used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
No. The breakaway bracket is optional. If you choose to install it, attach the bracket to the lower valance with 1/4-inch hardware at the desired location, then attach the breakaway to the bracket with the supplied 1/4-inch hardware. Tighten 1/4-inch bolts to 10 foot-pounds using Loctite Red.
After the baseplate is fully installed and all electrical connections are tested and functioning properly, hold the fascia as close to its original position as possible, mark and trim the fascia around the convenience links and attachment tabs, then reinstall the fascia. Be sure all electrical connections are plugged in and accessories are functioning before reinstalling.
The baseplate is computer tested to your vehicle's GVWR. Exceeding the vehicle's GVWR will void the manufacturer's warranty. Refer to your vehicle owner's manual for the manufacturer's towing specifications and GVWR rating. Do not exceed these limits.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. Contact Blue Ox at (402) 385-3051 for replacement.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Verify that all bolts are tightened to the correct torque specifications using Loctite Red. Check that safety cables do not rub against hoses or moving parts. Before each towing trip, perform a complete inspection of all towing equipment.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Ensure that all towing equipment is hooked up per manufacturer's instructions. Remove the attachment tabs when not in use. Register your product at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/.
The BX8848 4-Diode Wiring Kit is recommended for the 2015-2016 Subaru Outback with the BX3621 baseplate. This kit should be ordered separately and installed according to its own instructions.
The BX3621 fits 2015-2016 Subaru Outback with manual transmission only. If you have automatic transmission or a different model year, contact Blue Ox at (402) 385-3051 to confirm compatibility.
You will need a drill, reciprocating saw, torque wrench, sockets (10MM, 12MM, 14MM, 17MM, 7/16-inch, 9/16-inch), drill bits (3/8-inch and 1-1/4-inch hole saw), vise grip, screwdrivers, utility knife, and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
Yes. You must drill holes with a 3/8-inch drill bit and 1-1/4-inch hole saw, and use a reciprocating saw to trim a notch on the driver side. The fascia and driver side brace also require trimming. Professional installation is recommended.
The fascia, bumper, windshield washer fluid reservoir, and driver side brace must be removed. All are reinstalled after baseplate installation. The driver side brace lower arm is trimmed before reinstallation.
Use 10 foot-pounds for 1/4-inch bolts, 31 foot-pounds for 10MM bolts, and 33 foot-pounds for 3/8-inch bolts (all Grade 5). Apply Loctite Red to all bolt threads before tightening. Refer to the torque specification table in the manual for other bolt sizes and grades.
The baseplate is computer tested to your vehicle's GVWR. Do not exceed your vehicle's GVWR or the manufacturer's towing specifications. Exceeding this weight voids the warranty. Refer to your vehicle owner's manual for specific limits.
Verify all electrical connections are plugged in and functioning. Check that all bolts are tightened to specification with Loctite Red. Inspect safety cables to ensure they do not rub against hoses or moving parts. Before each towing trip, inspect for cracked welds, missing parts, and loose bolts.
No. The BX8848 4-Diode Wiring Kit is recommended but sold separately. Order it from your Blue Ox Dealer and install according to its instructions.
Tighten all loose bolts to the correct torque specification using Loctite Red on the bolt threads. Refer to the bolt torque specifications table: 10 foot-pounds for 1/4-inch bolts, 31 foot-pounds for 10MM bolts, and 33 foot-pounds for 3/8-inch bolts (Grade 5). Before each towing trip, inspect all towing equipment for loose bolts and tighten as needed.
Do not use the baseplate. If the baseplate is damaged or missing parts, it must be replaced. An accident or damage can cause unseen damage that could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 to order a replacement baseplate.
Hold the fascia as close to its original position as possible and mark the areas where it contacts the convenience links and attachment tabs. Trim the fascia carefully around these marked areas. The dimensional variations between vehicles can be considerable, and slight tailoring of the baseplate or fascia may be necessary to compensate for manufacturer tolerances. If trimming does not resolve the fit issue, contact Blue Ox at (402) 385-3051.
After positioning the baseplate onto the frame and starting the 10MM bolt on the driver side with the DS spacer tube, level and clamp the baseplate into position before fully tightening the bolt. Use a level to ensure the baseplate is properly aligned. Once level and clamped, fully tighten the 10MM bolt using Loctite Red and the correct torque specification (31 foot-pounds for Grade 8.8 or 40 foot-pounds for Grade 10.9).
