Complete kit bundle containing all necessary components for your project. Professional-grade components designed for reliable performance and long-lasting durability.

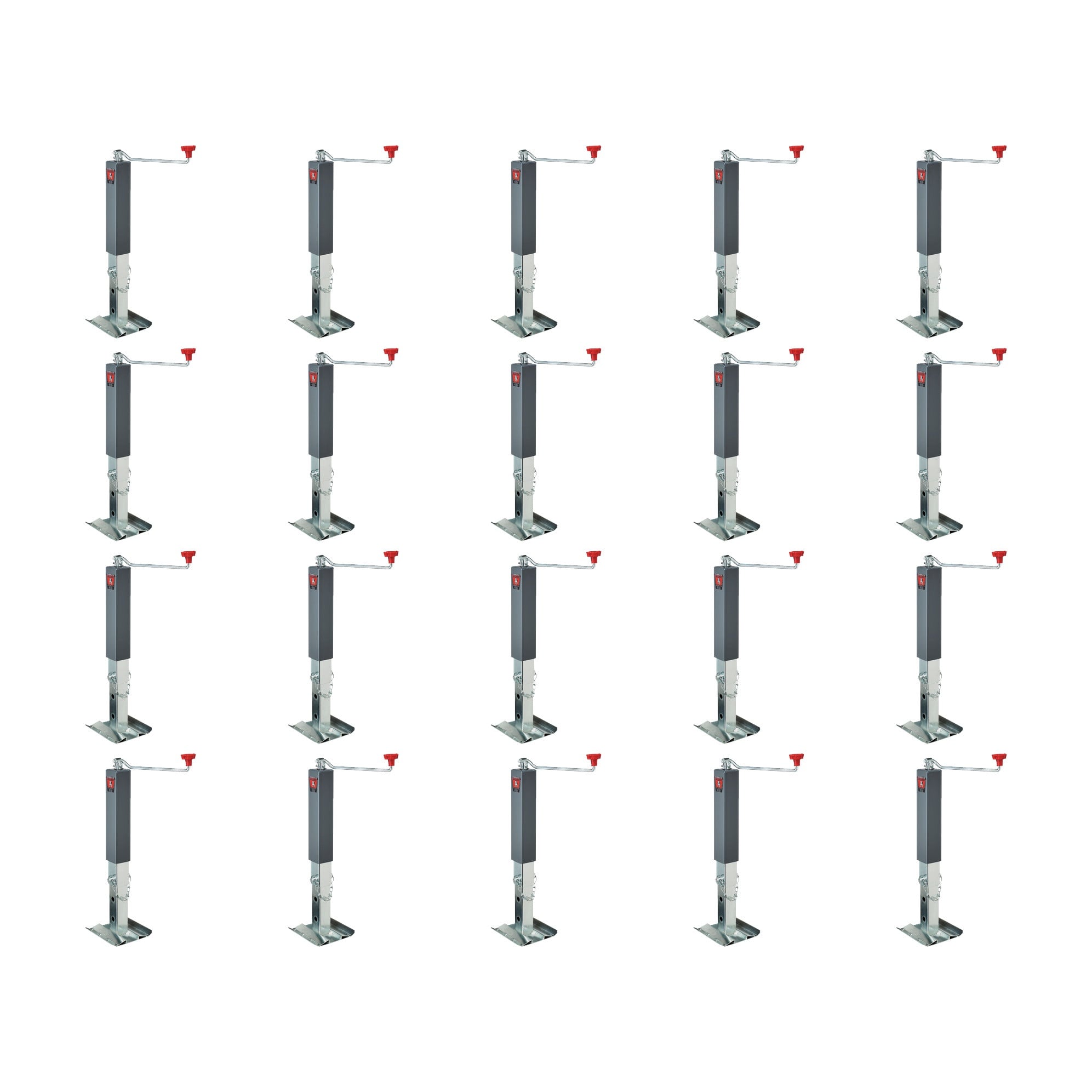

BULLDOG 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. These jacks provide the extra side load capacity you need without the costs of increasing overall capacity.
| BRAND: | BULLDOG |
| PART NUMBER: | 195312 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 17.7 LBS |
| CAPACITY: | 5,000 LBS. |
| TRAVEL: | 15 IN. |
| RETRACTED: | 15.2 IN. |
| EXTENDED: | 30.2 IN. |
| CLEARANCE: | 7 IN. |
| MODEL NUMBER: | TWL 195 DTSXFQ W/P&C |
| HANDLE STYLE: | TOPWIND |
| SPEEDY LIFT: | NO |
| MATERIAL: | STEEL |
| HANDLE BUSHING INCLUDED: | YES |
| ATTACHED WHEELS: | NO |
| COLOR: | GRAY |
| FOOT WIDTH: | 3.9 IN. |
| FINISH: | GRAY PAINT AND CLEAR ZINC PLATE |
| FOOT PLATE SIZE: | 7.5 IN. X 3.9 IN. |
| GEARS INCLUDED: | YES |
| FOOT LENGTH: | 7.5 IN. |
| ROLL PINS INCLUDED: | YES |
| WASHERS INCLUDED: | YES |
Keywords: BD195312-20PK bundle kit, complete kit, professional components, industrial kit, BD195312, Bulldog
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
A tongue jack is a device mounted to a trailer tongue to raise and lower the tongue for coupling and uncoupling from the tow vehicle. It supports the weight of the tongue and allows manual adjustment of the trailer height. The manual covers multiple mounting types including bolt-on, weld-on, snap ring, bolt-thru, A-plate, direct-mount, and pivot tube configurations.
No. The manual explicitly states: 'These jacks are not designed for mounting to round tongues.' Tongue jacks are designed for use with standard (non-round) trailer tongues.
No. A-plate jacks are designed specifically for mounting to trailers with A-plate couplers only. The manual states: 'A-plate jacks are designed for mounting to trailers with A-plate couplers.' If your trailer does not have an A-plate coupler, you will need a different mounting type.
Before mounting the jack, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in all positions including handle swing and swivel positions if applicable. After installation is complete, check for interference again. Specifically verify clearance of the handle, trailer light cables, and coupler.
Secure all mounting bolts with locknuts and torque to 25 ft. lbs. This applies to both the gear housing mounting and the mounting bracket installation for bolt-on jacks.
The gap between the mounting bolts and the tongue is not to exceed 1/16 inch (1.5 mm). This applies to bolt-on mounting configurations. The upper bolts should rest on the top of the tongue, and the lower bolts should be less than 1/16 inch from the bottom of the tongue.
The manual does not specify whether drilling is required for bolt-on installation. It assumes mounting holes already exist in the tongue and mounting straps. If holes do not exist, you will need to drill them to match the mounting bracket pattern. Consult the manufacturer or a qualified installer if you are uncertain about hole placement.
No. The manual explicitly states: 'Do not attempt to weld "Bolt-On" brackets or straps to the tongue. Special brackets are available for "Weld-On" applications.' If you need a welded installation, you must use a weld-on bracket designed for that purpose.
All welding must be performed by an AWS certified welder. For direct-mount installations, weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld. For A-plate installations, use a 3/16 inch fillet weld to attach the A-plate to the coupler and to weld the support plate to the trailer frame. For pivot tube installations, weld all around the pivot tube with a 3/16 inch fillet weld.
When bolting the jack A-plate to the coupler, use three 3/8-16 grade 5 bolts with washers and torque to 15-20 ft. lbs.
To attach a snap ring model jack: 1) Place the jack bracket over the mount and place the snap ring in the groove. 2) Seat the snap ring fully into the groove. Before installing the snap ring, inspect the snap ring groove and remove any debris to ensure proper seating.
To attach a bolt-thru model jack: 1) Place the jack bracket into the recessed opening on the mount. 2) Place the small end of the bushing into the jack bracket and onto the bolt. 3) Tighten the locknut until there is little movement in the bushing. Note: The bolt should be installed between the trailer tongue and mount; the jack bracket will be held by the bushing between the locknut and the mount.
For weld-on pivot tube mounting (round and square pivot tubes): 1) All welding must be performed by an AWS certified welder. 2) The non-beveled side of the pivot tube is welded to the tongue unless otherwise specified. 3) Place the weld-on pivot tube against the tongue and weld all around with a 3/16 inch fillet weld. Align one set of pivot mount holes vertically. 4) Mate the jack to the pivot tube and secure with the supplied pin.
For a top-wind handle assembly: 1) Place the washer over the screw stem and then place the handle over the screw stem. 2) Secure the handle to the screw stem with the bolt and nut provided. For a side-wind handle assembly: 1) Insert the long spacer into the roller followed by the thin spacer and the bolt. 2) Secure to the crank stem with the nut provided.
To attach a wheel assembly: 1) Insert the long spacer into the wheel. 2) Set the wheel into the caster body and place the bolt through the caster body and wheel. 3) Secure with the nut provided. For a heavy duty caster, use 4 3/8 inch bolts, washers, and locknuts as shown in the manual. Note: Jack capacity is limited to the lesser of the jack or caster capacity.
Fully retract and rotate the jack before towing. If using an optional drop foot or caster, always remove the drop foot or caster before towing to maximize ground clearance.
Before manually moving a trailer, crank the jack to the lowest position.
If the product is a swivel jack, lock the plunger pin into a hole in the mounting bracket before raising or lowering the tongue.
When using the drop foot or drop leg, make certain the supplied pin is fully inserted through both sides of the inner tube and the drop tube before using the jack. Never attempt to adjust the drop foot or drop leg when there is any load on the jack.
Never exceed the maximum rated capacity. The jack capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Refer to the stamped markings or decals on the product to obtain the rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
These jacks are designed for vertical loading. Excessive side forces may cause jack failure and must be avoided.
Operator and bystanders should never position any part of their body under any portion of the product or the load being supported. Do not allow children to play on or around the product or the load being supported. Secure the load, vehicle and trailer from rolling by blocking wheels when operating the jack or coupling the trailer.
No. This product is not intended to be used as a transport device for the implement it is attached to. Minimize movement of the implement while the jack is under load.
If the product has a pivot tube mount, make certain the pivot pin is fully inserted through both sides of the pivot tube and the pivot mount before using the jack.
If the product is a rack jack, do not raise the gear housing above the inner tube.
The following procedures should be performed at least annually: For side-wind models, the internal gearing and bushings must be kept lubricated. Apply a small amount of automotive grease to the internal gearing by removing the jack cover, or if equipped, use a needle nose applicator or standard grease gun on the lubrication point found on the side of the jack near the crank. Rotate the jack handle to distribute the grease evenly. A lightweight oil must be applied to the handle unit at both sides of the tube for side-wind models. If equipped, the axle bolt and nut assembly of the caster wheel must also be lubricated with the same lightweight oil. For top-wind models, apply a lightweight oil to the screw stem. If the product is used in a marine environment, flush the jack assembly and bushings with fresh water and apply fresh lubricant.
Use automotive grease for the internal gearing and bushings of side-wind models. Use lightweight oil for the handle unit, caster wheel axle bolt and nut assembly, and screw stem of top-wind models. If the product is used in a marine environment, flush with fresh water and apply fresh lubricant.
Always replace bent, broken, or worn parts before using this product.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number.
Cequent Performance Products warrants the product will be free from defects in both material and workmanship for a period of five years for Bulldog and Fulton products and one year for Pro-Series and Reese Towpower products, ordinary wear and tear excepted; provided that installation and use of the product is in accordance with product instructions. This warranty is limited to the original consumer purchaser only and is not transferable.
The limited warranty covers defects in material and workmanship. It does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident; (c) damage from misapplication, overloading, or improper installation, including welds; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone other than the manufacturer, except alterations made pursuant to product instructions and in a workmanlike manner.
To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290, identify the product by model number, and follow the claim instructions that will be provided. You will be responsible for return shipping costs. Please retain your purchase receipt to verify date of purchase and that you are the original consumer purchaser. The product and the purchase receipt must be provided to process your warranty claim.
No. Tongue jacks are not designed for mounting to round tongues. They are designed for standard (non-round) trailer tongues only.
No. A-plate jacks are designed only for trailers with A-plate couplers. Verify your trailer coupler type before purchasing.
Torque all mounting bolts to 25 ft. lbs. using locknuts.
Torque the three 3/8-16 grade 5 bolts with washers to 15-20 ft. lbs. when bolting the A-plate to the coupler.
Fully retract and rotate the jack before towing. Remove any optional drop foot or caster to maximize ground clearance.
Perform lubrication at least annually. Apply automotive grease to internal gearing and lightweight oil to handle and caster components. For marine environments, flush with fresh water and apply fresh lubricant.
