Complete kit bundle containing all necessary components for your project. Professional-grade components designed for reliable performance and long-lasting durability.

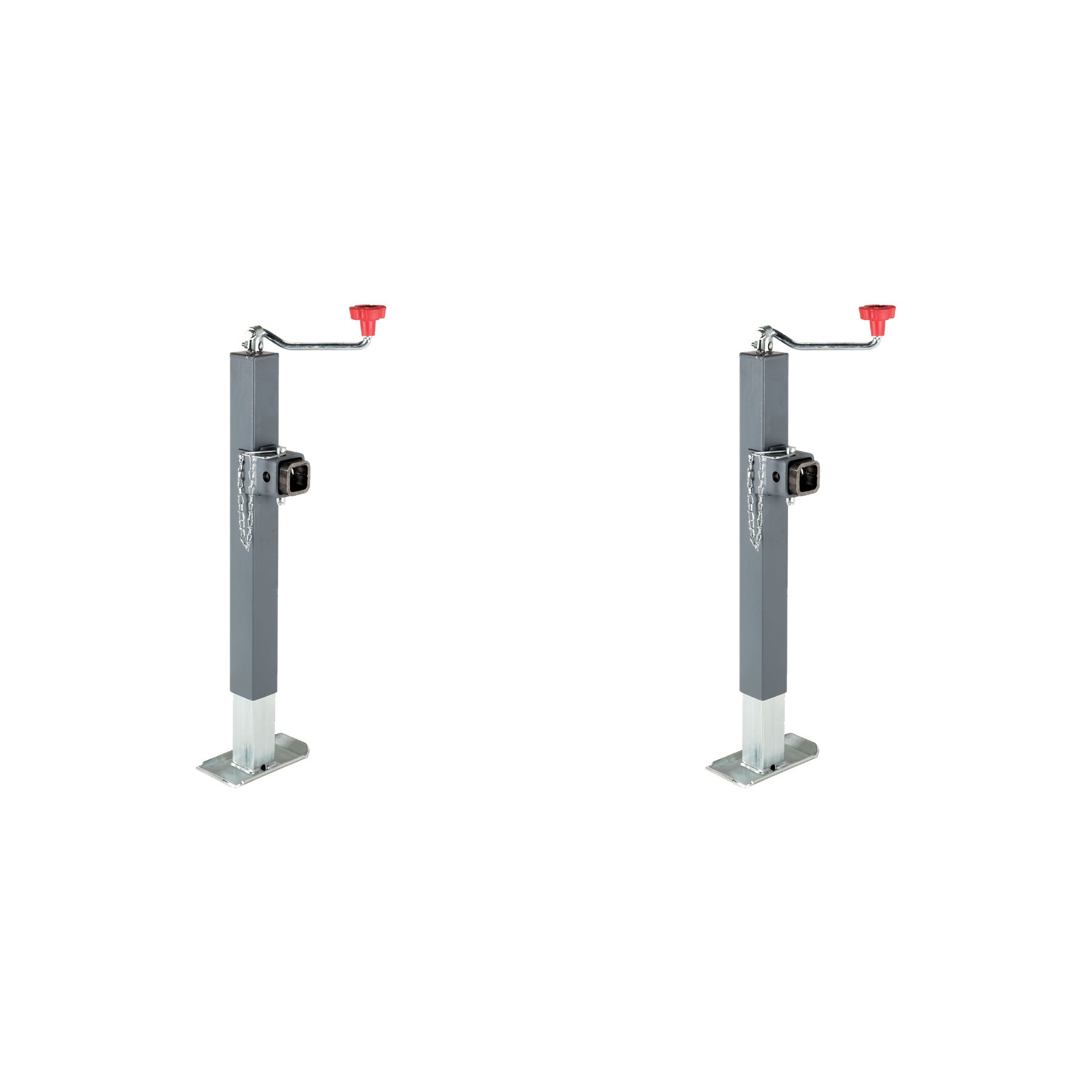

BULLDOG 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. These jacks provide the extra side load capacity you need without the costs of increasing overall capacity.
| BRAND: | BULLDOG |
| PART NUMBER: | 195306 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 17.5 LBS |
| CAPACITY: | 5,000 LBS. |
| TRAVEL: | 15 IN. |
| RETRACTED: | 15.2 IN. |
| EXTENDED: | 30.2 IN. |
| CLEARANCE: | 7 IN. |
| MODEL NUMBER: | TWL 195 DTSFQ |
| HANDLE STYLE: | TOPWIND |
| SPEEDY LIFT: | NO |
| MATERIAL: | STEEL |
| HANDLE BUSHING INCLUDED: | YES |
| ATTACHED WHEELS: | NO |
| COLOR: | GRAY |
| FOOT WIDTH: | 3.9 IN. |
| FINISH: | GRAY PAINT AND CLEAR ZINC PLATE |
| FOOT PLATE SIZE: | 7.5 IN. X 3.9 IN. |
| GEARS INCLUDED: | YES |
| FOOT LENGTH: | 7.5 IN. |
| ROLL PINS INCLUDED: | YES |
| WASHERS INCLUDED: | YES |
Keywords: BD195306-30PK bundle kit, complete kit, professional components, industrial kit, BD195306, Bulldog
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
A tongue jack is a device mounted to a trailer tongue that raises and lowers the front of the trailer for coupling and uncoupling from the tow vehicle. The manual covers multiple styles: bolt-on rack jacks, weld-on direct-mount jacks, snap ring models, bolt-thru models, A-plate jacks, and pivot tube jacks. Each type serves the same function but uses different mounting methods suited to different trailer designs.
No. The manual explicitly states: "These jacks are not designed for mounting to round tongues." Tongue jacks are designed for flat or rectangular tongues only.
The gap between the mounting bolts and the tongue must not exceed 1/16 inch (1.5 mm). This applies to both the bolt-on rack jack and bolt-on mounting bracket installations. The upper bolts should rest on the top of the tongue, and the lower bolts should be less than 1/16 inch from the bottom of the tongue.
Before mounting, confirm there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Before installing, check for interference in all positions including handle swing and swivel positions if applicable. After installation is complete, check for interference again. Specifically verify clearance of the handle, trailer light cables, and coupler.
Torque all locknuts to 25 ft. lbs. (3.5 m/kg) for both bolt-on rack jack and bolt-on mounting bracket installations.
Use three 3/8-16 grade 5 bolts with washers and torque to 15-20 ft. lbs. (2-2.7 m/kg) when bolting the jack A-plate to the coupler.
The manual does not specify whether drilling is required. It assumes mounting holes already exist in the tongue and mounting straps. If holes do not exist, drilling would be necessary, but the manual does not provide guidance on hole size or drilling procedures. Contact the manufacturer or an installer for drilling specifications.
No. The manual explicitly states: "Do not attempt to weld 'Bolt-On' brackets or straps to the tongue. Special brackets are available for 'Weld-On' applications." If you need a welded installation, you must use weld-on brackets designed for that purpose.
All welding must be performed by an AWS certified welder. For direct-mount jacks, weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld. For A-plate jacks, use a 3/16 inch fillet weld. For pivot tube mounting, weld all around the pivot tube with a 3/16 inch fillet weld. The non-beveled side of the pivot tube is welded to the tongue unless otherwise specified.
1) Place the gear housing on the tongue and insert supplied bolts in holes corresponding to the tongue width. 2) Place the mounting bracket below the tongue with the flat surface against the tongue. 3) Secure with locknuts and torque to 25 ft. lbs.
1) Place the jack bracket over the mount. 2) Place the snap ring in the groove. 3) Seat the snap ring fully into the groove. Before installing the snap ring, inspect the snap ring groove and remove any debris.
1) Place the jack bracket into the recessed opening on the mount. 2) Place the small end of the bushing into the jack bracket and onto the bolt. 3) Tighten the locknut until there is little movement in the bushing. Note: The bolt should be installed between the trailer tongue and mount; the jack bracket will be held by the bushing between the locknut and the mount.
A-plate jacks are designed for mounting to trailers with A-plate couplers. It is recommended to attach a bottom support plate to the bottom of the tongue. 1) All welding must be performed by an AWS certified welder. 2) If the A-plate is separate from the jack, align the jack (and foot, if equipped) with the jack and coupler as desired before welding using a 3/16 inch fillet weld. 3) Bolt the jack A-plate to the coupler using three 3/8-16 grade 5 bolts with washers, torque to 15-20 ft. lbs. 4) Weld the recommended support plate to the bottom of the trailer frame using a 3/16 inch fillet weld. 5) If your jack is a plain mount type, it may be mounted directly to a coupler with a 3/16 inch fillet weld. 6) Rack jacks with a similar A-plate incorporated into their design may be attached according to these instructions.
1) All welding must be performed by an AWS certified welder. 2) Place the jack at the desired location. 3) Weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld.
1) All welding must be performed by an AWS certified welder. 2) The non-beveled side of the pivot tube is welded to the tongue unless otherwise specified on hardware. 3) Place the weld-on pivot tube against the tongue and weld all around with a 3/16 inch fillet weld. Align one set of pivot mount holes vertically. 4) Mate the jack to the pivot tube and secure with the supplied pin.
1) Insert the long spacer into the roller followed by the thin spacer and the bolt. 2) Secure to the crank stem with the nut provided.
1) Place the washer over the screw stem and then place the handle over the screw stem. 2) Secure the handle to the screw stem with the bolt and nut provided.
1) Insert the long spacer into the wheel. 2) Set the wheel into the caster body and place the bolt through the caster body and wheel. 3) Secure with the nut provided.
Use 4 bolts of 3/8 inch diameter, washers, and locknuts as shown in the manual diagram. Jack capacity is limited to the lesser of the jack or caster capacity.
Fully retract and rotate the jack before towing. If using an optional drop foot or caster, always remove the drop foot or caster before towing to maximize ground clearance.
Never exceed the maximum rated capacity. The jack capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Refer to the stamped markings or decals on the product to obtain the rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
These jacks are designed for vertical loading only. Excessive side forces may cause jack failure and must be avoided.
Operator and bystanders should never position any part of body under any portion of the product or the load being supported. Secure the load, vehicle and trailer from rolling by blocking wheels when operating the jack or coupling the trailer. Do not allow children to play on or around the product or the load being supported. Before manually moving the trailer, crank the jack to the lowest position.
If the product is a swivel jack, lock the plunger pin into a hole in the mounting bracket before raising or lowering the tongue.
If the product has a pivot tube mount, make certain the pivot pin is fully inserted through both sides of the pivot tube and the pivot mount.
When using the drop foot or drop leg, make certain the supplied pin is fully inserted through both sides of the inner tube and the drop tube before using the jack.
No. If the product has a drop foot or drop leg, never attempt to adjust the drop foot or drop leg when there is any load on the jack.
If the product is a rack jack, do not raise the gear housing above the inner tube.
Always replace bent, broken, or worn parts before using the product.
The following procedures should be performed at least annually.
For side-wind models, the internal gearing and bushings of the jack must be kept lubricated. Apply a small amount of automotive grease to the internal gearing by removing the jack cover, or if equipped, use a needle nose applicator or standard grease gun on the lubrication point found on the side of the jack near the crank. Rotate the jack handle to distribute the grease evenly. A lightweight oil must be applied to the handle unit at both sides of the tube for side-wind models. If equipped, the axle bolt and nut assembly of the caster wheel must also be lubricated with the same lightweight oil.
For top-wind models, apply a lightweight oil to the screw stem.
If the product is used in a marine environment, flush the jack assembly and bushings with fresh water, and apply fresh lubricant.
Use automotive grease for internal gearing and bushings. Use lightweight oil for handle units, caster wheel axle assemblies, and screw stems.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number.
No. Tongue jacks are not designed for mounting to round tongues. They are designed for flat or rectangular tongues only.
Available styles include bolt-on rack jacks, weld-on direct-mount, snap ring, bolt-thru, A-plate (for A-plate couplers), and pivot tube mounting. Choose based on your trailer design and coupling type.
Welding is required only for weld-on models (direct-mount, A-plate, and pivot tube). Bolt-on, snap ring, and bolt-thru models do not require welding. All welding must be performed by an AWS certified welder.
Torque all locknuts to 25 ft. lbs. (3.5 m/kg) for bolt-on installations. For A-plate bolts to coupler, torque to 15-20 ft. lbs. (2-2.7 m/kg).
Fully retract and rotate the jack before towing. If using an optional drop foot or caster, remove it before towing to maximize ground clearance.
Perform maintenance at least annually. For side-wind models, apply automotive grease to internal gearing and lightweight oil to handle and caster assemblies. For top-wind models, apply lightweight oil to the screw stem. In marine environments, flush with fresh water and relubricate.
Before mounting, confirm no interference from the tow vehicle, tongue, ground, or accessories while stationary or in motion. Check all positions including handle swing and swivel. Verify clearance of handle, trailer light cables, and coupler. Check again after installation.
