| BRAND: | BULLDOG |
| PART NUMBER: | 1289200300 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 60.7 LBS |
| CAPACITY: | 40,000 LBS. |
| BALL DIAMETER: | 2.313 IN. |
| MATERIAL: | STEEL |
| HITCH CLASS: | V |
| SAFETY CHAINS INCLUDED: | NO |
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The Bulldog BX1 is a 3" ball gooseneck coupler designed to couple trailers to towing vehicles. It features a retractable design with a maximum extension of 2.6" from the fully retracted position. The coupler is rated according to SAE J2638 and must be installed by an AWS certified welder with proper gusseting and reinforcement.
The maximum extension is 2.6" measured as the difference between the fully retracted and fully extended positions. Do not exceed this limit, as it is a critical safety specification.
Use only a 3" hitch ball rated equal to or greater than the capacity of this coupler. Never exceed the maximum rated capacity. Refer to stamped markings or decals on the product to obtain the rated capacity, or contact Cequent Performance Products at 1-800-632-3290.
No. The coupler is designed exclusively for a 3" ball. Using any other size will prevent proper coupling and create a safety hazard. The ball must be rated equal to or greater than the coupler's capacity.
The rated capacity is stamped or shown on decals on the product itself. If you cannot locate this information or are uncertain, contact Cequent Performance Products at 1-800-632-3290 or visit www.cequentgroup.com.
Before mounting the coupler, you must confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in both extended and retracted positions before installation, and check again after installation is complete. If interference is found, do not use the coupler.
Yes. All welding must be performed by an AWS (American Welding Society) certified welder. This is a mandatory requirement for safe installation and to ensure the coupler can support its maximum rated load.
The coupler must be mounted with the Bulldog® name facing the tow vehicle. This is the correct and only acceptable orientation for safe operation.
Gussets are required to tie the trailer framing to the coupler. The trailer frame or reinforcements must extend down the outer tube to within 3" above the bottom of the outer tube. Gussets must be attached as low as possible to the outer tube to provide complete support. This gusseting is the responsibility of the trailer manufacturer.
Yes. The coupler must be welded to the trailer frame by an AWS certified welder. The outer tube must be rigidly attached to the trailer to support the maximum rated load. Avoid heat damage to the coupler during welding and do not weld over or near any holes or hardware on the coupler.
No. Do not weld over or near any holes or hardware on the coupler. Welding in these areas can damage the coupler and impair its operation. All welding must be performed by an AWS certified welder and must avoid the coupler's fastening points.
Avoid heat damage to the coupler during welding. Do not weld over or near any holes or hardware on the coupler. All welding must be performed by an AWS certified welder who understands proper heat management to prevent damage to the coupler's structure and operation.
All pinch bolts must be torqued to 200 ft-lbs minimum. All hardware must be torqued to 200 ft-lbs minimum. Periodically check for proper torque and tighten if necessary. Check for wear on the inner tube if retightening is needed.
The manual does not specify the exact number of pinch bolts. However, it states that all pinch bolts must be used and torqued to 200 ft-lbs minimum, and they must be fastened completely through both the inner and outer tubes to support the coupler's rated load.
All hardware must be checked periodically for proper torque and tightened if necessary. The maintenance section specifies that torque checks should be performed at least annually. Check for wear on the inner tube if retightening is needed.
1. Block trailer wheels. 2. Align hitch ball beneath coupler. 3. Set coupler into the open position by lifting up on the handle and slide the locking plate into the detent. 4. Lower the trailer onto the hitch ball. 5. Visually check that the hitch ball is fully seated in the coupler. 6. Slide the locking plate over and place handle down into the closed position. When using a recessed ball, check to make sure handle and locking plates are clear of any interference with safety chains and D-rings. 7. Insert optional indicator pin or lock through hole in fixed plate.
1. Block trailer wheels. 2. Remove indicator pin or lock and set the handle into the open position. 3. Slide the locking plate into the open position and raise the trailer from the hitch ball.
Blocking the trailer wheels is a critical safety requirement before latching or unlatching the coupler. This prevents the trailer from rolling unexpectedly during the coupling or uncoupling process, which could cause injury or property damage.
Visually check that the hitch ball is fully seated in the coupler ball pocket. The ball should be completely inserted into the pocket before closing the latch. Ensure that the latch is closed and the handle is in the closed position.
The optional indicator pin or lock is inserted through a hole in the fixed plate to provide additional security and visual confirmation that the coupler is properly latched. It is optional but recommended for added safety.
When using a recessed ball, check to make sure the handle and locking plates are clear of any interference with safety chains and D-rings. This ensures that the safety chains and D-rings can function properly and do not obstruct the coupler's operation.
Do not exceed the lesser of the coupler, hitch, vehicle, ball, or trailer weight ratings (including load). Weigh your trailer plus added load before towing. The coupler's specific capacity is stamped or shown on decals on the product. Never exceed the maximum rated capacity. If uncertain about the capacity, contact Cequent Performance Products at 1-800-632-3290.
No. Do not allow children to play on or around the coupler or the load being supported. The coupler is a heavy-duty towing device and poses serious safety hazards.
No. The operator and bystanders should never position any body part under any portion of the coupler or the load being supported. This is a critical safety requirement to prevent serious injury or death.
Before towing: (1) Check vehicle, hitch ball and coupler for signs of wear or damage. (2) Ensure the coupler opens, closes, and the handle springs closed when released. (3) Always replace bent, broken, or worn parts before using. (4) Ensure the hitch ball is fully seated in the coupler ball pocket and the latch is closed. (5) Make sure trailer safety chains are properly connected. (6) Make sure all trailer lighting is hooked up and working properly.
If the coupler handle does not spring closed when released, this indicates a malfunction. Always replace bent, broken, or worn parts before using the product. Do not tow with a malfunctioning coupler. Contact Cequent Performance Products at 1-800-632-3290 for replacement parts.
The handle must be in the closed position for towing. The closed position is indicated when the handle is placed down and the locking plate is slid over. A properly assembled handle will make a loud "clack" sound when moving from open to closed position. Do not tow if the handle is in the open position.
After installation is complete: (1) Check for interference again in both extended and retracted positions. (2) Ensure the coupler remains vertical. (3) Check to make sure that coupler operation has not been impaired in any way. (4) Do not use the coupler if its operation has been impaired. (5) After assembly and painting, affix any enclosed labels to the coupler and remove premask.
The coupler must remain vertical after installation to ensure proper operation. If the coupler is not vertical, it may not function correctly and could fail during use, creating a safety hazard.
If the coupler's operation has been impaired in any way after installation, do not use the coupler. Impaired operation could include difficulty opening or closing, the handle not springing closed, the latch not engaging properly, or any other malfunction. Contact Cequent Performance Products at 1-800-632-3290 for assistance.
Perform the following maintenance at least annually: (1) Check hardware torque and tighten to 200 ft-lbs if necessary. (2) Grease all fittings and the ball pocket. (3) Inspect the retaining pin and replace if necessary. Keep the ball pocket, latch, and handle clean at all times.
Grease all fittings and the ball pocket at least annually. The coupler has grease fittings located on the body. Use a standard grease gun to apply grease to these fittings. Keep the ball pocket clean and well-lubricated for smooth operation.
Inspect the retaining pin at least annually. If the pin is worn, damaged, or missing, replace it immediately. The retaining pin is critical for proper coupler operation. Replacement pins are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290.
Keeping the ball pocket, latch, and handle clean ensures proper operation of the coupler. Dirt, debris, or corrosion can interfere with the coupling and uncoupling process, prevent the latch from closing properly, and cause the handle to malfunction. Regular cleaning is essential for safe towing.
A handle repair kit is available to replace worn or malfunctioning parts. This kit includes the handle assembly, locking cam, groove pin, bushing, and torsion spring. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number when ordering.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Using non-approved parts may compromise the coupler's safety and performance. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290.
A loud "clack" sound indicates proper assembly of the handle mechanism. If this sound is absent, the handle assembly may not be properly assembled. Disassemble and reassemble the handle following the procedure in the Available Parts Kit section, ensuring the straight leg of the torsion spring is properly seated in the locking cam and the bent leg is properly inserted into the bushing side of the casting. If the problem persists, replace the handle assembly with a new kit from Cequent Performance Products.
This indicates a malfunction in the torsion spring or handle assembly. Do not use the coupler. The handle repair kit is available to replace worn or malfunctioning parts. The kit includes the handle assembly, locking cam, groove pin, bushing, and torsion spring. Contact Cequent Performance Products at 1-800-632-3290 to order the replacement kit and follow the installation procedure in the Available Parts Kit section.
The coupler mechanism may be dirty or corroded. Keep the ball pocket, latch, and handle clean. Grease all fittings and the ball pocket at least annually. If cleaning and greasing do not resolve the issue, the handle assembly or locking mechanism may be worn and require replacement. Contact Cequent Performance Products at 1-800-632-3290 for a replacement handle repair kit.
First, ensure the coupler is in the open position by lifting the handle and sliding the locking plate into the detent. Clean the ball pocket and the hitch ball to remove any dirt or debris. Align the hitch ball directly beneath the coupler and lower the trailer slowly onto the ball. If the ball still does not fully seat, the ball pocket may be damaged or the coupler may not be properly aligned. Do not tow. Contact Cequent Performance Products at 1-800-632-3290 for assistance.
The latch may be obstructed by dirt, debris, or corrosion. Clean the latch and the surrounding area thoroughly. Grease the mechanism and test the latch operation. If the latch still does not close or stay closed, the locking cam or handle assembly may be worn or damaged. Do not tow. The handle repair kit is available to replace these components. Contact Cequent Performance Products at 1-800-632-3290.
Check that all pinch bolts are torqued to 200 ft-lbs minimum. Periodically check for proper torque and tighten if necessary. If retightening is needed, check for wear on the inner tube. Ensure the coupler is rigidly attached to the trailer and that all gussets are properly welded. If the coupler remains loose after torquing, the inner or outer tube may be damaged. Do not tow. Contact Cequent Performance Products at 1-800-632-3290.
Do not tow. The coupler must not exceed 2.6" maximum extension from the fully retracted position. If the coupler is extending beyond this limit, the inner tube may be damaged or the coupler may not be properly installed. Measure the extension as the difference between fully retracted and fully extended positions. Contact Cequent Performance Products at 1-800-632-3290 for assistance.
The Bulldog BX1 coupler is covered by a Limited Five Year Warranty from the original consumer purchaser. The warranty covers material defects in both material and workmanship for five years, ordinary wear and tear excepted, provided that installation and use are in accordance with product instructions. The warranty does not cover normal wear and tear, damage from abuse, neglect, misuse, accidents, misapplication, overloading, improper installation (including welds), improper maintenance and repair, or product alterations by anyone other than Cequent Performance Products. To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290.
The Limited Five Year Warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or improper installation, including welds; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone other than Cequent Performance Products, with the sole exception of alterations made pursuant to product instructions and in a workmanlike manner.
To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290. Identify the product by model number and follow the claim instructions that will be provided. You will be responsible for return shipping costs. Please retain your purchase receipt to verify the date of purchase and that you are the original consumer purchaser. Both the product and the purchase receipt must be provided to process your warranty claim.
If the coupler does not comply with the Limited Five Year Warranty, Cequent Performance Products will replace the product without charge within a reasonable time or, at their option, refund the purchase price. Repair or replacement is your sole remedy under the limited warranty. Cequent Performance Products is not liable for service or labor charges incurred in removing or replacing the product or any incidental or consequential damages of any kind.
| Part Number | Description | Capacity (lbs.) | Retracted Height (in.) | Extended Height (in.) | Adjustment (in.) | Ball Size (in.) |
|---|---|---|---|---|---|---|

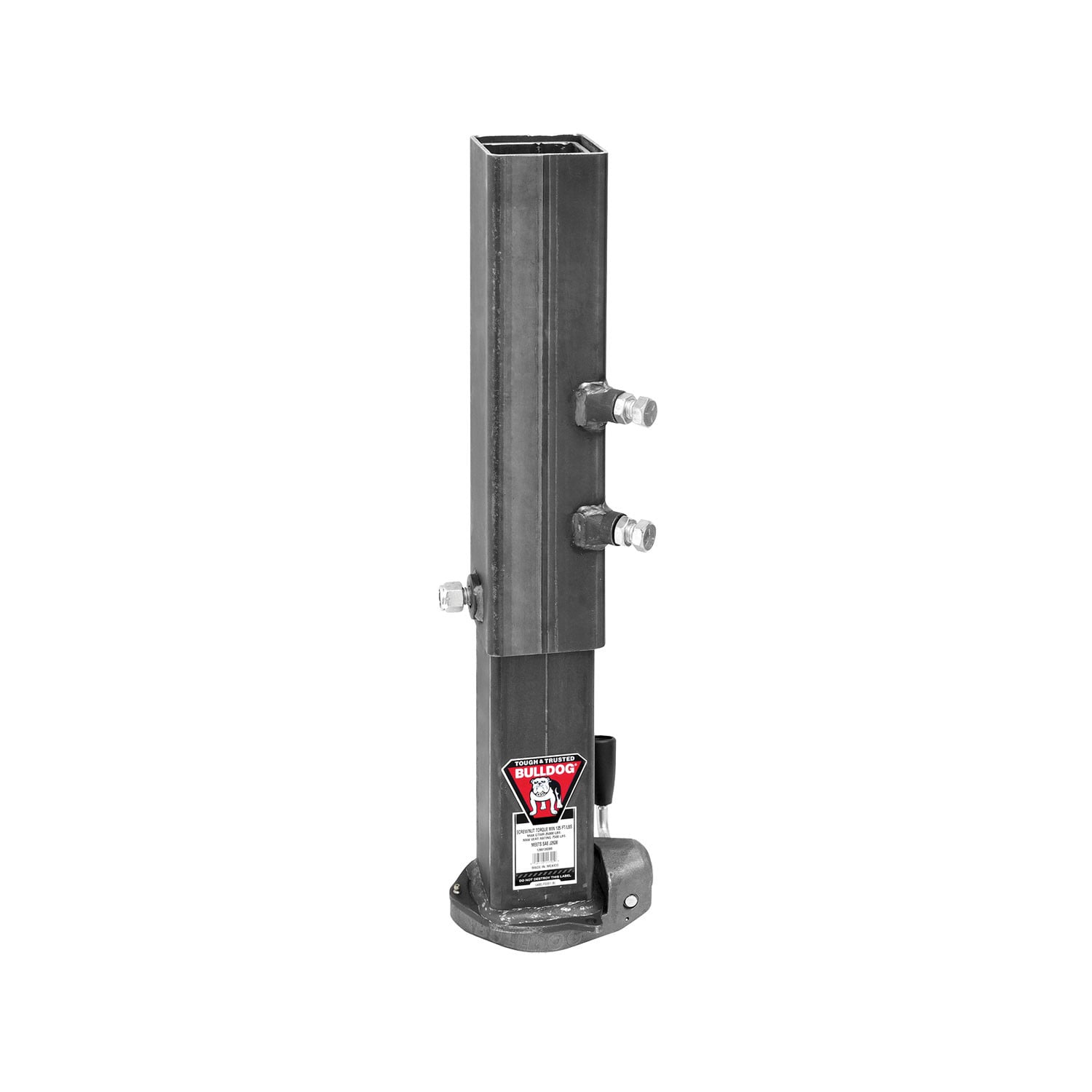

| 1289130300 | BX1 Coupler, 4.5 in. x 20 in. Square Outer Tube, 4 in. x 30.75 in. Square Inner Tube, with BX1 Cast Coupler Head, 3/4 in. Load Bearing Bolt, (2) Set Bolts, Raw, Labels Applied | 25,000 | 38.00 | 38.80 | 8.00 | 2-5/16 |
| 1289140300 | BX1 Coupler, 4.5 in. x 20 in. Square Outer Tube, 4 in. x 30.75 in. Square Inner Tube, with BX1 Cast Coupler Head, 3/4 in. Load Bearing Bolt, (2) Set Bolts, Raw, Labels Applied | 30,000 | 38.00 | 38.80 | 8.00 | 2-5/16 |

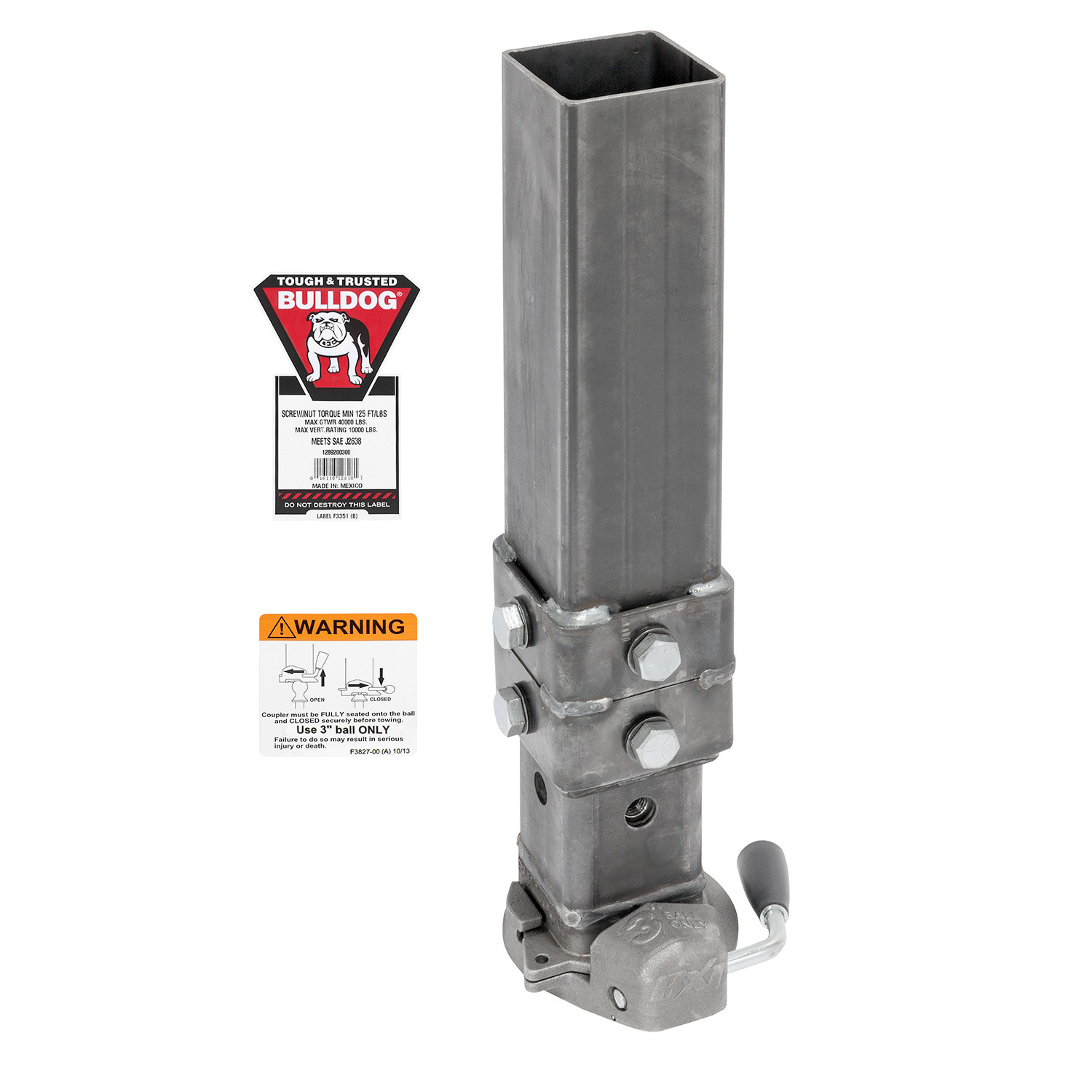

| 1289200300 | BX1 Coupler, 4.5 in. x 20 in. Square Outer Tube, 4 in. x 18.4 in. Square Inner Tube, with BX1 Cast Coupler Head, 3/4 in. Load Bearing Bolt, (4) Set Bolts, (2) Belly Bands, Raw, Labels Applied | 40,000 | 22.00 | 24.60 | 2.60 | 3 |

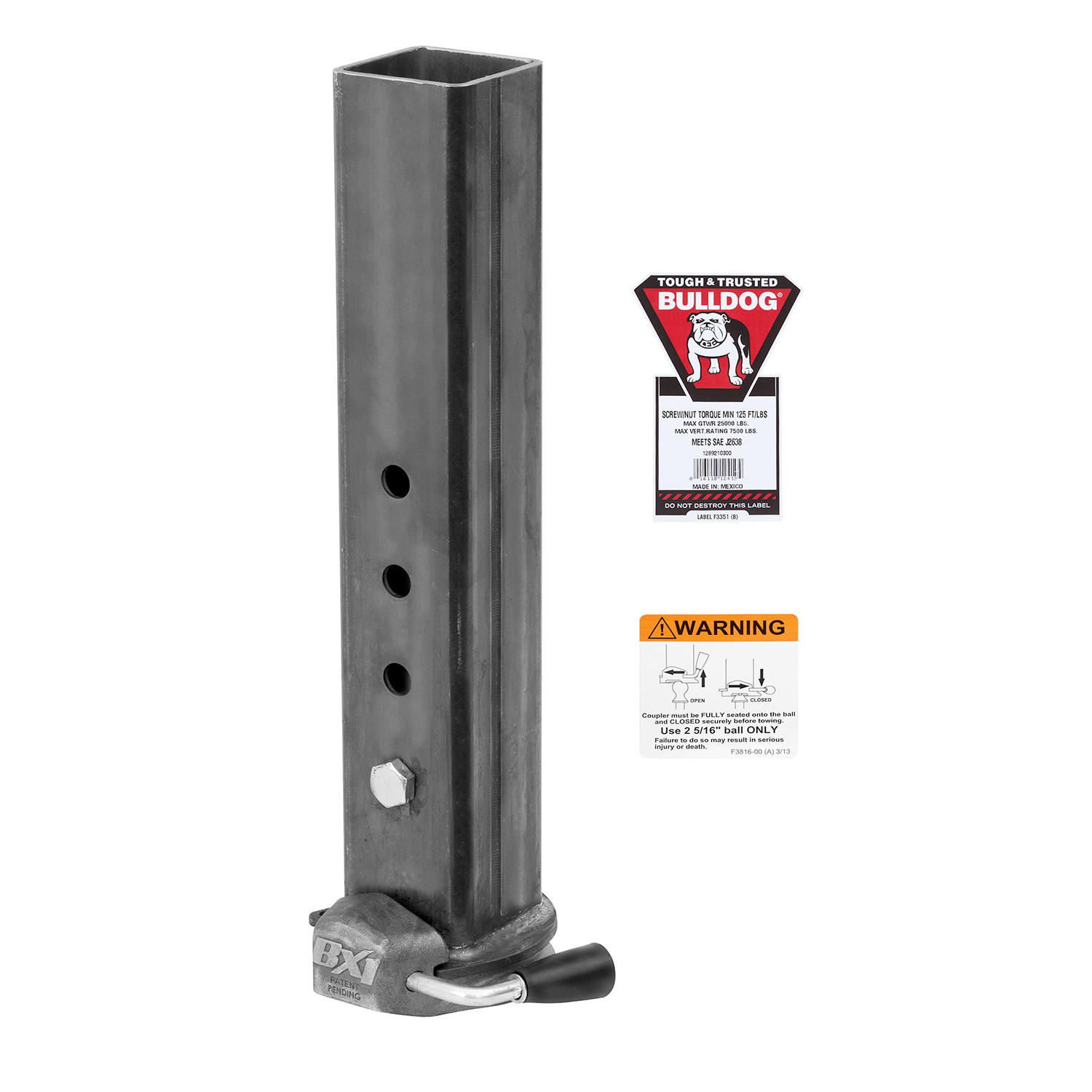

| 1289210300 | BX1 Coupler, 4 in. x 22.75 in. Square Inner Tube Only, with BX1 Cast Coupler Head, Raw, Labels Loose | 25,000 | - | - | 8.00 | 2-2/16 |
| 0233120300 | Square Outer Tube, Weld On, 20 in. Length, 4-1/2 in. Tube, with Hex Head Bolt Hole, Dual Set Bolts and Labels, 20.6 lbs. |
