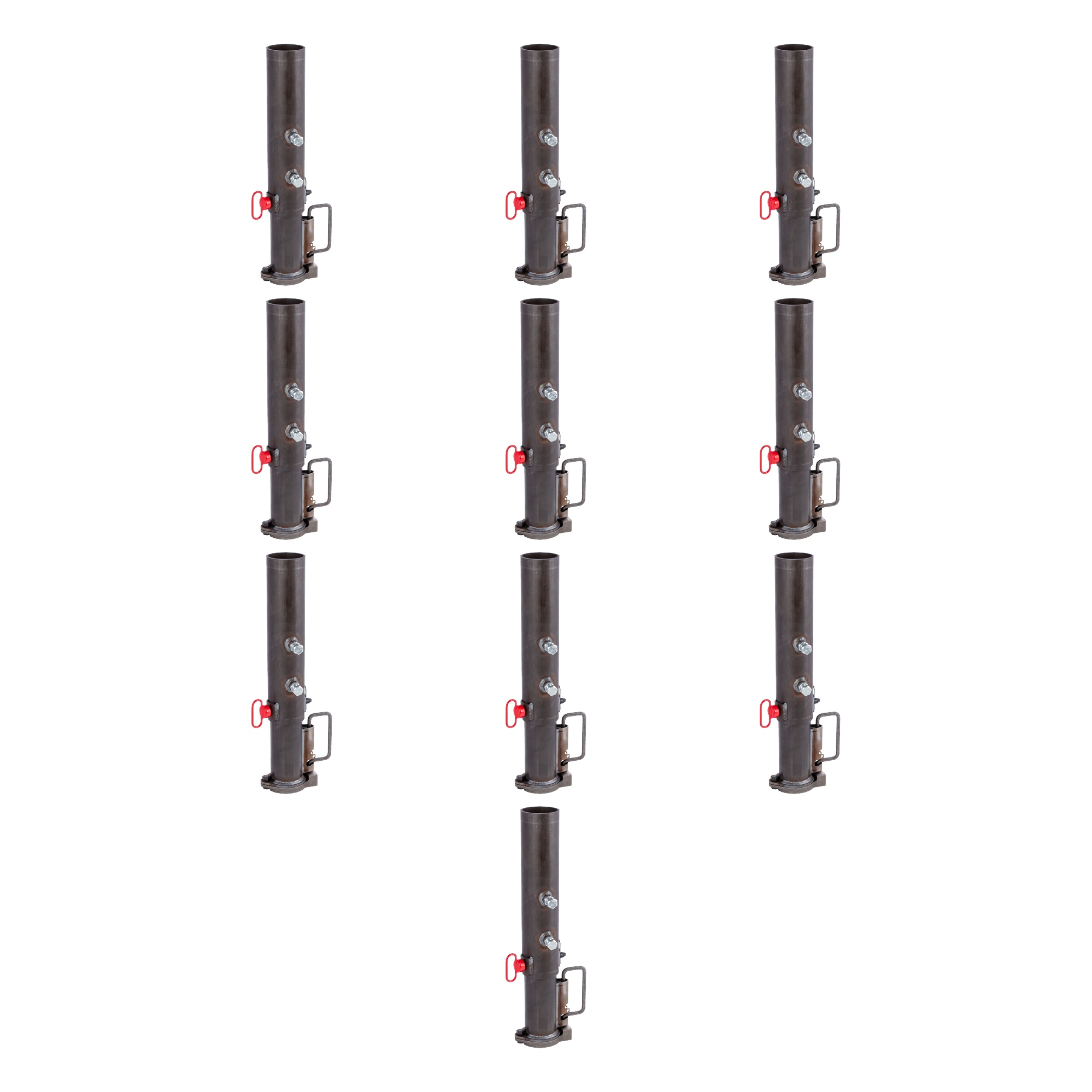

CURT (5-Pack) 2-5/16" Adjustable Gooseneck Coupler, 30KCURTOriginal price was $1,469.75. Current price is $909.95.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Complete kit bundle containing all necessary components for your project. Professional-grade components designed for reliable performance and long-lasting durability.
Professional grade component designed for reliable performance and long-lasting durability.
Keywords: BKDK25030-10PK bundle kit, complete kit, professional components, industrial kit, BKDK25030, CURT
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited
The CURT 25030 is a 30K gooseneck coupler designed for trailer coupling applications. It is rated for a gross trailer weight (GTW) of 30,000 lbs and a tongue weight (TW) of 7,500 lbs. The coupler uses a 2-5/16" hitch ball only and must be closed securely before towing.
The CURT 25030 coupler requires a 2-5/16" (58.7 mm) hitch ball only. Using any other ball size will prevent proper operation and may result in serious injury or death.
No. The CURT 25030 coupler is designed for a 2-5/16" (58.7 mm) hitch ball only. Using any other ball size is not permitted and may result in serious injury or death.
A welding machine is required. The installation is classified as Difficult and must be performed by an AWS certified welder. Proper tools will improve the quality of installation and reduce the time required.
Yes. All welding must be performed by an AWS certified welder. The outer tube must be rigidly attached to the trailer in order for the coupler to support its maximum rated load according to SAE J2638.
The maximum extension for the CURT 25030 gooseneck coupler is 8 inches. This limit must not be exceeded during installation.
If the CURT 25030 coupler is equipped with a load bearing pin (also called a pinch bolt), it must be fully inserted through both the inner and outer tubes and the retaining pin or locking nut must be installed in order for the coupler to support its rated load. Confirm this is done before towing.
Before mounting the coupler, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. The set bolts must be facing the towing vehicle. Check for interference in both extended and retracted positions, and check again after installation is complete.
Yes. To support the coupler's rated load, reinforcements (gussets) must extend down the outer tube to within 3 inches above the bottom of the outer tube. Gussets must be attached at the top and bottom. The outer tube must be supported completely by attaching gussets as low as possible to the outer tube. In high load, high mileage, or rough service applications, additional gussets and banding that tie trailer framing to the coupler are required. This modification is the responsibility of the trailer manufacturer.
All hardware, including set bolts and nuts, must be torqued to a minimum of 125 ft-lbs. This torque must be applied to minimize vibrations in the coupler during towing.
Keep at least 6 inches around the coupler free from obstructions and loose objects during towing. Failure to do so could result in loss of attachment between the truck and trailer, serious injury, or death.
1. Block the trailer wheels. 2. Align the hitch ball beneath the coupler. 3. Set the locking pin in the open position. 4. Slide the locking plate into the open position and lower the trailer onto the hitch ball. 5. Ensure the ball is fully in the coupler cavity. 6. Slide the locking plate into the closed position. 7. Set the locking pin in the closed position to close the coupler. The coupler must be closed securely before towing.
1. Block the trailer wheels. 2. Set the locking pin in the open position. 3. Slide the locking plate into the open position and raise the trailer from the hitch ball.
The following procedures should be performed at least annually: check hardware torque, grease the ball pocket, oil pivot points with SAE 30 wt. motor oil, and inspect the retaining pin and replace if necessary. Keep the ball pocket and mechanism clean.
After installation is complete, check for interference again in all positions. Confirm that coupler operation has not been impaired in any way. Do not use the coupler if its operation has been impaired. After assembly and painting, but prior to being used, any enclosed labels must be affixed to the coupler and premask removed.
Do not use the coupler if its operation has been impaired in any way. The coupler must remain vertical after installation to ensure proper operation. If operation is impaired, contact CURT product support at 877.287.8634 or visit curtmfg.com for assistance.
No. Avoid heat damage to the coupler during welding, and do not weld over or near any holes or hardware on the coupler. This can damage the coupler and impair its operation.
Yes. The coupler must remain vertical after installation to ensure proper operation. The coupler must be held rigid and vertical and must not be damaged by heat during installation.
Never exceed the vehicle manufacturer's recommended towing capacity. The CURT 25030 coupler is rated for a gross trailer weight of 30,000 lbs and a tongue weight of 7,500 lbs, but your specific vehicle may have a lower capacity limit that must be observed.
2-5/16" (58.7 mm) hitch ball only. No other size is compatible.
A welding machine and an AWS certified welder are required. Installation is classified as Difficult.
Yes. Gussets must extend down the outer tube to within 3 inches above the bottom. The outer tube must be completely supported by gussets attached as low as possible.
Minimum 125 ft-lbs for all hardware to minimize vibrations during towing.
At least 6 inches free from obstructions and loose objects. Failure to maintain this clearance could result in loss of attachment, serious injury, or death.
8 inches maximum. This limit must not be exceeded.
At least annually: check hardware torque, grease the ball pocket, oil pivot points with SAE 30 wt. motor oil, and inspect and replace the retaining pin if necessary.
