CURT Towing Starter Kit with 2" Ball (1-1/4" Shank, 3,500 lbss, 3/4" Rise) Trailer Hitch Ball MountCURT$60.56In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
On Sale Today
Original price was $376.95. Current price is $254.99.You save $121.96 (32%)
Free Shipping
Ships free on all orders
Authorized Dealer
2012 - 2016 Chevrolet Sonic
Confirmed to Fit
2012 - 2016 Chevrolet Sonic
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Mon, Sep 7 - Wed, Sep 9
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes installation hardware
Includes installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

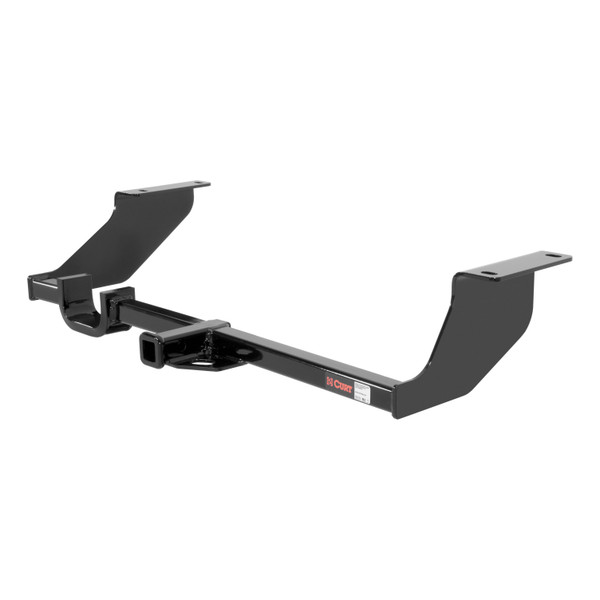

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Sonic (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Yes, the CURT 11258 Class 1 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Chevrolet Sonic (Part #BKDK11258) is designed to fit the 2012-2016 Chevrolet Sonic.
The CURT 11258 Class 1 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Chevrolet Sonic (Part #BKDK11258) fits the following vehicles: 2012-2016 Chevrolet Sonic. Always verify your specific year, make, and model before ordering.
The CURT 11258 Class 1 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Chevrolet Sonic (Part #BKDK11258) fits 2012-2016 Chevrolet Sonic models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 11258 Class 1 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Chevrolet Sonic (Part #BKDK11258) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, model 11258 is designed for 2012-Present Chevrolet Sonic Hatchback only. It is not compatible with other Chevrolet models or body styles.
Maximum trailer weight is 2000 lbs and maximum tongue weight is 200 lbs. Do not exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The hitch uses fishwire hardware to attach through existing vehicle frame access holes.
You will need a ratchet, 11/16" socket, and a torque wrench. All fasteners must be torqued to 70 ft.-lbs.
Two people may be required to ease installation, though it may be possible for one person to complete the task.
Safety glasses should be worn at all times while installing this product.
All 7/16-14 fasteners must be torqued to 70 ft.-lbs.
The kit includes 4 carriage bolts (7/16-14 UNC, 1-1/2", Grade 8, yellow zinc), 4 square hole spacers (CM-SP2, .250 x .88 x 2.25"), 4 serrated flange hex nuts (7/16-14 UNC, Grade 8, yellow zinc), and 4 pieces of 7/16" fishwire hardware.
Yes. The hitch is designed for use with ballmount D-55001/45501. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
Fishwire is a temporary fastening method that allows you to attach the hitch without drilling. Thread the 7/16" fishwire through the CM-SP2 spacers and carriage bolts, then pass them through the vehicle frame access holes into the attaching holes. Leave the fishwires attached while raising the hitch into position. Once the hitch is positioned, remove the fishwires and secure the bolts with flange hex nuts.
There are two access holes: one on the driver frame rail and one on the passenger frame rail. The hitch diagram shows these holes are positioned to allow the fishwire and bolts to pass through into the frame attaching points.
The driver side rearmost fastener requires reverse fishwire due to the vehicle frame geometry and the position of the muffler. Reversing the fishwire direction allows the bolt to be properly threaded through the access hole and into the attaching hole on the driver side.
1. Thread the 7/16" fishwire through the CM-SP2 spacers and 7/16-14 carriage bolts, then pass them through the frame access holes into the attaching holes. Leave fishwires attached. Note: driver side requires reverse fishwire for the rearmost fastener. 2. Raise the hitch into position, being careful not to push bolts back into the frame. 3. Remove the fishwires. 4. Secure all bolts with 7/16-14 flange hex nuts. 5. Torque all 7/16-14 fasteners to 70 ft.-lbs.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. Curt recommends the use of 18050 stabilizing straps for all non-trailer loads.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This should be done regularly to maintain the integrity and safety of the installation.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Call Curt Manufacturing technical support at 1-877-287-8634. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips.
The hitch includes four carriage bolts (part number 10-10282) with the following specifications: 7/16-14 UNC thread, 1-1/2" length, Grade 8 strength, yellow zinc plating.
The hitch includes four square hole spacers (part number CM-SP2) with dimensions of .250 x .88 x 2.25 inches. These spacers are used with the carriage bolts during the fishwire installation method.
The hitch includes four serrated flange hex nuts (part number 20-00103) with the following specifications: 7/16-14 UNC thread, Grade 8 strength, yellow zinc plating.
Be careful not to push the bolts back into the frame when raising the hitch into position. The fishwire hardware is designed to hold the bolts in place temporarily. If bolts are being pushed back, reduce the force applied when raising the hitch and ensure the fishwires are properly threaded through the spacers and bolts before lifting.
Periodically check all fasteners to ensure they remain tight. If fasteners have loosened, retorque all 7/16-14 fasteners to 70 ft.-lbs using a torque wrench and 11/16" socket. Check the hitch regularly during the first few uses and then periodically thereafter to maintain proper tightness.
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2012 - 2016 | Chevrolet Sonic | Hatchback · 4-Door | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2012 - 2016 | Chevrolet Sonic | Hatchback · 4-Door | Visibility: Exposed Installation Time: 30-60 minutes No Drilling Required |
