CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2013 - 2018 Lexus ES300h
Confirmed to Fit
2013 - 2018 Lexus ES350
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45521, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 60

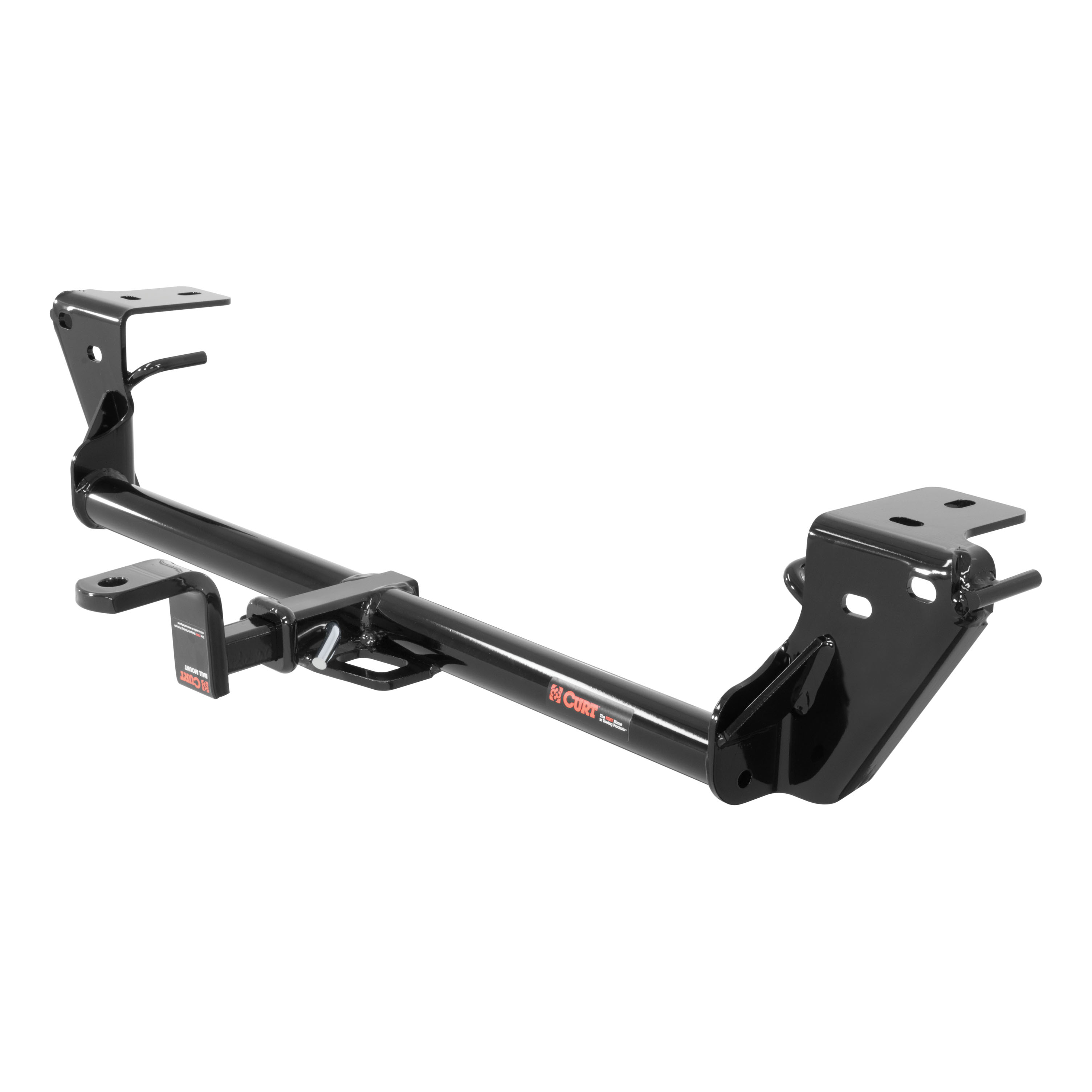

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Lexus ES300h and ES350 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94942 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2018 | Lexus ES300h | No Drilling Required Installation Time: 60-90 minutes Visibility: Exposed |
| 2013 - 2018 | Lexus ES350 | No Drilling Required Installation Time: 60-90 minutes Visibility: Exposed |
The CURT 113623 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lexus ES300h, ES350 (Part #BKDK113623) fits 2013-2018 Lexus ES300h models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 113623 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lexus ES300h, ES350 (Part #BKDK113623) is designed to fit the 2013-2018 Lexus ES300h.
The CURT 113623 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lexus ES300h, ES350 (Part #BKDK113623) fits the following vehicles: 2013-2018 Lexus ES300h; 2013-2018 Lexus ES350. Always verify your specific year, make, and model before ordering.
The CURT 113623 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lexus ES300h, ES350 (Part #BKDK113623) Drilling is not required for installation. Typical installation time is 60-90 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 11362 is designed for 2013-Present Lexus ES 350 and ES 300h sedans. Confirm your vehicle year and model match this range before purchasing.
Yes, CURT part number 11362 is designed for both the 2013-Present Lexus ES 350 and ES 300h sedans.
The CURT 11362 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11362 is designed for use with ball mount D-55001 or 45501. A euro mount option is also available: part number 45571 (1 7/8" ball) or 45572 (2" ball).
Required tools are: ratchet, 6" extension, 10mm socket, 12mm socket, 14mm short and long sockets, 17mm socket, torque wrench, die grinder, aviator shears, masking tape, tape measure, screwdriver, and safety glasses. A rubber isolator remover is also listed as a tool.
Yes, a die grinder is required. You must use it to enlarge the large holes in the frame rails on each side to allow the carriage bolts and spacers to pass through.
Two people may be required to ease installation, though the manual does not state this is mandatory. If you are hesitant to undertake the task on your own, CURT recommends contacting an authorized CURT installer for additional assistance.
No drilling is required. However, you must use a die grinder to enlarge the existing large holes in the frame rails on each side to allow the carriage bolts and spacers to pass through. This is an enlargement of existing holes, not new drilling.
Trimming of the underbody panel is required on single exhaust models only, as shown in the diagrams in the manual. The trim is 5.50" as indicated. On dual exhaust models, no underbody panel trimming is required.
Yes, the heat shield must be trimmed as required to allow the carriage bolts to pass through. The trimmed heat shield is then clamped between the hitch and the vehicle frame during installation.
Installation sequence is: (1) remove underbody panel, (2) support and lower exhaust by removing isolators, (3) remove tie-down/exhaust hanger brackets, (4) remove heat shields and enlarge frame rail holes using die grinder, then reverse fishwire bolts and spacers into holes, (5) raise hitch into position and attach using fasteners from removed brackets, (6) torque fasteners, (7) raise exhaust and reinstall isolators, (8) on single exhaust models only, trim underbody panel, (9) reinstall underbody cover.
Lower the exhaust 6-10 inches by removing the rubber isolators by each muffler, 1 hanger on the passenger side by the muffler, and 1-2 center isolators. Leave the isolator by the engine attached.
The hitch is attached using the fasteners removed from the tie-down/exhaust hanger brackets in step 3. These existing fasteners are reused to attach the hitch to the vertical flange and frame rail. The hitch also uses 2 carriage bolts (7/16-14 x 1 1/4, grade 8) and 2 hex flange nuts (7/16-14) supplied with the kit, along with 2 square hole spacers (CM-SP2).
Two 7/16" fishwires are provided to reverse fishwire the carriage bolts and spacers into the enlarged holes in the frame rails on each side. This allows you to thread the bolts through from the inside of the frame without direct access.
Torque all 10mm fasteners to 56 lb-ft and all 7/16" fasteners to 70 lb-ft.
The carriage bolts are 7/16-14 x 1 1/4 inches, grade 8. Two bolts are included in the kit.
The square hole spacers are .250 x .88 x 2.25 inches (part number CM-SP2). Two spacers are included in the kit.
The CURT 11362 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating. Always follow your vehicle manufacturer's specifications.
Safety glasses must be worn at all times while installing this product.
Yes. CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads. All non-trailer loads applied to this product must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
After installation, periodically check that all fasteners are tight and that all structural components are sound. This is an ongoing maintenance requirement, not a one-time check.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended.
Yes, the CURT 11362 is designed for 2013-Present Lexus ES 350 and ES 300h sedans.
The CURT 11362 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Torque all 10mm fasteners to 56 lb-ft and all 7/16" fasteners to 70 lb-ft.
Periodically check that all fasteners are tight and all structural components are sound.
