Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45521, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

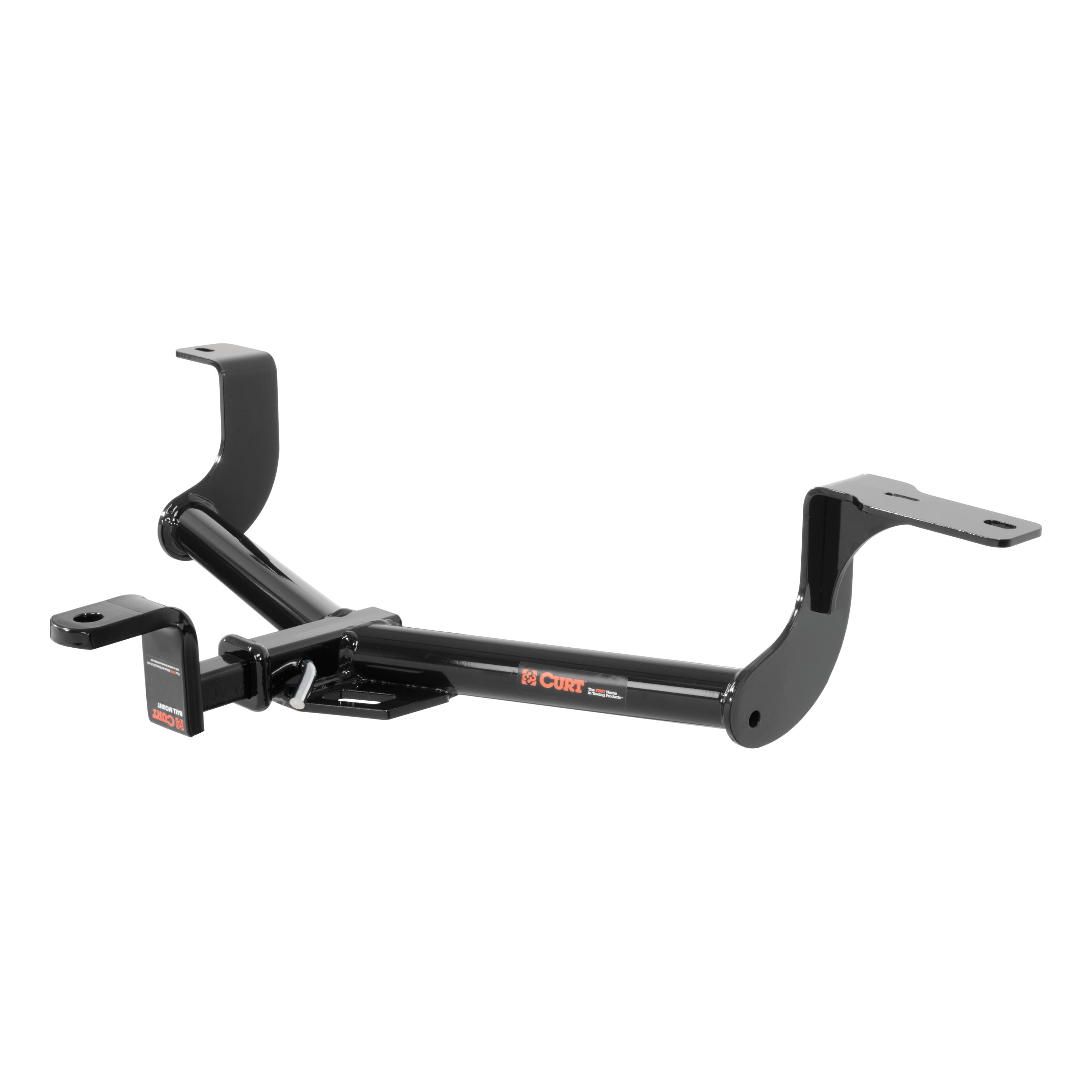

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Honda Fit (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Honda Fit | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT 114063 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Honda Fit (Part #BKDK114063) fits the following vehicles: 2015-2020 Honda Fit. Always verify your specific year, make, and model before ordering.
The CURT 114063 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Honda Fit (Part #BKDK114063) fits 2015-2020 Honda Fit models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 114063 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Honda Fit (Part #BKDK114063) is designed to fit the 2015-2020 Honda Fit.
The CURT 114063 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Honda Fit (Part #BKDK114063) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 11406 is designed for 2015-present Honda Fit hatchback models.
The CURT 11406 is rated for a maximum trailer weight of 2,000 lbs and tongue weight of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools: ratchet, torque wrench, 6-inch extension, 9/16-inch socket, 11/16-inch socket, and safety glasses.
No, drilling is not required. The hitch uses existing holes in the frame and fishwire hardware for installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Torque all 7/16-inch hardware to 70 ft-lbs. Torque all 3/8-inch hardware to 45 ft-lbs.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but your vehicle's limits may be lower.
Yes. All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads voids the product warranty.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
The CURT 11406 is designed for 2015-present Honda Fit hatchback models. Verify your vehicle year and body style match before purchasing.
The CURT 11406 is designed for use with ball mount 45521. Euro mount options are available: 45571 (1 7/8-inch ball) or 45572 (2-inch ball).
The kit includes: one 3/8-16 x 1.00 x 1.88-inch U-bolt, two 7/16-14 carriage bolts (one 1-inch and one 1.5-inch), two 7/16-inch fishwire pieces, four 7/16-14 hex flange nuts, two CM-SP2 square hole spacers, one CM-SP22 round hole spacer, and two HFN3816 hex flange nuts.
Installation involves lowering the exhaust by removing two rear rubber isolators from the muffler, using fishwire hardware to secure carriage bolts through existing frame holes, inserting a U-bolt through the tow loop, and securing the hitch to the frame rails with spacers and flange nuts. No drilling is required.
Fishwire is a technique used to guide hardware through existing holes in the frame rails. For the CURT 11406, you reverse fishwire a 7/16-14 x 1.5-inch carriage bolt and SP2 spacer through the driver side hole, and a 7/16-14 x 1-inch carriage bolt and SP2 spacer through the passenger side hole. Leave fishwires attached to prevent loss of hardware inside the frame rail.
The manual specifies that the longer 7/16-14 x 1.5-inch carriage bolt must be installed on the driver side and the shorter 7/16-14 x 1-inch bolt on the passenger side. This is part of the design to ensure proper fitment and load distribution.
Two types of spacers are used: CM-SP2 square hole spacers (two included) are placed under the carriage bolts at the frame rail attachment points, and one CM-SP22 round hole spacer is placed on top of the driver side plate between the frame rail and hitch plate. These spacers ensure proper alignment and load distribution.
Insert the 3/8-inch U-bolt through the tow loop. Raise the hitch into position and loosely secure it to the U-bolt using two 3/8-inch flange nuts (HFN3816). Do not fully tighten until all other fasteners are in place.
First, loosely secure the hitch to the U-bolt and frame rails. Then torque all 7/16-inch hardware to 70 ft-lbs and all 3/8-inch hardware to 45 ft-lbs. Finally, raise and secure the exhaust back into position.
The muffler hangers may need to be bent slightly for clearance when raising the exhaust back into position after hitch installation. This is not always required but should be checked during final assembly.
The exhaust must be lowered by removing the two rear-most rubber isolators from the muffler to provide clearance for the hitch installation. The exhaust is then raised and secured back into position after the hitch is installed.
All 7/16-inch hardware on the CURT 11406 should be torqued to 70 ft-lbs.
All 3/8-inch hardware on the CURT 11406 should be torqued to 45 ft-lbs.
Safety glasses must be worn at all times while installing the CURT 11406. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
The CURT 11406 is rated as a weight-carrying hitch with a maximum trailer weight of 2,000 lbs and tongue weight of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads must be supported by CURT 18050 stabilizing straps.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically recheck these items during the life of the hitch to ensure continued safe operation.
CURT Manufacturing warrants the CURT 11406 to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
