Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521 (trailer ball sold separately), pin & clip and installation hardware
Includes ball mount #45521 (trailer ball sold separately), pin & clip and installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Professional
Installation Time Exact (Minutes): 90

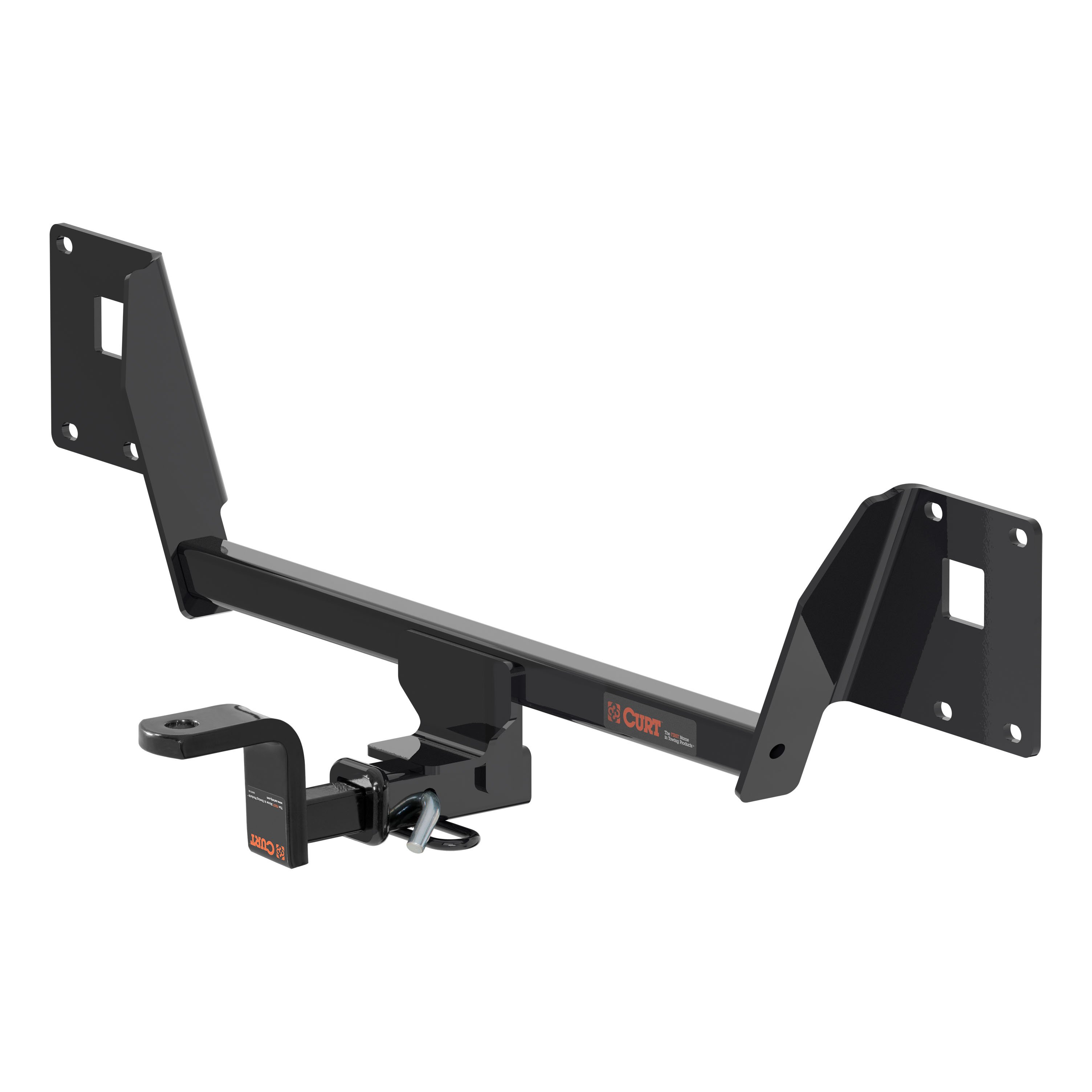

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Volkswagen Golf R (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Volkswagen Golf R | No Drilling Required Installation Time: 90+ minutes Visibility: Concealed Temporary fascia removal required Temporary bumper removal required |
Yes, the CURT 115643 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Volkswagen Golf R (Part #BKDK115643) is designed to fit the 2015-2019 Volkswagen Golf R.
The CURT 115643 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Volkswagen Golf R (Part #BKDK115643) fits the following vehicles: 2015-2019 Volkswagen Golf R. Always verify your specific year, make, and model before ordering.
The CURT 115643 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Volkswagen Golf R (Part #BKDK115643) fits 2015-2019 Volkswagen Golf R models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 115643 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Volkswagen Golf R (Part #BKDK115643) Drilling is not required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.
Part number 11564 is a receiver hitch manufactured by CURT Manufacturing, designed specifically for the Volkswagen Golf R. It is a weight-carrying hitch that complies with SAE J684 and New York V.E.S.C. Regulation V-5 safety standards.
The manual specifies this hitch is designed for the Volkswagen Golf R only. Do not install on other vehicles without confirming compatibility with CURT Manufacturing technical support at 1-800-798-0813.
Hitch 11564 is designed for use with ball mount #45521. CURT also offers euro mount options: #45571 (1 7/8" ball) and #45572 (2" ball). Confirm the correct ball mount for your towing application before purchase.
Required tools: ratchet, 10mm and 13mm sockets, 6" socket extension, torque wrench, 10mm open end wrench, tape measure, marker, utility knife, T15 and T25 Torx bits, fascia removal tools, and safety glasses.
The hitch includes: 7× M8×1.25×40 class 8.8 hex cap screws (part 10-10053), 7× 5/16" lock washers (part 30-00124), 7× 5/16" flat washers (part 30-00139), and 2× 14-inch cable ties. The vehicle's existing weldnuts on the bumper beam structure are reused for attachment.
Yes. The bumper beam must be temporarily removed to install the hitch. It is held by 5 bolts to the vehicle structure. After hitch installation, the bumper beam is reinstalled using the same attachment points.
Yes. Both blind spot sensors must be temporarily removed during installation. The driver's side sensor is removed with 2 outer bolts (13mm socket) and 1 hex nut (10mm wrench). The passenger's side sensor is removed with 2 hex nuts (10mm socket) and 1 hex nut behind the wiring harness (10mm wrench). Both are reinstalled after the hitch is mounted.
Yes. The bumper fascia must be temporarily removed to access the hitch mounting points. It is secured by 4 plastic screws and clips (T15 Torx), 2 screws in the wheel well areas (T25 Torx), 2 vertical screws behind wheel liners (T25 Torx), taillights with wiring harnesses, and plastic spring bolts. The fascia is then trimmed and reinstalled after hitch installation.
No. The manual explicitly states "NO DRILLING REQUIRED." The hitch uses the vehicle's existing weldnuts on the bumper beam structure for attachment.
Yes. After the hitch is installed, the bumper fascia must be trimmed to fit around the hitch. The manual instructs you to use a tape measure, marker, and utility knife to trim the fascia according to the diagram provided. This is a permanent modification to the fascia.
All M8 hardware (bolts, lock washers, and flat washers) must be torqued to 16 lb-ft. This applies to the 5 bolts securing the hitch and bumper beam to the vehicle structure, and the 2 bolts securing the blind spot detector on the driver's side.
1. Remove fascia (including taillights and wiring). 2. Remove blind spot sensors (save hex nuts). 3. Remove bumper beam (save 2 hex nuts). 4. Install hitch and bumper beam with supplied M8 bolts, lock washers, and flat washers; torque to 16 lb-ft. 5. Reinstall blind spot sensors using saved hex nuts and cable ties. 6. Trim fascia. 7. Reinstall fascia, taillights, and wiring.
Reinstall the passenger side blind spot sensor using the hex nut saved from removal (Step 3). Then use the supplied cable ties: loop them through the 2 holes on the passenger side sensor and secure the sensor to the bumper beam by looping the cable ties through each other.
Reinstall the driver side blind spot sensor using the hex nut saved from removal (Step 3). The sensor is also secured with 2 supplied M8 bolts, lock washers, and flat washers, which are torqued to 16 lb-ft during the main hitch installation (Step 4b).
The manual lists gross load capacity and tongue weight specifications on page 1, but the specific values are blank in the provided document. Contact CURT Manufacturing technical support at 1-800-798-0813 or visit www.curtmfg.com for the exact capacity ratings for your vehicle.
Non-trailer (wheel-less) loads applied to this hitch must be supported by CURT stabilizing straps part number 18050. Failure to properly support non-trailer loads will void the product warranty. Always follow the vehicle manufacturer's recommended towing capacity.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch is designed for the Volkswagen Golf R, but you must verify the vehicle's towing limits in your owner's manual or contact your vehicle manufacturer.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is essential to safe operation and is a condition of the warranty.
The manual instructs you to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. No specific interval is stated; perform this check regularly as part of vehicle maintenance, especially before towing.
Yes, hitch 11564 is designed specifically for the Volkswagen Golf R. Confirm your vehicle model and year match before purchase.
You need a ratchet, 10mm and 13mm sockets, 6" socket extension, torque wrench, 10mm open end wrench, tape measure, marker, utility knife, T15 and T25 Torx bits, fascia removal tools, and safety glasses.
Yes. The bumper beam, fascia, taillights, and blind spot sensors must be temporarily removed. The fascia is then trimmed and reinstalled.
All M8 bolts, lock washers, and flat washers must be torqued to 16 lb-ft.
Non-trailer loads must be supported by CURT stabilizing straps part 18050. Failure to do so voids the warranty.
Periodically check all fasteners are tight and structural components are sound. This is required to maintain warranty coverage.
