Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
Engineered with a vehicle-specific design for a custom fit
Tested for safety in accordance with SAE J684
Main Body Shape: Round
Material: Carbon Steel
Receiver Size: 2 in
Receiver Tube Size: 2 IN
Shipping Weight: 30.000 lbs
Tongue Weight (TW): 200 lbs
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Capacity: 2,000 LB

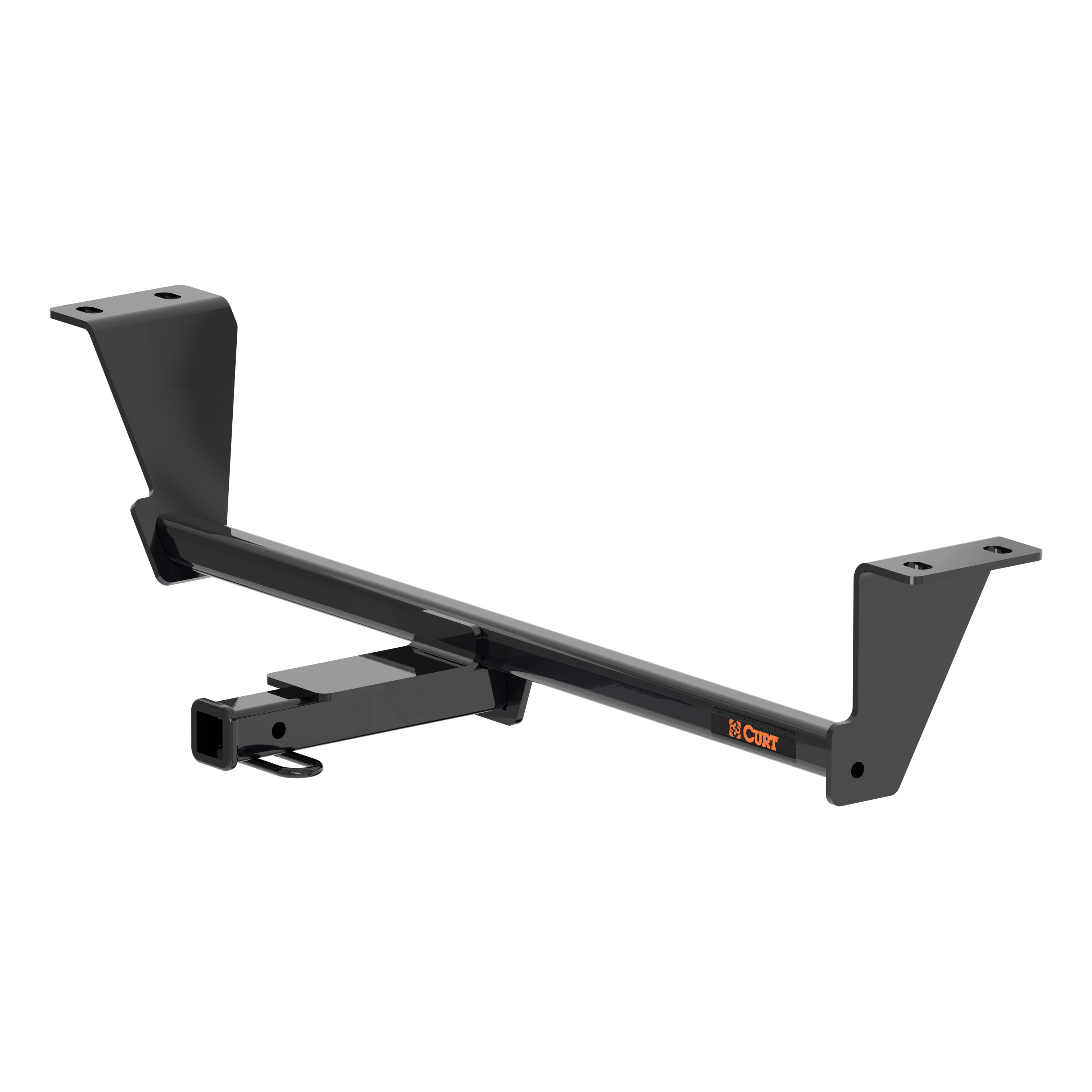

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Nissan Sentra (excluding S). To verify vehicle compatibility, see the CURT application guide at curtmfg.com. Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime (One-year finish, one-year parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Nissan Sentra | Drilling Required Installation Time: 60-90 minutes Visibility: Concealed Hole enlargement required |
The CURT 11688 Class 1 Hitch, 1-1/4-Inch Receiver, Fits Select Nissan Sentra (excluding S) (Part #BKDK11688) fits the following vehicles: 2020-2026 Nissan Sentra. Always verify your specific year, make, and model before ordering.
Yes, the CURT 11688 Class 1 Hitch, 1-1/4-Inch Receiver, Fits Select Nissan Sentra (excluding S) (Part #BKDK11688) is designed to fit the 2020-2026 Nissan Sentra.
The CURT 11688 Class 1 Hitch, 1-1/4-Inch Receiver, Fits Select Nissan Sentra (excluding S) (Part #BKDK11688) fits 2020-2026 Nissan Sentra models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 11688 Class 1 Hitch, 1-1/4-Inch Receiver, Fits Select Nissan Sentra (excluding S) (Part #BKDK11688) Drilling is required for installation. Typical installation time is 60-90 minutes. Basic hand tools are typically all you need.
The CURT 11688 has a gross trailer weight (GTW) capacity of 2,000 lbs and a tongue weight (TW) capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The manual does not specify vehicle year, make, model, cab style, bed length, or drivetrain compatibility. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle.
Required tools are: ratchet, die grinder, 18mm socket, 3/4" socket, drill, 5/8" drill bit, torque wrench, paint marker, 6" socket extension, and 1/2" fishwire (2 qty included with the product). A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
The kit includes: 1 trailer hitch, 2 carriage bolts (1/2"-13 x 1/2", grade 8), 2 flange nuts (1/2"-13), and 2 square hole spacers (.250" x 1.0" x 2.50"). The installation also reuses 2 factory M12 bolts removed from the existing tie-down bracket.
Yes. You must remove the factory tie-down bracket from the passenger-side frame rail by removing four M12 bolts using an 18mm socket. Return the tie-down bracket and two factory bolts to the customer. Two factory M12 bolts are reused during final installation to secure the passenger side of the hitch.
Yes. Drilling is required. You must drill two mounting holes on the driver-side frame rail using a 5/8" drill bit. Hole locations are marked approximately 2-1/8" and 5-1/8" from the rear panel of the frame rail. Hole enlargement of the driver-side access hole is also required using a die grinder.
Use a 5/8" drill bit to drill the two mounting holes on the driver-side frame rail.
Yes. Using a die grinder, enlarge the driver-side frame rail access hole as needed to allow a square hole spacer (.250" x 1.0" x 2.50") and 1/2" carriage bolt to pass through.
Torque all 1/2" hardware (carriage bolts and flange nuts) to 90 ft-lbs.
Torque all M12 hardware to 68 ft-lbs.
The installation difficulty is rated as Moderate. This rating is based on time and effort involved and may vary depending on installer expertise, vehicle condition, and availability of proper tools and equipment.
Safety glasses should be worn at all times while installing this product. Never exceed your vehicle manufacturer's recommended towing capacity. Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. Refer to the specified torque specifications (90 ft-lbs for 1/2" hardware and 68 ft-lbs for M12 hardware) when checking hardware tightness.
The manual does not specify vehicle compatibility. Contact CURT at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle year, make, and model.
You need a ratchet, die grinder, 18mm socket, 3/4" socket, drill, 5/8" drill bit, torque wrench, paint marker, 6" socket extension, and the included 1/2" fishwire (2 qty).
Yes. You must drill two 5/8" holes on the driver-side frame rail and enlarge the access hole using a die grinder.
Torque all 1/2" hardware to 90 ft-lbs and all M12 hardware to 68 ft-lbs.
Gross trailer weight capacity is 2,000 lbs with a tongue weight capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Wear safety glasses at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity. Periodically inspect the hitch to ensure all hardware remains tight.
