Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45521, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 350 LB / 3,500 LB
Weight Carrying Capacity (Pounds): 3,500 LB
WC Tongue Weight (Pounds): 350 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45
A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Lincoln MKC (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Lincoln MKC | Drilling Required Installation Time: 30-60 minutes Visibility: Concealed |

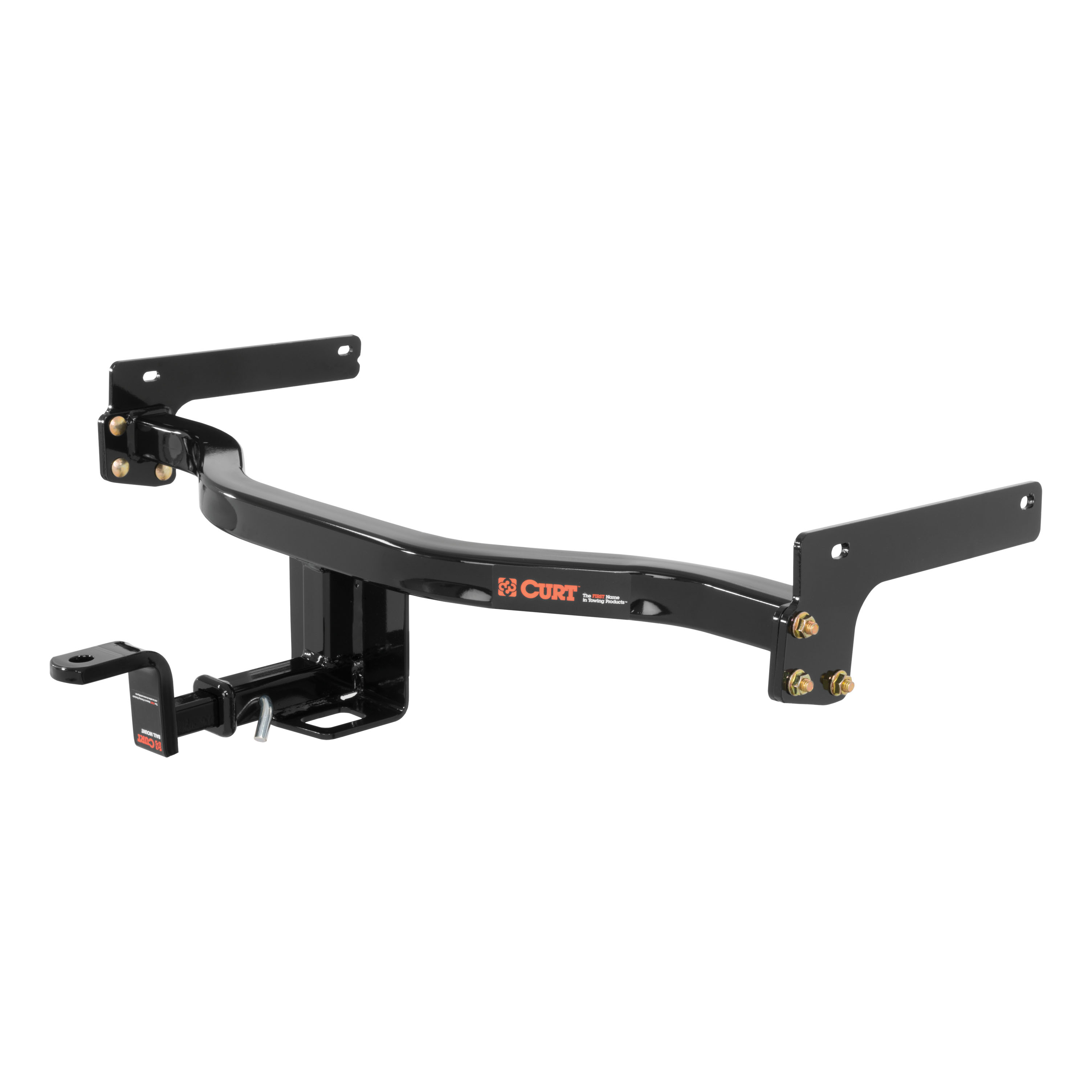

The CURT 120963 Class 2 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lincoln MKC (Part #BKDK120963) fits 2015-2019 Lincoln MKC models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 120963 Class 2 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lincoln MKC (Part #BKDK120963) fits the following vehicles: 2015-2019 Lincoln MKC. Always verify your specific year, make, and model before ordering.
Yes, the CURT 120963 Class 2 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lincoln MKC (Part #BKDK120963) is designed to fit the 2015-2019 Lincoln MKC.
The CURT 120963 Class 2 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Lincoln MKC (Part #BKDK120963) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.

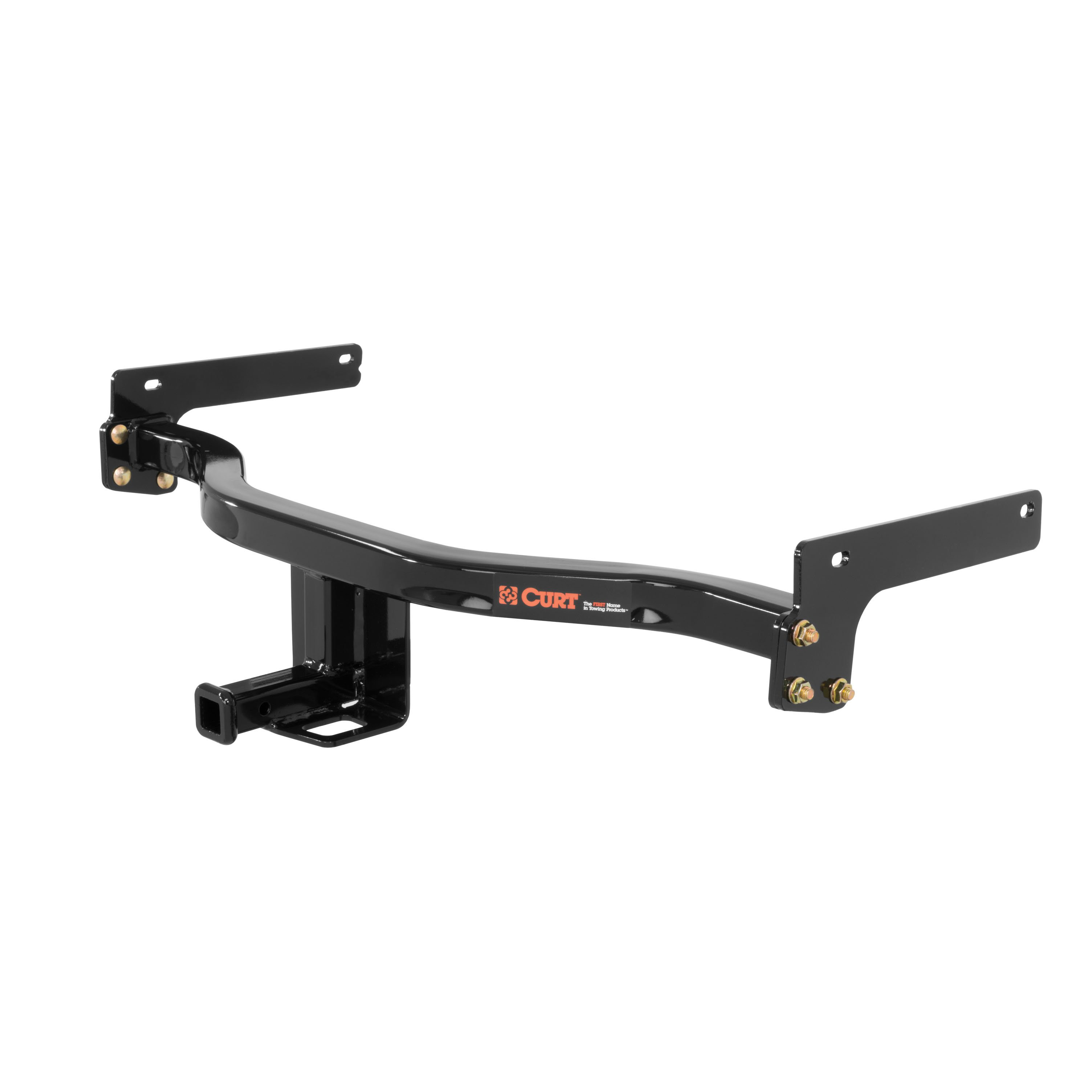

Yes, CURT hitch 12096 is designed for 2015-present Lincoln MKC SUVs. Before purchasing, verify that your vehicle matches this year range and model. The hitch is a Class II weight-carrying receiver hitch with a maximum trailer weight capacity of 3,500 lbs and tongue weight capacity of 350 lbs.
The CURT 12096 hitch has a maximum trailer weight capacity of 3,500 lbs and a tongue weight capacity of 350 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these figures.
You will need: a torque wrench, ratchet, 6-inch extension, 13mm socket, 11/16-inch socket, die grinder, and safety glasses. The die grinder is specifically required to enlarge the access holes in the vehicle frame rails.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person available is recommended to help position the hitch and manage components during assembly.
The manual does not specify that the battery must be disconnected. However, you should read all instructions thoroughly before beginning and contact CURT Technical Support at 800-798-0813 if you have questions about electrical safety.
No drilling is required. However, you must enlarge the existing access holes in both vehicle frame rails using a die grinder to allow 7/16-inch carriage bolts and spacers to pass through. This is a permanent modification to the vehicle frame.
No, you do not need to remove the exhaust system. You must temporarily lower the exhaust by removing the two 8mm bolts from the muffler bracket on both sides of the vehicle. Retain these bolts and reattach the muffler brackets after sliding the hitch into position. Torque the muffler brackets to 16 ft-lbs.
The hitch includes: 10 carriage bolts (7/16-14 x 1 1/4 inch), 10 hex flange nuts (7/16-14), 4 square hole spacers (CM-SP7, 0.250 x 1.00 x 2.00 inch), and 4 pieces of 7/16-inch fishwire. All fasteners are 7/16-inch diameter.
Fishwire is used to guide the 7/16-inch carriage bolts and spacers through the enlarged access holes in the vehicle frame rails and out through the side mounting holes. The fishwires are left attached while you raise the side plates over them, then removed before loosely installing the nuts.
All 7/16-inch carriage bolts and flange nuts must be torqued to 70 ft-lbs. The muffler bracket bolts (8mm) must be torqued to 16 ft-lbs when reattached. These are the final torque values; fasteners are initially installed loosely during assembly.
Install all fasteners loosely first. After the hitch is positioned and the muffler brackets are reattached, torque the muffler brackets to 16 ft-lbs. Then torque all 7/16-inch hardware (carriage bolts and flange nuts) to 70 ft-lbs as the final step.
Slide the hitch in from the rear passenger side of the vehicle, positioning it over the exhaust and into place. This approach allows the hitch to clear the temporarily lowered exhaust system.
The CURT 12096 is designed for use with ball mount #45521. Available Euro ball mounts include #45571 (1 7/8-inch ball) and #45572 (2-inch ball). Verify compatibility with your specific towing setup before purchasing a ball mount.
Safety glasses must be worn at all times while installing this product. This is especially important when using the die grinder to enlarge the access holes.
Stabilizing straps are required for all non-trailer (wheel-less) loads. CURT recommends the use of model 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. For more information, see the CURT catalog or visit www.curtmfg.com.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the safety and integrity of the installation.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
Professional installation typically takes 90 minutes. Novice (DIY) installation time is not specified in the manual. Using proper tools will greatly improve the quality of the install and reduce the time required.
Contact CURT Technical Support at 800-798-0813. If you are hesitant to undertake the installation on your own, contact an authorized CURT installer for additional assistance.
Yes, the CURT 12096 is designed for 2015-present Lincoln MKC SUVs. Maximum capacity is 3,500 lbs trailer weight and 350 lbs tongue weight, but never exceed your vehicle manufacturer's recommended towing capacity.
You need a torque wrench, ratchet, 6-inch extension, 13mm socket, 11/16-inch socket, die grinder, and safety glasses. The die grinder is required to enlarge the frame rail access holes.
No drilling is required, but you must use a die grinder to enlarge the existing access holes in both frame rails to fit 7/16-inch carriage bolts.
No, you temporarily lower the exhaust by removing two 8mm bolts from the muffler bracket on each side, then reattach them after positioning the hitch. Torque muffler brackets to 16 ft-lbs.
Torque all 7/16-inch carriage bolts and flange nuts to 70 ft-lbs. Torque muffler bracket bolts (8mm) to 16 ft-lbs. Install all fasteners loosely first, then apply final torque after the hitch is positioned.
Yes, CURT model 18050 stabilizing straps are required for all non-trailer (wheel-less) loads. Failure to use them voids the warranty.
Periodically check that all fasteners are tight and all structural components are sound. This ongoing inspection maintains the safety and integrity of the installation.
