CURT Towing Starter Kit with 2" Ball (1-1/4" Shank, 3,500 lbss, 3/4" Rise) Trailer Hitch Ball MountCURT$60.56In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2019 Subaru Legacy
Confirmed to Fit
2010 - 2013 Subaru Outback
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes installation hardware
Includes installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 350 LB / 3,500 LB
Weight Carrying Capacity (Pounds): 3,500 LB
WC Tongue Weight (Pounds): 350 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Subaru Legacy and Outback (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94942 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Subaru Legacy | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2010 - 2013 | Subaru Outback | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |

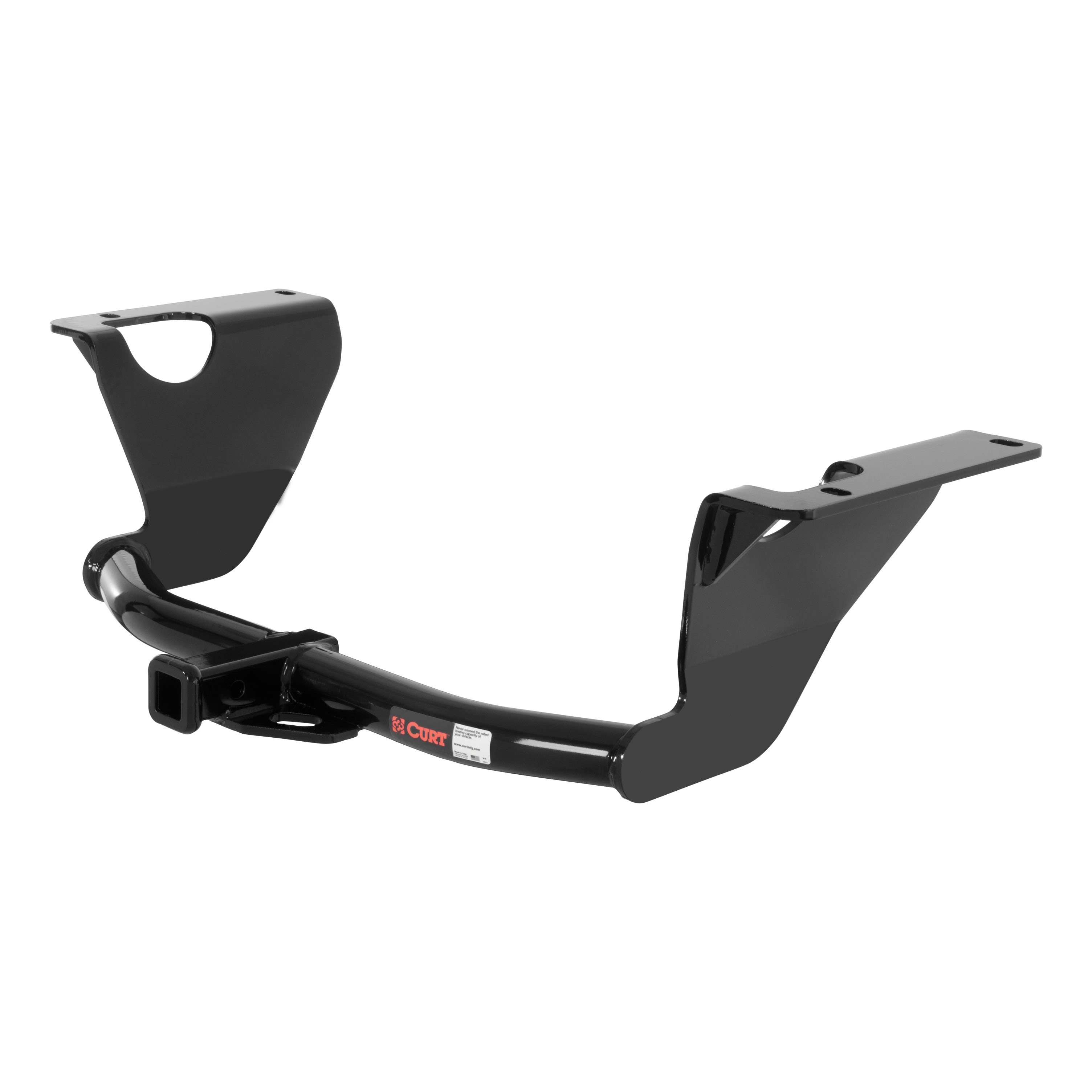

The CURT 12290 Class 2 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Subaru Legacy, Outback (Part #BKDK12290) fits the following vehicles: 2015-2019 Subaru Legacy; 2010-2013 Subaru Outback. Always verify your specific year, make, and model before ordering.
The CURT 12290 Class 2 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Subaru Legacy, Outback (Part #BKDK12290) fits 2015-2019 Subaru Legacy models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 12290 Class 2 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Subaru Legacy, Outback (Part #BKDK12290) is designed to fit the 2015-2019 Subaru Legacy.
The CURT 12290 Class 2 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Subaru Legacy, Outback (Part #BKDK12290) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, Curt part number 12290 is designed specifically for Subaru Outback Wagon and Legacy Sedan models. However, the manual does not specify model years, so contact Curt Technical Support at 1-877-287-8634 to confirm your vehicle's year is compatible.
The hitch is rated for a maximum of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Always check your vehicle's owner manual for the final towing limit.
The hitch weight is 90 lbs.
Curt hitch 12290 is designed for use with ball mount #D-55001/45501. Verify this part number when ordering a ball mount separately.
You will need: 10 mm and 19 mm sockets, an 8-inch extension, a ratchet, a torque wrench, a drill with 17/32-inch bit, a rotary tool with carbide bit, and tin snips or a file. The manual also notes that drilling is required and fishwire hardware is used.
Yes, drilling is required. You must enlarge the forwardmost hole on each frame rail to 17/32 inch to allow the carriage bolt and spacer to be inserted. You will also drill new holes in the frame rail using the hitch as a template during installation.
Yes, you must remove the muffler heat shield and trim it to clear the mounting plate. The trim line is marked 1.125 inches from the edge. See the Heat Shield Trim Diagram in the manual for the exact trim location.
Yes, you must lower the exhaust by removing the three rearmost rubber exhaust isolators from the frame-mounted hangers. You must support the exhaust during installation to prevent damage. After installation, you will reinstall the rubber isolators and raise the exhaust back into position.
Fishwire hardware is a technique used to insert fasteners into frame rail holes that are not easily accessible. The manual includes 2 pieces of 1/2-inch fishwire in the parts list. You will use fishwire to insert carriage bolts and spacers into the rearmost hole in each frame rail (step 4) and into each newly drilled hole (step 7). The manual references a Fishwire Hardware Technique diagram for detailed instructions.
The hitch includes: 4 carriage bolts (1/2-13 UNC, 1-1/2 inch, Grade 8, yellow zinc), 4 square-hole spacers (0.250 x 1.00 x 3.00 inch), 4 serrated flange nuts (1/2-13 UNC, Grade 8, yellow zinc), and 2 pieces of 1/2-inch fishwire.
All hardware must be torqued to 110 ft-lbs. This applies to all four carriage bolts and serrated flange nuts after the hitch is fully installed and aligned.
1. Lower the exhaust by removing the three rearmost rubber exhaust isolators and support the exhaust. 2. Remove and trim the muffler heat shield. 3. Remove the rubber plugs from each frame rail and enlarge the forwardmost hole to 17/32 inch. 4. Fishwire a carriage bolt and spacer into the rearmost hole in each frame rail. 5. Raise the hitch into position, center it, and loosely secure with hex flange nuts. 6. Mark and drill the forwardmost holes using the hitch as a template. 7. Fishwire a carriage bolt and spacer into each drilled hole and secure with hex flange nuts. 8. Torque all hardware to 110 ft-lbs. 9. Reinstall the heat shield and exhaust isolators.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This inspection should be performed regularly to maintain the hitch in safe operating condition.
Professional installation takes approximately 36 minutes. Novice DIY installation takes approximately 45 minutes. Actual time may vary depending on your experience level and vehicle condition.
Yes, Curt 12290 is designed for Subaru Outback Wagon and Legacy Sedan. Confirm your model year with Curt Technical Support at 1-877-287-8634.
Maximum 3,500 lbs trailer weight and 350 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, drilling is required. You must enlarge the forwardmost frame rail hole to 17/32 inch and drill new holes using the hitch as a template.
Yes, you must lower the exhaust by removing the three rearmost rubber isolators and support it during installation to prevent damage.
All hardware must be torqued to 110 ft-lbs after the hitch is fully installed and aligned.
10 mm and 19 mm sockets, 8-inch extension, ratchet, torque wrench, drill with 17/32-inch bit, rotary tool with carbide bit, and tin snips or file.
All non-trailer loads must be supported by auxiliary stabilizing straps, or the warranty is voided.
