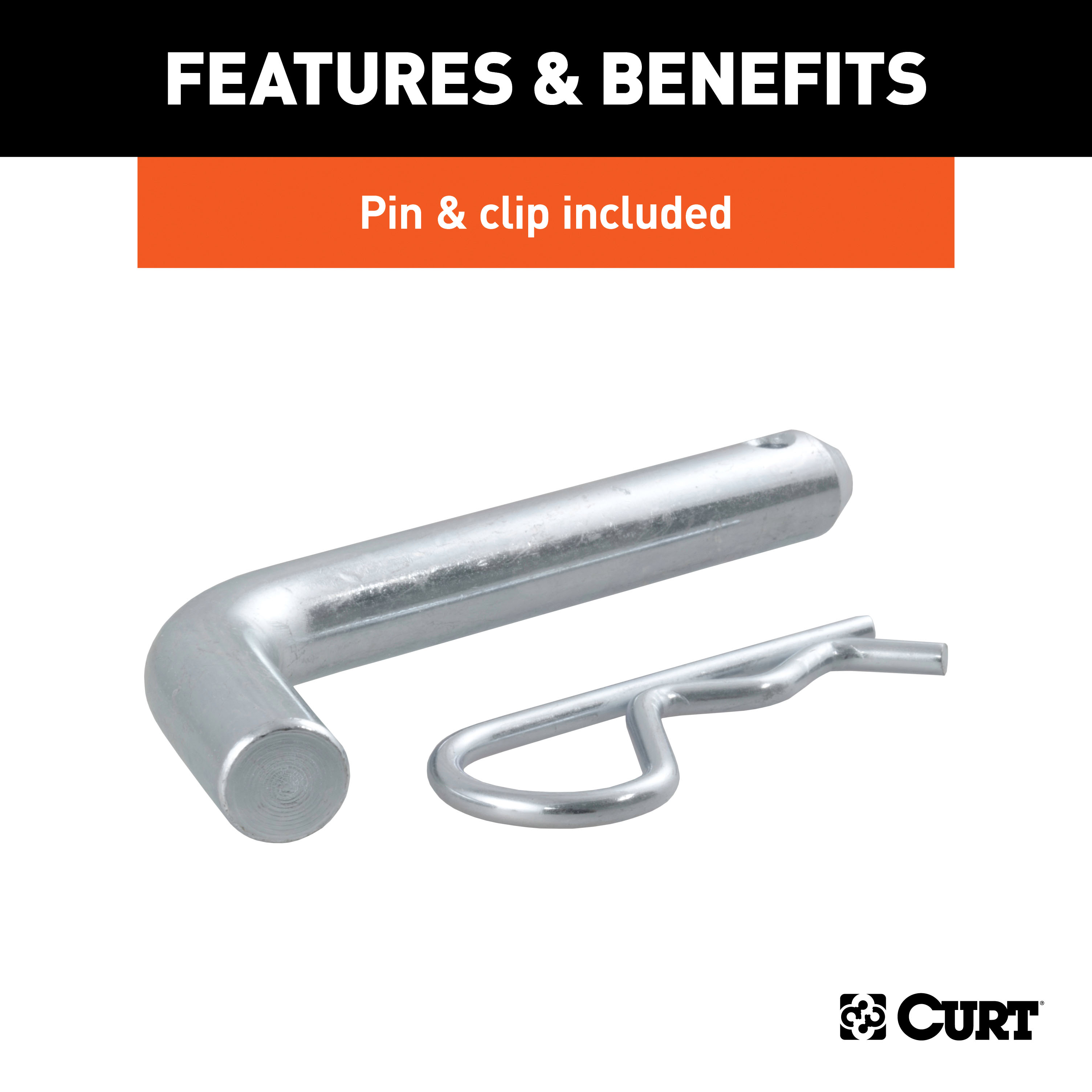

Includes hitch pin & clip (ball sold separately)
Includes hitch pin & clip (ball sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

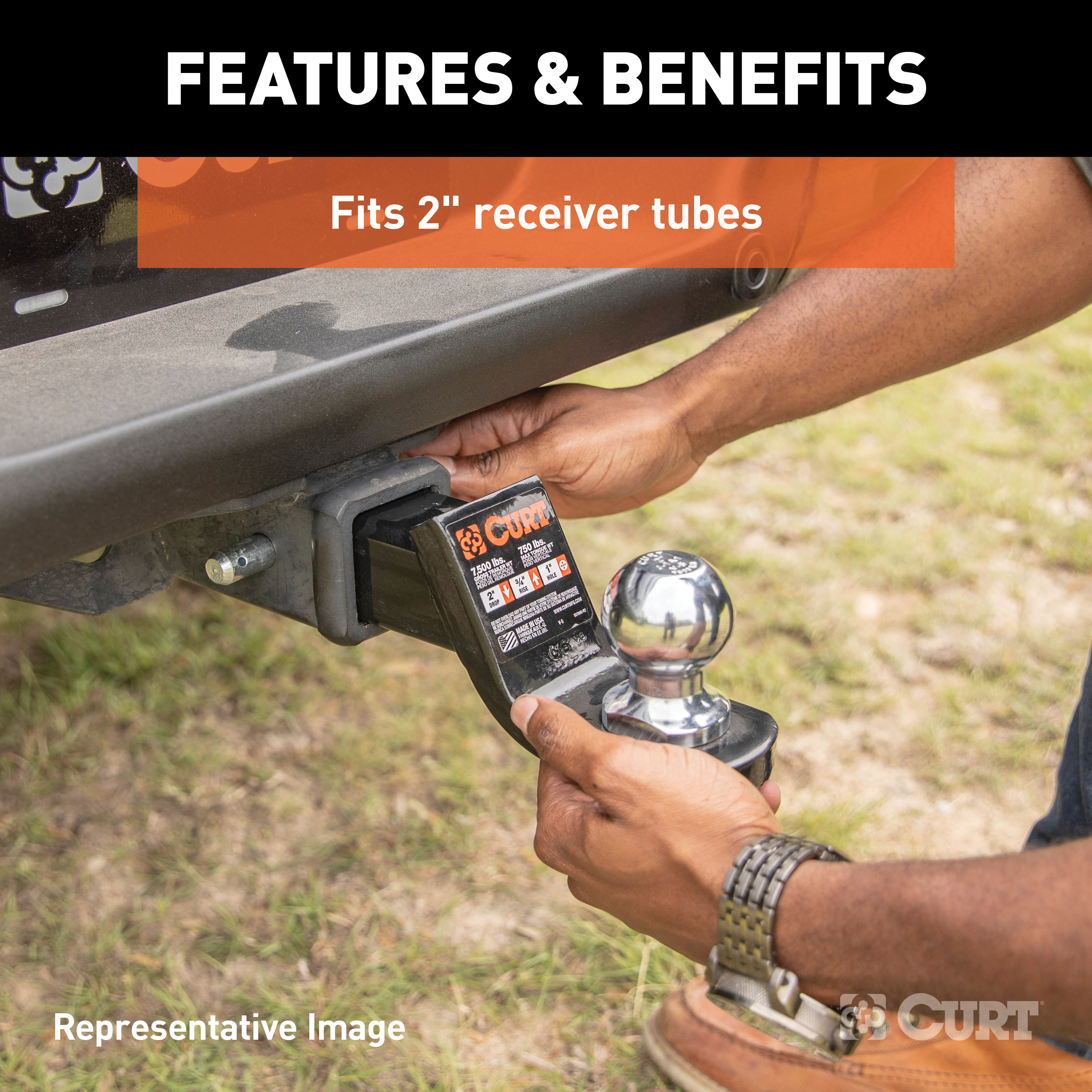

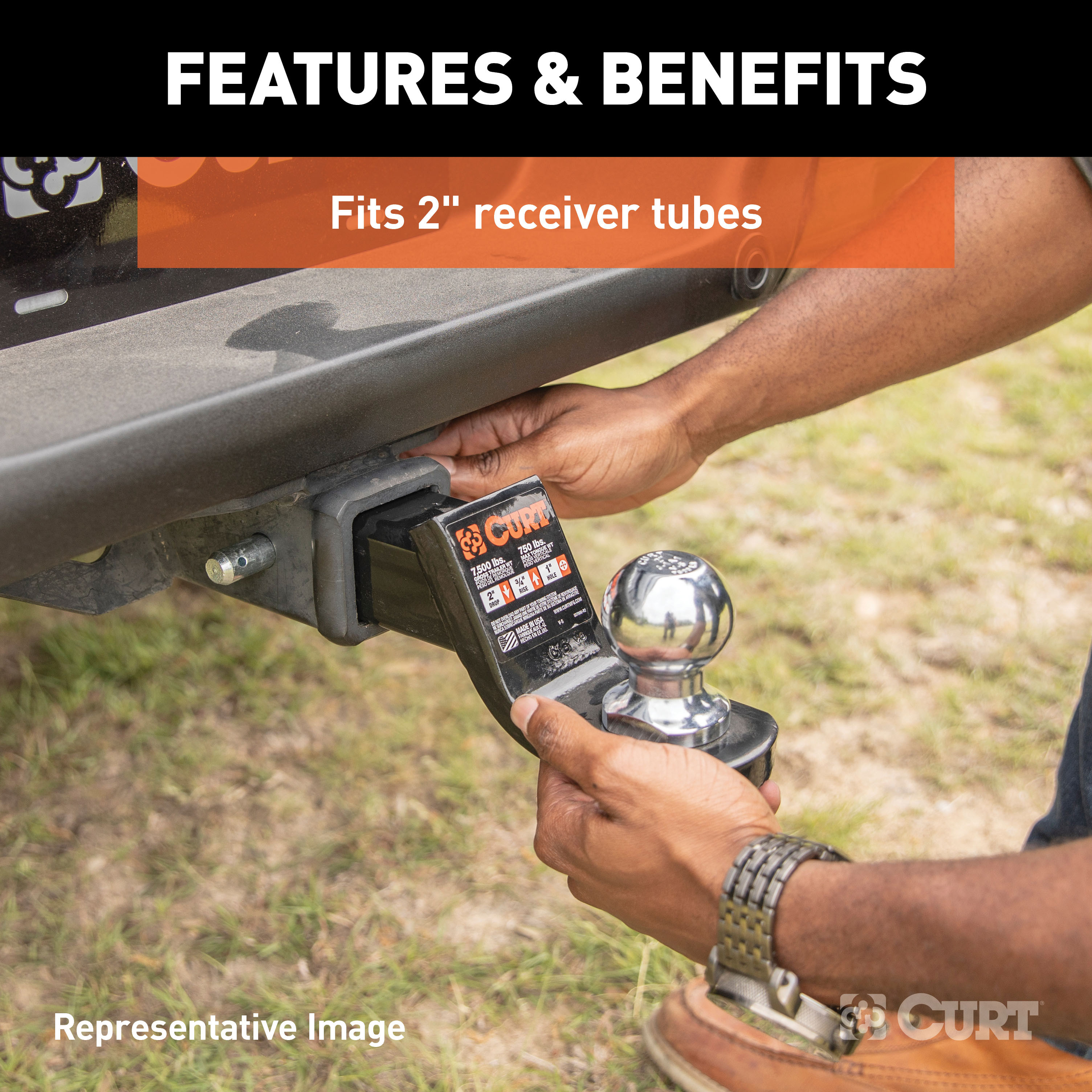

Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 750 LB
WC Tongue Weight (Pounds): 750 LB
Gross Trailer Weight (Pounds): 7,500 LB
Installation Time Exact (Minutes): 0

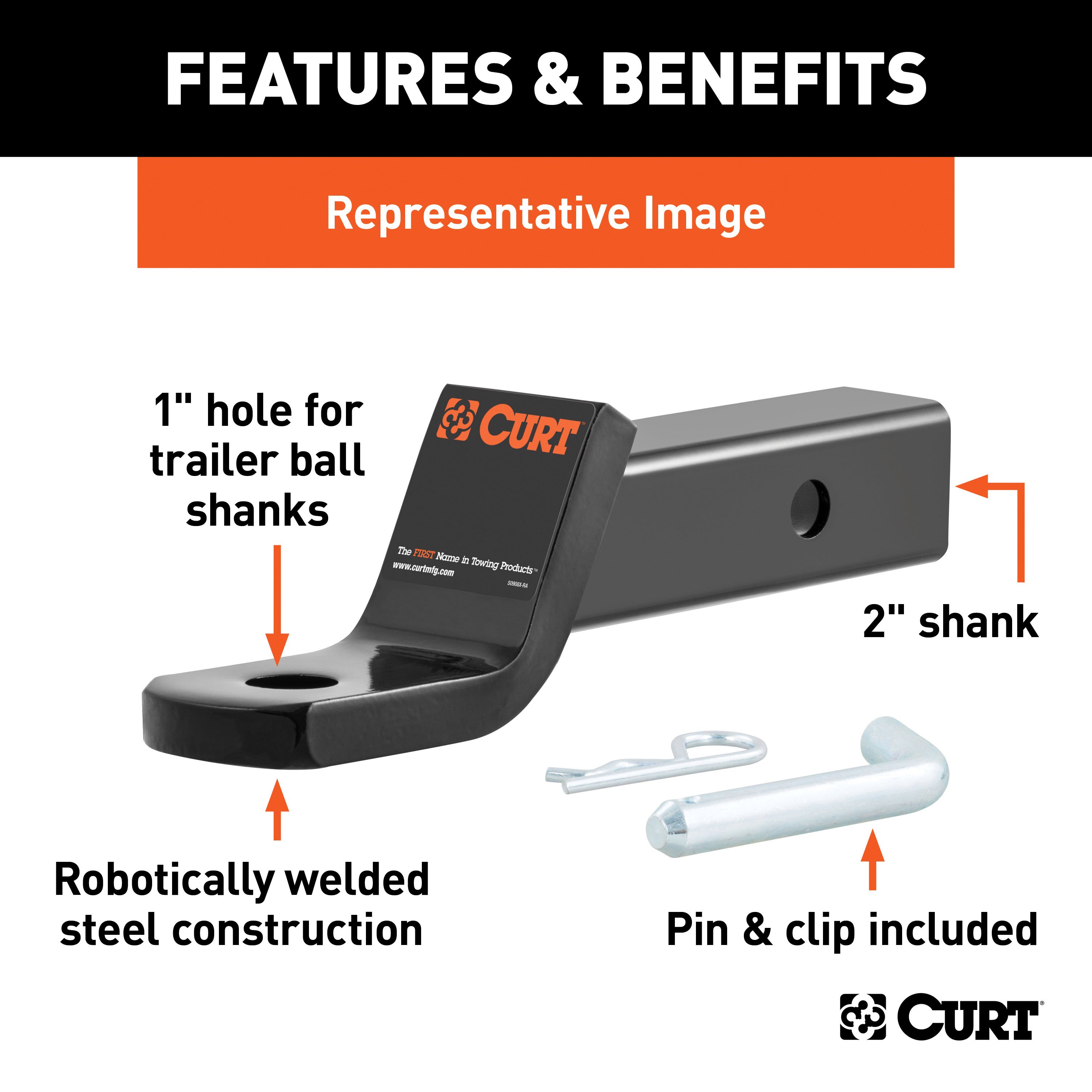

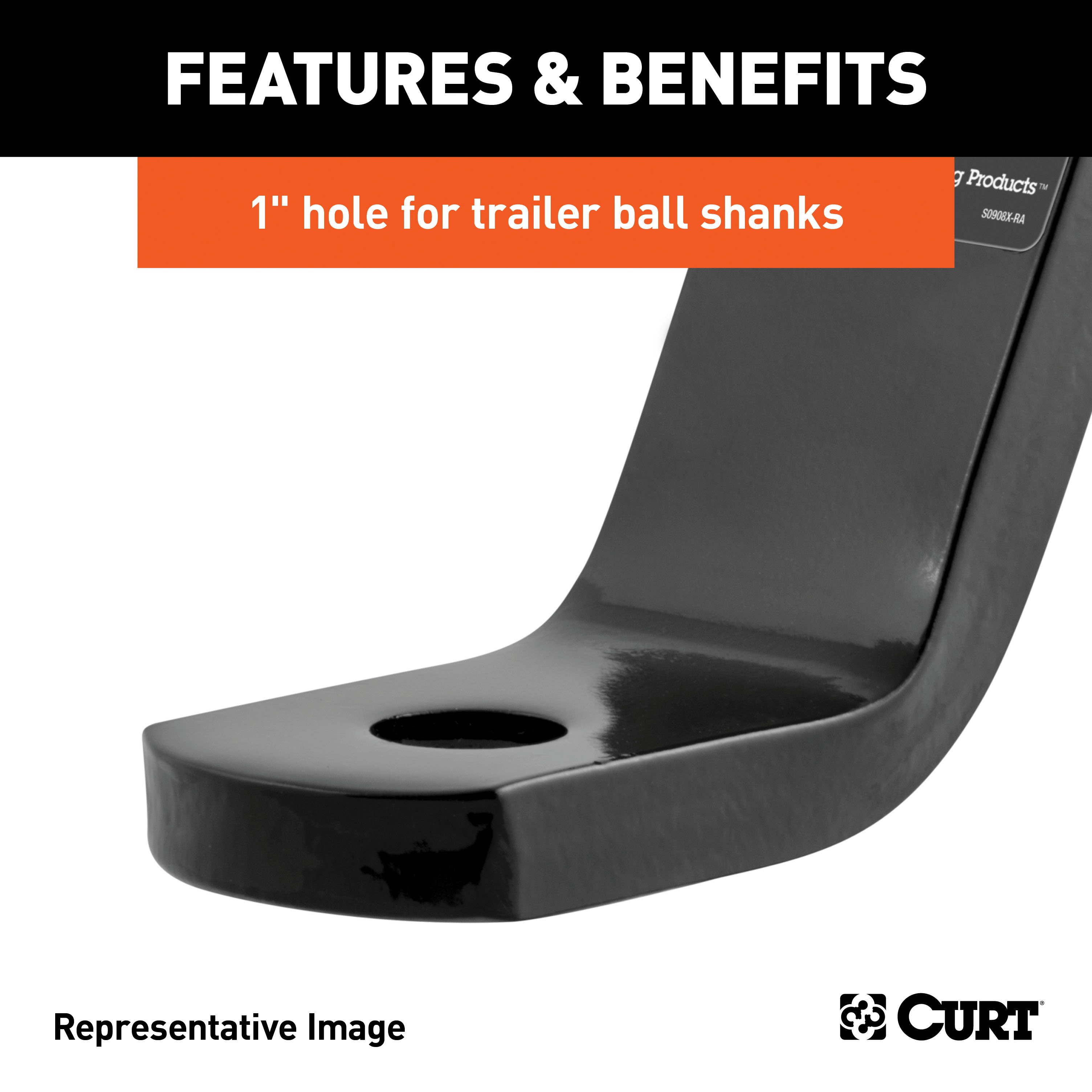

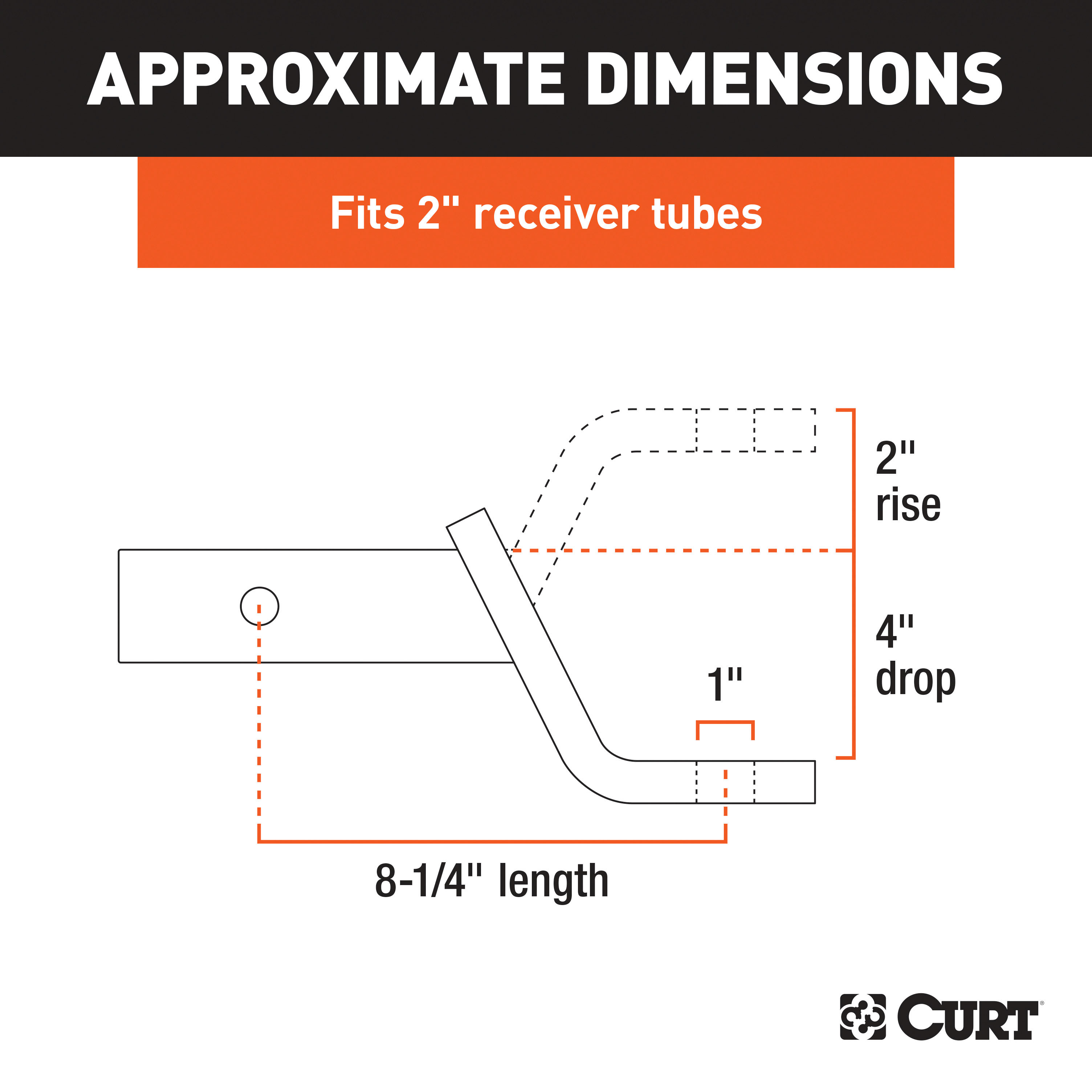

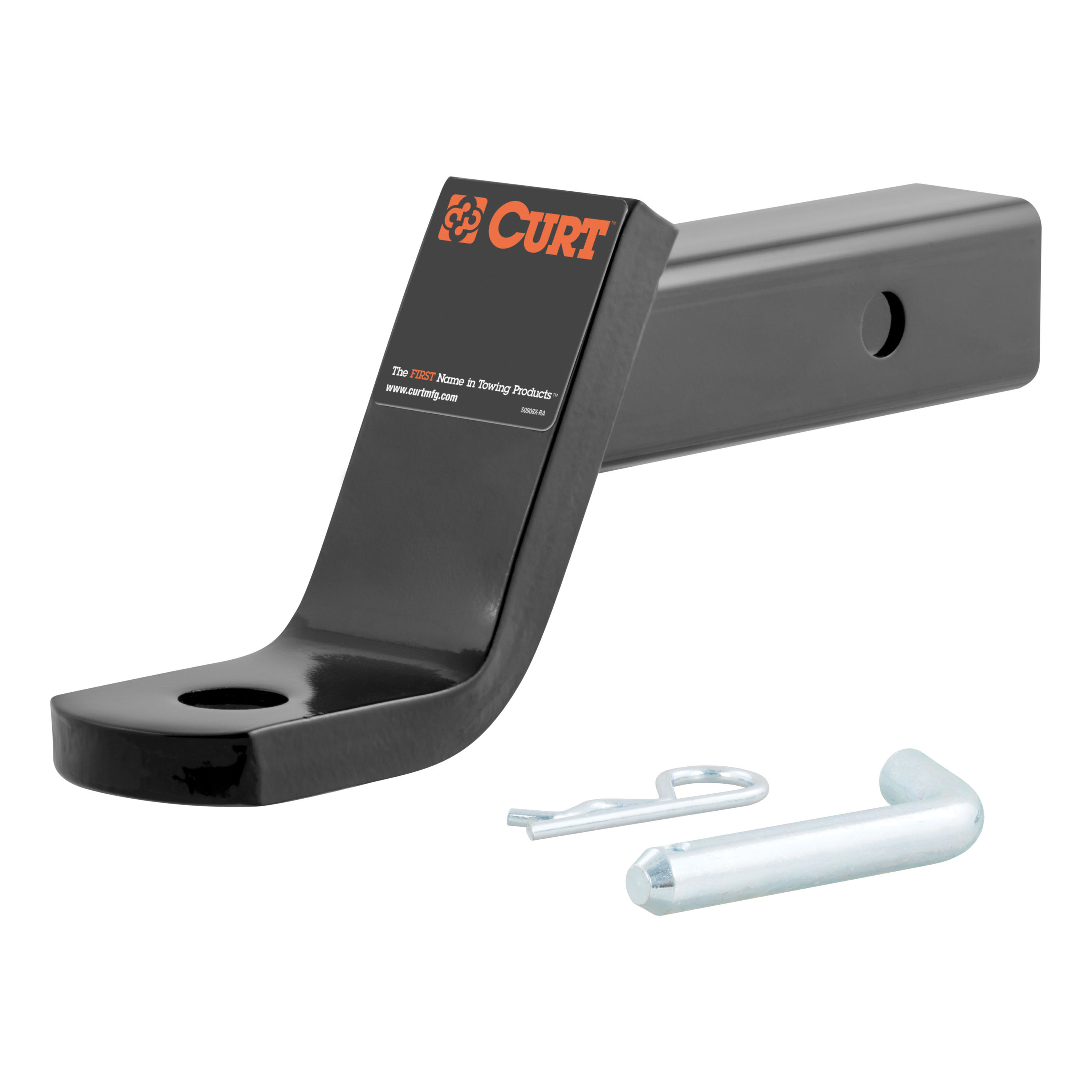

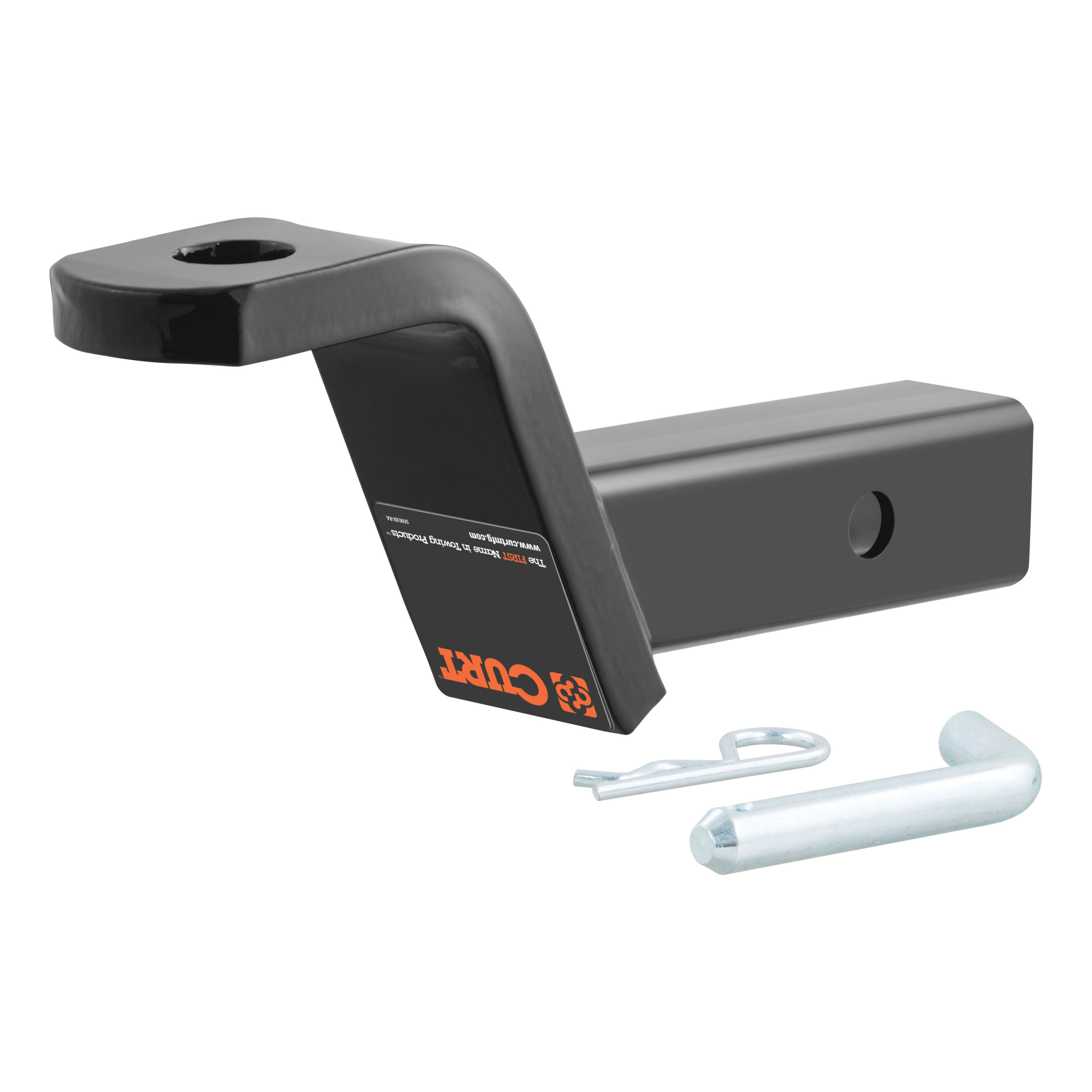

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 8-1/4", a drop of 4" and a possible rise of 2". It also comes with a pin and clip for immediate installation. Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.
| USA Made # | Imported Bulk # | Chrome Bulk # | White Box Kit # | GTW / TW | Drop | Rise | Length | Tongue Hole Size | Shank Type |
|---|---|---|---|---|---|---|---|---|---|
| 45030 | 45830 | 45290 | 45032 | 7,500 / 750 lbs. | 2" | 3/4" | 7-1/2" | 1" | Hollow |
| 45010 | 45828 | -- | 45012 | 7,500 / 750 lbs. | 2" | 3/4" | 8-1/4" | 1" | Hollow |
| 45018 | 45840 | -- | -- | 7,500 / 750 lbs. | 2" | 3/4" | 9-1/4" | 1" | Hollow |
| 45020 | 45829 | -- | -- | 7,500 / 750 lbs. | 2" | 3/4" | 10-1/4" | 1" | Hollow |
| 45260 | -- | -- | -- | 7,500 / 750 lbs. | 2" | 3/4" | 11-1/4" | 1" | Hollow |
| 45250 | -- | -- | -- | 7,500 / 750 lbs. | 2" | 3/4" | 12-1/4" | 1" | Hollow |
| -- | 45850 | 45296 | 45052 | 7,500 / 750 lbs. | 4" | 2" | 9-1/2" | 1" | Hollow |
| 45060 | 45860 | -- | -- | 7,500 / 750 lbs. | 4" | 2" | 10-1/2" | 1" | Hollow |
| 45270 | -- | -- | -- | 7,500 / 750 lbs. | 4" | 2" | 11-1/2" | 1" | Hollow |
| 45272 | 45870 | 45297 | -- | 7,500 / 750 lbs. drop | 6" | 4" | 13" | 1" | Hollow |
| 45808 | 45880 | -- | -- | 6,000 / 600 lbs. | 6" | 4" | 12-1/4" | 1" | Hollow |
| 45820 | -- | -- | -- | 6,000 / 600 lbs. | 8" | 6" | 14-1/4" | 1" | Hollow |
| -- | 45890 | -- | -- | 6,000 / 600 lbs. | 10" | 8" | 16-1/4" | 1" | Hollow |
| 45100 | -- | -- | -- | 3,500 / 350 lbs. drop | 6" | 4" | 11" | 1" | Hollow |
| 45110 | -- | -- | -- | 3,500 / 350 lbs. drop | 8" | 6" | 13" | 1" | Hollow |
| -- | -- | -- | -- | 3,500 / 350 lbs. rise | 8" | 6" | 13" | 1" | Hollow |
| -- | -- | -- | -- | 3,500 / 350 lbs. drop | 10" | 8" | 14" | 1" | Hollow |
| 45111 | 45893 | -- | -- | 3,500 / 350 lbs. rise | 10" | 8" | 14" | 1" | Hollow |
