CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2014 Cadillac Escalade
Confirmed to Fit
2007 - 2014 Chevrolet Suburban 1500
Confirmed to Fit
2007 - 2014 Chevrolet Tahoe
Confirmed to Fit
2007 - 2014 GMC Yukon
Confirmed to Fit
2007 - 2014 GMC Yukon XL 1500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Cadillac Escalade, Chevrolet Suburban, Chevrolet Tahoe, GMC Yukon and GMC Yukon XL. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2014 | Cadillac Escalade | — |
| 2007 - 2014 | Chevrolet Suburban 1500 | — |
| 2007 - 2014 | Chevrolet Tahoe | — |
| 2007 - 2014 | GMC Yukon | — |
| 2007 - 2014 | GMC Yukon XL 1500 | — |
The CURT 58927 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac Escalade, Chevy Suburban, Tahoe, GMC Yukon, XL (Part #BKDK58927) fits 2007-2014 Cadillac Escalade models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 58927 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac Escalade, Chevy Suburban, Tahoe, GMC Yukon, XL (Part #BKDK58927) fits the following vehicles: 2007-2014 Cadillac Escalade; 2007-2014 Chevrolet Suburban 1500; 2007-2014 Chevrolet Tahoe; 2007-2014 GMC Yukon; 2007-2014 GMC Yukon XL 1500. Always verify your specific year, make, and model before ordering.
Yes, the CURT 58927 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac Escalade, Chevy Suburban, Tahoe, GMC Yukon, XL (Part #BKDK58927) is designed to fit the 2007-2014 Cadillac Escalade.
The CURT 58927 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac Escalade, Chevy Suburban, Tahoe, GMC Yukon, XL (Part #BKDK58927) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 58927 RV TOW Harness fits Chevrolet Suburban, Chevrolet Tahoe, GMC Yukon, and GMC Yukon XL models. Your vehicle must have factory 4-pin connectors on the chassis near the rear frame on both sides. If you are unsure whether your vehicle has these connectors, locate the area underneath the vehicle near the rear frame and inspect for them before purchasing.

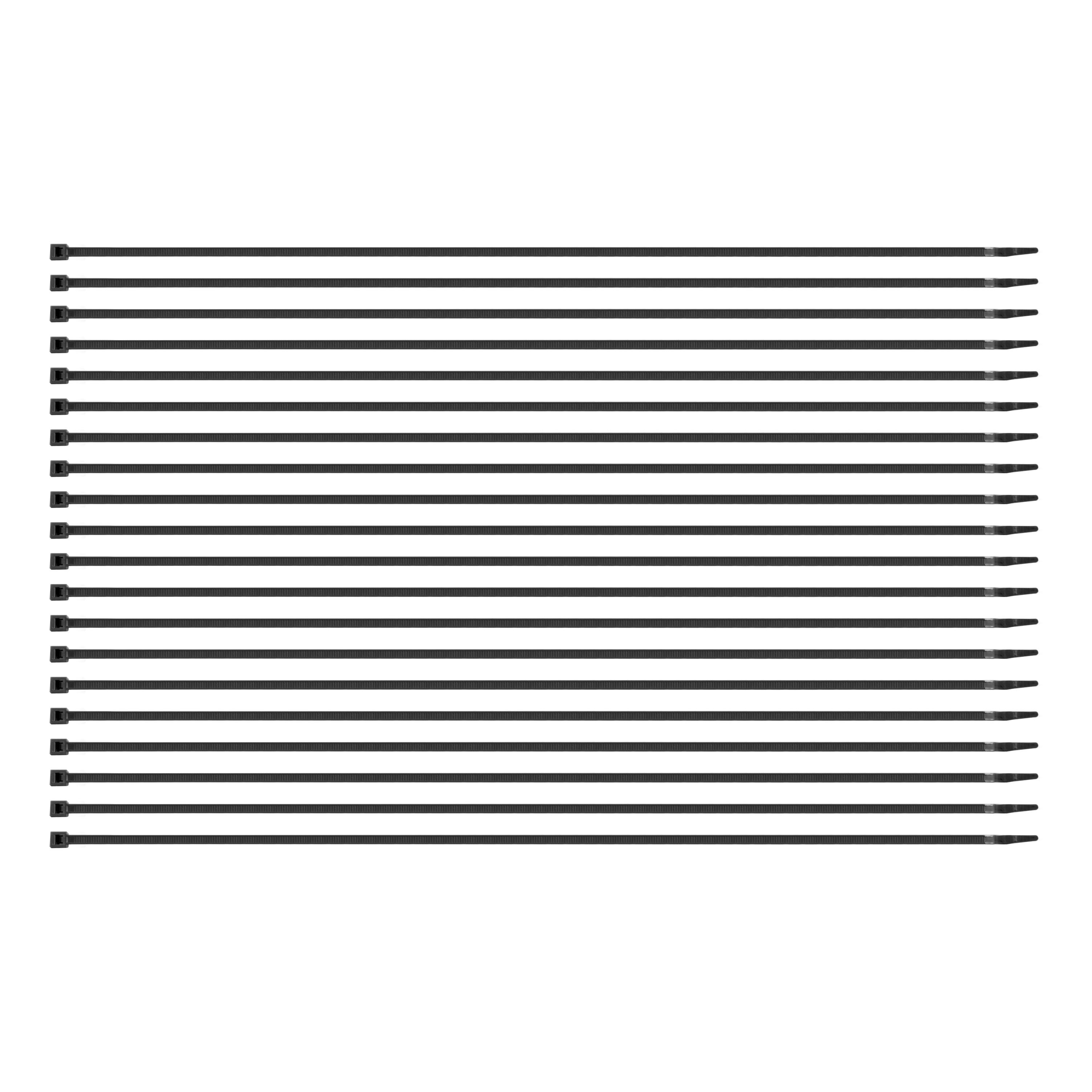

The kit includes: (1) Wiring Harness with 4-Flat Connector, (1) 48" 4-Flat Extension, (20) 15" Cable Ties, (1) 4-Flat Bracket, and (3) #8 Self-Tapping Ground Screws.
You will need a 10mm socket to remove and re-attach the factory ground screw, and a drill with a 3/32" bit to drill two holes for mounting the 4-Flat bracket in the engine compartment. A screwdriver may be needed to attach the bracket screws.
The factory 4-pin connectors are located underneath the vehicle on the chassis near the rear frame on both sides of the vehicle. Before installation, locate these connectors, unplug them, and inspect for dirt and debris. Clean them if necessary.
Starting on the driver's side, position the RV harness with connectors containing Yellow wires between the separated vehicle harness connectors. Press the connectors firmly into the vehicle connectors until they lock into place. Pull on the connectors to ensure the locks are engaged.
Locate the factory ground screws on the driver's side and remove one using a 10mm socket. Attach the ring terminal on the White wire to the ground screw you removed, then re-attach the 10mm bolt.
Route the portion of harness with the T-Connector ends containing the Green wire to the passenger side along the factory wire harness that routes along the rear frame rail. Secure it with the cable ties provided.
Cut the cable ties on the 4-Flat portion of the harness. Starting from the taillight connectors, route towards the brake lines near the rear tire and secure with cable ties, ensuring there is no slack. Continue routing the 4-Flat along the brake lines to the front of the vehicle, securing it with cable ties as you go. Route it up into the engine compartment along the factory wiring harness.
Locate the area in the engine compartment along the driver's side in front of the battery. Drill two 3/32" holes in this location to mount the 4-Flat bracket. Take care not to drill through the vehicle body or any exposed surface.
Yes. You must drill two 3/32" holes in the engine compartment along the driver's side in front of the battery to mount the 4-Flat bracket. Take care not to drill through the vehicle body or any exposed surface.
The 4-Flat Harness color code is: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Make sure to avoid areas that contain moving parts or could cut, pinch or burn the wires when routing the 4-Flat harness towards the front of the vehicle. Also avoid routing the harness near fuel lines as it may cause fuel to ignite. Failure to follow these warnings may cause property damage, personal injury or loss of life.
With the 4-Flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work. These functions will only work on the brake/tail combination lamp.
Store the 4-Flat extension in the vehicle's glove box when not in use.
At the rear of the vehicle, secure any loose wires to the vehicle's crossmember using the cable ties provided.
Yes, the Curt 58927 RV TOW Harness is designed for Chevrolet Tahoe. Your vehicle must have factory 4-pin connectors on the chassis near the rear frame.
No additional parts are included. You will need a 10mm socket and a drill with a 3/32" bit, which are standard tools.
Yes, you must drill two 3/32" holes in the engine compartment to mount the 4-Flat bracket. Avoid drilling through the vehicle body or exposed surfaces.
White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Avoid routing the harness near moving parts, fuel lines, or areas where wires could be cut or burned. Do not drill through the vehicle body. Failure to follow these warnings may cause property damage, personal injury or loss of life.
Plug the 4-Flat extension into the RV harness and motorhome, then test the functions on the brake/tail combination lamp.
