Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Chevrolet Cobalt, Chevrolet HHR, Pontiac G5 and Pontiac Pursuit. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited Warranty
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
Yes, the Curt 58929 is designed to fit the Chevrolet HHR. It connects to the factory taillight connectors and includes a 4-flat connector bracket that mounts to the front frame rail.
Yes, the Curt 58929 is compatible with Chevrolet Cobalt 2-door, Pontiac G5 2-door, and Pontiac G5 Pursuit (Canada only). Installation steps differ slightly from the HHR due to different panel and grommet locations.

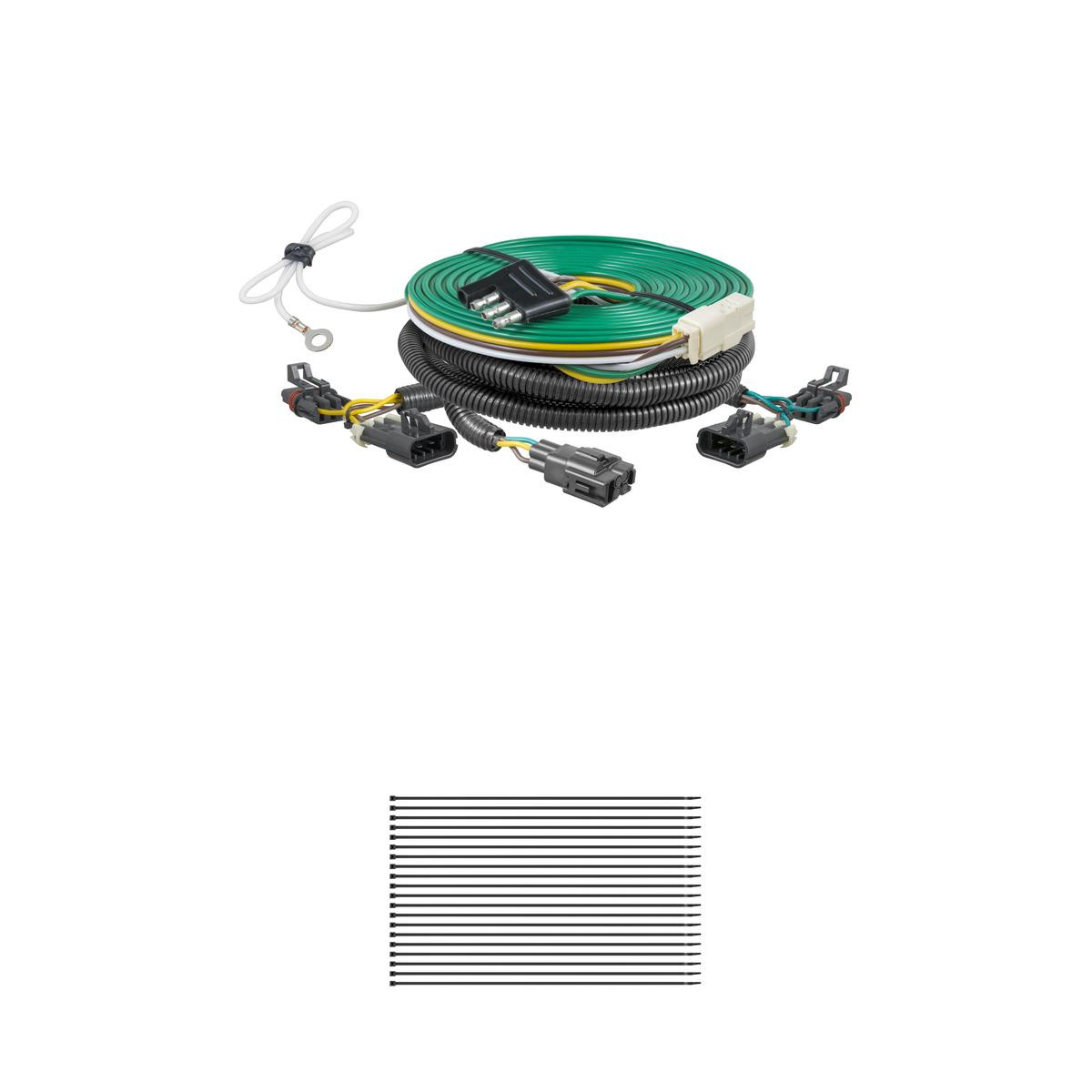

The kit includes: (1) wiring harness with 4-flat connector, (1) 48" 4-flat extension, (20) 15" cable ties, (1) 4-flat bracket, and (3) #8 self-tapping ground screws.
You will need a 10mm socket, a small flat screwdriver, a drill with a 3/32" drill bit, and a fish tape (for routing the harness through the vehicle). A silicone sealant may also be necessary to seal the grommet after modification.
The manual does not specify whether battery disconnection is required. Consult the manufacturer or a qualified installer before beginning.
Open the rear tailgate and remove the floor cover, rear storage cover, and spare tire cover. Remove the bolts holding the cargo tie downs using a 10mm socket, then use a small flat screwdriver to remove the side panels. Unplug the factory taillight connectors. Route the RV harness with yellow-wire connectors through the opening at the bottom of the plastic side panel, position the connectors between the separated vehicle harness connectors, and press firmly until they lock. Pull on the connectors to ensure the locks are engaged.
Open the rear tailgate and remove the spare tire cover. Remove the wing nuts holding the felt liner in place on both sides to access the taillight connectors. Unplug the factory connectors. Route the RV harness with yellow-wire connectors through the opening at the bottom of the felt side panel, position the connectors between the separated vehicle harness connectors, and press firmly until they lock. Pull on the connectors to ensure the locks are engaged.
On the HHR, locate the factory ground ring post on the driver's side. Using a 10mm socket, remove the nut. Place the RV harness ground ring with the factory ground ring and tighten the nut back down.
On the Cobalt and G5, locate a clean and accessible mounting location on the vehicle near the RV harness ends within reach of the white wire and ring terminal. Remove any debris or undercoating to expose clean metal, then drill a 3/32" hole. Attach the ring terminal on the white wire using one of the #8 self-tapping ground screws provided.
Yes, drilling is required. You must drill two 3/32" holes to mount the 4-flat bracket. On Cobalt and G5 models, you must also drill one 3/32" hole for the ground screw. Take care not to drill through the vehicle body or any exposed surfaces.
Yes, you must remove the grommet and make a slit in it to allow the RV harness wiring to pass through. After routing the 4-flat harness, place the grommet around the wires and reseat it. It may be necessary to apply silicone sealant to seal the grommet where the cut was made.
Route the 4-flat harness from underneath the vehicle over the exhaust to the driver's rear wheel well. Use a fish tape to route it up and over from the left side to the right side of the rear wheel well (you may need to remove plastic clips). Continue routing towards the front along the frame by the plastic trim piece, securing with cable ties. Repeat the fish tape routing through the driver's side wheel well, then route to the frame rail across the front of the vehicle where the 4-flat bracket will be mounted.
Route the 4-flat harness through the grommet opening behind the felt liner on the driver's side. Do not seat the grommet yet; excess slack will be stored behind the felt liner. Remove push clips in the driver's side rear wheel well cover. Use a fish tape to route the harness up and over from the left to the right side of the rear wheel well. Continue routing towards the front along the brake lines all the way into the engine compartment. Route around the battery on the right side, then continue along the factory wire harness to the front mounting location for the 4-flat bracket.
Mount the 4-flat bracket to the frame rail that goes across the front of the vehicle. Use the bracket as a template to mark two holes, drill two 3/32" holes, and attach the bracket using the two screws provided. Take care not to drill through the vehicle body or any exposed surfaces.
The 4-flat harness color code is: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Avoid routing the harness near moving parts or areas where wires could be cut, pinched, or burned. Do not route the harness near fuel lines, as this may cause fuel to ignite. Failure to follow these warnings may cause property damage, personal injury, or loss of life.
With the 4-flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work on your vehicle. These functions will only work on the brake/tail combination lamp. When not in use, store the 4-flat extension in the vehicle's glove box.
The Curt 58929 is designed for RV use. However, the manual notes that the harness includes a connection point labeled 'FOR TRAILER TOW USE ONLY: TAILLIGHT REQUIRED.' If you want to tow a trailer while the RV harness is left on the vehicle, you can plug in the 4-flat harness part number 58918 and you will be ready to tow.
Yes, after securing any loose wires to the vehicle's crossmember using the cable ties provided, you must re-install the taillights to the vehicle.
The Curt 58929 fits Chevrolet HHR, Chevrolet Cobalt 2-door, Pontiac G5 2-door, and Pontiac G5 Pursuit (Canada only). Installation steps vary by model.
You will need a 10mm socket, small flat screwdriver, drill with 3/32" bit, and fish tape. Silicone sealant may also be needed.
Yes, you must remove the grommet and make a slit to allow the harness through. After routing, reseat the grommet and apply silicone sealant where the cut was made.
White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Avoid moving parts, fuel lines, and areas where wires could be cut, pinched, or burned. Improper routing may cause property damage, personal injury, or loss of life.
