Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Chevrolet Cobalt, Pontiac G5 and Pontiac Pursuit. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2005, 2010 | Chevrolet Cobalt | Sedan | — |
| 2005 - 2010 | Chevrolet Cobalt | Sedan · 4-Door | — |
| 2007 - 2010 | Pontiac G5 | Sedan · 4-Door | — |
| 2005 - 2006 | Pontiac Pursuit | Sedan · 4-Door | — |
The CURT 58931 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cobalt, Pontiac G5, Pursuit (Part #BKDK58931) fits the following vehicles: 2005-2010 Chevrolet Cobalt; 2007-2010 Pontiac G5; 2005-2006 Pontiac Pursuit. Always verify your specific year, make, and model before ordering.
Yes, the CURT 58931 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cobalt, Pontiac G5, Pursuit (Part #BKDK58931) is designed to fit the 2005-2010 Chevrolet Cobalt.
The CURT 58931 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cobalt, Pontiac G5, Pursuit (Part #BKDK58931) fits 2005-2010 Chevrolet Cobalt models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 58931 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cobalt, Pontiac G5, Pursuit (Part #BKDK58931) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 58931 RV Tow Harness is designed to fit the Chevrolet Cobalt 4 Dr. If you have a different model year, body style, or vehicle, verify fitment with the manufacturer before purchasing.

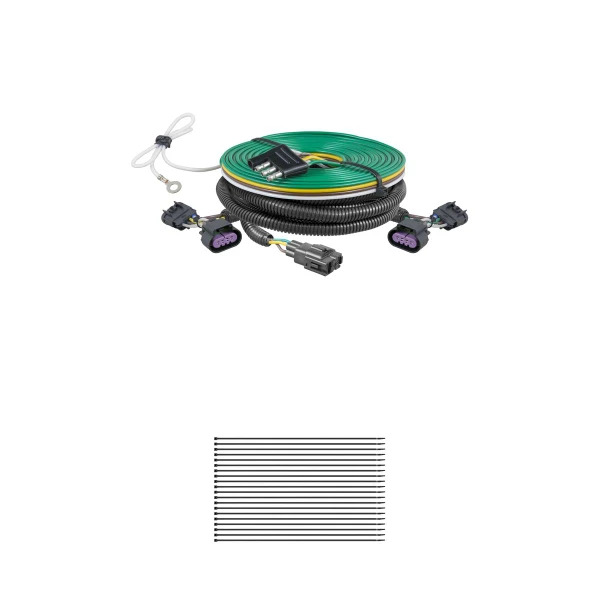

The kit includes: (1) Wiring Harness with 4-Flat Connector, (1) 48" 4-Flat Extension, (20) 15" Cable Ties, (1) 4-Flat Bracket, and (3) #8 Self-Tapping Ground Screws.
You will need a 7mm socket, a 10mm socket, a drill with a 3/32" drill bit, a fish tape (for routing the harness through the bumper and wheel well), and a screwdriver. A 3/32" drill bit is required for drilling mounting holes for the ground screw and 4-Flat bracket.
Starting on the driver's side, position the RV harness connector ends containing Yellow wires between the separated vehicle harness connectors. Press the connectors firmly into the vehicle connectors until they lock into place. Pull on the connectors to ensure the locks are engaged. Repeat this process on the passenger side with the Green wire connectors.
Yes, drilling is required. You must drill one 3/32" hole for the ground screw mounting location near the taillights, and two 3/32" holes in the engine compartment for the 4-Flat bracket. Take care not to drill through the vehicle body or any exposed surfaces.
Both the ground screw mounting hole and the two 4-Flat bracket mounting holes require 3/32" diameter holes.
Cut the cable ties on the 4-Flat portion of the harness and route it behind the driver's rear wheel well. Use a fish tape to pull the harness up and over from the left to the right side of the rear wheel well cover. Continue routing towards the front of the vehicle along the brake lines all the way up into the engine compartment. Secure with the provided cable ties. Route to the right side around the battery in the engine compartment.
Avoid areas that contain moving parts or could cut, pinch or burn the wires. Do not route the harness near fuel lines, as this may cause fuel to ignite. Failure to follow these warnings may cause property damage, personal injury or loss of life.
Mount the 4-Flat bracket in the engine compartment on the right side around the battery. Use the bracket as a template to mark two holes, drill two 3/32" holes, and attach the bracket using the two screws provided. Take care not to drill through the vehicle body or any exposed surfaces.
The 4-Flat Harness Color Code is: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Locate a clean and accessible mounting location on the vehicle near the RV harness ends within reach of the white wire and ring terminal. Remove any debris or undercoating to expose a clean metal surface. Drill a 3/32" hole and attach the ring terminal on the White wire using the ground screw provided.
With the 4-Flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work on the Chevrolet Cobalt. These functions will only work on the brake/tail combination lamp.
The 58931 is designed for RV use. The manual notes that the harness includes a connection point labeled 'FOR TRAILER TOW USE ONLY: TAILLIGHT REQUIRED.' If you want to tow a trailer, you can plug in the 4-Flat Harness part number 58918 into the connection point and you will be ready to tow.
When not in use, store the 4-Flat extension in the vehicle's glove box.
Yes. You must remove the taillights to access and unplug the factory taillight connectors. Open the trunk, remove two bolts using a 7mm socket, remove the wing nuts holding the felt liner in place on both sides, pull the trunk felt liner away, and use a 10mm socket to remove the nuts holding the taillights in place. After installation, reinstall the taillights.
Gently pull the taillights away from the vehicle and unplug the factory connectors from the taillight connectors. Set them aside.
Yes, the 58931 is designed for the Chevrolet Cobalt 4 Dr. Verify your vehicle model and body style match before purchasing.
You will need a 7mm socket, 10mm socket, drill with 3/32" bit, fish tape, and screwdriver.
Yes. You must drill one 3/32" hole for the ground screw and two 3/32" holes for the 4-Flat bracket. Take care not to drill through the vehicle body or exposed surfaces.
Yes. Remove the taillights to access and unplug the factory taillight connectors, then reinstall them after connecting the RV harness.
Avoid moving parts, fuel lines, and areas where wires could be cut, pinched or burned. Improper routing may cause property damage, personal injury or loss of life.
The kit includes a Wiring Harness with 4-Flat Connector, 48" 4-Flat Extension, (20) 15" Cable Ties, 4-Flat Bracket, and (3) #8 Self-Tapping Ground Screws.
