CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2008 - 2012 Dodge Caliber
Confirmed to Fit
2011 - 2013 Dodge Durango
Confirmed to Fit
2008 - 2017 Jeep Patriot
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Dodge Caliber, Dodge Durango and Jeep Patriot. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2012 | Dodge Caliber | — |
| 2011 - 2013 | Dodge Durango | — |
| 2008 - 2017 | Jeep Patriot | — |
The CURT 58959 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Dodge Caliber, Durango, Jeep Patriot (Part #BKDK58959) fits the following vehicles: 2008-2012 Dodge Caliber; 2011-2013 Dodge Durango; 2008-2017 Jeep Patriot. Always verify your specific year, make, and model before ordering.
The CURT 58959 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Dodge Caliber, Durango, Jeep Patriot (Part #BKDK58959) fits 2008-2012 Dodge Caliber models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 58959 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Dodge Caliber, Durango, Jeep Patriot (Part #BKDK58959) is designed to fit the 2008-2012 Dodge Caliber.
The CURT 58959 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Dodge Caliber, Durango, Jeep Patriot (Part #BKDK58959) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part 58959 is designed for Dodge Durango. It is also compatible with Dodge Caliber and Jeep Patriot. The harness is designed for SUVs, mini and full-sized vans.
Yes, the 58959 is compatible with Jeep Patriot. It is designed for SUVs, mini and full-sized vans and also fits Dodge Caliber and Dodge Durango.
The 58959 is a wiring harness that connects your vehicle's lighting system to an RV or trailer. It provides signal circuits (6.0 amps per side) for turn signals and brake lights, and tail/running circuits (6.0 amps total) for taillights. The harness includes a 4-flat connector for trailer use and integrates with your vehicle's existing taillight wiring.
You will need: ratchet, ratchet extension, 10mm socket, 1/4" socket, 3/32" drill bit, panel trim removal tool, Phillips screwdriver, flat blade screwdriver, cutting tool, and fish wire. These tools are required to remove taillights, drill pilot holes, route the harness, and secure connections.

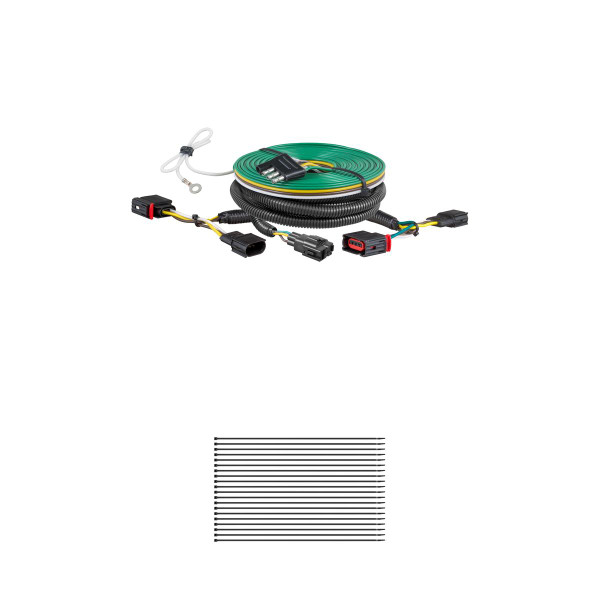

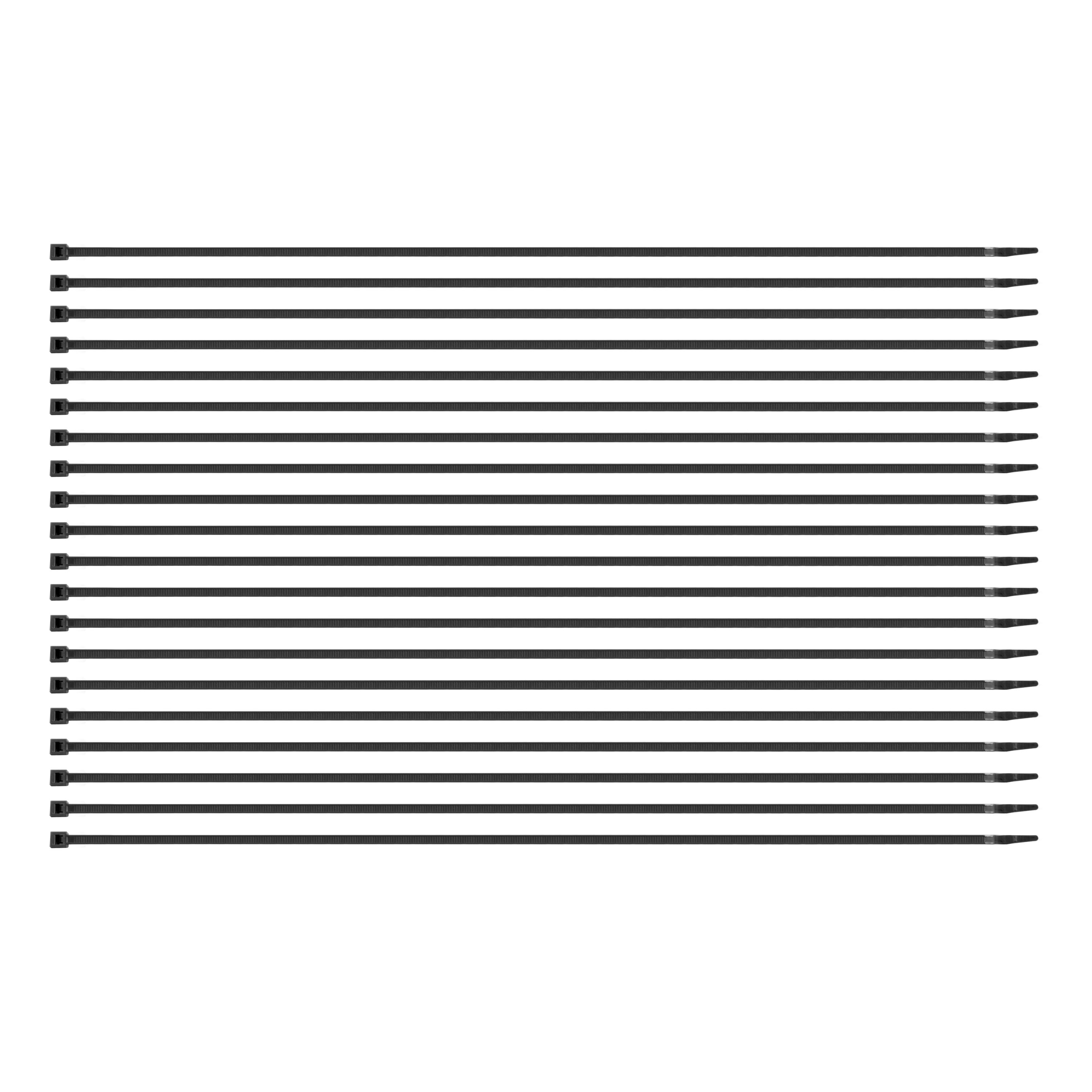

The kit includes the RV harness with yellow, brown, green and white wires; a 4-flat connector bracket; two screws for bracket mounting; a 3/32" pilot hole screw for grounding; cable ties for securing wires; and a 4-flat dust cover. The harness has separate connectors for driver and passenger side taillights.
Yes, drilling is required in two places. First, you must drill a 3/32" pilot hole for the ground wire screw near the taillight connectors (Step 9). Second, you must drill two 3/32" holes to mount the 4-flat bracket in the engine compartment (Step 12). Before drilling, check for hidden items behind or under surfaces to avoid damage or injury.
Yes, you must remove both taillight housings. On each side, remove two push fasteners, then gently push the taillight rearwards and use a soft pry tool on the leading edge to assist removal. The RV harness connectors are inserted between the vehicle's taillight connectors, then the taillight is reinstalled.
Route the 4-flat from underneath the vehicle along the brake lines from rear to front. Some trim cover panels may need removal. From inside the engine compartment, find the brake fluid reservoir and route a fish wire down along the brake lines. Secure the 4-flat to the fish wire at the driver front wheel well and pull it up into the engine compartment. Avoid areas with moving parts that could cut, pinch or burn wires.
The 58959 uses four wire colors: White is ground; Green is right turn/brake; Brown is taillights; Yellow is left turn/brake. The harness has separate connectors with yellow and brown wires for the driver side and green and brown wires for the passenger side. These connect to your vehicle's existing taillight connectors.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Signal circuits (turn signals and brake lights) are rated at 6.0 amps per side. Tail and running light circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Before drilling, check for hidden items behind or under surfaces to avoid damage or personal injury. When routing the 4-flat harness, avoid areas with moving parts or that could cut, pinch or burn wires; failure to do so may cause property damage, personal injury or loss of life. Ensure the battery connection is fuse-protected with a 10-amp maximum fuse to prevent overheating and fire.
With the 4-flat extension plugged into the RV harness on one end and the RV on the other, perform a function test. These functions will only work on the brake/taillight combination lamp. Test all turn signals (left and right), brake lights, and taillights. If all functions work on the tow vehicle, the installation is complete. Store the 4-flat extension inside the vehicle when not in use.
Locate a suitable flat position in the engine compartment to mount the trailer end 4-flat bracket. Using the bracket as a template, mark the two holes and drill two 3/32" holes. Attach the bracket using the two provided screws. Before drilling, check for hidden items to avoid damage.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. Before drilling, check for hidden items to avoid damage.
After removing the taillight housing, locate the vehicle's taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the RV harness end (with yellow and brown wires on driver side, green and brown on passenger side) between the separated taillight connectors. Make sure the connectors are fully inserted with locking tabs in place. Secure any loose wires with provided cable ties.
Yes. The manual notes that the RV harness includes a connection point labeled 'For trailer tow use only: 4-flat harness required.' If you decide to leave your RV harness on the vehicle at all times and want to tow a trailer, simply plug in the 4-flat harness when needed. When not in use, store the 4-flat extension inside the vehicle.
After testing all functions and confirming they work on the tow vehicle, reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Use cable ties as needed to secure any loose wires throughout the harness routing.
Yes, the Curt 58959 is designed for Dodge Durango, Dodge Caliber, and Jeep Patriot.
You need: ratchet, ratchet extension, 10mm socket, 1/4" socket, 3/32" drill bit, panel trim removal tool, Phillips screwdriver, flat blade screwdriver, cutting tool, and fish wire.
Yes. You must drill two 3/32" pilot holes: one for the ground wire screw near the taillight and two for the 4-flat bracket in the engine compartment. Always check for hidden items before drilling.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating or the tow vehicle lamp load rating.
Plug the 4-flat extension into the RV harness and connect to the RV. Test all turn signals, brake lights, and taillights. Functions only work on brake/taillight combination lamps. Store the 4-flat extension inside the vehicle when not in use.
Check for hidden items before drilling. Avoid routing wires near moving parts or areas that could cut, pinch or burn them. Use a 10-amp maximum fuse on the battery connection to prevent fire. Failure to follow these warnings may cause property damage, personal injury or loss of life.
