CURT Class 1 Ball Mount (1-1/4" Shank, 2,000 lbss., 3-1/4" Drop, 7-1/4" Long) Trailer Hitch Ball MountCURT$42.36In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Trailer ball and hitch pin sold separately
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB
WC Tongue Weight (Pounds): 200 LB
Gross Trailer Weight (Pounds): 2,000 LB
Installation Time Exact (Minutes): 0

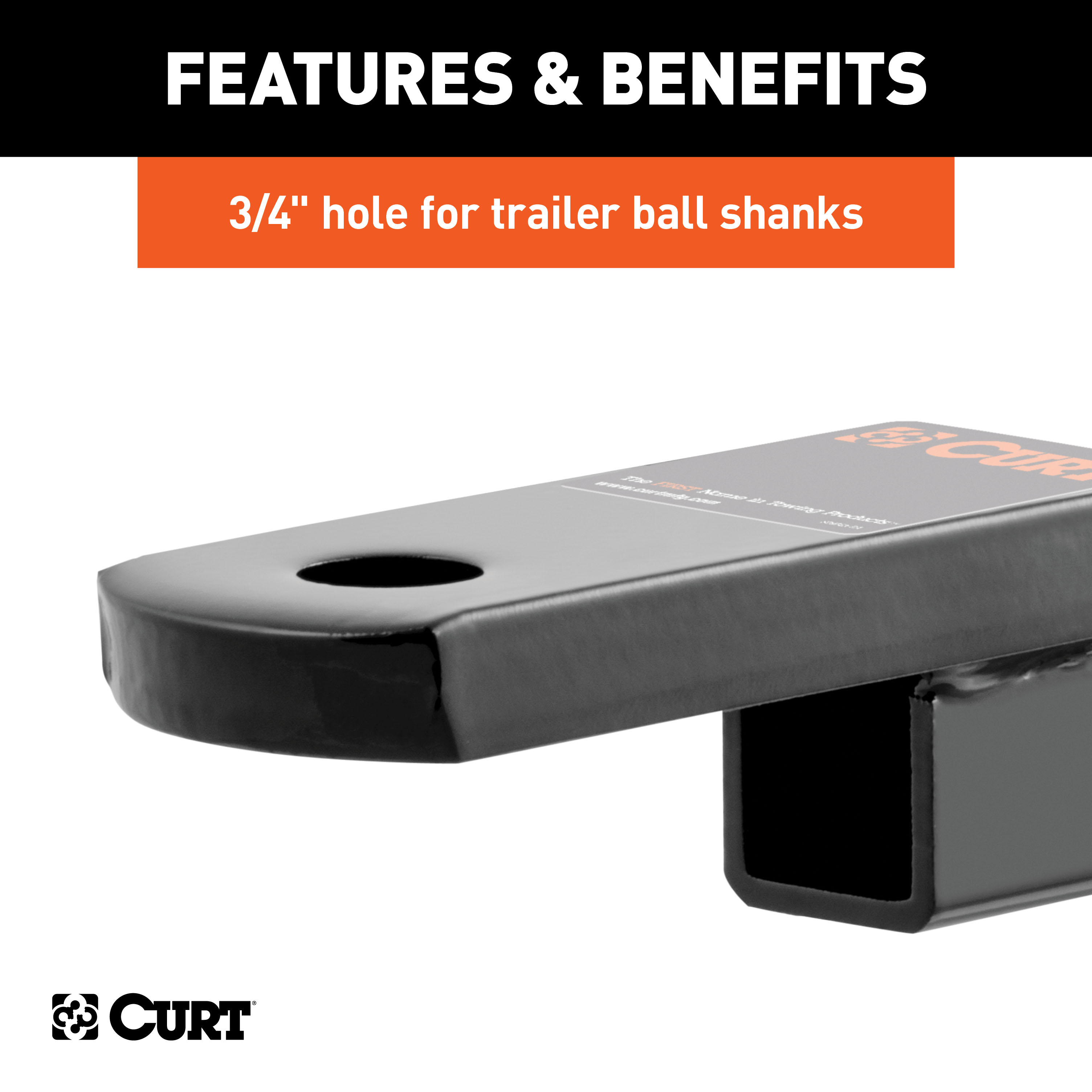

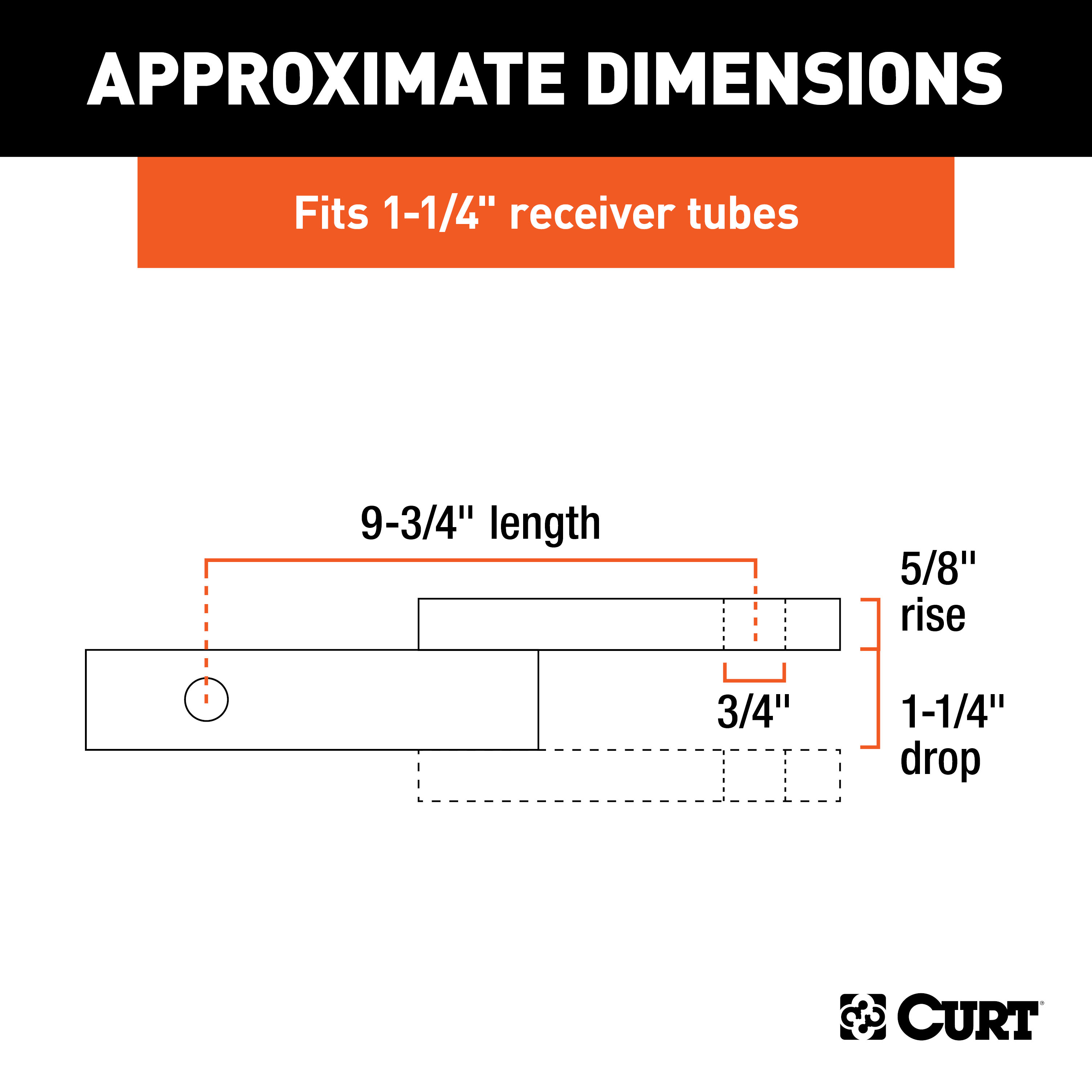

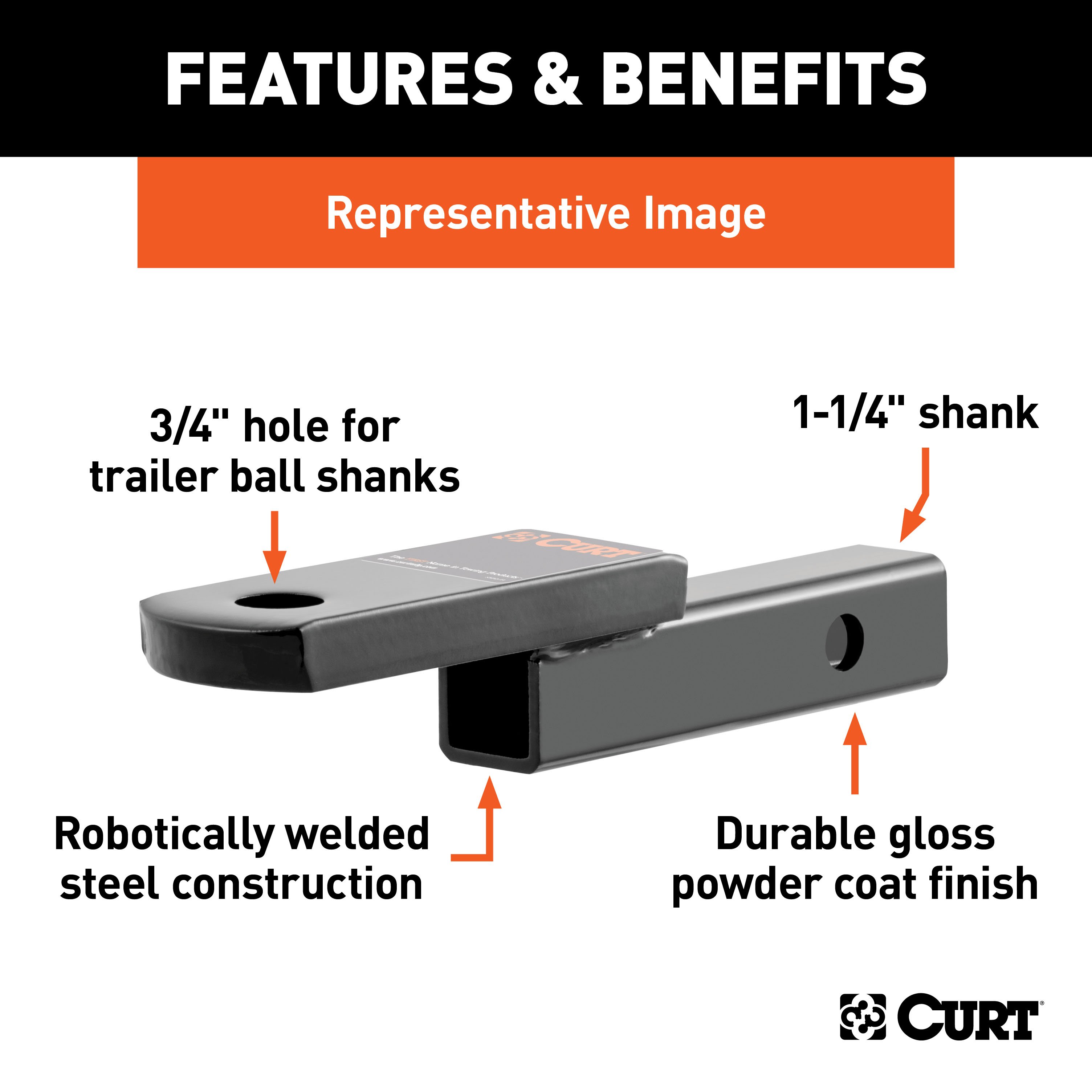

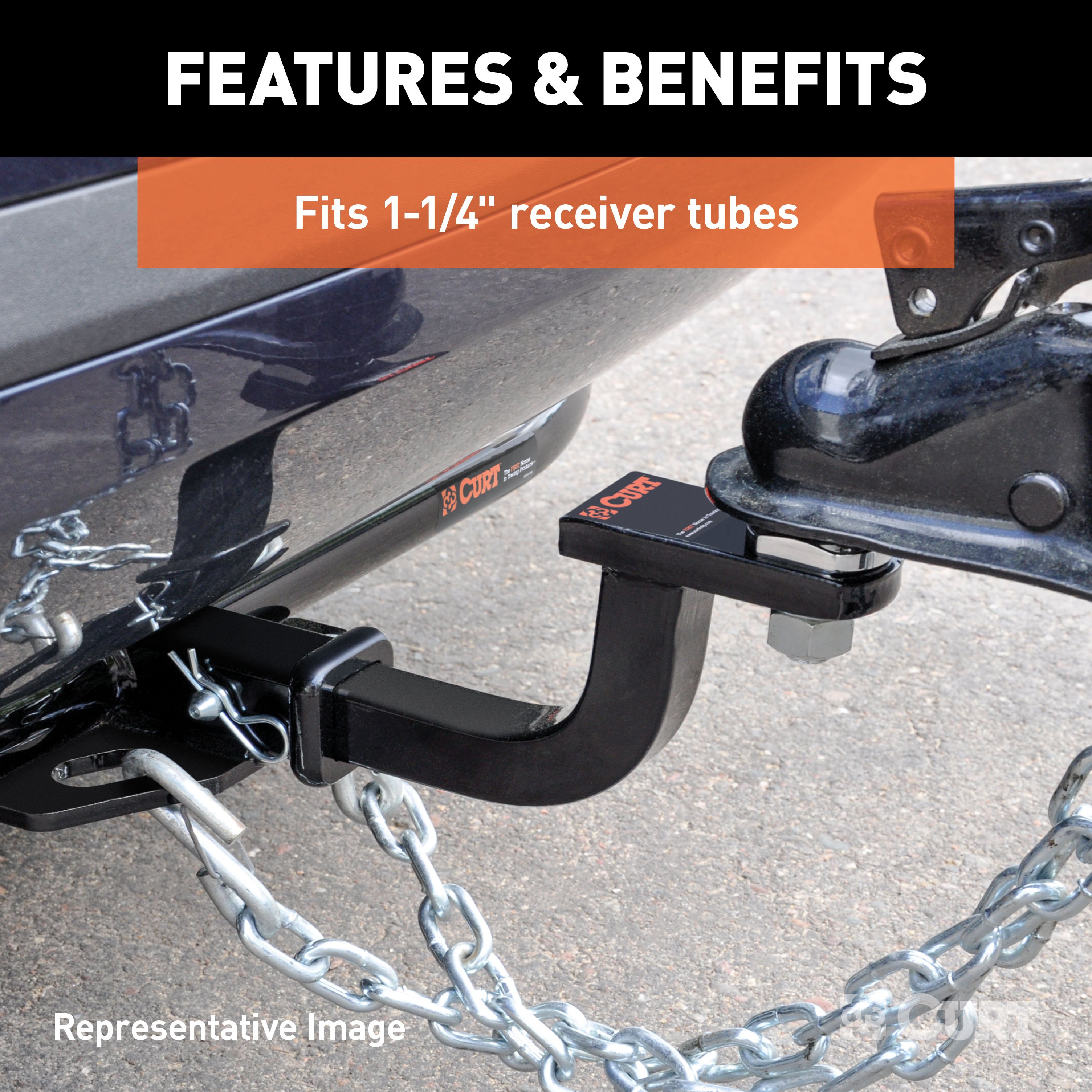

CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 9-3/4", a drop of 1-1/4" and a rise of 5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
| Part # | GTW / TW | Drop | Rise | Length | Tongue Hole Size | Shank Type | Finish |
|---|---|---|---|---|---|---|---|
| Class 1 Ball Mounts | |||||||
| 45018 | 2,000 / 200 lbs. | 1-1/4" | 5/8" | 6-3/4" | 3/4" | Hollow | Gloss black |
| 45019 | 2,000 / 200 lbs. | 1-1/4" | 5/8" | 8-5/8" | 3/4" | Hollow | Gloss black |
| 45022 | 2,000 / 200 lbs. | 3-1/4" | 2-5/8" | 6-1/8" | 3/4" | Hollow | Gloss black |
| 45024 | 2,000 / 200 lbs. | 3-1/4" | 2-5/8" | 7-3/8" | 3/4" | Hollow | Gloss black |
| 45026 | 2,000 / 200 lbs. | 3-1/4" | 2-5/8" | 9-3/8" | 3/4" | Hollow | Gloss black |
| 45018 | 2,000 / 200 lbs. | 1-1/4" | 5/8" | 6-3/4" | 3/4" | Solid | Gloss black |
| 45021 | 2,000 / 200 lbs. | 2" | 3/4" | 9-5/16" | 3/4" | Solid | Gloss black |

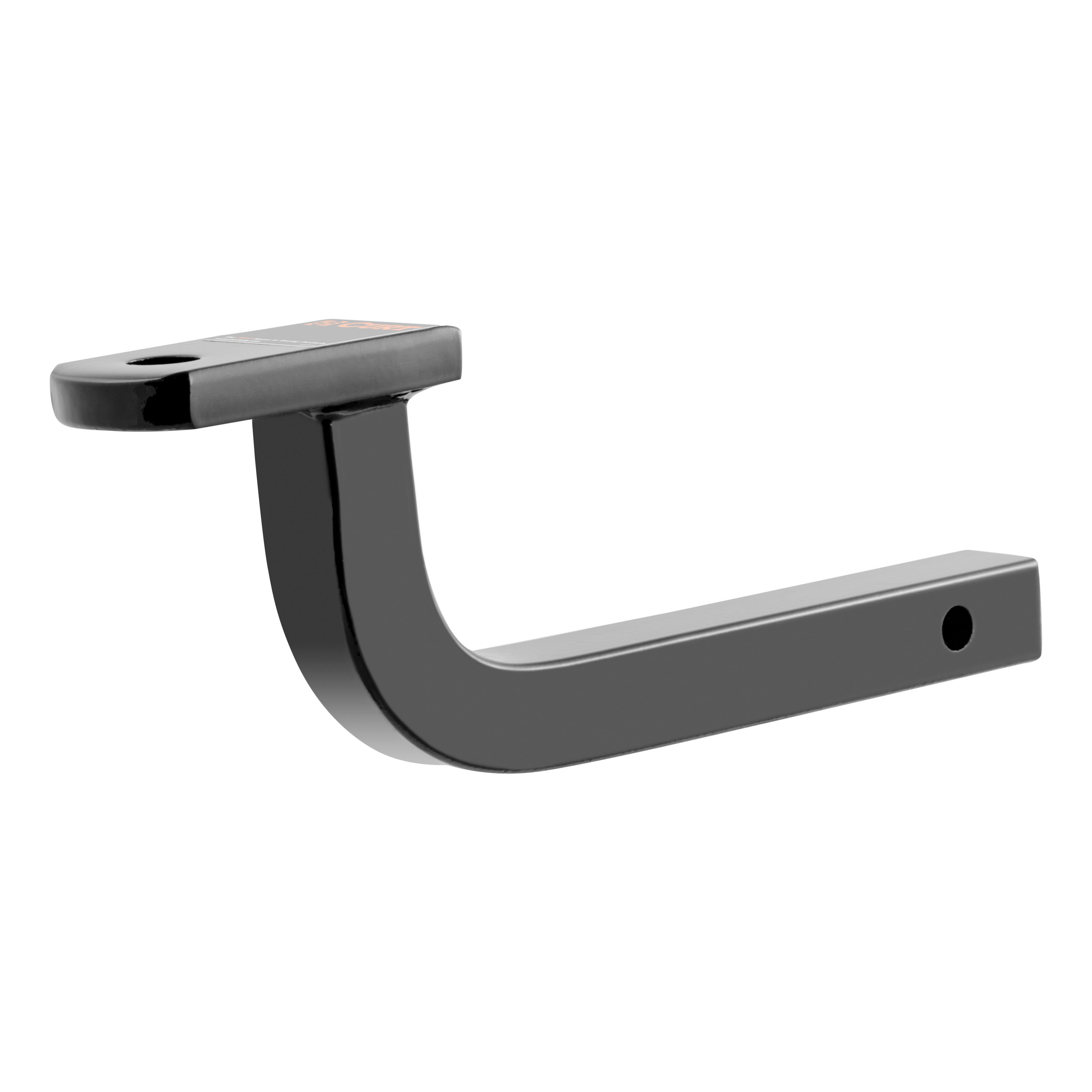

| 45023 | 2,000 / 200 lbs. | 3-1/4" | 2-5/8" | 9-5/16" | 3/4" | Solid | Gloss black |
| 45025 | 2,000 / 200 lbs. | 3-1/4" | 2-5/8" | 9-5/16" | 3/4" | Solid | Gloss black |
| 45028 | 2,000 / 200 lbs. | -- | -- | 5" | 3/4" | Solid | Gloss black |
| Class 2 Ball Mounts | |||||||
| 45503 | 3,500 / 350 lbs. | 1" | 3/8" | 7-13/16" | 3/4" | Solid | Gloss black |
| 45509 | 3,500 / 350 lbs. | 2-5/8" | 1-1/4" | 8-1/4" | 3/4" | Solid | Gloss black |
| 45512 | 3,500 / 350 lbs. | 3-1/4" | 2-5/8" | 8-1/4" | 3/4" | Solid | Gloss black |
| 45519 | 3,500 / 350 lbs. | 4" | 3-1/4" | 9" | 3/4" | Solid | Gloss black |
| 45503 | 3,500 / 350 lbs. | 1" | 3/8" | 10" | 3/4" | Solid | Gloss black |
| 45504 | 3,500 / 350 lbs. | -- | 1" | 10" | 3/4" | Solid | Gloss black |
| 45505 | 3,500 / 350 lbs. | -- | 2-5/8" | 11" | 3/4" | Solid | Gloss black |
| 45506 | 3,500 / 350 lbs. | 5" | 3-3/8" | 11" | 3/4" | Solid | Gloss black |
| 45034 | 3,500 / 350 lbs. | 7-3/8" | -- | 11-1/2" | 3/4" | Solid | Gloss black |
| 45035 | 3,500 / 350 lbs. | -- | 5" | 11-5/8" | 3/4" | Solid | Gloss black |
