CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2021 - 2026 Hyundai Elantra
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Mounting hardware
| Warranty | Limited Lifetime Warranty (1-Year Finish, 1-Year Parts) |
| Color | Black |
| Hitch Class | I |
| Receiver Included | No |
| Mounting Location | Rear |
| Material | Steel |
| Drilling Required | Yes |
| Receiver Opening Size | 1-1/4 in |
| Weight Capacity | 2,000 lbs |
| Tongue Weight Capacity | 200 lbs |
| Warranty | Limited Lifetime (1-Year Finish, 1-Year Parts) |
| Main Body Shape | Square |
| Vehicle Compatibility | Hyundai Elantra (excluding N and N Line) |

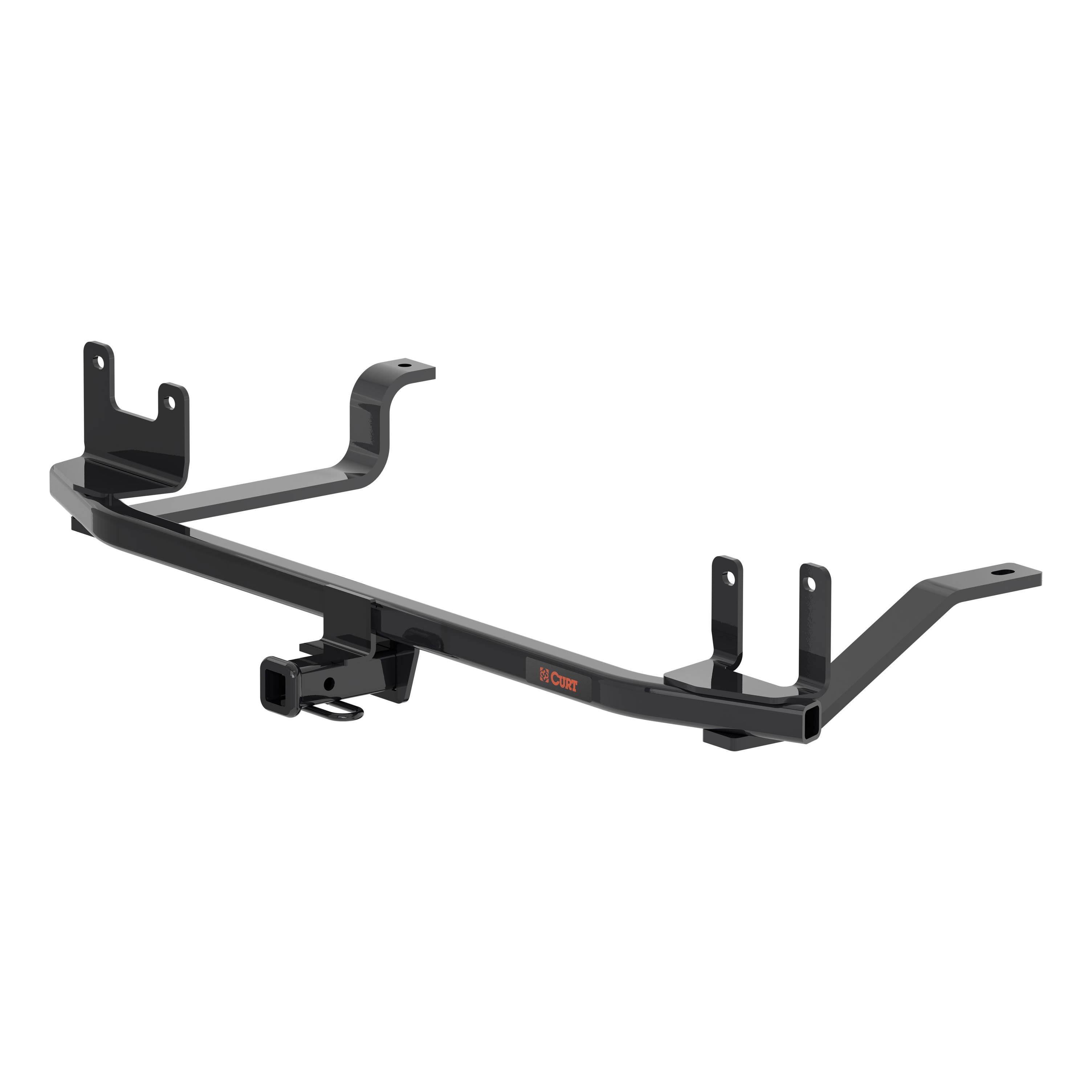

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity.
Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Hyundai Elantra (excluding N and N Line; to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW.
It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited lifetime warranty (one-year finish, one-year parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Hyundai Elantra | Drilling Required Installation Time: 60-90 minutes Visibility: Concealed Undercar trimming (not fascia) required |
The CURT 11687 has a gross trailer weight (GTW) capacity of 2,000 lbs and a tongue weight (TW) capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools include: ratchet, torque wrench, sockets (8mm, 10mm, 12mm, 13mm, 15mm, 11/16"), utility knife, masking tape, fishwire (7/16", 2 qty. included), center punch, aviation shears, exhaust isolator removal tool, Phillips screwdriver, flathead screwdriver, panel trim removal tool, tape measure, paint marker, drill, drill bit (1/2"), and safety glasses. A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
The CURT 11687 is rated as moderate difficulty. Installation requires lowering the exhaust, removing body panels, taillights and bumper cover, trimming panels, and drilling. Proper tools and mechanical experience are necessary. Difficulty may vary based on installer expertise and vehicle condition.
The manual does not specify which vehicle makes, models, or years are compatible with part number 11687. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle before purchasing.
The kit includes: 1 trailer hitch, 2 pieces of 7/16" fishwire, 2 flange nuts (7/16"-14), 4 round-hole spacers (1/4" x 1" x 1-1/2"), 4 hex bolts (M10–1.25 x 35mm, Class 10.9), 4 conical-toothed washers (7/16"), 2 carriage bolts (7/16"-14 x 1-3/4", grade 8), 4 conical-toothed washers (3/8"), 4 hex bolts (M8–1.25 x 40mm, Class 10.9), and 2 spacers (1/4" x 7/8" x 2-1/4").
Installation requires removal of: driver-side underbody panel (5 push pins and 1 plastic nut), passenger-side underbody panel (4 push pins, 1 plastic nut, and 2 additional nuts), both taillights with wiring harnesses, bumper cover (multiple fasteners and clips), and lowering of the exhaust system onto jack stands. All components are reinstalled after hitch mounting.
The manual does not specify whether battery disconnection is required. Contact CURT product support at 877.287.8634 for guidance on electrical safety precautions before beginning installation.
Yes. A 1/2" diameter hole must be drilled in the driver-side frame rail at the forward mounting location of the hitch side mounting strap. The hitch is raised into position, the hole location is marked, then the hitch is lowered and the hole is drilled.
The bumper cover requires a 5" x 3-3/4" rectangular cutout from the bottom edge. The central underbody panel requires a 5" x 1" rectangular cutout from the rear edge. Both are trimmed with aviation shears or suitable tool. Additional trimming of the driver-side underbody panel may be needed near the forwardmost attachment tab for proper fit.
Yes. The manual requires trimming a 5" x 3-3/4" section from the bottom of the bumper cover and a 5" x 1" section from the central underbody panel using aviation shears. These are permanent modifications to fit the hitch. The trimmed bumper cover is reinstalled after hitch mounting.
For the bumper cover: find the center of the bottom edge, mark points 2-1/2" to either side of center (5" total span), then draw a rectangle from the 5" base up 3-3/4" from the lower edge. For the underbody panel: mark the center, mark points 2-1/2" to either side (5" total span), then mark a rectangle 1" from the rear edge toward the front. Use a paint marker for visibility.
Fishwire is used to guide carriage bolts and spacers through internal frame rail passages where direct access is not possible. The coiled end of the fishwire is inserted through the mounting hole, passed through the spacer, and threaded into the bolt coil. The fishwire then pulls the bolt and spacer through the frame and out the mounting hole, preventing loss of hardware inside the frame rail.
The manual provides two methods. Method 1: Use exhaust hanger removal pliers if available. Method 2: Use a 5/8" open-end wrench slid up to the rubber isolator to cradle the hanger rod, place a pry bar between the wrench and the hanger stop, then rotate the pry bar toward the wrench to remove the isolator. Using lubricant or soapy water on the hanger rod and isolator helps removal.
Driver side first: remove 5 push pins with a flathead screwdriver, then remove 1 plastic nut with a 15mm socket. Passenger side: remove 4 push pins, then remove 1 plastic nut with a 15mm socket and 2 additional nuts with a 12mm socket. Set all fasteners aside for reinstallation.
Open the trunk and remove the taillight access panel on the driver side. Using a 10mm socket, remove 2 nuts inside the panel opening. Unclip the taillight wiring harness carefully without damaging the locking tabs. Slide the taillight rearward out of the vehicle. Repeat on the passenger side. In the rear wheel well, remove 3 screws (Phillips) and 1 bolt (8mm socket), plus 1 screw and 1 push pin in the taillight area.
Remove 2 bumper bolts from each side (4 total) using either an 8mm socket (Korean-made models) or 10mm socket (US-made models) on the forward part of the rear flange. Remove 3 push pins from the lower edge near the wheel well (2 passenger side, 1 driver side). Gently pull the bumper cover away starting at the top edge by the wheel well, working around the top edge. A panel trim removal tool may ease removal of clips.
The conical-toothed washers must be oriented with the teeth pointing toward the hitch side plate and the flat side facing outward. The diagram on page 2 shows the correct orientation: teeth engage the hitch side plate to prevent loosening.
Raise the hitch into position and mark the forward mounting hole on the driver-side mounting strap. Lower the hitch and drill the 1/2" hole. Then raise the hitch again into position, thread the fishwire through the side mounting straps, and secure with the appropriate bolts and washers depending on vehicle origin (M10 or M8 bolts with corresponding washers).
The choice depends on vehicle origin. US-made vehicles use M10 bolts (M10–1.25 x 35mm, Class 10.9) with 7/16" conical-toothed washers. Korean-made vehicles use M8 bolts (M8–1.25 x 40mm, Class 10.9) with 3/8" conical-toothed washers. The manual does not specify how to determine vehicle origin; contact CURT at 877.287.8634 if uncertain.
Torque all 7/16" fasteners to 70 lb-ft, all 8mm fasteners to 23 ft-lb, and all 10mm fasteners to 48 lb-ft. Use a torque wrench to ensure proper tightness and prevent damage to the product or vehicle.
All 7/16" fasteners, including the flange nuts and carriage bolts, must be torqued to 70 lb-ft.
All 8mm fasteners must be torqued to 23 ft-lb.
All 10mm fasteners must be torqued to 48 lb-ft.
The kit includes 2 carriage bolts, 7/16"-14 x 1-3/4", grade 8. These are secured with 7/16" flange nuts and must be torqued to 70 lb-ft.
The kit includes two types of hex bolts: 4 pieces of M10–1.25 x 35mm, Class 10.9 (torque to 48 lb-ft) and 4 pieces of M8–1.25 x 40mm, Class 10.9 (torque to 23 ft-lb). Which type is used depends on vehicle origin (US-made or Korean-made).
A 1/2" diameter hole must be drilled in the driver-side frame rail at the forward mounting location of the hitch side mounting strap.
Before final torquing, temporarily reinstall the bumper cover and check the fit of the cut-out areas. Raise the hitch into position and verify clearance around the hitch, enlarging cut-outs as needed. Check for proper fit around the driver-side underbody panel and trim near the forwardmost attachment tab if needed. After installation, perform periodic inspection to ensure all mounting hardware remains tight and structural components are secure.
The manual states that periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. Specific intervals are not provided; contact CURT product support at 877.287.8634 for recommended inspection schedules.
The manual does not specify a retorque interval. Contact CURT product support at 877.287.8634 or visit curtmfg.com for maintenance and retorque recommendations.
Safety glasses must be worn at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity. The exhaust must be supported on jack stands or other suitable supports while lowered to prevent damage to the vehicle. Proper tools will improve installation quality and reduce time required.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 11687 is rated for a gross trailer weight of 2,000 lbs and tongue weight of 200 lbs, but your vehicle's capacity may be lower. Consult your vehicle's owner manual for the maximum towing capacity.
