All necessary mounting hardware
| Warranty | Limited lifetime warranty (one-year finish, one-year parts) |
| Mounting Location | Rear |
| Finish Color | Black |
| No Drilling Required | No |
| Hitch Class | I |
| Construction Material | Steel |
| Includes Mounting Hardware | Yes |
| Receiver Opening Size | 1-1/4 in |
| Max Trailer Weight Capacity | 2,000 lbs |
| Max Tongue Weight | 200 lbs |
| Main Body Design | Square |
| Vehicle Compatibility | Toyota Camry (specific years) |

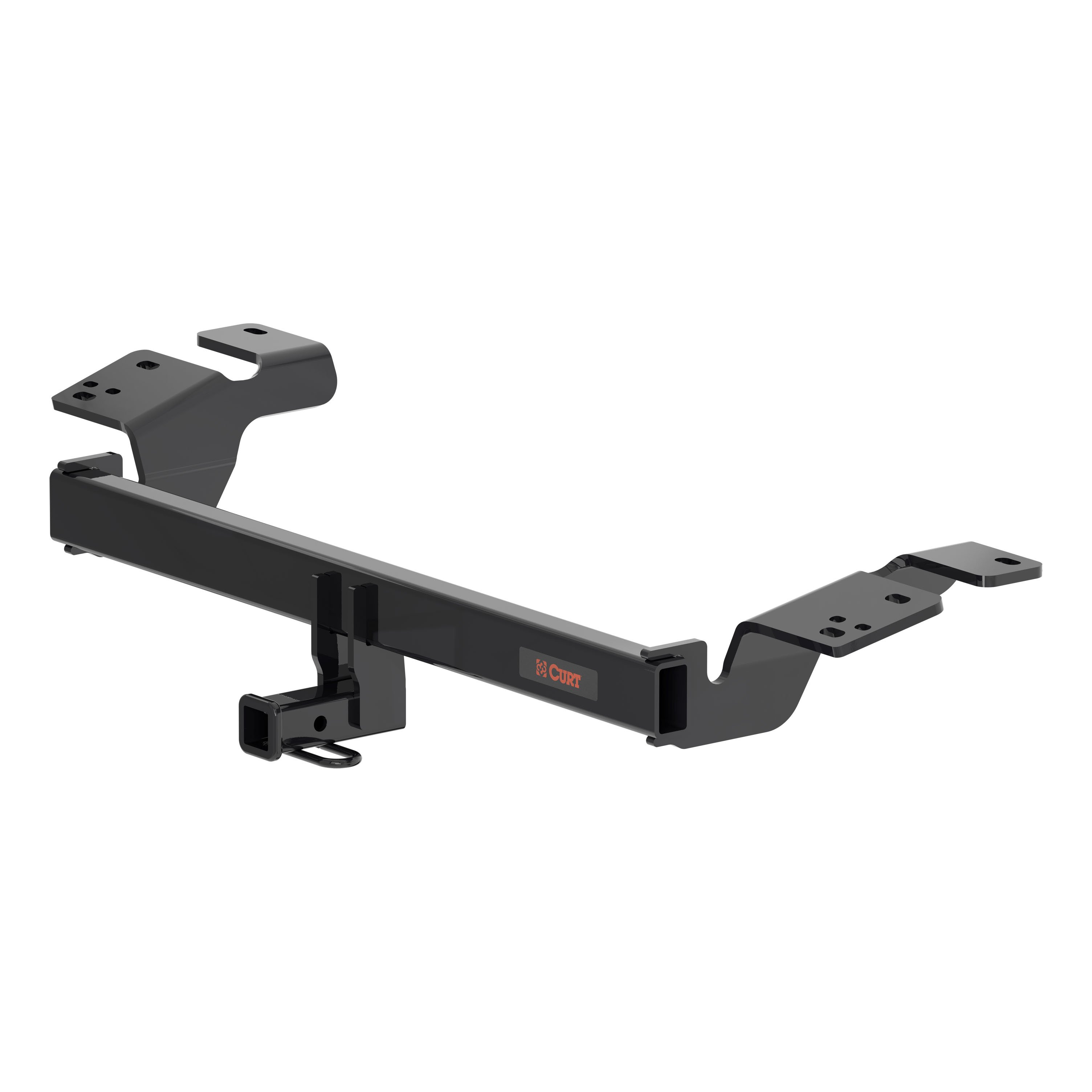

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It.
Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Toyota Camry (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount.
This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime (One-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2025 - 2026 | Toyota Camry | No Drilling Required Installation Time: 60-90 minutes Visibility: Concealed Hole enlargement required Undercar trimming (not fascia) required |
The CURT Class 1 Trailer Hitch, 1-1/4" Receiver, Select Toyota Camry 11683 (Part #BKDK11683) fits 2025-2026 Toyota Camry models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Class 1 Trailer Hitch, 1-1/4" Receiver, Select Toyota Camry 11683 (Part #BKDK11683) fits the following vehicles: 2025-2026 Toyota Camry. Always verify your specific year, make, and model before ordering.
Yes, the CURT Class 1 Trailer Hitch, 1-1/4" Receiver, Select Toyota Camry 11683 (Part #BKDK11683) is designed to fit the 2025-2026 Toyota Camry.
The CURT Class 1 Trailer Hitch, 1-1/4" Receiver, Select Toyota Camry 11683 (Part #BKDK11683) Drilling is not required for installation. Typical installation time is 60-90 minutes. Basic hand tools are typically all you need.
The CURT 11683 is designed for vehicles with frame rails and supports both FWD and AWD configurations. The manual does not list specific vehicle year, make, or model applications. Contact CURT product support at 877-287-8634 or check curtmfg.com to confirm fitment for your vehicle.
Gross trailer weight (GTW) capacity is 2,000 lbs. Tongue weight (TW) capacity is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools: ratchet, die grinder, torque wrench, rotary tool, 10mm socket, 12mm socket, 13mm socket, 3/4" socket, 6" socket extension, flathead screwdriver, tape measure, and 1/2" fishwire (2 qty included). A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
The installation is rated as moderate difficulty based on time and effort involved. The manual does not specify whether professional installation is required or recommended. Contact CURT product support at 877-287-8634 for guidance.
Yes. The installation requires hole enlargement using a die grinder on the access holes in both frame rails (Step 5). The underbody panel and heat shield also require trimming.
Torque M8 fasteners (flange bolts) to 23 lb-ft. Torque 1/2" fasteners (carriage bolts and serrated-flange nuts) to 110 lb-ft.
Wear safety glasses at all times during installation. Support the exhaust during removal to prevent damage. Take care not to damage threads when cleaning weldnuts. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
The kit includes: 2 carriage bolts 1/2"-13 x 1-1/2", 4 flange bolts M8-1.25 x 35mm, 2 serrated-flange nuts 1/2"-13, 2 square-hole spacers .250" x 1.00" x 2.50", and 2 pieces of 1/2" fishwire.
Visit warranty.curtgroup.com/surveys to register your purchase, get copies of product warranties, or provide feedback.
Yes, the hitch is designed to work with both FWD and AWD vehicles. The exhaust removal procedure differs slightly: FWD vehicles have 2 rubber isolators, while AWD vehicles have 1 rubber isolator.
Installation involves 8 main steps: removing underbody panel trim and fasteners, lowering the exhaust, relocating the backup alarm, removing access hole plugs, enlarging access holes with a die grinder, trimming and reinstalling the heat shield, raising the hitch into position and securing it, and trimming and reinstalling the underbody panel. The process requires lowering the exhaust, trimming the underbody panel, and hole enlargement.
Yes. The manual states: "Support the exhaust during removal to prevent damage." This is necessary when removing the rubber isolators and muffler bracket bolts in Step 2.
The reverse fishwire technique is used to install carriage bolts through the frame rails. Attach the fishwire to the carriage bolt, slide the spacer onto the fishwire, push the bolt through the hole followed by the spacer, then pull the bolt back into position so it protrudes from the frame. This technique is used in Step 5 to install one 1/2" carriage bolt and square-hole spacer into each enlarged access hole.
To remove debris from weldnuts in the frame, spray lubricant or compressed air into the hole. For heavy debris, use a wire brush. Take care not to damage threads.
Remove eight (8) trim clips, two (2) plastic retainers using a 12mm socket, three (3) more plastic retainers using a 10mm socket, and one (1) bolt using a 10mm socket. Set the underbody panel aside for trimming and reinstallation in Step 8.
In Step 2, remove the rubber isolators (2 for FWD vehicles, 1 for AWD vehicles). Use a 12mm socket to remove the two (2) bolts securing the rearmost muffler bracket and return them to the customer. Using a 10mm socket, remove the two (2) nuts securing the heat shield to the vehicle body and set the heat shield aside for trimming and reinstallation. Support the exhaust during removal to prevent damage.
In Step 3, use a 10mm socket to remove the backup alarm. Unclip the wiring harness from the bracket before removing it.
Using a flathead screwdriver, remove one (1) access hole plug per side and two (2) thread plugs on the passenger side. Return these to the customer.
In Step 5, use a die grinder to enlarge the access holes in both frame rails. After enlargement, reverse fishwire one (1) 1/2" carriage bolt (#1) and square-hole spacer (#4) into each enlarged access hole.
In Step 6, trim the heat shield as shown in the diagram on page 5. The diagram indicates trim dimensions of 4-1/2", 3-1/4", 3", and 1-1/2". Reinstall the trimmed heat shield.
In Step 8, trim the underbody panel as shown in the diagram on page 5. The diagram indicates trim dimensions of 4-1/2", 3-1/4", 3", and 1-1/2". Reinstall the trimmed underbody panel using the fasteners set aside in Step 1.
Raise the hitch into position and secure it using the serrated-flange nuts (#3) on both frame rails. Reinstall the removed exhaust hanger using the supplied M8 flange bolts (#2). Reinstall the exhaust isolator(s). Torque M8 fasteners to 23 lb-ft and 1/2" fasteners to 110 lb-ft.
Torque M8 fasteners (flange bolts) to 23 lb-ft.
Torque 1/2" fasteners (carriage bolts and serrated-flange nuts) to 110 lb-ft.
The kit includes 2 carriage bolts, 1/2"-13 x 1-1/2". These are torqued to 110 lb-ft during installation.
The kit includes 4 flange bolts, M8-1.25 x 35mm. These are torqued to 23 lb-ft during installation.
The kit includes 2 serrated-flange nuts, 1/2"-13. These are torqued to 110 lb-ft during installation.
The kit includes 2 square-hole spacers, .250" x 1.00" x 2.50". These are installed using the reverse fishwire technique in Step 5.
Gross trailer weight (GTW) capacity is 2,000 lbs. Tongue weight (TW) capacity is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
Visit www.curtmfg.com for a full-color copy of the instruction manual, helpful videos, guides, and more. A tools reference guide is available at curtmfg.com/trailer-hitch-installation. For towing safety information, visit curtmfg.com/understanding-towing. Product support is available at 877-287-8634.
