Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Installation requires trimming and temporary lowering of exhaust
Includes installation hardware
Includes installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 400 LB / 4,000 LB
WD / WDTW (Pounds): 5,000 LB / 500 LB
Weight Carrying Capacity (Pounds): 4,000 LB
WC Tongue Weight (Pounds): 400 LB
Weight Distribution (Pounds): 5,000 LB
WD Tongue Weight (Pounds): 500 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chrysler Pacifica and Chrysler Voyager (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 500 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 - 2026 | Chrysler Grand Caravan | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed Hole enlargement required Underbody panel (not fascia) trimming required |
| 2017 - 2027 | Chrysler Pacifica | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed Hole enlargement required Underbody panel (not fascia) trimming required |
| 2020 - 2026 | Chrysler Voyager | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed Hole enlargement required Underbody panel (not fascia) trimming required |

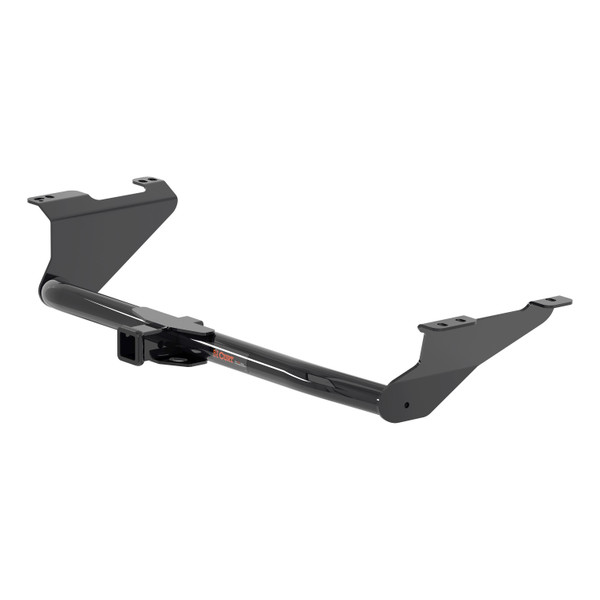

Yes, the CURT Class 3 Trailer Hitch, 2" Receiver, Select Chrysler Pacifica, Voyager Trailer Hitch (Part #BKDK13383) is designed to fit the 2024-2026 Chrysler Grand Caravan.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Chrysler Pacifica, Voyager Trailer Hitch (Part #BKDK13383) fits 2024-2026 Chrysler Grand Caravan models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Chrysler Pacifica, Voyager Trailer Hitch (Part #BKDK13383) fits the following vehicles: 2024-2026 Chrysler Grand Caravan; 2017-2026 Chrysler Pacifica; 2020-2026 Chrysler Voyager. Always verify your specific year, make, and model before ordering.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Chrysler Pacifica, Voyager Trailer Hitch (Part #BKDK13383) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Part number 13383 is a receiver hitch designed for 2017-present Chrysler Pacifica vans. It is a weight-carrying hitch with a gross load capacity of 4,000 lbs trailer weight and 400 lbs tongue weight. When used as a weight distribution hitch, capacity increases to 5,000 lbs trailer weight and 500 lbs tongue weight. The hitch itself weighs 90 lbs.
Part 13383 is designed for 2017-present Chrysler Pacifica vans. The manual does not specify whether it fits all trim levels or configurations within this model year range. For fitment confirmation on your specific vehicle, contact CURT technical support at 877-287-8634 or visit www.curtmfg.com.
Yes. Hybrid models require two additional steps: (1) temporarily remove the emissions canister on the driver side frame rail using a 10mm socket to remove 2 bolts, then reinstall using provided M6 hardware, and (2) enlarge holes on the driver side frame rail using a die grinder as shown in the Hole Enlargement Diagram. Non-hybrid models do not require these steps.
Required tools are: ratchet, torque wrench, 6-inch socket extension, 8mm socket, 10mm socket, 3/4-inch socket, universal joint socket, screwdriver, masking tape, aviation shears, and die grinder. Safety glasses must be worn at all times during installation.
The hitch includes: (5) 1/2-13 UNC grade 8 carriage bolts 1-1/2 inches long (part 10-10287), (5) 0.250 x 1.00 x 2.50-inch square hole spacers (part CM-SP10), (5) 1/2-13 UNC grade 8 serrated flange nuts (part 20-00062), (5) 1/2-inch fishwires (part 1_2 FISHWIRE), (1) tap bolt (part 10-10513), (1) 1/4-20 x 1.00 hex bolt (part 10-10424), and (1) hex nut (part 20-00192). Hybrid models also receive M6 hardware for emissions canister reinstallation.
Two people may be required to ease installation. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required. If you are hesitant to undertake this task on your own, CURT recommends contacting an authorized CURT installer for additional assistance.
Professional installation time is 90 minutes. Novice (DIY) installation time is 45 minutes. Actual time may vary depending on experience, tool availability, and vehicle condition.
Yes, trimming is required. You must trim the underbody panel and heat shield. The underbody panel requires a 0.5-inch by 10-inch slot marked with masking tape and cut using aviation shears. The heat shield requires a 5-inch by 13-inch section marked and trimmed using aviation shears. On hybrid models, holes on the driver side frame rail must be enlarged using a die grinder.
The underbody panel slot must be 0.5 inches wide by 10 inches long, marked 6 inches from the center of the hole. Use masking tape to mark the area and aviation shears to trim it.
The heat shield section must be 5 inches by 13 inches, marked with masking tape and trimmed using aviation shears.
A die grinder is required only on hybrid Chrysler Pacifica models. It is used to enlarge holes on the driver side frame rail as shown in the Hole Enlargement Diagram. Non-hybrid models do not require this step.
All 1/2-inch hardware must be torqued to 110 ft-lbs. This is the final torque specification applied after the hitch is raised into position and all bolts are loosely fastened.
The hitch weight is 90 lbs.
When used as a weight-carrying hitch, the maximum capacity is 4,000 lbs trailer weight and 400 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
When used as a weight distribution hitch, the maximum capacity is 5,000 lbs trailer weight and 500 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The installation sequence is: (1) Remove underbody panel fasteners (5 screws, 7 nuts, 2 bolts, 2 plastic screws); (2) Remove 3 screws from driver side wheel well, remove underbody panel, trim 0.5" x 10" slot, set panel aside; (3) Lower exhaust by removing 2 rubber isolators; (4) Remove 2 plastic nuts, remove heat shield, trim 5" x 13" section, reinstall with 1 nut; (5-6) On hybrid only: remove emissions canister and enlarge frame rail holes with die grinder; (7) Fishwire bolts and spacers through access holes; (8) Remove 1 nut from driver side frame rail, relocate electrical ground if present; (9) Raise hitch starting with passenger side, align with fishwires, loosely fasten nuts; (10) Torque all 1/2" hardware to 110 ft-lbs, reinstall underbody panel.
Yes, the exhaust must be lowered by removing 2 rubber isolators. This is a temporary step to provide clearance for installation. The exhaust is not permanently removed.
Fishwire is used to thread 1/2-inch carriage bolts and spacers through the frame rail access holes before the hitch is raised into position. The fishwires help align the bolts with the hitch holes during installation, making it easier to fasten the nuts. The fishwires are removed before final fastening.
No. After fishwiring the bolts and spacers through the frame rail access holes and raising the hitch into position, fasteners should be loosely fastened only. Specifically, loosely fasten 2 hex flange nuts on the driver side and 3 hex flange nuts on the passenger side. All fasteners are fully torqued to 110 ft-lbs only after the hitch is properly aligned and positioned.
On the driver side frame rail, if an electrical ground is present, it must be relocated using the provided 1/4-inch hardware (1/4-20 x 1.00 hex bolt and hex nut). Ensure the area is free of rust, dirt, and paint before reinstalling the ground.
After removing the underbody panel in Step 2, set it aside for later reinstallation. After trimming the 0.5-inch by 10-inch slot, the panel is reinstalled in Step 10 by following Steps 1 and 2 in reverse order.
After removing the heat shield in Step 4, trim the marked 5-inch by 13-inch section using aviation shears, then reinstall it with 1 nut using a 10mm socket. If there is no underbody panel, instead remove 4 plastic nuts, trim the panel, and reinstall with 3 plastic nuts.
Safety glasses must be worn at all times while installing this product. Before beginning installation, read all instructions thoroughly. Never exceed your vehicle manufacturer's recommended towing capacity. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. While CURT part 13383 has a maximum capacity of 4,000 lbs trailer weight and 400 lbs tongue weight for weight-carrying use (or 5,000 lbs trailer weight and 500 lbs tongue weight for weight distribution use), your Chrysler Pacifica's manufacturer specifications may be lower. Always follow the more restrictive limit.
After installation, periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing maintenance is critical to safe operation.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact inspection interval. For specific maintenance recommendations, contact CURT technical support at 877-287-8634 or visit www.curtmfg.com.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of defective products and specifically excludes liability for incidental or consequential loss or damage.
CURT part 13383 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, CURT part 13383 is designed for 2017-present Chrysler Pacifica vans. For fitment confirmation on your specific vehicle, contact CURT at 877-287-8634 or www.curtmfg.com.
You need: ratchet, torque wrench, 6-inch socket extension, 8mm/10mm/3/4-inch sockets, universal joint socket, screwdriver, masking tape, aviation shears, die grinder, and safety glasses. Hybrid models require the die grinder; non-hybrid models may not.
Yes. You must trim a 0.5" × 10" slot in the underbody panel and a 5" × 13" section of the heat shield using aviation shears. Hybrid models also require hole enlargement on the driver side frame rail using a die grinder.
All 1/2-inch hardware must be torqued to 110 ft-lbs after the hitch is raised into position and loosely fastened.
Weight-carrying: 4,000 lbs trailer, 400 lbs tongue. Weight distribution: 5,000 lbs trailer, 500 lbs tongue. Never exceed your vehicle manufacturer's recommended capacity.
Professional: 90 minutes. Novice (DIY): 45 minutes. Two people may be required to ease installation.
Wear safety glasses at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity. Periodically check all fasteners are tight and structural components are sound.
Use the fishwires to help align the bolts with the hitch holes. Thread the fishwires through the holes on the hitch after raising it into position. This will guide the bolts into proper alignment before you remove the fishwires and fasten the nuts.
If there is no underbody panel, skip Step 2 (underbody panel removal and trimming). Proceed directly to Step 3 (lowering the exhaust). For the heat shield in Step 4, instead of removing 2 plastic nuts, remove 4 plastic nuts, trim the panel, and reinstall with 3 plastic nuts.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. If fasteners have loosened, retorque all 1/2-inch hardware to 110 ft-lbs using a torque wrench. If fasteners continue to loosen, contact CURT technical support at 877-287-8634.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
