Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
On Sale Today
Original price was $375.95. Current price is $253.99.You save $121.96 (32%)
Free Shipping
Ships free on all orders
Authorized Dealer
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes installation hardware
Includes installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 675 LB / 4,500 LB
WD / WDTW (Pounds): 4,500 LB
Weight Carrying Capacity (Pounds): 4,500 LB
WC Tongue Weight (Pounds): 675 LB
Weight Distribution (Pounds): 4,500 LB
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 45
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford Edge, Lincoln MKX and Lincoln Nautilus (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,500 lbs. GTW and 675 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,500 lbs. WD and 675 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2024 | Ford Edge | No Drilling Required Installation Time: 30-60 minutes Visibility: Concealed Temporary bumper fascia removal required |
| 2016 - 2018 | Lincoln MKX | No Drilling Required Installation Time: 30-60 minutes Visibility: Concealed Temporary bumper fascia removal required |
| 2019 - 2023 | Lincoln Nautilus | No Drilling Required Installation Time: 30-60 minutes Visibility: Concealed Temporary bumper fascia removal required |
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Mon, Aug 31 - Wed, Sep 2
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

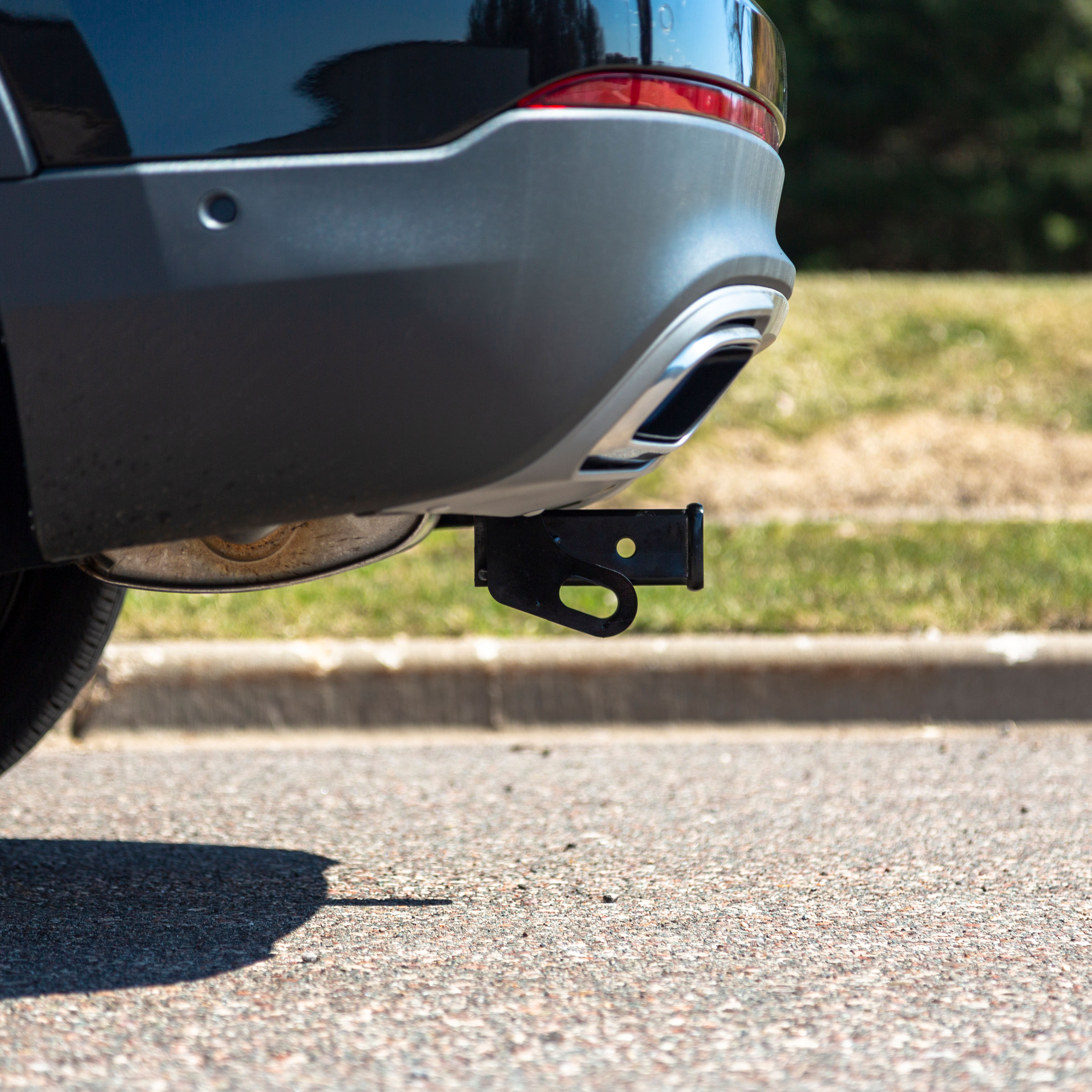

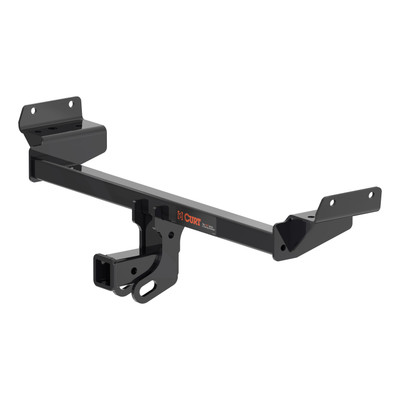

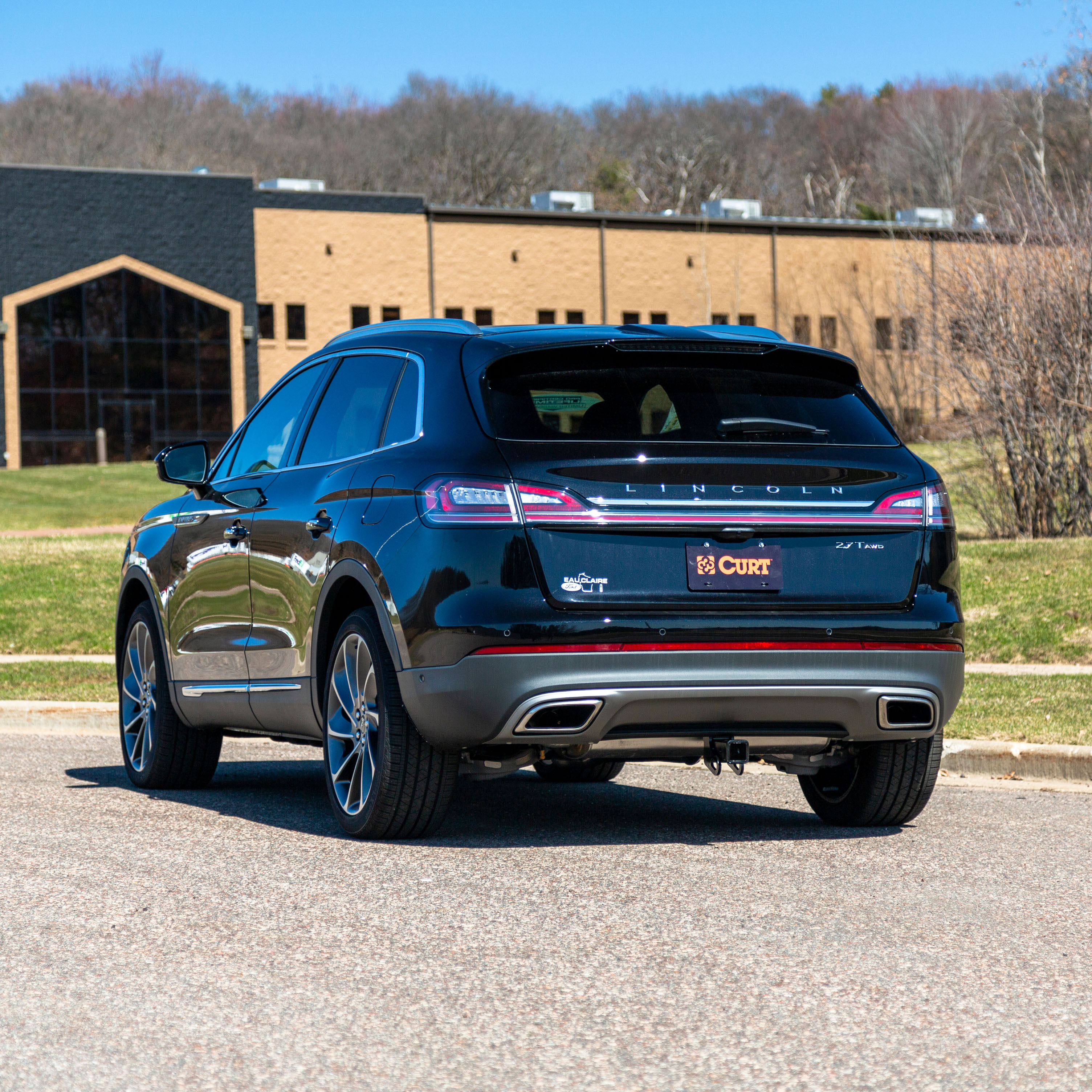

The CURT Class 3 Trailer Hitch, 2" Receiver, Select Ford Edge, Lincoln MKX, Nautilus Trailer Hitch (Part #BKDK13452) fits 2015-2024 Ford Edge models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Ford Edge, Lincoln MKX, Nautilus Trailer Hitch (Part #BKDK13452) fits the following vehicles: 2015-2024 Ford Edge; 2016-2018 Lincoln MKX; 2019-2023 Lincoln Nautilus. Always verify your specific year, make, and model before ordering.
Yes, the CURT Class 3 Trailer Hitch, 2" Receiver, Select Ford Edge, Lincoln MKX, Nautilus Trailer Hitch (Part #BKDK13452) is designed to fit the 2015-2024 Ford Edge.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Ford Edge, Lincoln MKX, Nautilus Trailer Hitch (Part #BKDK13452) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 13452 is designed for 2015-2020 Ford Edge, Lincoln MKX, and Lincoln Nautilus models. The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 4500 lbs and tongue weight capacity of 675 lbs when used as a weight-carrying hitch, or 4500 lbs trailer weight and 675 lbs tongue weight when used as a weight distribution hitch. Always verify your vehicle's manufacturer towing capacity before towing, as you must never exceed it.
The hitch weight is 45 lbs.
CURT 13452 has a maximum trailer weight capacity of 4500 lbs and tongue weight capacity of 675 lbs when used as a weight-carrying hitch. When used as a weight distribution hitch, the capacity is also 4500 lbs trailer weight and 675 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch capacity.
Required tools are: safety glasses, ratchet, 6-inch socket extension, 5mm socket, 10mm socket, 7/16-inch socket, T20 Torx bit socket, screwdriver, die grinder, and torque wrench. Safety glasses must be worn at all times during installation.
No, drilling is not required. The installation uses existing frame holes and does not require any new holes to be drilled.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Professional installation time is approximately 90 minutes. Novice (DIY) installation time is approximately 37 minutes. Actual time may vary depending on experience and familiarity with the vehicle.
The kit includes: 8 carriage bolts (7/16-14 UNC, 1-3/4 inch, Grade 8, yellow zinc, part 10-10314); 6 serrated flange nuts (7/16-14 UNC, Grade 8, yellow zinc, part 20-00103); 2 hex nuts (7/16-14 UNC, Grade 8, yellow zinc, part 20-00147); 2 lock washers (7/16 inch, yellow zinc, part 30-00184); 8 square hole spacers (0.250 x 1.00 x 2.50 inch, part CM-SP11); and 8 pieces of 7/16-inch fishwire (part 7_16 FISHWIRE).
Installation follows this sequence: (1) Remove bottom side plastic panel by removing 2 bolts on fascia and 2 flange nuts under the car by the muffler on each side; (2) For models with heat shield, remove center plastic panel with heat shields by removing 6 bolts and 1 flange nut; (3) For Lincoln models, remove bumper fascia by removing 7 push fasteners in wheel well and 1 bolt on each side; (4) For Lincoln models, disconnect electrical connectors from fascia; (5) For Ford models, lower muffler by removing exhaust hanger rod from rubber isolator on both sides and support with stand; (6) Use die grinder to cut off stud above center of muffler; (7) Feed carriage bolts and spacers through 4 large frame holes using fishwire; (8) Feed fishwires through 4 holes in hitch; (9) Raise hitch into position by sliding over passenger side exhaust; (10) Pull fishwires for 2 side plate bolts to hold hitch in place; (11) Pull fishwires for 2 bottom plate bolts; (12) Remove fishwires and loosely install 3 flanged hex nuts and 1 lock washer and hex nut on each side; (13) Torque all 7/16-inch fasteners to 59 lb-ft; (14) Reinstall all panels, fascia, wheel wells, muffler, and reconnect electrical connectors.
The manual instructs to use a die grinder to cut off the stud above the center of the muffler in Step 6, but does not specify whether this is a permanent modification or temporary removal. Contact CURT Technical Support at 877-287-8634 for clarification on whether the stud can be reinstalled or if this is a permanent alteration.
All 7/16-inch fasteners must be torqued to 59 lb-ft. This is applied in Step 13 after all bolts and nuts are loosely installed. Lock washers and hex nuts should be placed on the bolt closest to the gusset on the hitch.
Fishwire is used to feed carriage bolts and spacers through the 4 large holes in the frame (Step 7) and then through the 4 holes in the hitch (Step 8). The fishwires are then pulled to guide the bolts into position for the side plate bolts (Step 10) and bottom plate bolts (Step 11) before being removed and replaced with nuts and washers (Step 12). Eight pieces of 7/16-inch fishwire are included in the kit.
The manual does not specify whether the battery must be disconnected. However, for Lincoln models, Step 4 requires disconnecting electrical connectors attached to the fascia and vehicle. Contact CURT Technical Support at 877-287-8634 if you have concerns about electrical safety during installation.
For Ford models, the exhaust hanger rod must be removed from the rubber isolator on both sides to lower the muffler. This is necessary to provide clearance for raising the hitch into position. The muffler must be supported with a stand to prevent damage. The muffler is then reinstalled in Step 14.
Bumper fascia removal is recommended for easier installation on Lincoln models. The removal process involves removing 7 push fasteners in the wheel well and 1 bolt on each side, then gently pulling the wheel well trim. The fascia is then disconnected from electrical connectors in the trunk. All components are reinstalled in Step 14.
The hitch is raised into position by sliding it over the passenger side exhaust first (Step 9). The fishwires for the 2 side plate bolts on each side are then pulled to hold the hitch in place (Step 10), followed by pulling the fishwires for the 2 bottom plate bolts on each side (Step 11).
On each side of the hitch, 3 flanged hex nuts (part 20-00103) and 1 lock washer (part 30-00184) and 1 hex nut (part 20-00147) are installed. The lock washer and hex nut should be placed on the bolt closest to the gusset on the hitch. All fasteners are torqued to 59 lb-ft.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify a retorque interval, but recommends regular inspection as part of vehicle maintenance.
Safety glasses must be worn at all times during installation. When lowering the muffler on Ford models, a stand must be used to support and prevent damage. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of defective products and specifically excludes liability for incidental or consequential loss or damage.
CURT 13452 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, CURT 13452 is designed for 2015-2020 Ford Edge, Lincoln MKX, and Lincoln Nautilus. Maximum capacity is 4500 lbs trailer weight and 675 lbs tongue weight, but never exceed your vehicle's manufacturer towing capacity.
You need: safety glasses, ratchet, 6-inch socket extension, 5mm/10mm/7/16-inch sockets, T20 Torx bit socket, screwdriver, die grinder, and torque wrench. No drilling is required.
Professional installation takes approximately 90 minutes; DIY installation approximately 37 minutes. Two people may be required to ease installation.
All 7/16-inch fasteners must be torqued to 59 lb-ft after loose installation is complete.
Periodically check that all fasteners are tight and structural components are sound. No specific retorque interval is stated in the manual.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
