Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
Includes strong, grade-8 installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 2-1/2 IN
WC / TW (Pounds): 2,700 LB / 20,000 LB
WD / WDTW (Pounds): 20,000 LB / 2,700 LB
Weight Carrying Capacity (Pounds): 20,000 LB
WC Tongue Weight (Pounds): 2,700 LB
Weight Distribution (Pounds): 20,000 LB
WD Tongue Weight (Pounds): 2,700 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

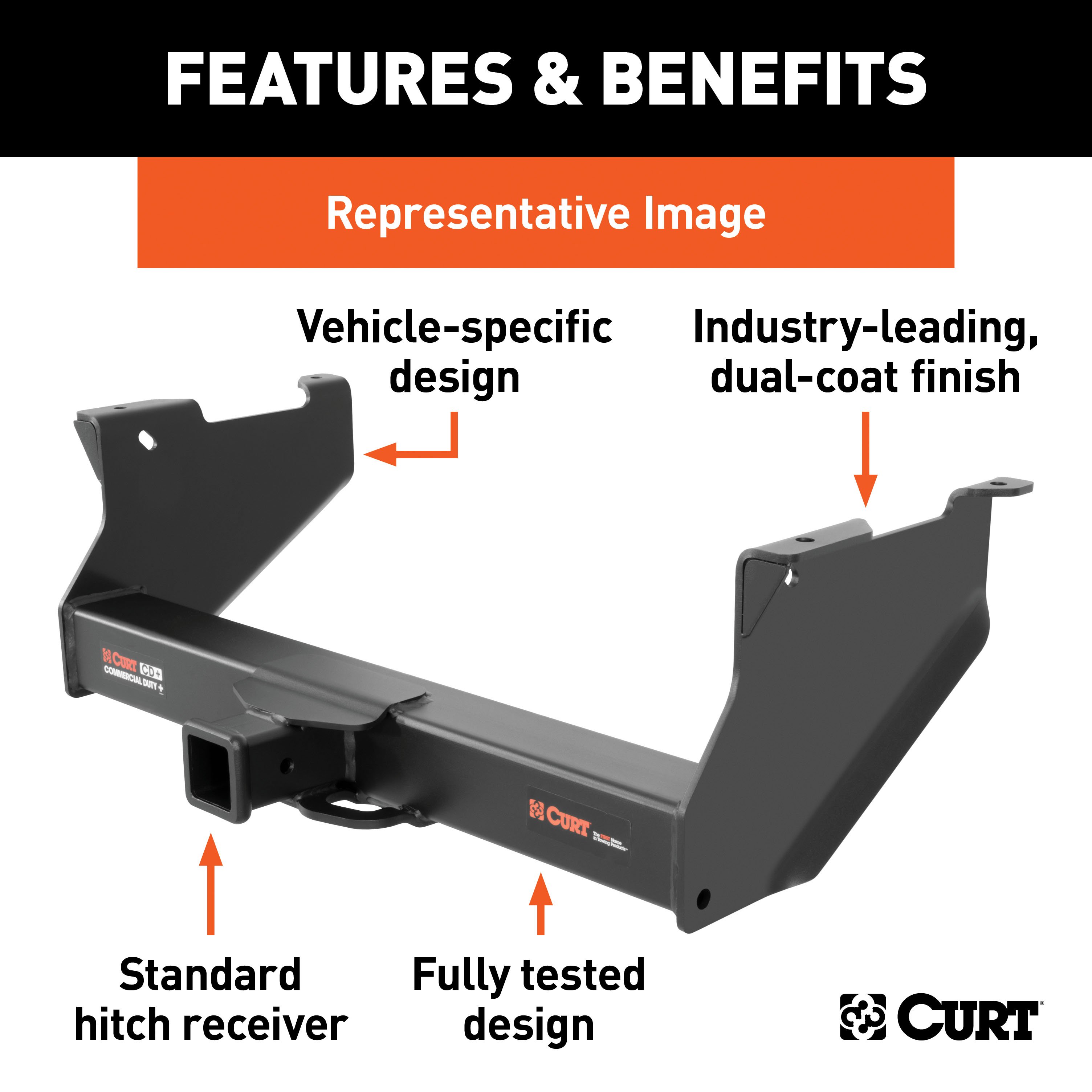

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Ram 2500 and 3500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Style | Bed | Notes |
|---|---|---|---|---|
| 2016 - 2026 | Ram 2500 | — | 6'4" Bed | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2016 - 2026 | Ram 3500 | Crew Cab Pickup | 6'4" Bed | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2016 - 2026 | Ram 3500 | Extended Crew Cab Pickup | 6'4" Bed | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |

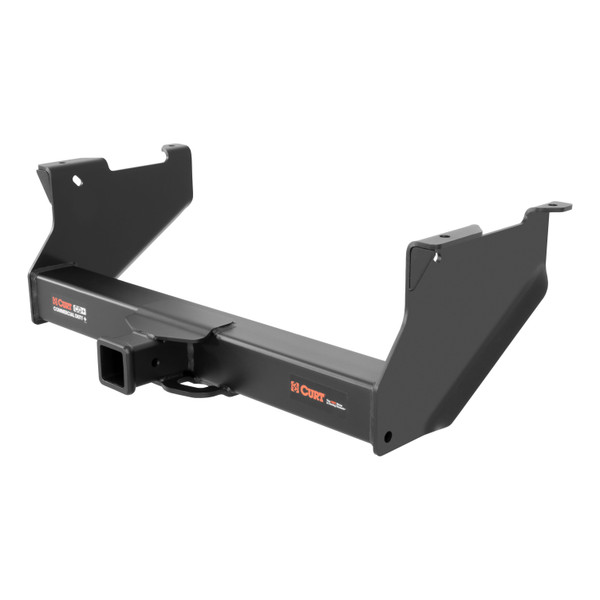

The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 2500, 3500 Trailer Hitch (Part #BKDK15801) fits the following vehicles: 2016-2026 Ram 2500; 2016-2026 Ram 3500. Always verify your specific year, make, and model before ordering.
The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 2500, 3500 Trailer Hitch (Part #BKDK15801) is designed for 6'4" bed trucks. Check the fitment chart for your specific Ram 2500 configuration.
The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 2500, 3500 Trailer Hitch (Part #BKDK15801) fits 2016-2026 Ram 2500 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 2500, 3500 Trailer Hitch (Part #BKDK15801) is designed to fit the 2016-2026 Ram 2500.
The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 2500, 3500 Trailer Hitch (Part #BKDK15801) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
The CURT 15801 is designed for 2016-Present RAM 2500 and 3500 models with short box beds. Confirm your truck has a short box configuration before purchasing. If your vehicle is equipped with a factory hitch, you may need to loosen it and push it toward the rear to create space for the CURT hitch during installation.
The CURT 15801 has a gross load capacity of 20,000 lbs trailer weight and 2,700 lbs tongue weight when used as either a weight carrying or weight distribution hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
You will need: a socket wrench, a torque wrench, an 8 inch socket extension, and 13/16" and 7/8" sockets. No power tools are required. Safety glasses should be worn at all times during installation.
No. The CURT 15801 requires no drilling. The hitch uses existing holes in the frame rails and bumper beam, and fasteners are installed using the fishwire technique through access holes in the frame rails.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can help with positioning the hitch and managing hardware during the process.
The kit includes: 2 x 9/16" fishwire, 6 x 9/16-12 UNC serrated flange nuts (Grade 8), 2 x 9/16-12 UNC hex cap screws (Grade 8), 4 x 9/16-12 UNC carriage bolts 1-3/4" (Grade 8), 2 x .313 x 1.50 x 3.00" spacers (CM-SP74), 2 x .313 x 2.13 x 2.13" spacers (CM-SP68), 2 x 9/16" flat washers, and 6 x .188 x 1.25 x 1.50" spacers (CM-SP8).
All 9/16" hardware must be torqued to 150 lb-ft. This applies to all bolts, hex flange nuts, and hex cap screws used in the installation.
The fishwire technique is used to route 9/16" carriage bolts through access holes in the side of the frame rails and through the bumper beam. The manual references a fishwire technique diagram but does not provide detailed written instructions for the technique itself. Refer to the diagram on the installation walkthrough pages or contact CURT Technical Support at 877-287-8634 for detailed guidance.
If your RAM 2500 or 3500 is equipped with a factory hitch, you may not need to remove it completely. The manual states you may need to loosen the hitch/bumper beam and push it toward the rear of the vehicle to create additional space for the CURT hitch. If you cannot create sufficient space this way, contact CURT Technical Support at 877-287-8634 for guidance.
Follow these steps in order: (1) Raise hitch into position and align holes with frame rails; (2) Slide CM-SP68 spacers through frame rail ends and align with rear mounting holes; (3) Fishwire 9/16" carriage bolts and CM-SP74 spacers through access holes; (4) Fishwire 9/16" carriage bolts through bumper beam and CM-SP68 spacers; (5) Align hitch slots with vehicle tow loops and secure with 9/16" hex flange nuts; (6) Install 9/16" hex bolts, flat washers, and CM-SP8 spacers between tow loops and hitch side plates; (7) Secure hex bolts with CM-SP8 spacers and 9/16" hex flange nuts; (8) Torque all 9/16" hardware to 150 lb-ft.
The CM-SP68 spacers (.313 x 2.13 x 2.13" with 9/16" square holes) are slid through the ends of the frame rails and aligned with the rear mounting holes. They are then used with 9/16" carriage bolts that are fishwired through the bumper beam. Two spacers are included in the kit.
The CM-SP74 spacers (.313 x 1.50 x 3.00" with 9/16" square holes) are used with 9/16" carriage bolts that are fishwired through access holes in the side of the frame rails. Two spacers are included in the kit.
The CM-SP8 spacers (.188 x 1.25 x 1.50" with round holes) are installed between the vehicle's tow loops and the hitch side plates when securing the hitch with 9/16" hex bolts and flat washers. They prevent the tow loops from pulling into the hitch when the bolts are tightened. Six spacers are included in the kit.
After installation, ensure all 9/16" hardware is torqued to 150 lb-ft. Periodically check the receiver hitch to ensure all fasteners remain tight and all structural components are sound. This ongoing maintenance is important for safe towing.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 15801 is rated for 20,000 lbs trailer weight and 2,700 lbs tongue weight, your RAM 2500 or 3500 may have a lower manufacturer-specified limit. Always follow the lower of the two limits.
The hitch weight is 77 lbs.
The CURT 15801 is rated as an Easy installation. Estimated installation times are 30 minutes for a professional installer and 60 minutes for a novice DIY installer. However, if you are hesitant to undertake the installation yourself, contact an authorized CURT installer or call CURT Technical Support at 877-287-8634.
Yes, the CURT 15801 fits 2016-Present RAM 2500 and 3500 short box models. If equipped with a factory hitch, you may need to loosen and push it rearward to create space.
No drilling is required. The hitch uses existing frame rail and bumper beam holes.
Socket wrench, torque wrench, 8 inch socket extension, 13/16" and 7/8" sockets, and safety glasses. No power tools required.
All 9/16" hardware must be torqued to 150 lb-ft.
20,000 lbs trailer weight and 2,700 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and structural components are sound. This is essential for safe towing.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
