Vehicle battery connection required
Includes fuse holder and other necessary wiring components
Includes fuse holder and other necessary wiring components
Warranty: One-Year Limited Warranty
Electrical System Type: 3W

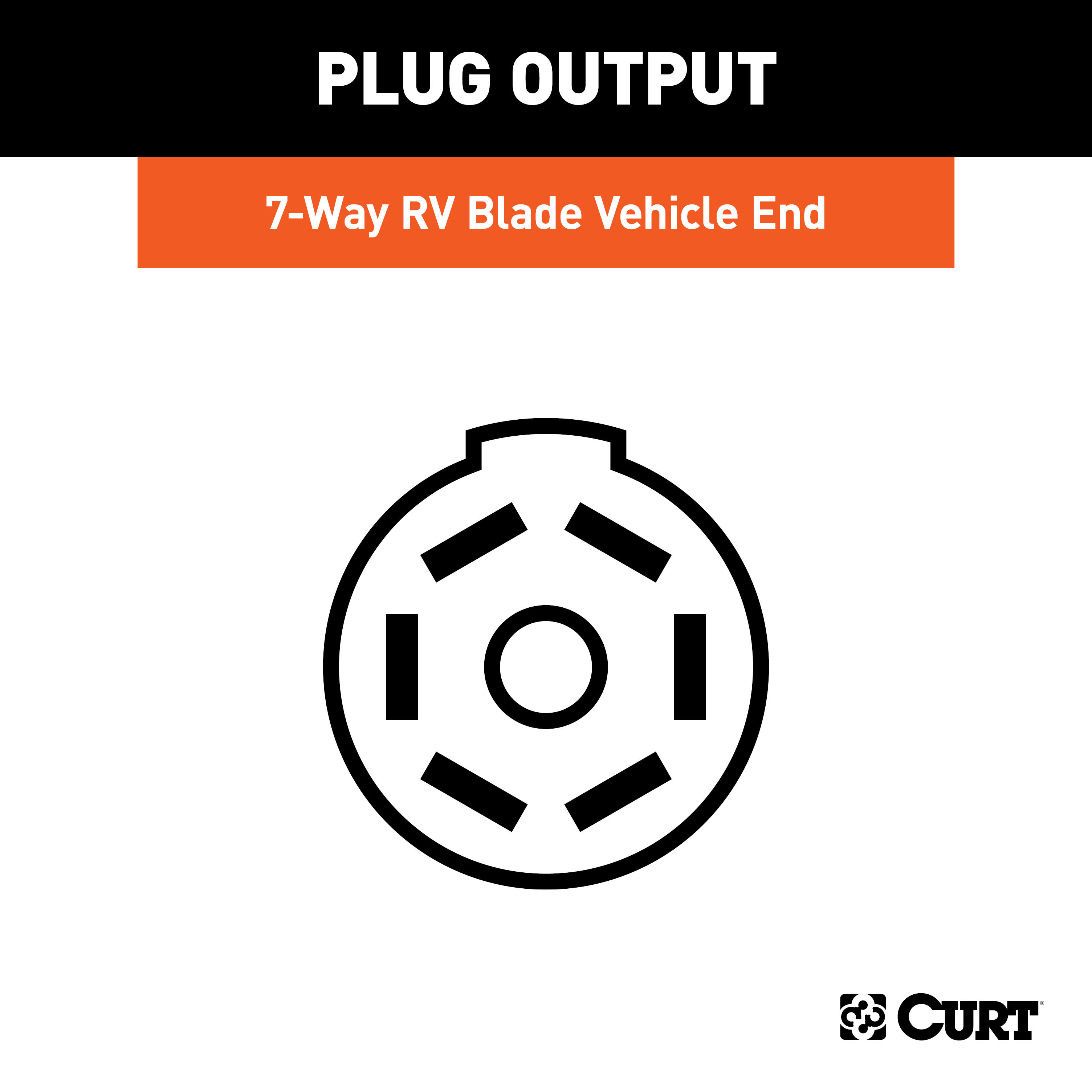

Output Type: 7-Way RV Blade
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 20

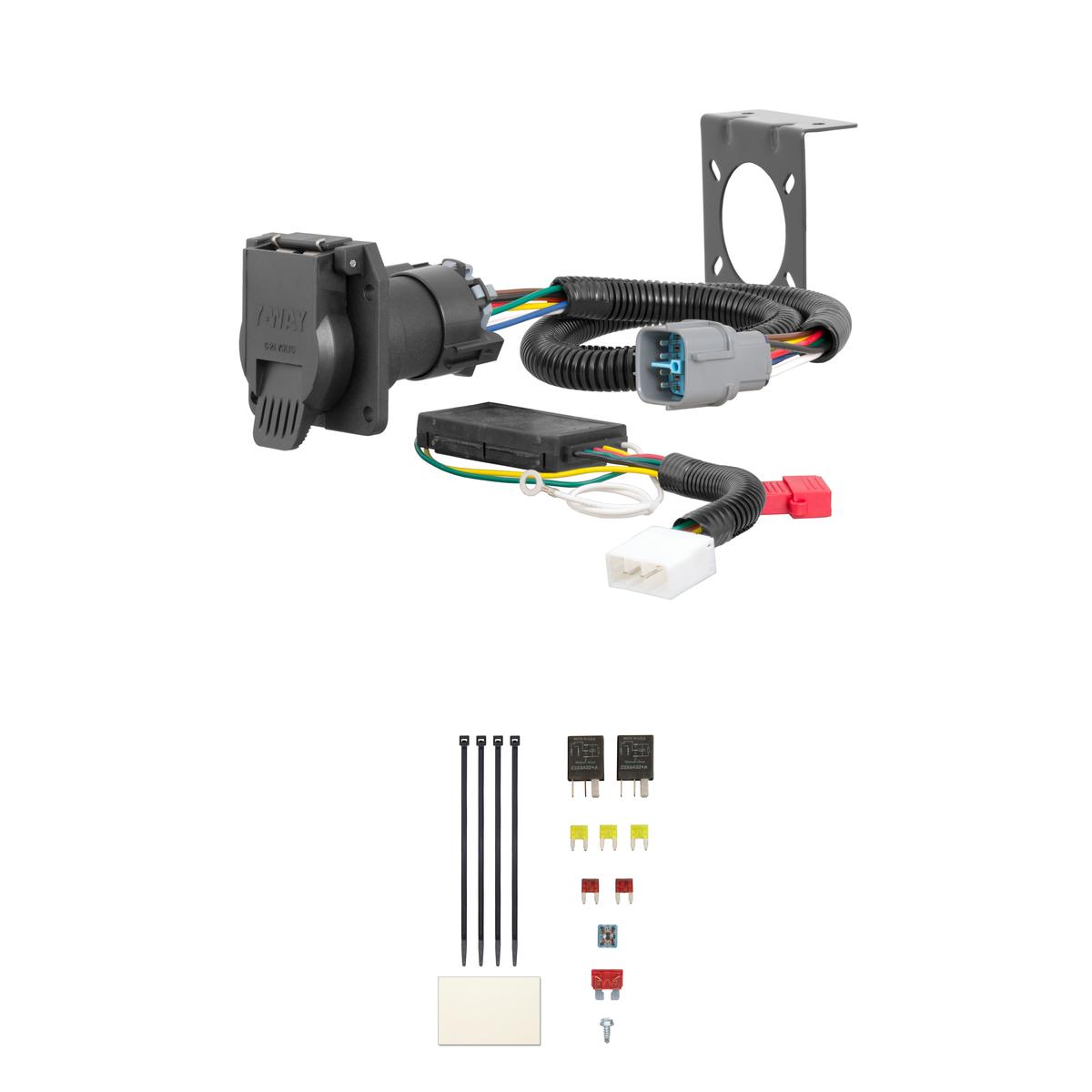

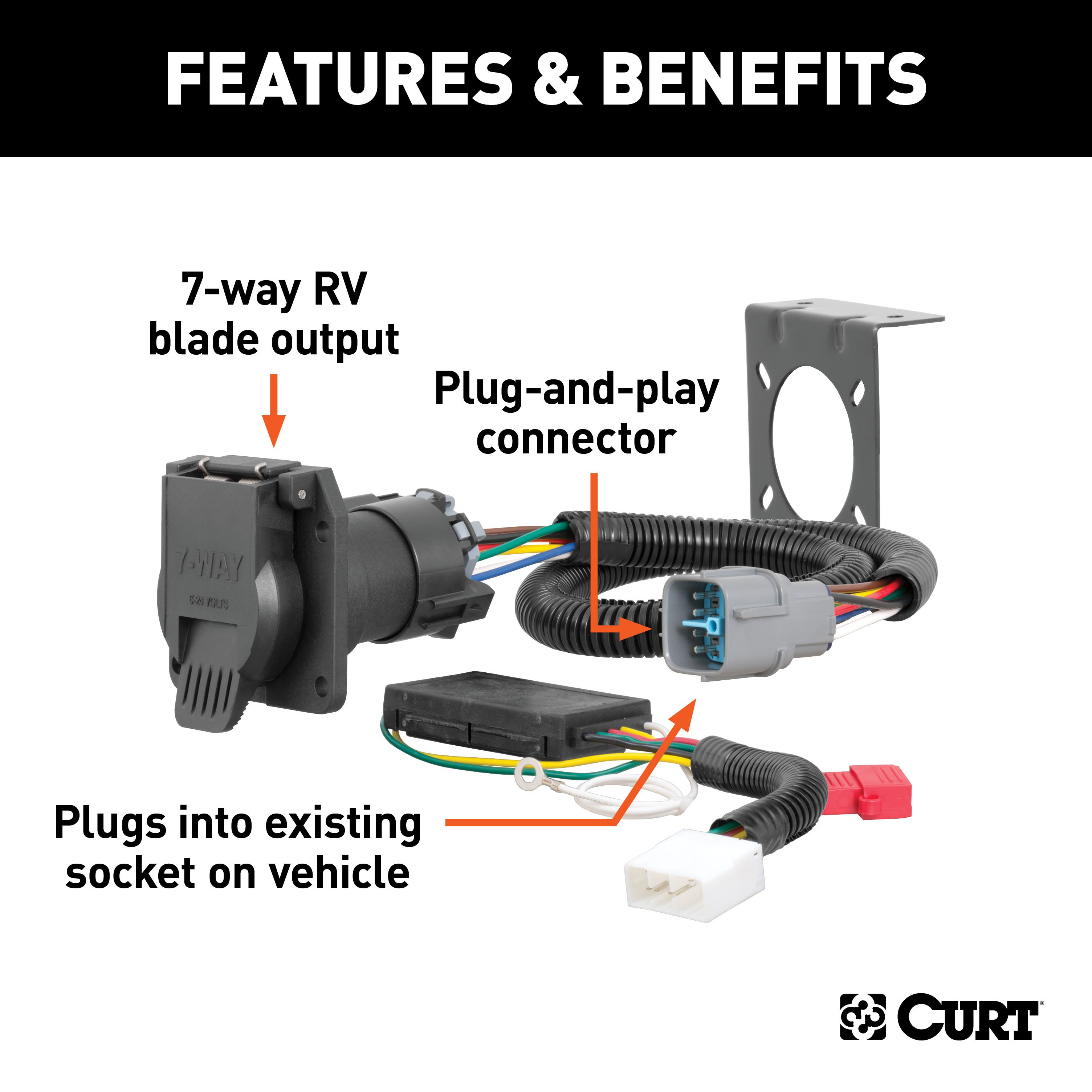

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Honda Pilot and Ridgeline (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2011 | Honda Pilot | Installation Time: 30-60 minutes |
| 2017 - 2026 | Honda Ridgeline | Installation Time: 30-60 minutes |
Yes, the CURT Custom 7-Way RV Blade, Select Honda Pilot, Ridgeline, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56366) is designed to fit the 2009-2011 Honda Pilot.
The CURT Custom 7-Way RV Blade, Select Honda Pilot, Ridgeline, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56366) fits 2009-2011 Honda Pilot models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom 7-Way RV Blade, Select Honda Pilot, Ridgeline, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56366) fits the following vehicles: 2009-2011 Honda Pilot; 2017-2026 Honda Ridgeline. Always verify your specific year, make, and model before ordering.
The CURT Custom 7-Way RV Blade, Select Honda Pilot, Ridgeline, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56366) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56366 is designed for Honda Pilot vehicles in the SUVs, Mini & Full-Sized Vans category. Installation involves connecting to the vehicle's taillight wiring connectors—one inside the vehicle near the rear seats and one behind the rear bumper—and routing a 7-way connector to the center of the vehicle.
Yes, the Curt 56366 is designed for Honda Ridgeline vehicles. Installation involves connecting to the vehicle's taillight wiring connectors—one inside the vehicle near the rear seats and one behind the rear bumper—and routing a 7-way connector to the center of the vehicle.
The battery connection must be fuse protected with a maximum of 20 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
You will need a flat blade screwdriver and side cutter. A pry tool is also required to remove connectors from the cross-member during installation.
Open the vehicle trunk and fold the rear seats down. On the driver side, open the rear storage compartment and remove the access panel to access the vehicle taillight wiring connector. Ensure the area where you will ground the white wire is free of rust, dirt and paint.
On the driver side, open the rear passenger door and fold the bottom rear seat up into the upright position. Remove the seat trim panel to locate the vehicle taillight wiring connector. Ensure the area where you will ground the white wire is free of rust, dirt and paint.
Drilling may be required. You must locate a suitable grounding point for the white ground wire. If an existing screw with nut is not available in the vehicle frame, you will need to drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
There are two connections. First, inside the vehicle: locate the vehicle taillight wiring connector behind the access panel in the rear storage compartment on the driver side, and insert the custom wiring connector fully into it, ensuring locking tabs are in place. Second, behind the rear bumper: locate the vehicle taillight wiring harness connector, remove it from the cross-member using a pry tool, remove the dark blue fastener by sliding it rearward, remove the protective cover carefully, and insert the custom wiring connector fully into the vehicle connector with locking tabs in place.
There are two connections. First, inside the vehicle: remove the seat trim panel to locate the vehicle taillight wiring connector to the left of the green relays, detach the two zip tie push fasteners holding it in place, and insert the custom wiring connector fully into it, ensuring locking tabs are in place. Second, behind the rear bumper: locate the vehicle taillight wiring harness connector, remove it from the cross-member using a pry tool, remove the dark blue fastener by sliding it rearward, remove the protective cover carefully, and insert the custom wiring connector fully into the vehicle connector with locking tabs in place.
On a Honda Pilot, locate a flat spot on the vehicle frame and adhere the black converter box using the provided double-sided tape. On a Honda Ridgeline, locate a flat spot inside the vehicle near the connector and adhere the black converter box using the provided double-sided tape. After mounting, insert the provided 10 amp fuse into the red in-line fuse holder.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If one is not available, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Install a 10 amp fuse into the red in-line fuse holder on the converter box. In the AUX fuse panel on the driver side, insert a 7.5 amp fuse into positions 1 and 2, a 20 amp fuse into position 4, and a relay into positions 5 and 6. Under the hood, insert a 20 amp SLO-BLO fuse into the fuse box. Discard any fuses not used in the installation.
Install a 10 amp fuse into the red in-line fuse holder on the converter box. Under the hood, insert a 7.5 amp fuse into position 6 ('+B TRL BACKUP') and a 20 amp fuse into position 3 ('TRL E-BRAKE') in the fuse box. Discard any fuses not used in the installation.

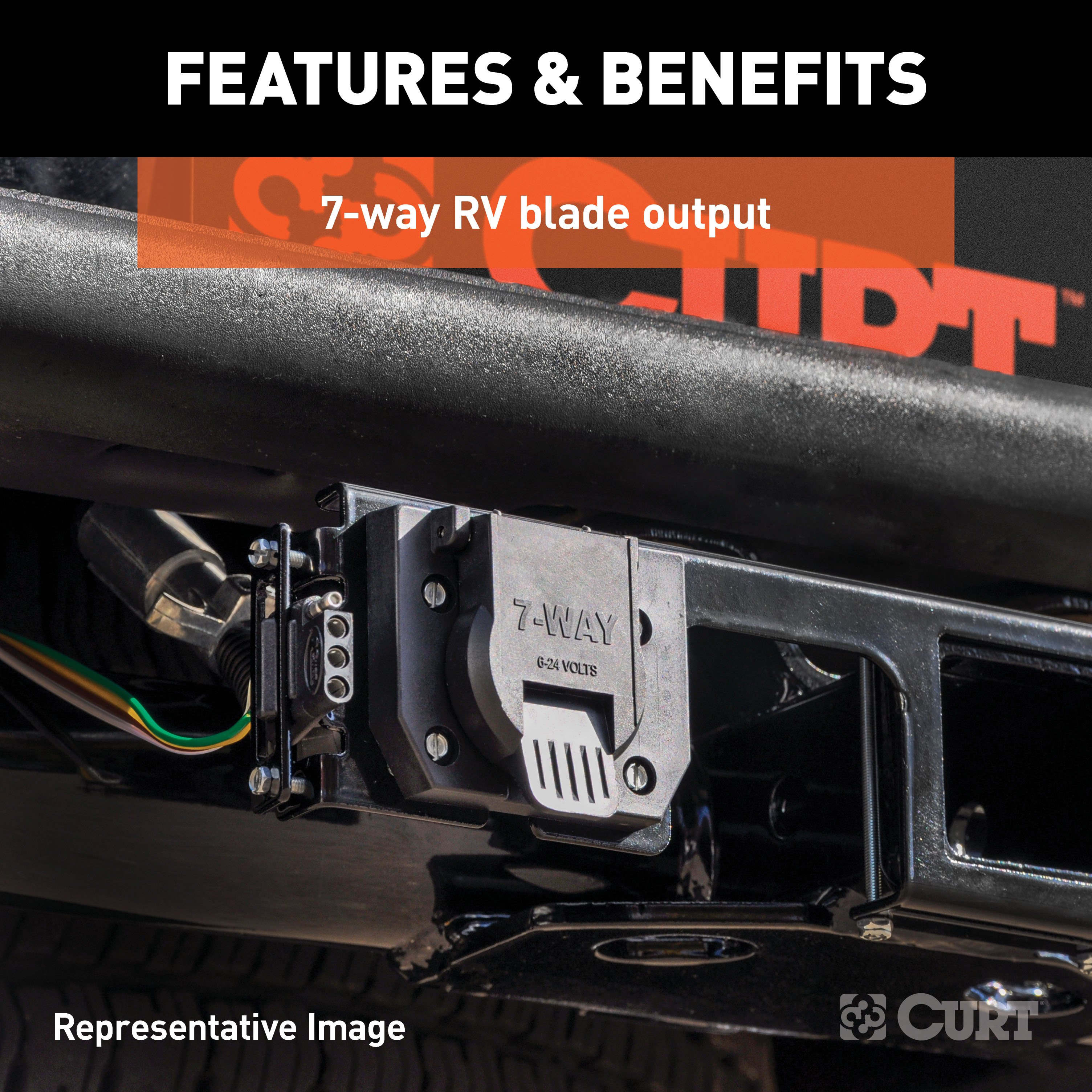

Mount the 7-way connector and bracket using the mounting bracket install sheet. Route the 7-way to the center of the vehicle and insert the custom wiring connector into the 7-way connector. Make sure the connectors are fully inserted with locking tabs in place. Secure any loose wires with the provided cable ties.
Yes, a 4-flat dust cover is provided to help prevent corrosion. Install it on the driver side under the hood during the fuse box installation step.
The maximum fuse rating is 20 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint.
All installation steps must be followed to ensure the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Reinstall all items removed during installation. For Honda Pilot, set the rear seats back to their normal position. For Honda Ridgeline, set the rear seat back to its normal position. Discard any fuses that were not used in the installation.
