Warranty: One-Year Limited Warranty
Color: Black
Electrical System Type: 3W

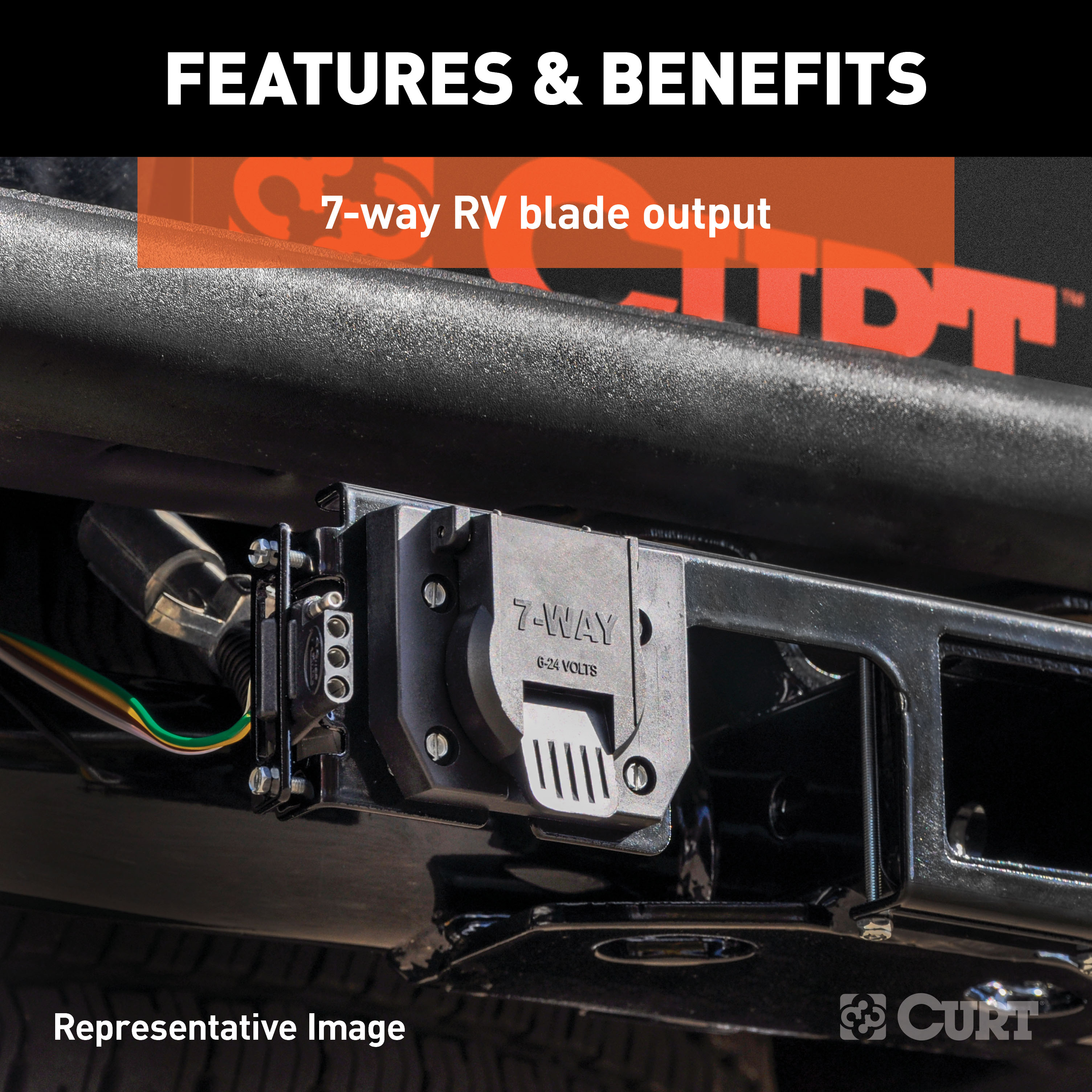

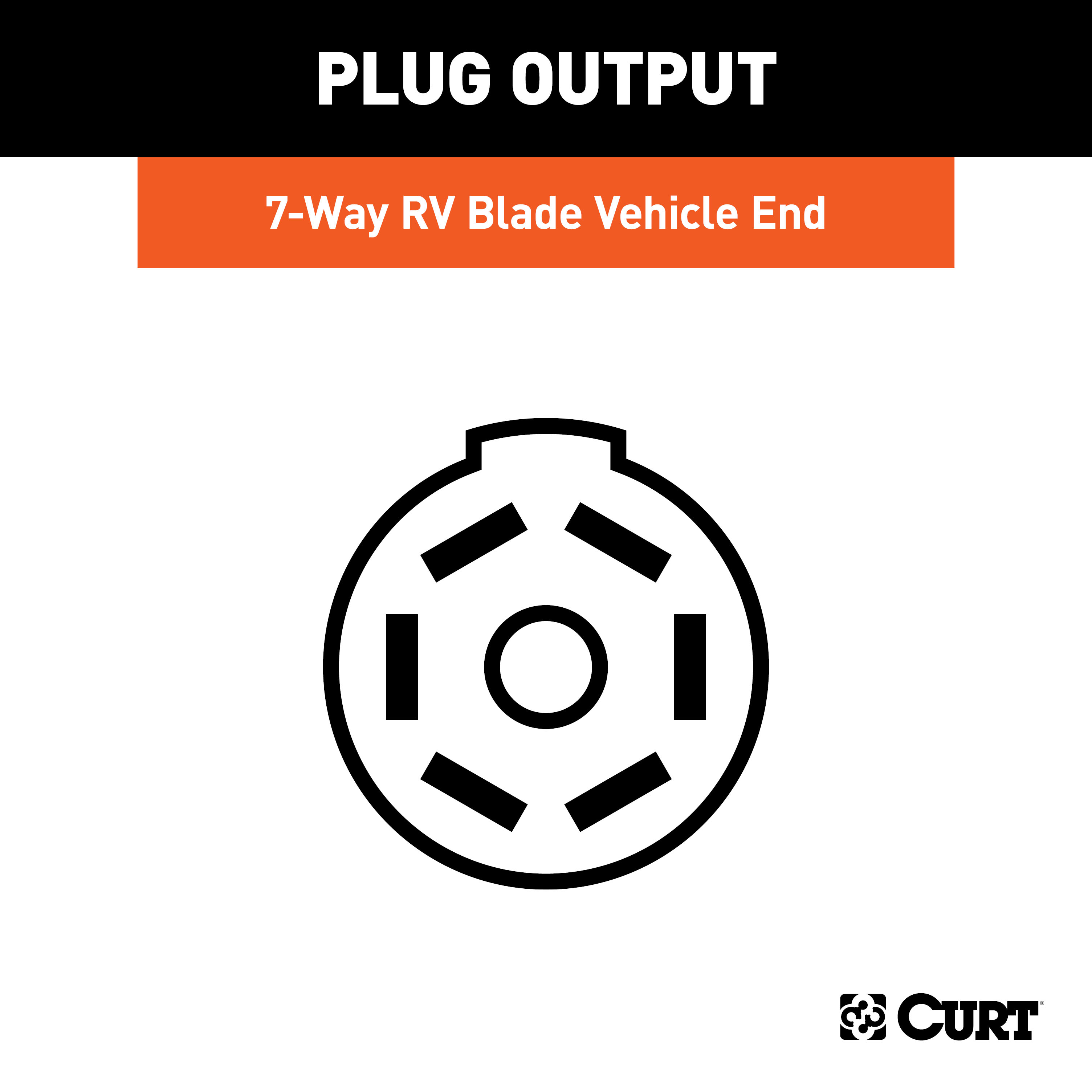

Output Type: 7-Way RV Blade
Tail Light Circuits: 10.0 Amps
Turn and Brake Circuits: 10.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 30

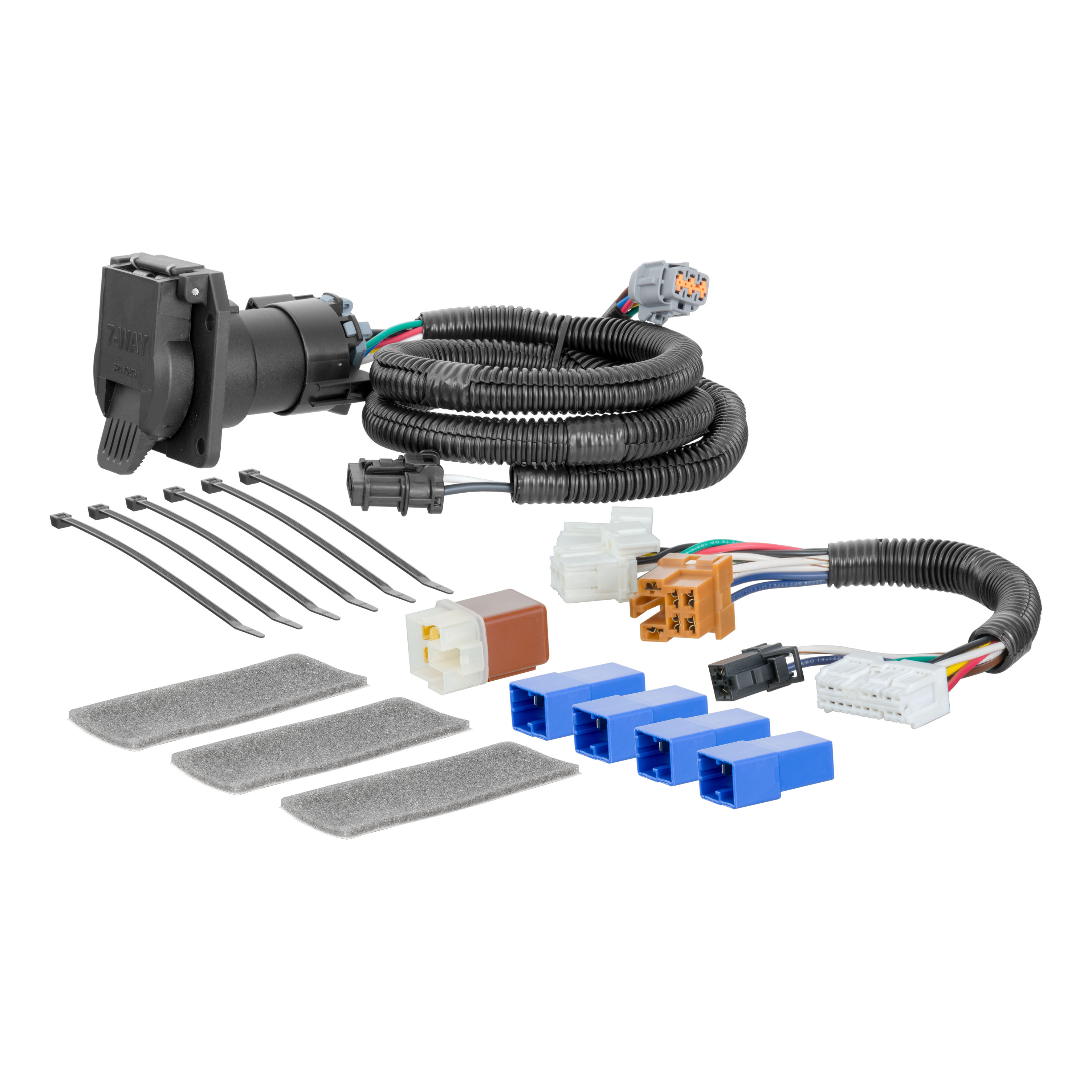

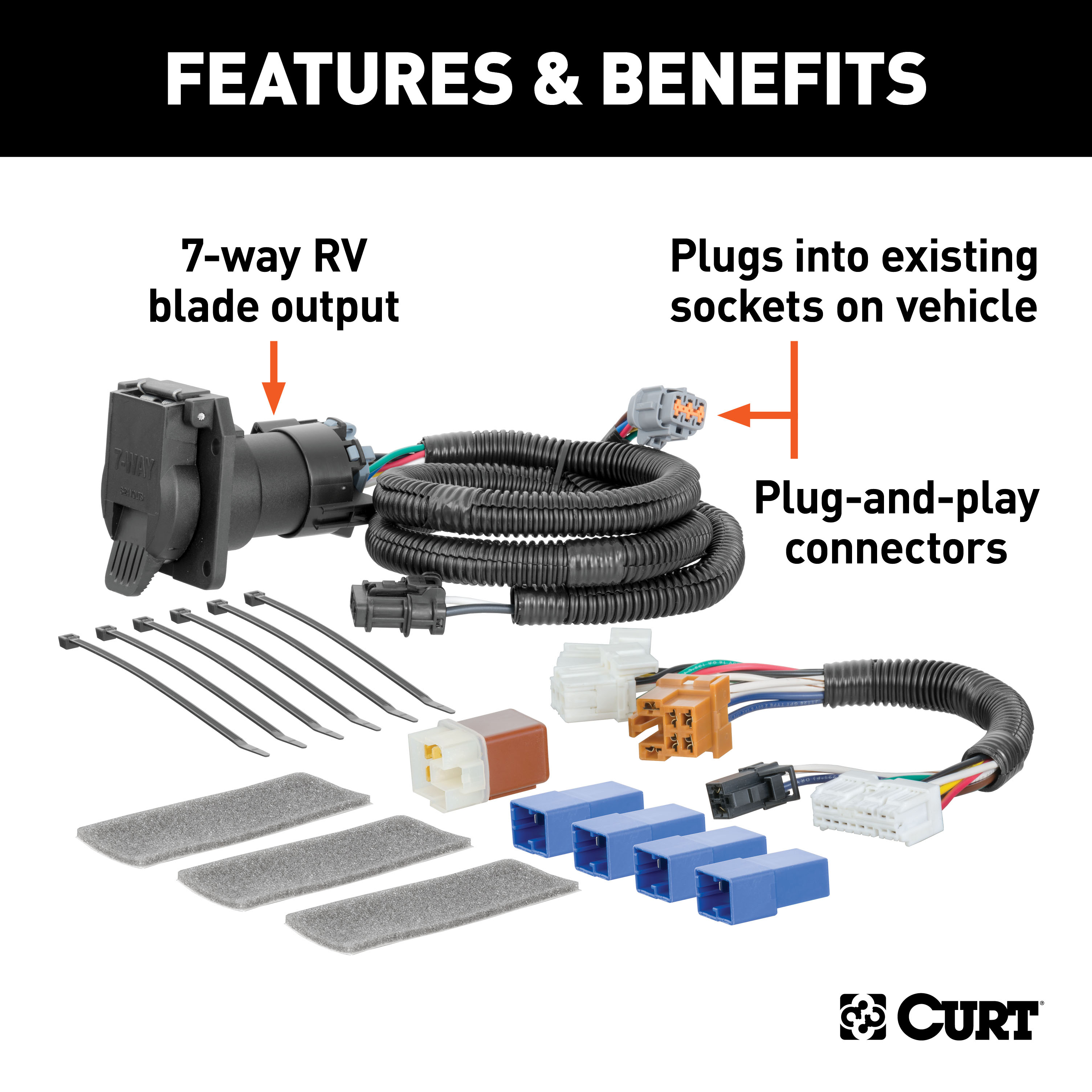

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Nissan Pathfinder and Infiniti QX60 (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited Warranty
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Infiniti QX60 | Installation Time: 30-60 minutes |
| 2013 - 2020 | Nissan Pathfinder | Installation Time: 30-60 minutes |
The CURT Custom 7-Way RV Blade, Select Pathfinder, QX60, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56357) fits 2014-2020 Infiniti QX60 models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom 7-Way RV Blade, Select Pathfinder, QX60, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56357) fits the following vehicles: 2014-2020 Infiniti QX60; 2013-2020 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom 7-Way RV Blade, Select Pathfinder, QX60, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56357) is designed to fit the 2014-2020 Infiniti QX60.
The CURT Custom 7-Way RV Blade, Select Pathfinder, QX60, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56357) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56357 is designed for the Infiniti QX60. It is also compatible with the Nissan Pathfinder. Both vehicles are in the SUVs, Mini & Full-Sized Vans category. The wiring location varies by model: on the QX60 and Pathfinder, the connector is located either behind the driver side rear access panel (S3) or behind the driver side rear bumper (S5), depending on your specific vehicle configuration.
Yes, the Curt 56357 custom wiring connector is compatible with the Nissan Pathfinder. The wiring location is either behind the driver side rear access panel (S3) or behind the driver side rear bumper (S5), depending on your vehicle's configuration.
The Curt 56357 has the following amperage ratings: Stop/Turn Light – 10.0 amps total; Taillights – 10.0 amps total; Backup – 10.0 amps total; Trailer Brakes (3 Axles/6 Brakes) – 20.0 amps total. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need: 10mm socket, ratchet, panel trim removal tool, Phillips screwdriver, wire stripper, and cutting tool.
Yes. Step 1 of the installation requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before proceeding with any other steps.
The kit includes two blue relays and one brown relay. These relays must be inserted into the relay harness during installation. You must use only the relays provided in the kit; using other relays can cause the harness to malfunction or damage the vehicle and trailer.
The relays are inserted in two locations. First, during Step 7, insert the two blue relays and one brown relay into the relay harness that is part of the custom wiring kit. Later, during Step 13, open the fuse cover on the relay box located behind the driver-side headlight under the hood and insert the two blue relays into the open cavities. Ensure all relays are fully inserted with locking tabs in place.
Access depends on your vehicle's configuration. Open the vehicle trunk, fold down the rear seats, and remove the floor push fasteners. Lift the floor cargo storage lid to access the three 10mm bolts securing the cargo storage unit. If equipped with a rear subwoofer, carefully remove it by unscrewing the retainer bolt at the top and disconnecting the power wire. Remove the center cover and scuff panel, then use the trim panel removal tool to remove push fasteners and lift out the cargo storage unit. Remove the two 10mm bolts from cargo tie downs and use the trim panel removal tool to remove push fasteners from the side trim panel to access the vehicle wiring connectors.
Before inserting the custom wiring connector, ensure all connector surfaces are clean and free of dirt. Remove any protective covers from the vehicle connectors. The connectors on the custom wiring connector will be similar to those on the vehicle, making them easy to identify and match.
The custom wiring connector is fully inserted when the locking tabs are in place. The manual specifies this requirement in multiple steps: when inserting relays into the relay harness (Step 7), when inserting the custom wiring connector into vehicle wiring connectors (Steps 9 and 11), and when inserting relays into the relay box (Step 13). Ensure locking tabs are fully engaged before proceeding.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. The product ratings are: Stop/Turn Light – 10.0 amps total; Taillights – 10.0 amps total; Backup – 10.0 amps total; Trailer Brakes (3 Axles/6 Brakes) – 20.0 amps total. Exceeding these limits can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your tow vehicle's lamp load rating.
After completing all installation steps and reconnecting the negative battery terminal, test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly before testing.
If your vehicle has a rear subwoofer, you must carefully remove it before accessing the cargo storage unit. Unscrew the retainer bolt located at the top of the speaker. Locate the power wire connected to the speaker and carefully disconnect it, taking care not to damage the locking tabs. Set the subwoofer aside. You can reinstall it after completing the wiring connector installation.
Step 14 is the final step: reinstall all items removed during installation (cargo storage unit, side trim panel, scuff panel, rear seats, and subwoofer if equipped), reinstall the fuse cover and close the hood, and reconnect the negative battery terminal.
Yes, the Curt 56357 is designed for both the Infiniti QX60 and Nissan Pathfinder. The wiring location is either behind the driver side rear access panel (S3) or behind the driver side rear bumper (S5), depending on your vehicle configuration.
Stop/Turn Light: 10.0 amps; Taillights: 10.0 amps; Backup: 10.0 amps; Trailer Brakes (3 Axles/6 Brakes): 20.0 amps. Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower.
The kit includes two blue relays and one brown relay. You must use only these relays; other relays can damage the harness, vehicle and trailer.
