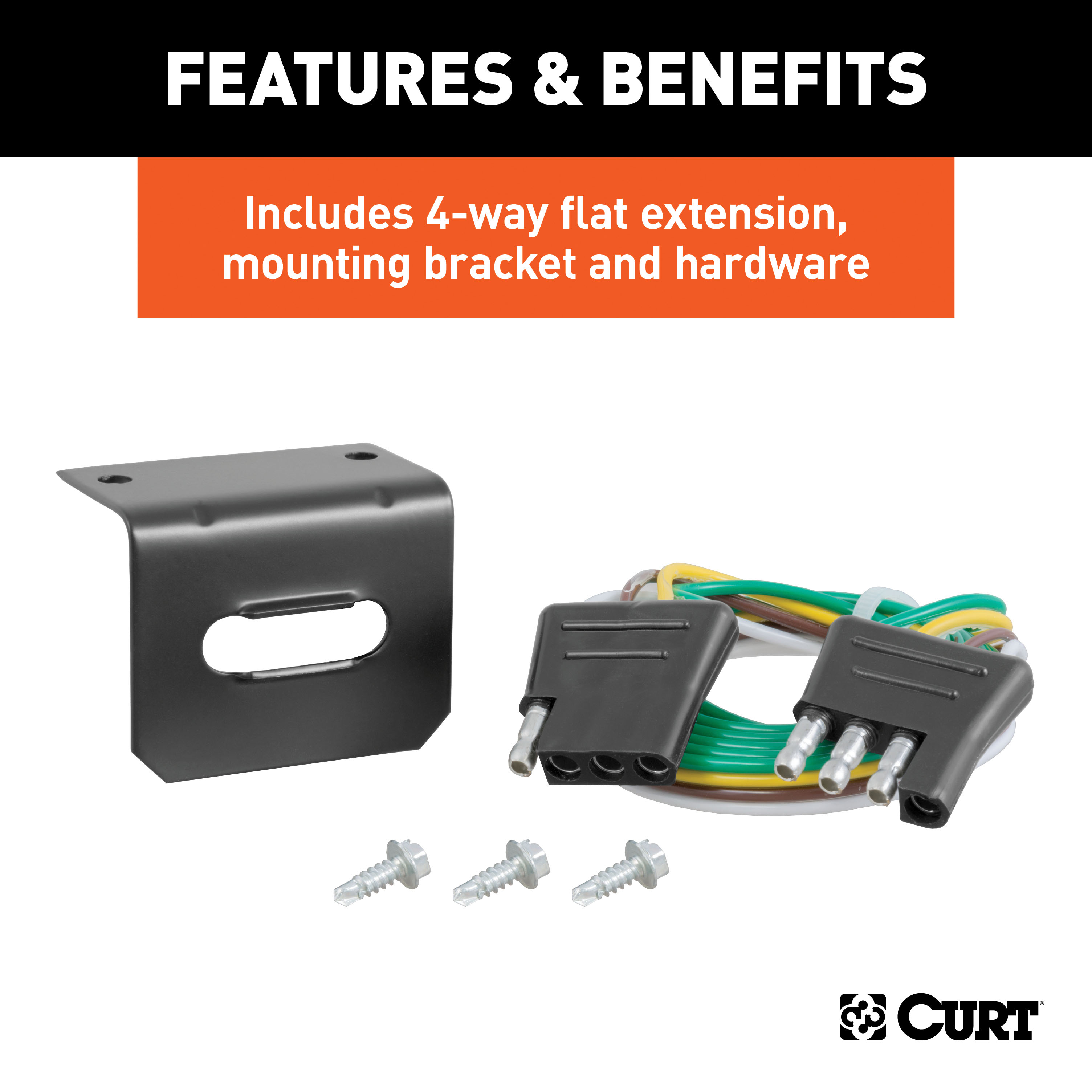

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

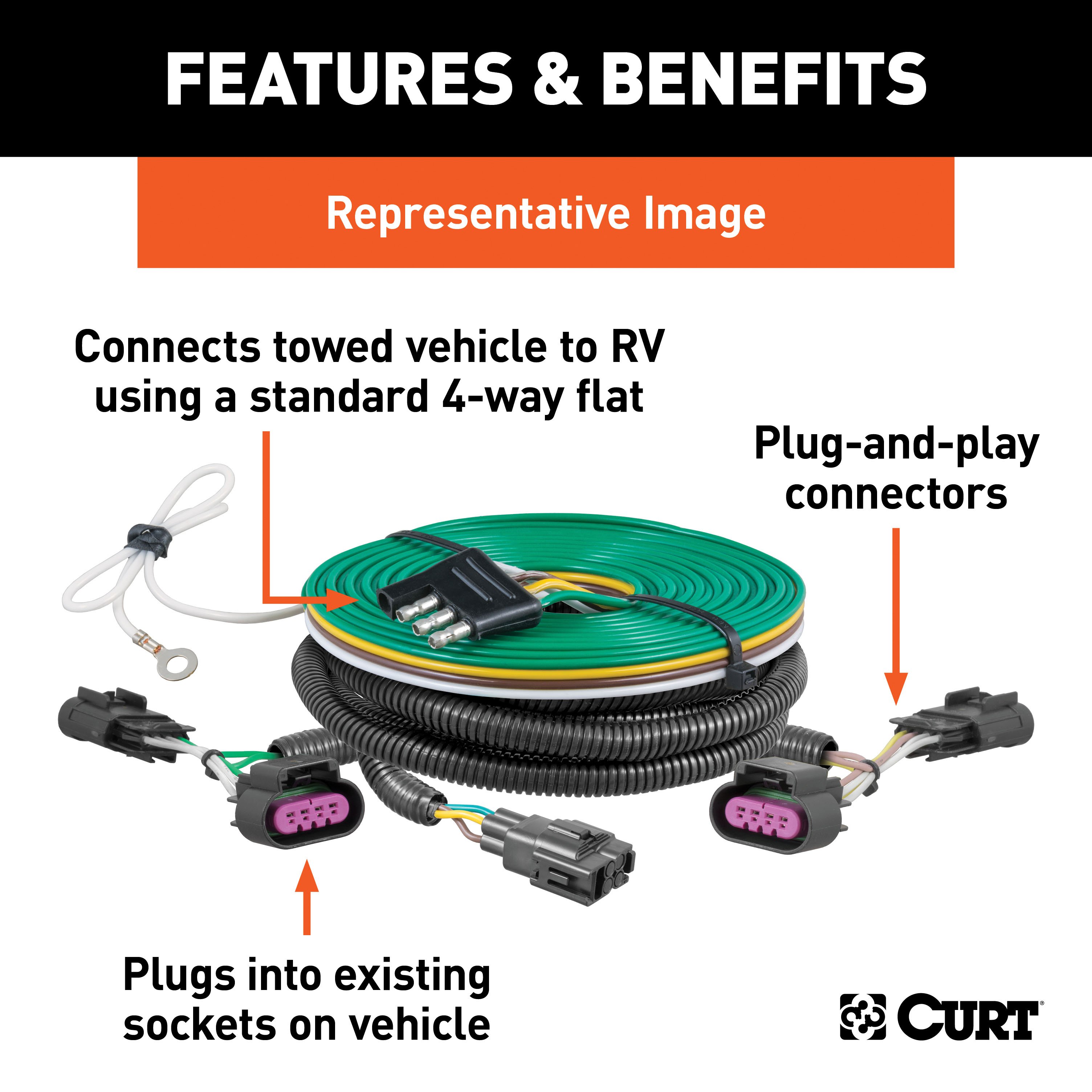

Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Chevy Equinox without LED taillights. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2021 | Chevrolet Equinox | — |
The CURT Custom Towed-Vehicle RV Wiring, Select Chevrolet Equinox without LED Taillights Trailer Connector Kit (Part #BKDK58971) fits the following vehicles: 2018-2021 Chevrolet Equinox. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Towed-Vehicle RV Wiring, Select Chevrolet Equinox without LED Taillights Trailer Connector Kit (Part #BKDK58971) is designed to fit the 2018-2021 Chevrolet Equinox.
The CURT Custom Towed-Vehicle RV Wiring, Select Chevrolet Equinox without LED Taillights Trailer Connector Kit (Part #BKDK58971) fits 2018-2021 Chevrolet Equinox models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Towed-Vehicle RV Wiring, Select Chevrolet Equinox without LED Taillights Trailer Connector Kit (Part #BKDK58971) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 58971 is an RV wiring harness that allows your RV to function as a trailer light harness. Once installed, it connects to your vehicle's factory taillight system, enabling the taillights on your tow vehicle to function along with the taillights on the towing vehicle.
The CURT 58971 is designed for SUVs and Vans. The manual does not specify individual vehicle models, years, or trim levels. Consult the product fitment database or contact CURT directly to confirm compatibility with your specific vehicle.

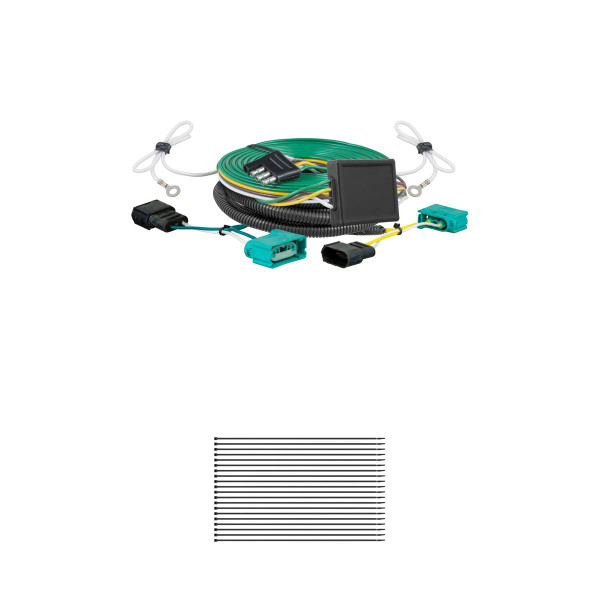

The manual shows an 'Included Parts' section on page 1 but does not list the specific parts by name or quantity. Based on the installation steps, the package includes a custom RV harness with yellow and green wire ends, a 4-flat connector, a white ground wire with ring terminal, a ground screw, cable ties, a 4-flat dust cover, and fastener covers. Contact CURT or check your package contents against the parts diagram for a complete list.
The required tools are: ratchet, small flathead screwdriver, socket extension, fish wire, Torx bit T-15, and electrical tape. The manual notes that proper tools will improve the quality of installation and reduce the time required.
Yes. Step 1 requires you to locate the vehicle battery in your owner's manual, then disconnect the negative battery terminal. Be sure to fasten this wire down and away from the battery during the installation process. Reconnect it only after all installation steps are complete and you have reinstalled all items removed during installation.
In Step 3, remove the taillight by pulling it straight back. At the rear of the light are alignment tabs that are pressure-fit into the vehicle body. Loosen these tabs by wiggling them from side to side. Separate the connectors carefully, taking care not to damage the locking tabs. Set the taillight aside. Repeat on the other side of the vehicle.
Two fasteners secure each taillight. In Step 2, use a small flathead screwdriver to pry off the two fastener covers, then use a T-15 Torx bit to remove the two fasteners. Repeat on the other side of the vehicle.
Fish wire is a tool used to push or pull an electrical wire through a blind hole. Make sure the wire is long enough to stick out on the other side. Insert it through the blind hole and locate it on the other side. Use tape to secure the harness to the fish wire and pull back up. If the fish wire or harness gets hung up, you may need to push back down, wiggle it around, or twist the wire to loosen it. Fish wire can be made from a cut-up wire hanger, stiff wire, rope or string depending on what is needed.
In Step 5, run a fish wire down between the body and the bumper cover on the driver side. From under the vehicle, locate the side of the custom RV harness with the yellow wire. Attach the yellow wire to the fish wire and pull the harness up to the factory harness. In Step 6, once the custom harness reaches the factory harness, connect the mating housings and reconnect the taillight. Repeat Steps 5 and 6 on the passenger side using the green wire of the RV harness.

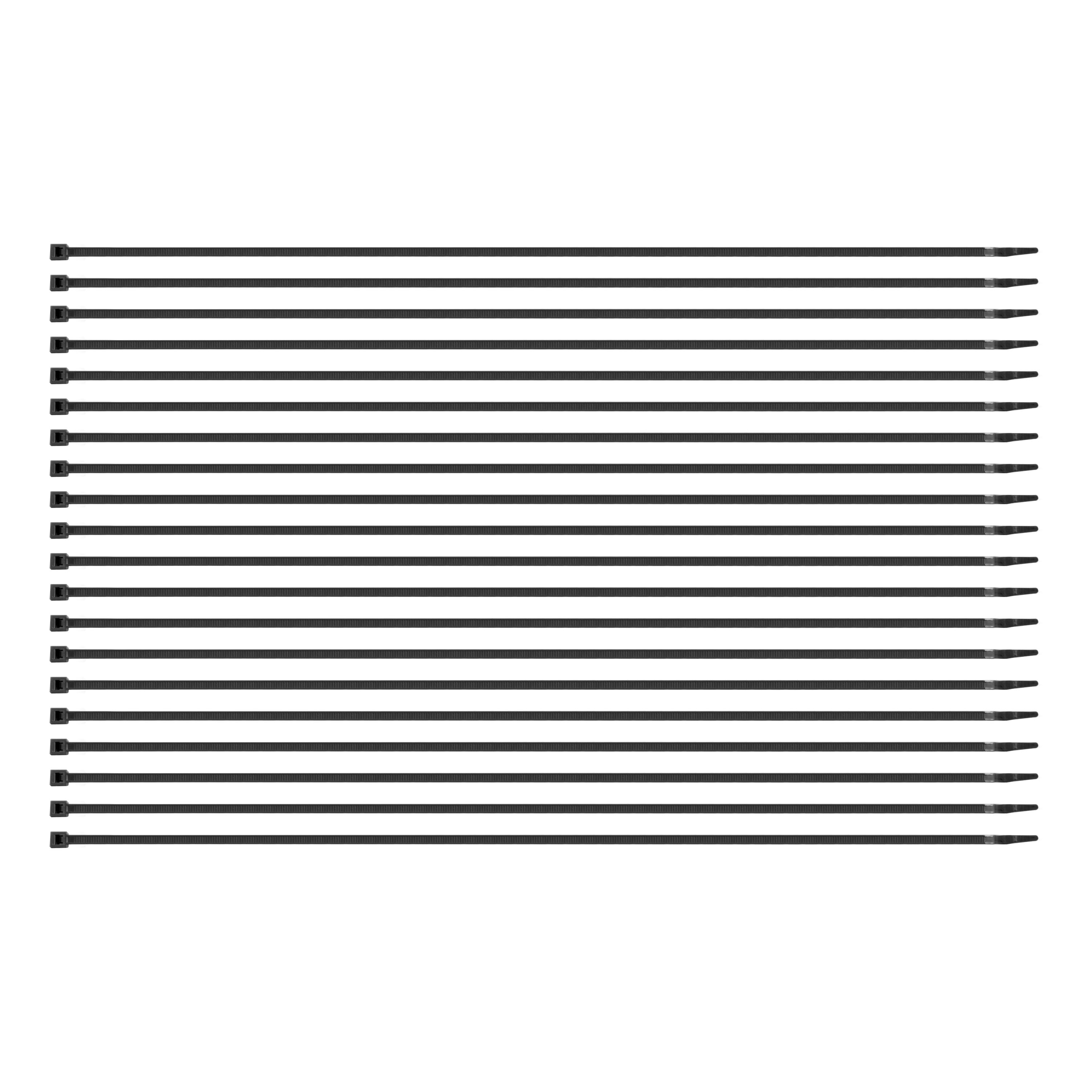

In Step 7, route the RV harness end with the green wire along the backside of the bumper. Secure any loose wires to the passenger side of the vehicle with the provided cable ties. Keep the wiring away from hot spots, pinch points or moving objects. In Step 13, secure any excess wire so it is not drooping or dangling, but not so tight that it causes unnecessary strain, which could lead to breakage over time.
In Step 8, you must locate a grounding point near the box, such as an existing screw or bolt in the vehicle frame, or drill a 3/32" pilot hole if no existing fastener is available. The area should be free from rust, dirt, and paint; use an abrasive pad or paper to remove rust and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
If no existing fastener is available for the ground wire, drill a 3/32" pilot hole in the frame of the vehicle near the installation box. The area must be free from rust, dirt, and paint.
In Step 8, secure the white ground wire with the ring terminal on an existing fastener in the vehicle frame, or use the provided ground screw in a 3/32" pilot hole. The grounding point should be near the installation box and free from rust, dirt, and paint.
In Step 9, route the 4-flat wire above the rear drive line, suspension mounts and the body, securing it with zip ties and keeping it away from hot spots, pinch points or moving objects. In Step 10, route the 4-flat wire along the fuel tank between the tank and the driver-side sub frame to the rear of the front tire. In Step 11, from the driver-side engine compartment, use fish wire to route the 4-flat up between the inner fender and the exterior fender. Locate the end of the fish wire just behind the inner fender/wheel well, attach the 4-flat to the fish wire, and pull to the top side of the engine compartment.
In Step 12, route the 4-flat wire along the driver-side inner fender, using zip ties as needed toward the front of the vehicle. Mount the 4-flat connector right next to the vehicle ground lug on the driver side, behind the headlight.
In Step 13, secure any excess wire so that it is not drooping or dangling, but not so tight that it causes unnecessary strain to the wire, which could lead to breakage over time. After removing slack from the 4-flat wire, tighten any zip ties and add as needed.
After the custom wiring harness is installed, verify that it is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. Once the function tests are complete, reinstall the taillight fasteners. Install the provided 4-flat dust cover to help prevent corrosion.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Keep the 4-flat dust cover installed to help prevent corrosion.
The manual states 'Do not exceed product rating or tow vehicle lamp load rating, whichever is lower,' but does not specify the product's amperage, wattage, or weight rating. Contact CURT or consult the product specification sheet for the exact rating.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling the 3/32" pilot hole for the ground wire in Step 8.
In Step 1, after disconnecting the negative battery terminal, be sure to fasten this wire down and away from the battery when completing the installation process. Reconnect it only after all installation steps are complete and you have reinstalled all items removed during installation.
The CURT 58971 is designed for SUVs and Vans. Check the product fitment database or contact CURT to confirm compatibility with your specific vehicle model and year.
Yes, you must disconnect the negative battery terminal before beginning installation and reconnect it only after all steps are complete.
Drilling may be required for the ground wire installation. If no existing fastener is available near the installation box, you must drill a 3/32" pilot hole in the vehicle frame.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The manual does not specify the exact rating; contact CURT for details.
Periodically inspect all wires and connections for visible damage or loose connections. Keep the 4-flat dust cover installed to prevent corrosion.
