CURT Custom Wiring Harness, 4-Way Flat Output, Select BMW X3 56543CURTOriginal price was $163.95. Current price is $128.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
Experts available to answer your questions
Call 888-634-9494One-Year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2021 | BMW X3 | Installation Time: 30-60 minutes |
The CURT Custom Wiring Harness, 4-Way Flat Output, Select BMW X3 56533 (Part #BKDK56533) fits 2018-2021 BMW X3 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select BMW X3 56533 (Part #BKDK56533) fits the following vehicles: 2018-2021 BMW X3. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select BMW X3 56533 (Part #BKDK56533) is designed to fit the 2018-2021 BMW X3.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select BMW X3 56533 (Part #BKDK56533) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.

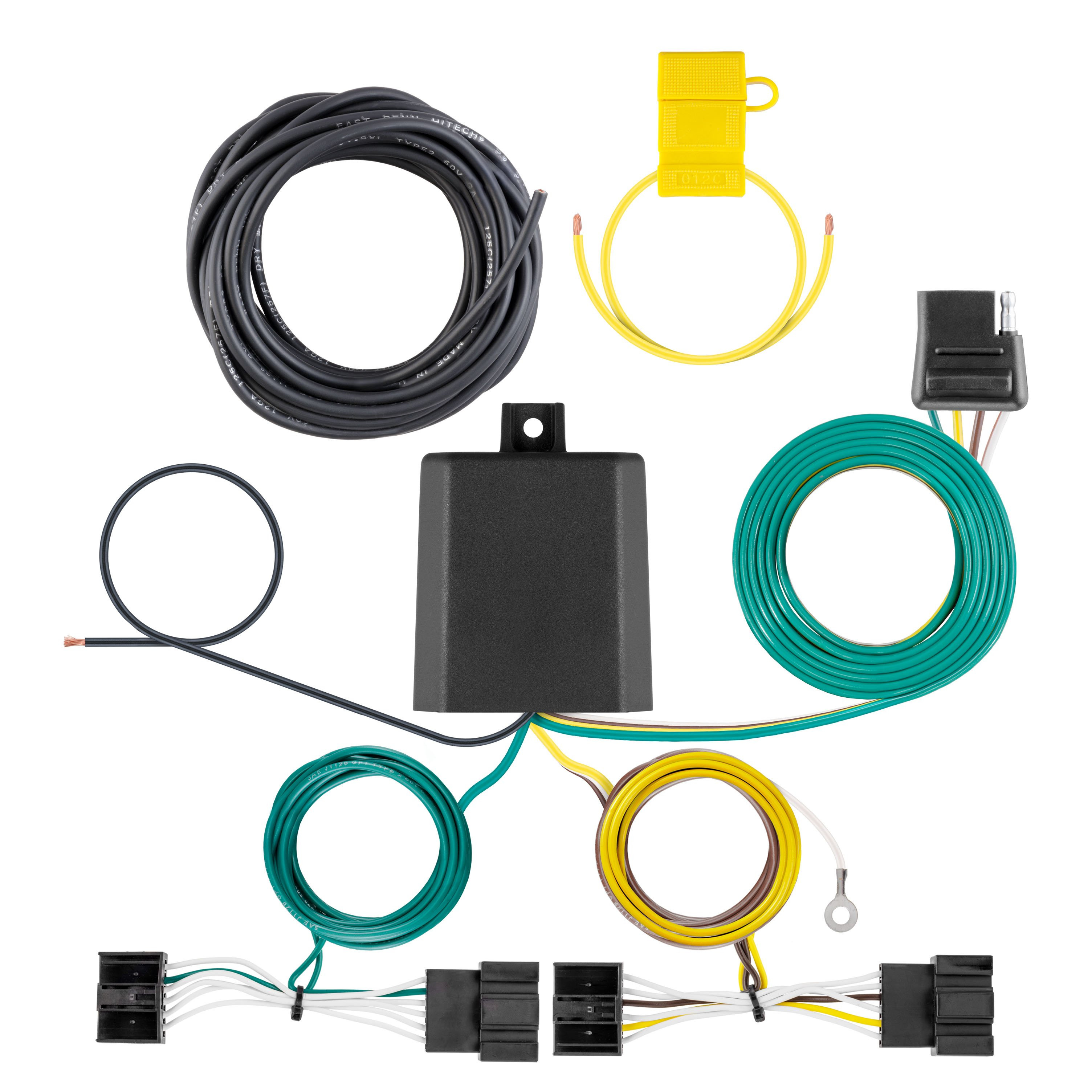

The Curt 56533 is a powered converter for trailer lighting systems designed for SUVs and vans. It converts the vehicle's factory taillight signals into a 4-flat trailer connector, allowing you to tow a trailer with standard lighting. The converter reads the vehicle's brake, turn signal, and taillight circuits and outputs them through a 4-flat connector for the trailer.
The Curt 56533 is designed for SUVs and vans with 12-volt negative ground electrical systems. The converter must be used only on 12-volt negative ground systems. Check your vehicle owner's manual to confirm your vehicle has a 12-volt negative ground system. The manual does not specify which vehicle models or years are compatible, so contact Curt Manufacturing or your dealer to confirm fitment for your specific vehicle.
You will need: ratchet, wire cutter, socket extension, wire stripper, 10mm socket, crimping tool, 8mm socket, panel trim removal tool, and utility knife. The manual notes that proper tools will improve installation quality and reduce time required.
The kit includes: a black converter box, a custom harness with yellow wire connector, a white ground wire with ring terminal, a black 12-gauge power wire, a ground screw, double-sided tape for mounting the converter, cable ties for securing the power wire, and a 15-amp fuse holder with fuse. The 4-flat connector is routed to the floor board storage area for storage when not towing.
Yes. You must disconnect the negative battery terminal before beginning installation. Fasten this wire down and away from the battery while completing the installation process. Do not reconnect the battery until all wiring steps are complete and the fuse is installed.
The installation is rated as 'Easy' difficulty level based on time and effort involved. However, difficulty may vary depending on your expertise, your vehicle's condition, and whether you have proper tools and equipment. The manual provides step-by-step instructions for self-installation, but if you are not comfortable working with vehicle electrical systems, consider professional installation.
Open the rear door of the vehicle and remove the spare tire access cover. Using a panel trim tool, remove the three push fasteners from the plastic trim panel. Locate the vehicle battery on the right side of the trunk compartment and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing installation.
Using a panel trim tool, remove the taillight fastener from the trim cover. Using a 10mm socket, remove the two nuts securing the taillight in place on each side. From inside the vehicle, open the side panel hatches and remove one 10mm bolt from each side. Pull the taillight straight back and remove it. Repeat on the other side. Take care not to damage the locking tabs when separating the connectors.
From the driver side access panel, locate the vehicle taillight wiring connectors routed to the taillight cavity. Locate the housing with the yellow wire on the custom harness. Reroute the custom harness connector through the taillight cavity and attach it to the taillight. Route the converter to the bottom of the access panel. On the passenger side, route the green wire past the battery opening and through the passenger side access panel into the taillight cavity, then connect it to the vehicle taillight.
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. The converter should be mounted in an accessible location where it will not be damaged or interfere with vehicle operation.
You may need to drill a hole for the ground wire. Locate a grounding point such as an existing screw or bolt in the vehicle frame. If no suitable existing fastener is available, drill a 3/32-inch pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free from rust, dirt, and paint; use an abrasive pad or paper to clean it.
Signal circuits (turn signals): 5.0 amps per side. Tail/Running circuits: 7.5 amps total. The battery connection must be fuse-protected with a 15-amp maximum fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The converter uses the following wire colors: Yellow = Left turn signal, Green = Right turn signal, Red = Brake signal, Brown = Taillight/running lights. The black power wire connects to the positive battery terminal, and the white ground wire connects to the vehicle frame. All wires are routed through the vehicle interior to the taillights and battery location.
Route a 12-gauge or larger wire from the vehicle battery to the converter, taking care to avoid pinch points and hot or rotating components. Use the provided cable ties to secure the power wire to the vehicle chassis. When passing the power wire through sheet metal, use an existing grommet, add a new grommet, or use silicone to protect the wire from sharp edges. Use a ring terminal for the battery connection. Install the 15-amp fuse holder after all other steps are complete.
The maximum fuse rating is 15 amps. The battery connection must be fuse-protected with a 15-amp fuse maximum. Do not exceed this rating, as exceeding the product rating can cause loss of warranty, overheating, and potential fire. Install the fuse after all other installation steps are complete.
No. The Curt 56533 is designed for 12-volt negative ground systems only. It cannot be used on 24-volt systems or positive ground systems. Check your vehicle owner's manual to confirm your vehicle has a 12-volt negative ground system before purchasing or installing this converter.
Disconnect the negative battery terminal before beginning installation and keep it fastened away from the battery. Do not lay tools across the positive battery terminal (typically red), as this can cause a short circuit, sparks, and electrical shock. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury. Route the power wire away from pinch points and hot or rotating components. Use a ring terminal for the battery connection. Wear appropriate safety equipment when working with tools and electrical systems.
Once the 12-volt power wire is connected to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. Do not exceed the product rating or tow vehicle lamp load rating. Ensure all connections are secure and all wires are properly routed before towing.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Check the converter box, all wire connections, the ground wire attachment, and the power wire routing regularly. If you notice any damage, loose connections, or corrosion, repair or replace the affected components before towing.
Route the 4-flat connector to the floor board storage area and store it under the floor board when not towing. Route it out of the vehicle hatch, making sure the wires do not come in contact with the hatch locking mechanism when in use.
After routing the 4-flat connector to the floor board storage area, replace all removed items in reverse order of removal. This includes reinstalling the taillights, trim panels, and spare tire access cover. Then test the converter by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer before towing.
The Curt 56533 is designed for SUVs and vans with 12-volt negative ground electrical systems. Confirm your vehicle has a 12-volt negative ground system in your owner's manual. Contact Curt Manufacturing or your dealer to verify fitment for your specific vehicle model and year.
Yes, you must disconnect the negative battery terminal before installation and keep it fastened away from the battery until all wiring is complete and the fuse is installed.
Drilling may be required for the ground wire. If no existing screw or bolt is available on the vehicle frame, drill a 3/32-inch pilot hole. Check for hidden items before drilling to avoid damage.
Use 12-gauge wire or larger for the power wire from the battery to the converter. Route it away from pinch points and hot or rotating components, and protect it from sharp edges when passing through sheet metal.
Do not exceed the product rating or tow vehicle lamp load rating. Do not lay tools across the positive battery terminal, as this can cause shorts, sparks, and electrical shock. Disconnect the negative battery terminal before installation.
First, verify that the 12-volt power wire is properly connected to the positive battery terminal with a ring terminal and that the 15-amp fuse is installed and not blown. Check that the white ground wire is securely attached to the vehicle frame and that the connection is clean and free from rust or corrosion. Verify that all wire connections to the taillights are secure and that the custom harness and green wire are properly connected. Test the converter with a test light, 4-flat tester, or functioning trailer. If the converter still does not function, check that the vehicle has a 12-volt negative ground system and that the battery is properly connected.
Verify that the 4-flat connector is properly routed from the converter to the floor board storage area and that the wires are not pinched or damaged. Check that the custom harness with the yellow wire is properly connected to the driver side taillight and that the green wire is properly connected to the passenger side taillight. Ensure that the converter box is properly mounted and that all internal connections are secure. Test the connector with a 4-flat tester or functioning trailer. If the connector still does not work, check that the battery is connected and the fuse is installed.
