Type
5/8" hitch pin & clip not included
Weight ratings limited by lowest-rated towing component
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0

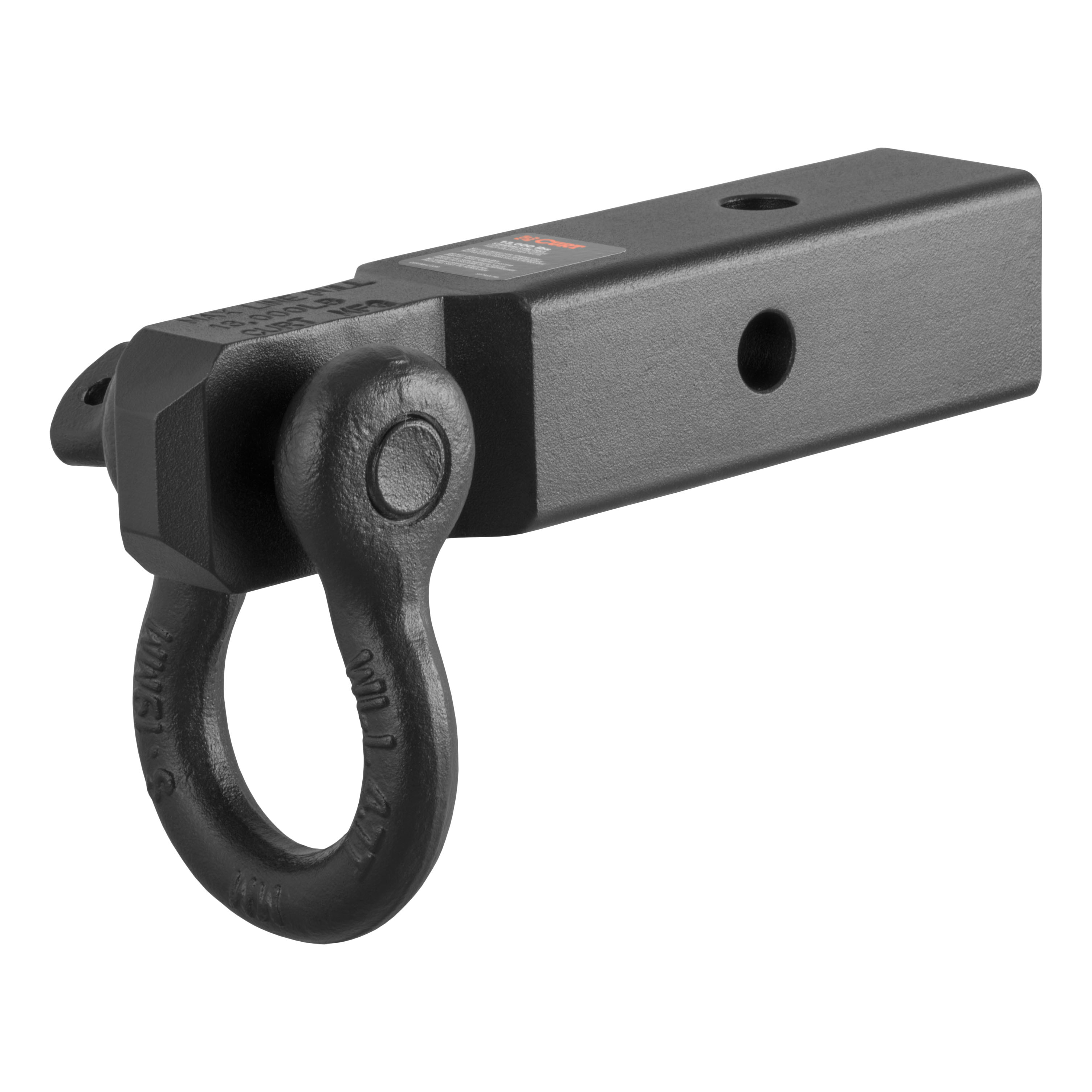

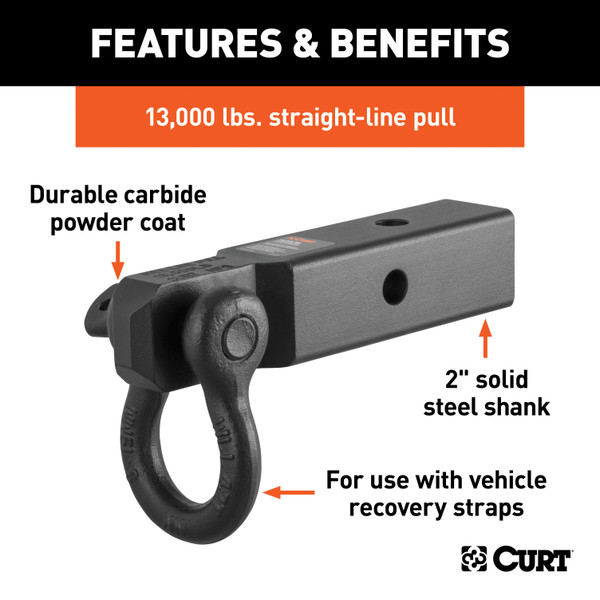

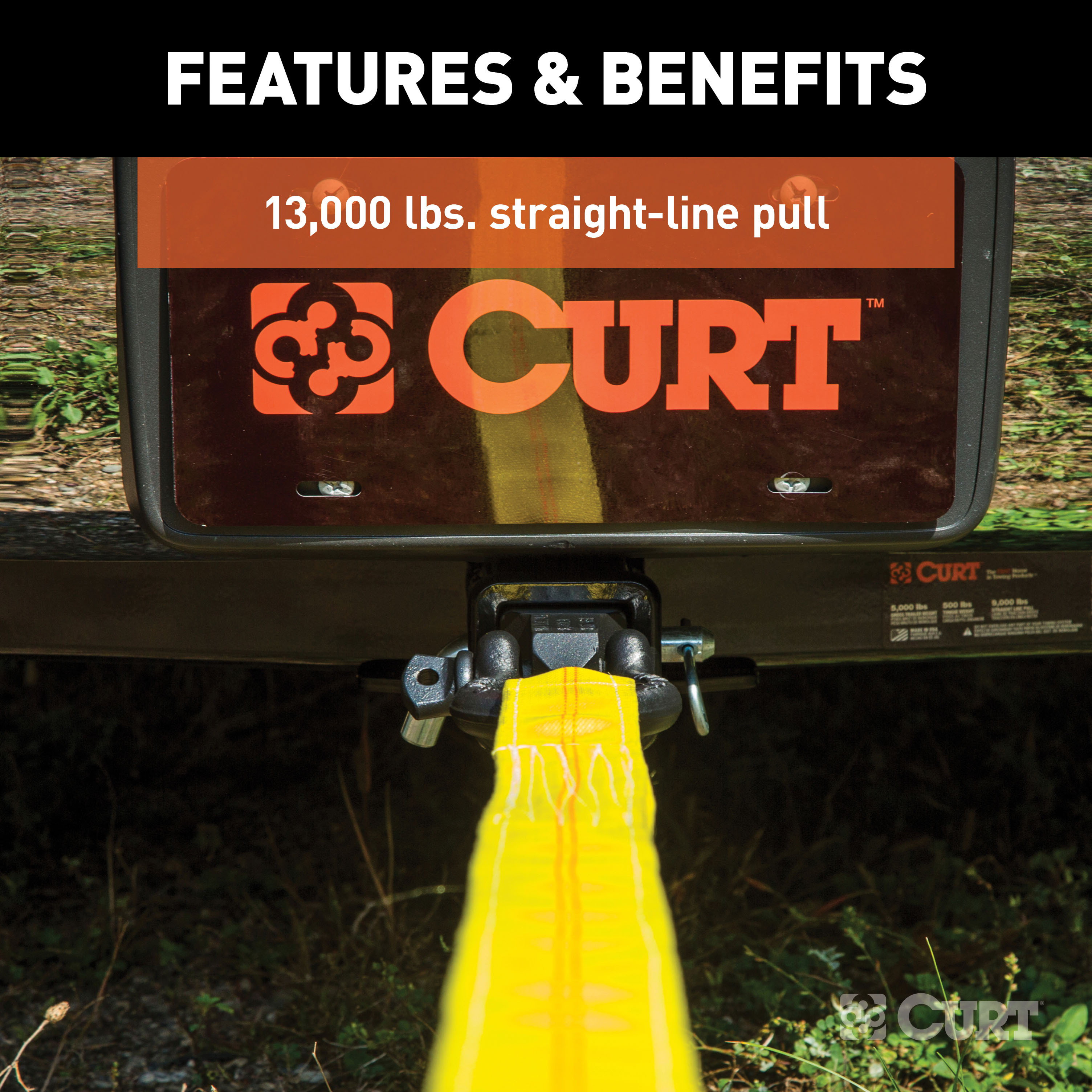

For tough jobs and off-road vehicle recovery applications, the CURT D-ring shackle mount is a hardworking extension of your truck. It features a solid steel shank for maximum strength and has a weight capacity rating of 13,000 lbs. straight-line pull (limited to lowest-rated towing component). This makes it the perfect accessory for difficult vehicle recovery and other straight-pull towing applications. The shank also measures 2" x 2", allowing this trailer hitch mount to be compatible with larger pickup trucks and any class 4 or class 5 trailer hitch with a 2" x 2" receiver tube. It offers a perfect fit for all CURT Xtra Duty class 5 hitches (5/8" hitch pin & clip sold separately). The D-ring shackle mount features a threaded pin for easy attachment of the shackle, and it is compatible with the CURT vehicle recovery strap #83066. It also comes with a durable, corrosion-resistant carbide powder coat finish, keeping it well protected against the elements, as well as against nicks, scratches and scuffing.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 45832 is designed for vehicles with a 2" receiver hitch. If your vehicle has a 2" hitch receiver, this product will fit. Check your vehicle's hitch receiver size before purchasing. The product has a 2" shank that slides into the receiver.
The CURT 45832 is rated for 13,000 lbs. straight-line pull. It is designed only for vehicle recovery and must not be used for towing. Never exceed the rated capacity, your vehicle's Gross Combined Weight Rating (GCWR), or your hitch receiver rating.
No tools are required for installation.
The CURT 45832 includes one D-ring shackle mount with a 2" shank, a receiver tube, a D-ring shackle, a shackle bolt, and a clip. The hitch pin and tow strap are sold separately and must be purchased separately.
1. Slide the 2" shank of the D-ring shackle mount into your vehicle's 2" receiver hitch. 2. Align the hole in the shank with the hole in the receiver hitch. 3. Insert your hitch pin (sold separately) through the aligned holes. 4. Secure the hitch pin on the opposite side with the clip provided with your hitch pin. The installation is then complete.

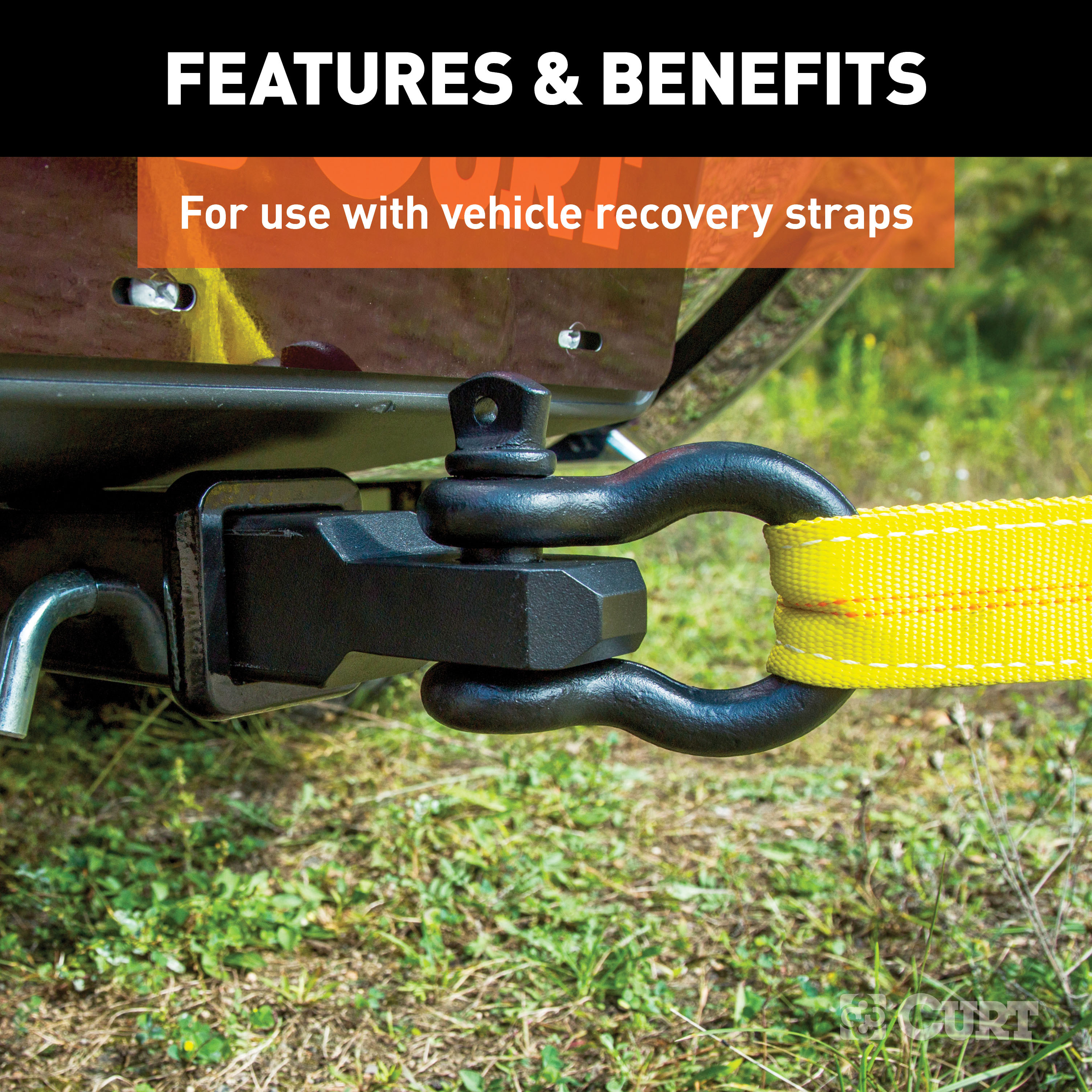

It depends on the style and size of your tow strap. You feed the tow strap through the opening in the shackle. If your tow strap is too large to fit through the opening, you may need to remove the shackle from the shank by loosening the shackle bolt, attaching the strap, and then reinstalling the shackle.
The 7/8" shackle bolt must be torqued to 30 lb-ft. The bolt should be fully threaded into the shackle and flush with the outside of the shackle when installed. Failure to fully tighten the shackle bolt may result in loss of attachment, property damage or personal injury.
No. The CURT 45832 is designed only for vehicle recovery and must not be used for towing.
Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function. Never operate the product with a damaged or worn part. Replace damaged or worn parts immediately.
Inspect the unit for proper operation and worn, damaged or missing parts, and replace as required. Replace the unit's wear when it exceeds 1/8" from the original surface. Periodically apply a small amount of grease or anti-seize to the shackle bolt threads.
No. Do not modify this product in any way. Unauthorized modification may impair the function and/or safety, could affect the life of the product, and will void the warranty.
Yes. The CURT 45832 has a 2" shank and is designed for vehicles with 2" receiver hitches.
You must purchase a hitch pin with clip and a tow strap separately. These items are not included with the product.
No tools are required. Installation involves sliding the shank into the receiver, aligning holes, inserting the hitch pin, and securing it with the clip.
Torque the 7/8" shackle bolt to 30 lb-ft. The bolt must be fully threaded and flush with the outside of the shackle.
Inspect before each use for damage. Periodically apply grease or anti-seize to the shackle bolt threads. Replace the unit if wear exceeds 1/8" from the original surface.

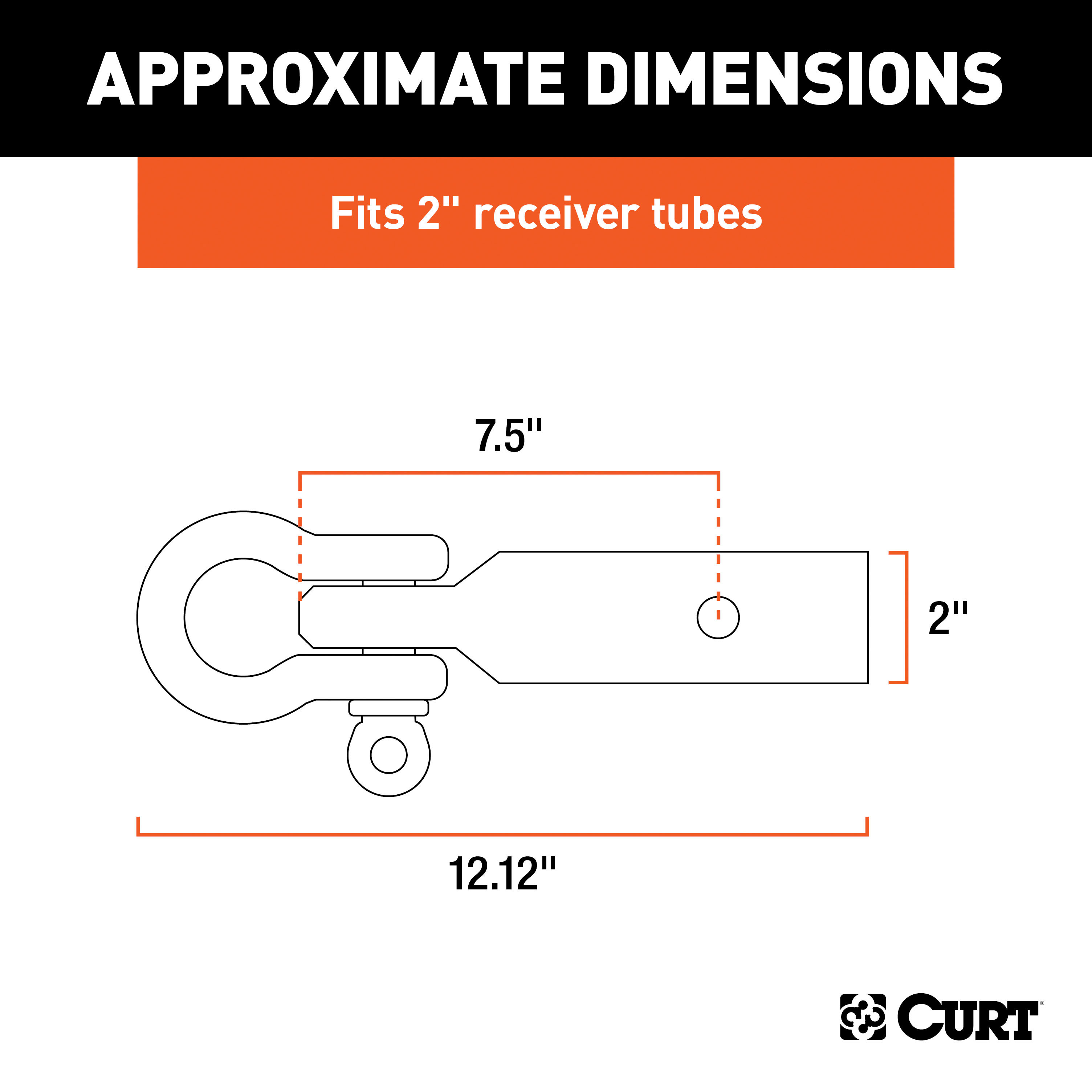

| Part # | Shank Size | Description | Straight-line pull capacity | Length | Finish |
|---|---|---|---|---|---|
| 45832 | 2" | Use with tow straps, complete with shackle and solid shank | 13,000 lbs. | 7-1/2" | Carbide black |
| 45831 | 2-1/2" | Use with tow straps, complete with shackle and solid shank | 13,000 lbs. | 7-1/2" | Carbide black |
| 45825 | 2" | Use with 83066 vehicle recovery strap or similar | 10,000 lbs. | 7-1/2" | Gloss black |
| 45500 | 2" | Use with 83066 vehicle recovery strap or similar | -- | 10" | Carbide black |
