Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: BLACK POWDER COAT
Installation Time Exact (Minutes): 0

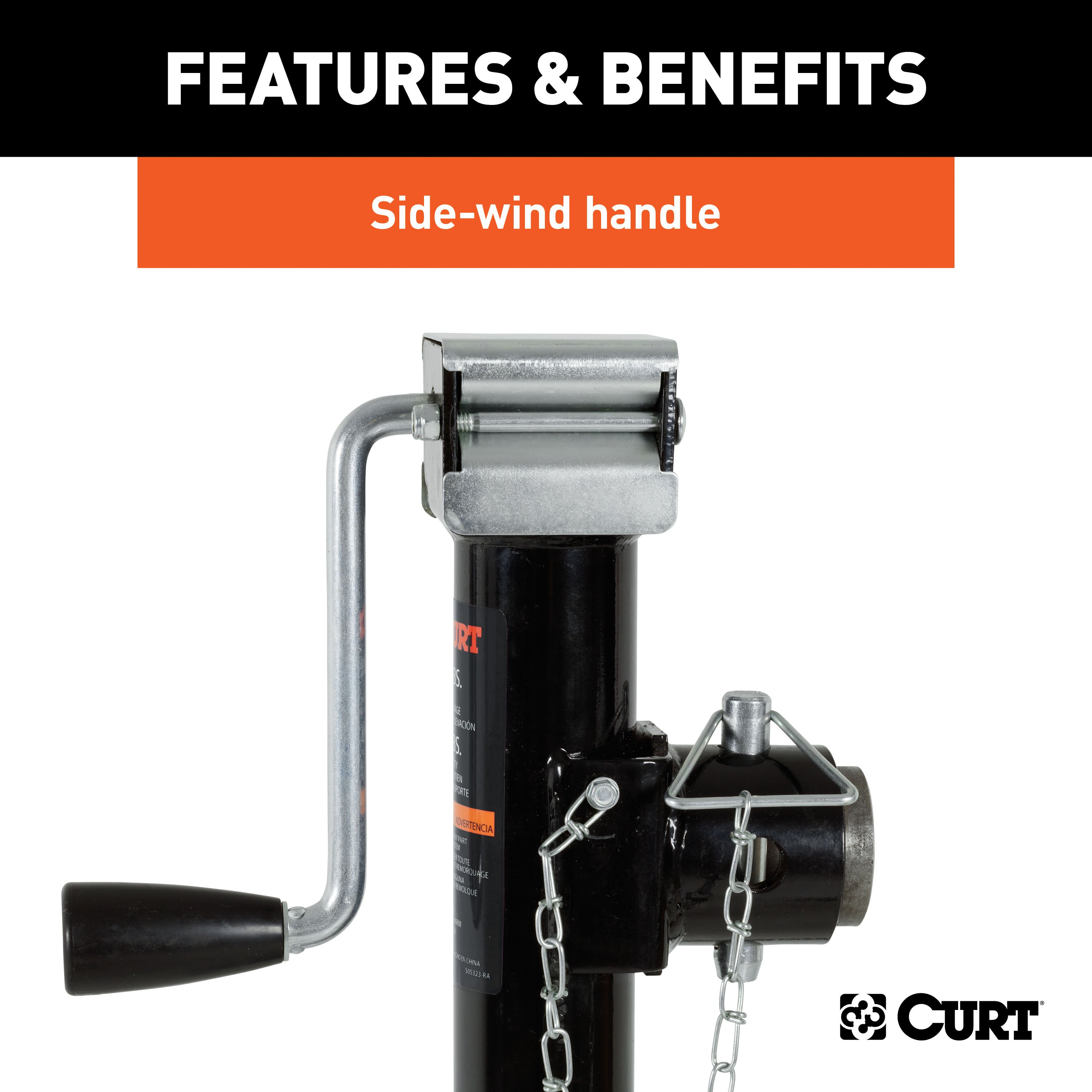

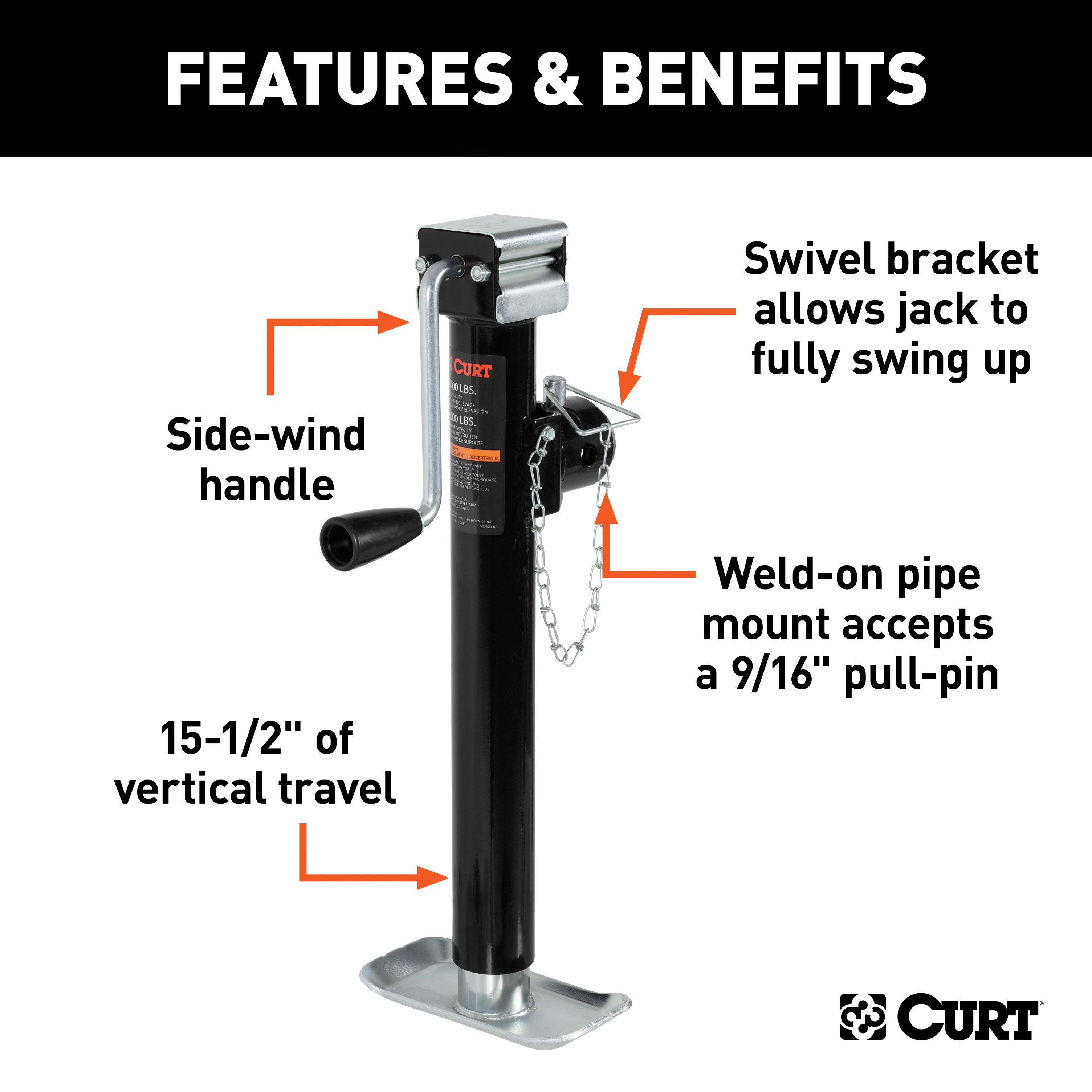

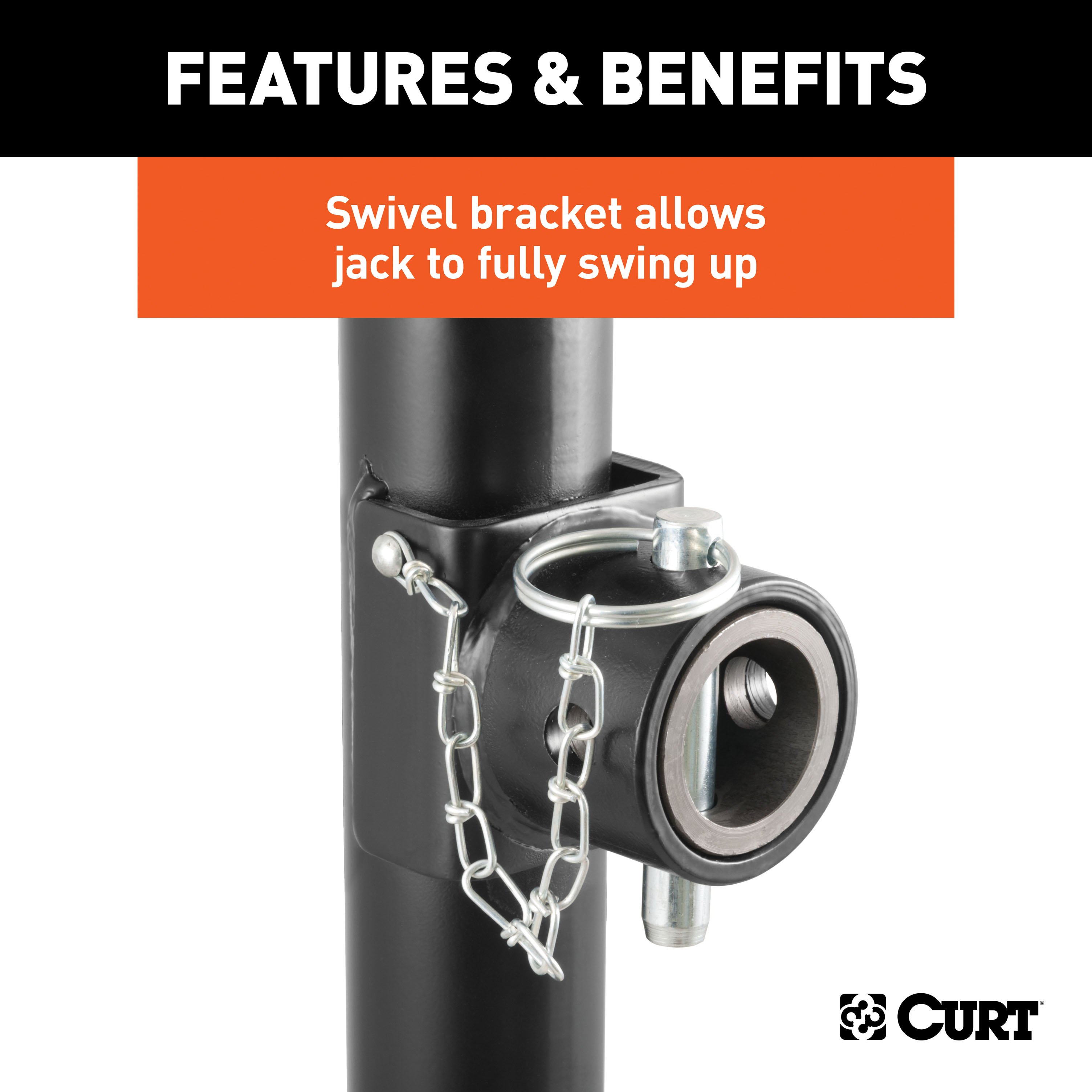

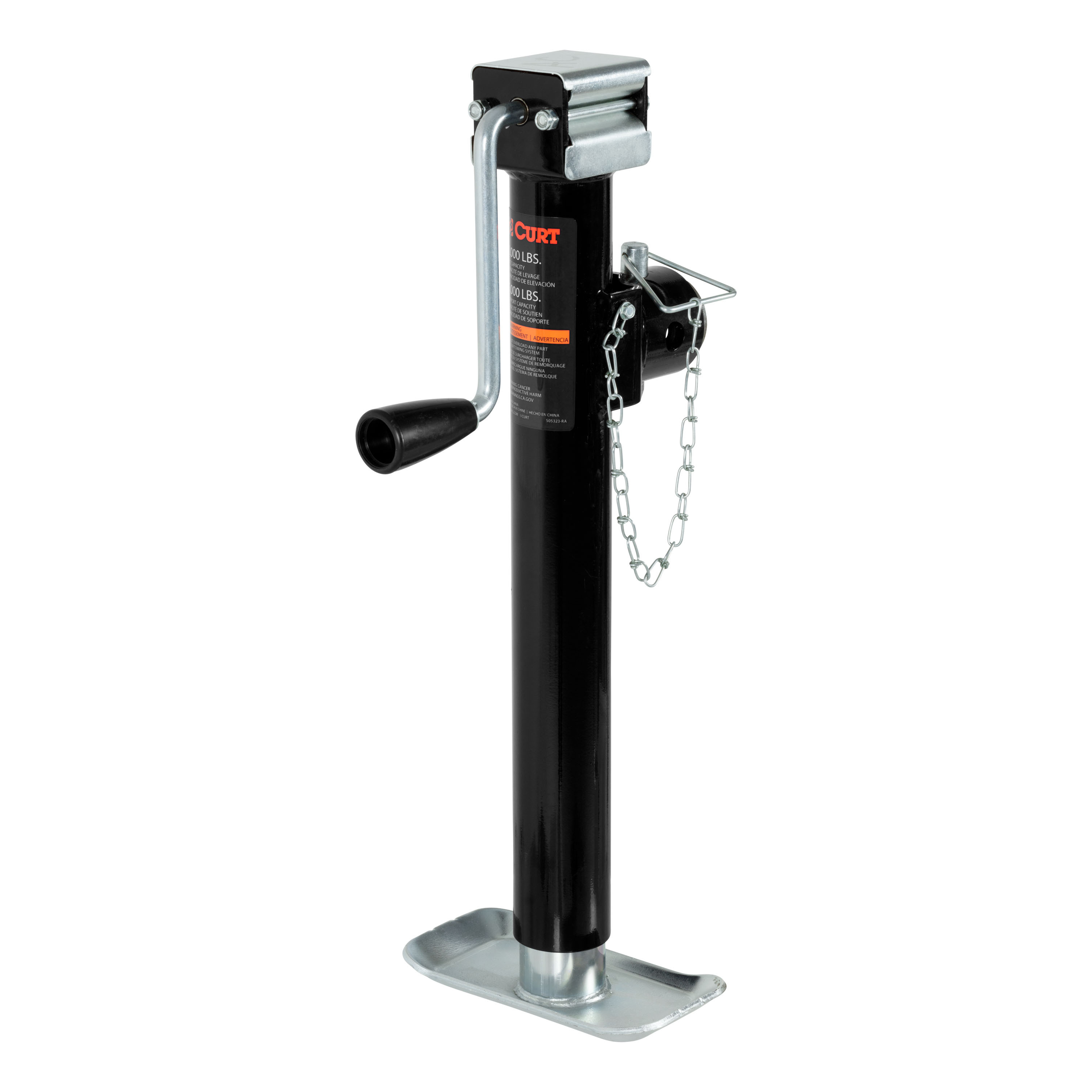

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT pipe mount swivel jack features a support capacity of 5,000 lbs., a lift capacity of 3,000 lbs. and a travel of 15". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and includes a weldable pipe with a 5/8" hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
The kit includes 1 jack and 4 weld-on pivot tubes. The exact specifications and any additional hardware are detailed in the parts list on the manual.
The weight carrying capacity is listed on the product label attached to the jack. Refer to that label for the specific capacity rating. Do not exceed this capacity, as doing so may result in severe product damage, serious personal injury or death.
A weld machine is required. All welding must be performed by an AWS certified welder. Proper tools will improve the quality of installation and reduce the time required.
Yes. All welding must be performed by an AWS certified welder. This is a mandatory requirement for safe and proper installation.
The trailer MUST be supported per the manufacturer's recommendations before working underneath. Failure to do so may result in death, serious personal injury or severe product or property damage. Additionally, keep people and pets at a safe distance during installation and operation of the trailer jack. Moving parts can pinch, crush or cut, so keep clear and use caution.
Place the pivot tube against the frame of the trailer and align one set of pivot mounting holes vertically. This alignment is critical for proper jack operation.
Use a minimum 3/16" weld all-around the pivot tube. This weld size is required to ensure structural integrity and safe operation of the jack.
Mount the jack to the pivot tube and secure it using the supplied pin. The pin is the fastening method provided in the kit.
The kit includes 1 jack and 4 weld-on pivot tubes. Weight capacity is listed on the product label.
Yes. A weld machine and AWS certified welder are required. A minimum 3/16" weld all-around the pivot tube is specified.
The trailer MUST be supported per the manufacturer's recommendations before working underneath. Failure to do so may result in death or serious injury.
| Bulk # | Pkg # | Lift Capacity | Wind | Travel | Hole Size | Handle Type | Style | Retracted Ht. | Extended Ht. |
|---|---|---|---|---|---|---|---|---|---|
| 28320 | -- | 2,000 lbs. | Top | 10" | 10-3/4" | Claw | Pipe-mount | 11" | 21-3/4" |
| 25006 | -- | 5,000 lbs. | Top | 10" | 9/16" | Claw | Pipe-mount | 11-1/4" | 21-1/4" |
| 28356 | -- | 5,000 lbs. | Top | 15" | 5/8" | Claw | Pipe-mount | 15-1/2" | 31-1/2" |
| 28322 | 28323 | 5,000 lbs. | Side | 10" | 9/16" | Claw | Pipe-mount | 16" | 31" |
| 28321 | -- | 2,000 lbs. | Side | 10" | 9/16" | Straight | Pipe-mount | 17-1/2" | 28-1/2" |
| 28324 | -- | 5,000 lbs. | Side | 10" | 5/8" | Straight | Pipe-mount | 10-1/4" | 20-1/4" |
| 25005 | -- | 3,000 lbs. | Side | 15" | 5/8" | Straight | Pipe-mount | 15-1/2" | 30-1/2" |
| 28312 | -- | 5,000 lbs. | Side | 15" | 3/4" | Straight | Pipe-mount | 15-1/2" | 30-1/2" |
| 28300 | 28301 | 2,000 lbs. | Top | 10-1/2" | -- | Claw | Bracket-mount | 11-1/2" | 21-1/2" |
| 28302 | -- | 2,000 lbs. | Side | 10" | -- | Straight | Bracket-mount | 11" | 18-1/2" |
| 28304 | -- | 2,000 lbs. | Top | 15-1/4" | -- | Claw | Bracket-mount | 16" | 31-1/4" |
| 28306 | -- | 2,000 lbs. | Side | 14-1/2" | -- | Straight | Bracket-mount | 15-1/2" | 30" |
