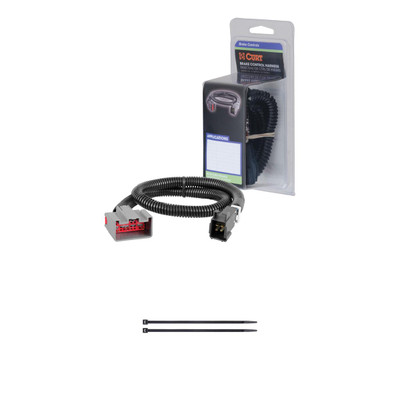

CURT Brake Controller Harness, Select Ford, Land Rover, Lincoln, Mercury (Packaged) Trailer Brake Control HarnessCURT$35.40In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2014 Ford E-350 Super Duty
Confirmed to Fit
2009 - 2014 Ford E-450 Super Duty
Confirmed to Fit
2013 - 2014 Ford Expedition
Confirmed to Fit
2008 - 2016 Ford F-250 Super Duty
Confirmed to Fit
2008 - 2016 Ford F-350 Super Duty
Confirmed to Fit
2008 - 2016 Ford F-450 Super Duty
Confirmed to Fit
2008 - 2016 Ford F-550 Super Duty
Confirmed to Fit
2013 - 2014 Lincoln Navigator
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 5

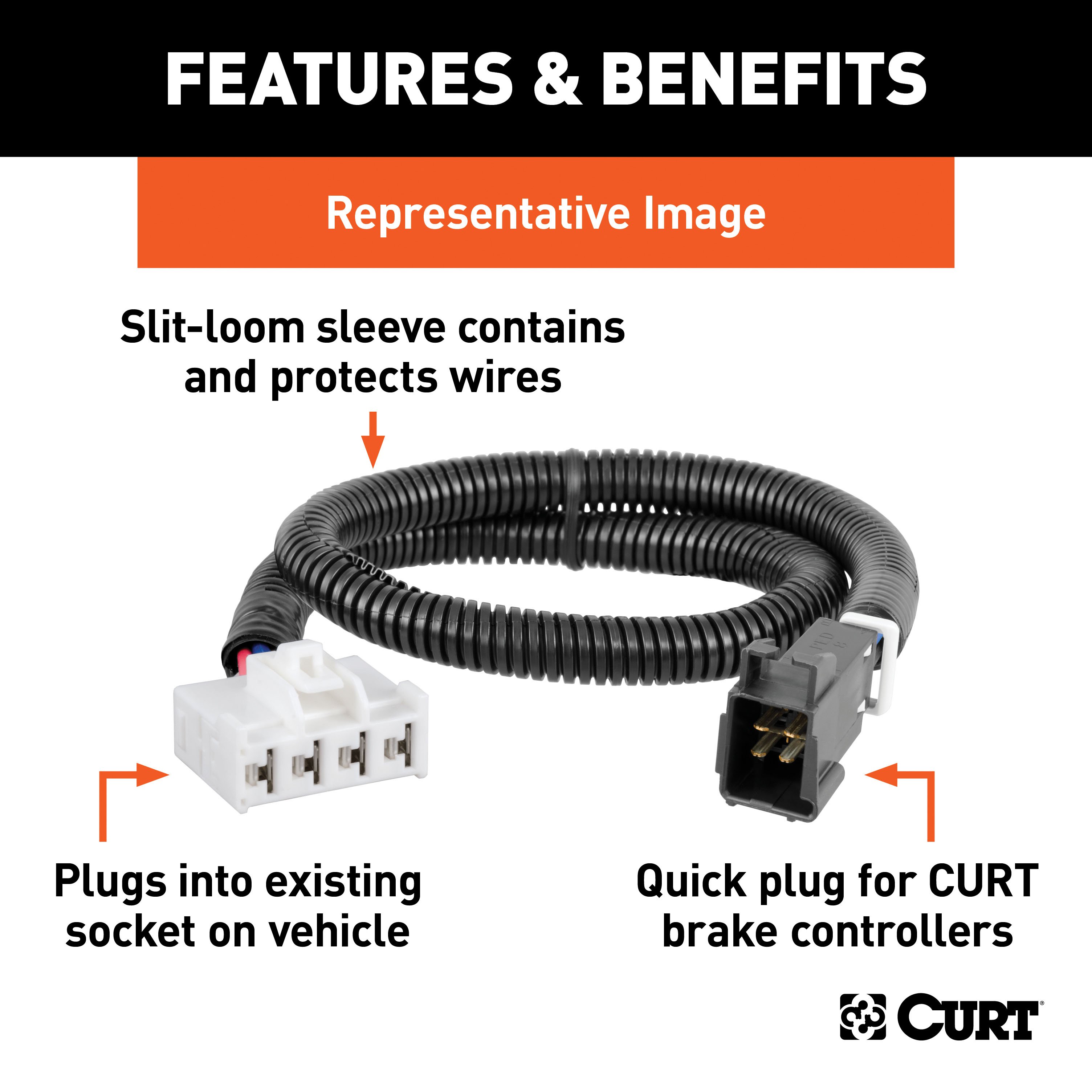

A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle. It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle?s factory brake controller socket. The other end plugs into your CURT trailer brake controller. Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation. This particular brake controller harness fits certain years of the Ford E150, E250, E350 Super Duty, E450 Super Duty, Expedition, F250 Super Duty, F350 Super Duty, F450 Super Duty, F550 Super Duty and Lincoln Navigator (see application info to verify fitment). CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation. They're also great for towing all types of trailers with electric brakes. For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long. It also features a slit loom sleeve to keep the wires protected against crushing and abrasions. CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
11 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2014 | Ford E-150 | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2009 - 2014 | Ford E-250 | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2009 - 2014 | Ford E-350 Super Duty | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2009 - 2014 | Ford E-450 Super Duty | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2013 - 2014 | Ford Expedition | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2008 - 2016 | Ford F-250 Super Duty | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2008 - 2010 | Ford F-250 Super Duty | Installation Time: 30-60 minutes |
| 2008 - 2016 | Ford F-350 Super Duty | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2008 - 2016 | Ford F-450 Super Duty | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2008 - 2016 | Ford F-550 Super Duty | Installation Location: BH5 Installation Time: 30-60 minutes |
| 2013 - 2014 | Lincoln Navigator | Installation Location: BH5 Installation Time: 30-60 minutes |
Yes, the CURT Trailer Brake Controller Harness, Select Ford, Lincoln (Packaged) Trailer Brake Control Harness (Part #BKDK51433) is designed to fit the 2009-2014 Ford E-150.
The CURT Trailer Brake Controller Harness, Select Ford, Lincoln (Packaged) Trailer Brake Control Harness (Part #BKDK51433) fits 2009-2014 Ford E-150 models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Trailer Brake Controller Harness, Select Ford, Lincoln (Packaged) Trailer Brake Control Harness (Part #BKDK51433) fits the following vehicles: 2009-2014 Ford E-150; 2009-2014 Ford E-250; 2009-2014 Ford E-350 Super Duty; 2009-2014 Ford E-450 Super Duty; 2013-2014 Ford Expedition; 2008-2016 Ford F-250 Super Duty; 2008-2016 Ford F-350 Super Duty; 2008-2016 Ford F-450 Super Duty; 2008-2016 Ford F-550 Super Duty; 2013-2014 Lincoln Navigator. Always verify your specific year, make, and model before ordering.
The CURT Trailer Brake Controller Harness, Select Ford, Lincoln (Packaged) Trailer Brake Control Harness (Part #BKDK51433) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the CURT brake control harness is designed for Ford Expedition. It is also compatible with Ford Econoline van, Ford F-250/F-350 Super Duty, Ford F-450/F-550 Super Duty, and Lincoln Navigator. Confirm your specific model year with the manufacturer if you are unsure.
Yes, the CURT brake control harness (51432 or 51433) is compatible with Lincoln Navigator.
Yes, the CURT brake control harness (51432 or 51433) is compatible with both Ford F-450 and F-550 Super Duty trucks.
The CURT brake control harness connects your vehicle's electrical system to a brake control unit. It allows the brake control unit to interface with your vehicle's braking system. The harness must be used with a brake control unit (sold separately) and installed according to the manufacturer's instructions.
The manual does not specify whether battery disconnection is required. Contact CURT at 877.287.8634 or consult your vehicle's service manual before beginning installation.
You will need a trim panel removal tool to remove the center dash access panel on the passenger side. The manual does not specify additional tools required.
The brake control harness connector (BH5) is located under the dash, behind the center access panel on the passenger side. The harness routes along the back of the dash and out the bottom to connect to the brake control unit.
1. Make sure the vehicle is off and keys are removed from the ignition. 2. Locate the access panel in the center of the dash on the passenger side. 3. Using a trim panel removal tool, locate the notch in the panel and pry it out and away from the dash. 4. Take care not to damage the trim or locking tabs on the back. 5. Separate the housings attaching the panel and set the panel aside.
If your vehicle has a factory brake control, locate the grey vehicle brake control harness connector plugged into the back of the factory brake control unit. You may need to unplug additional harnesses to access it. Then proceed to Step 4 to connect the CURT harness. Note: Disconnecting the factory brake control will cause a fault code to display on the message center of the dash.
On vehicles without a factory brake control, the grey vehicle brake control harness connector is located on the back of the trim panel directly to the left of the access panel.
Carefully pull the housing towards the access panel and insert the connector on the CURT brake control harness into the vehicle connector. Make sure the connector is fully inserted with locking tabs in place.
Route the brake control harness along the back of the dash and out the bottom to the brake control unit. Tip: Use a flashlight to shine light up through the bottom of the dash to locate a hole to exit the dash.

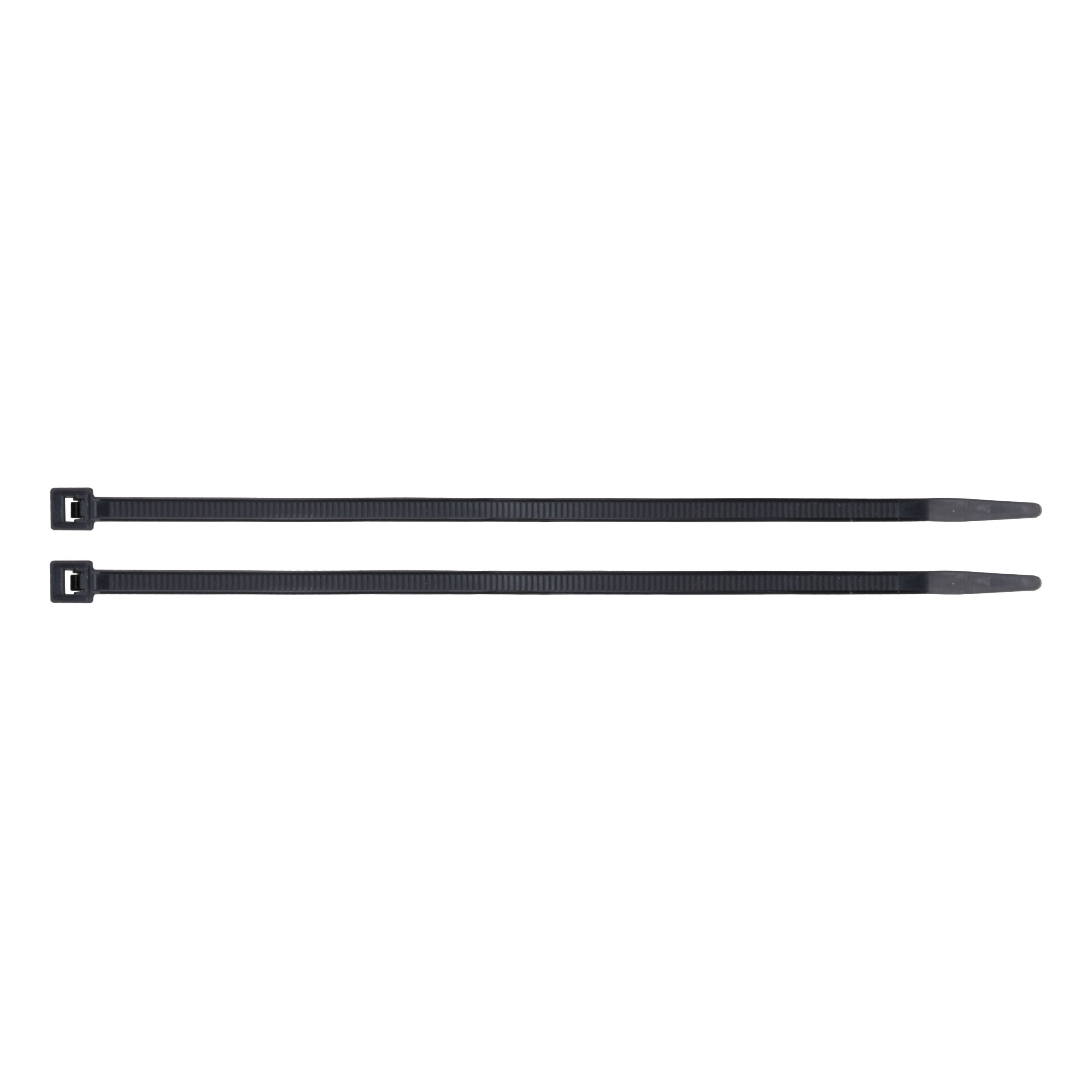

Insert the brake control harness's black connector into the brake control's quick plug connector. Secure the brake control harness with the provided cable ties, avoiding any pinch points.
After the brake control harness is installed, plug in all connectors that were not used back into the original housings and reinstall the access panel. Then complete the installation using the brake control unit's instructions, mount the unit as directed, and perform test procedures as instructed in the brake control user manual.
The manual instructs you to avoid pinch points when securing the brake control harness with cable ties. Pinching the harness could damage the wiring and cause electrical failure or safety issues. Use the provided cable ties to secure the harness safely along its route.
When you disconnect the factory installed brake control, a fault code will display on the message center of the dash. This is normal and expected during installation.
After installation, test for proper function by following the brake control unit instruction manual. The manual emphasizes that all installation steps must be followed to ensure the brake control harness will function properly.
The harness fits Ford Econoline van, Ford Expedition, Ford F-250/F-350 Super Duty, Ford F-450/F-550 Super Duty, and Lincoln Navigator. Confirm your model year with the manufacturer.
Yes, you must remove the center dash access panel on the passenger side using a trim panel removal tool. Take care not to damage the trim or locking tabs.
Remove the center dash panel, locate the vehicle brake control connector, insert the CURT harness connector, route the harness to the brake control unit, connect the black connector to the brake control, secure with cable ties, reinstall the dash panel, and test per the brake control manual.
Turn off the vehicle and remove the keys before starting. Do not damage the trim panel or locking tabs. Avoid pinching the harness with cable ties. All steps must be followed to ensure proper function.
Test for proper function by following the brake control unit instruction manual. Ensure all connectors are fully inserted with locking tabs in place.
