CURT Trailer Brake Controller Harness, Select Toyota, Lexus Trailer Brake Control HarnessCURT$28.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2008 - 2011, 2013 - 2021 Lexus LX570
Confirmed to Fit
2003 - 2026 Toyota 4Runner
Confirmed to Fit
2003 - 2011, 2013 - 2021 Toyota Land Cruiser
Confirmed to Fit
2003 - 2026 Toyota Sequoia
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 5

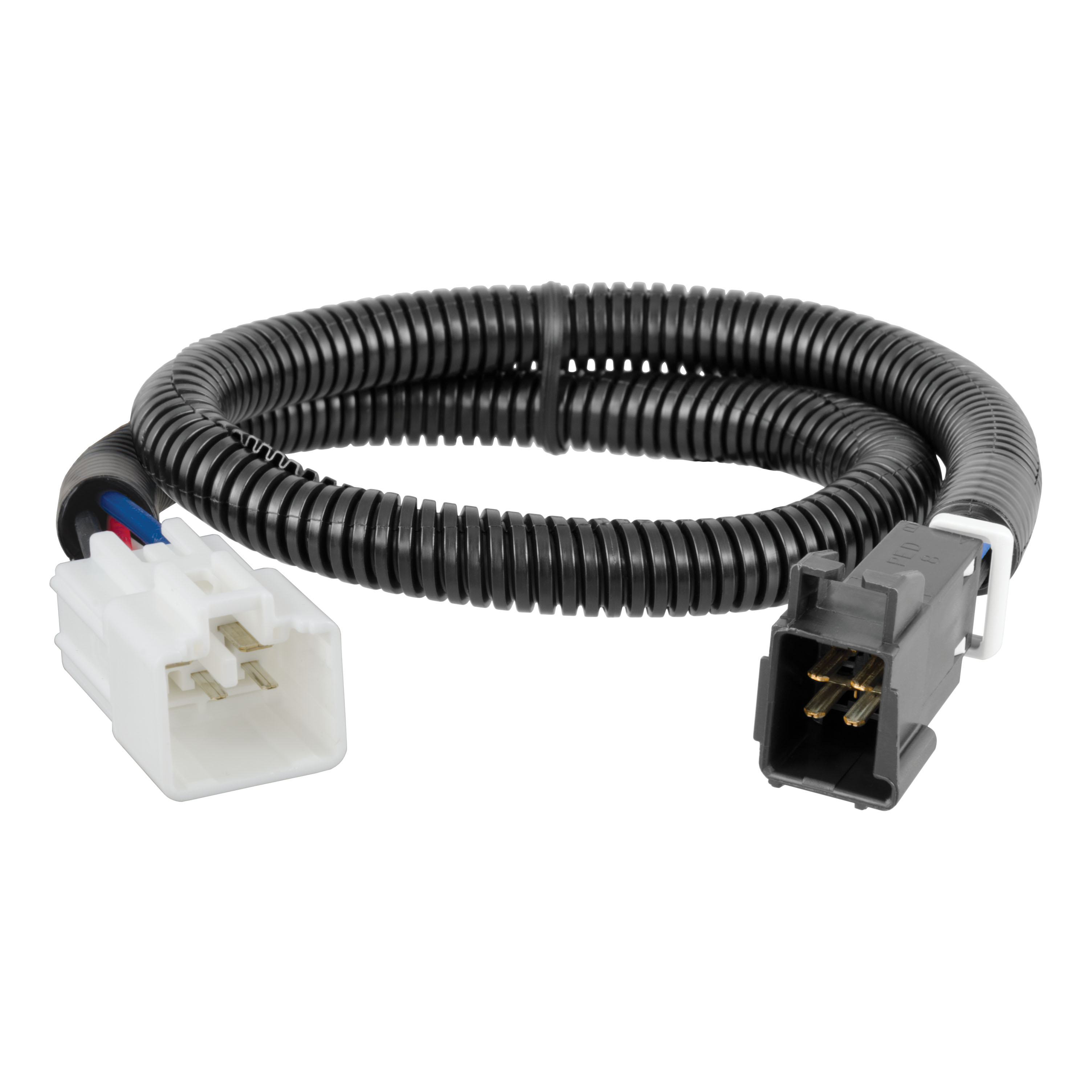

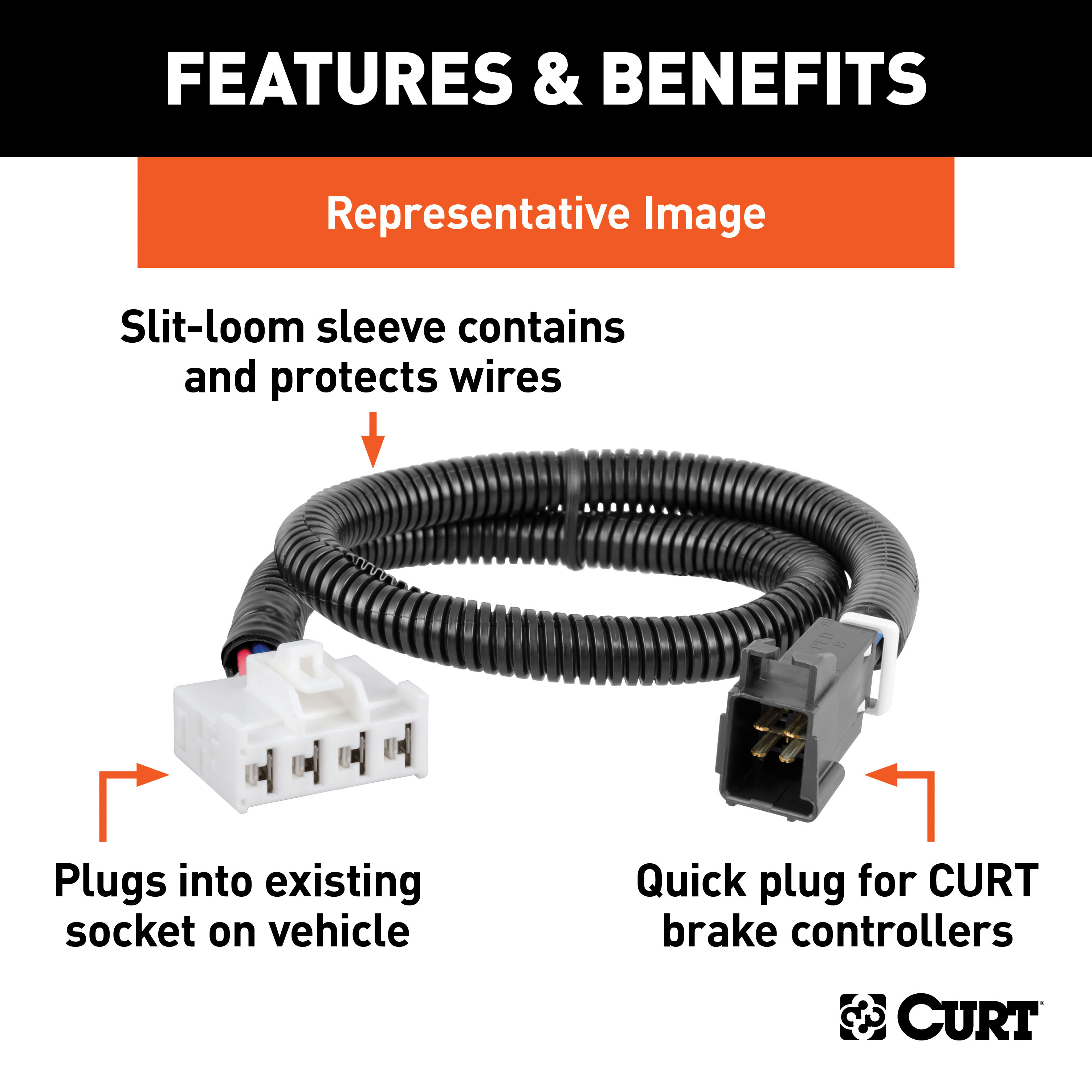

A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle. It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle?s factory brake controller socket. The other end plugs into your CURT trailer brake controller. Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation. This particular brake controller harness fits certain years of the Toyota 4Runner, Land Cruiser, Sequoia, Tacoma, Tundra, Lexus GX460, GX470, LX470, LX570 and LX600 (see application info to verify fitment). CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation. They're also great for towing all types of trailers with electric brakes. For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long. It also features a slit loom sleeve to keep the wires protected against crushing and abrasions. CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
10 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2023 | Lexus GX460 | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2003 - 2009 | Lexus GX470 | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2003 - 2007 | Lexus LX470 | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2008 - 2011, 2013 - 2021 | Lexus LX570 | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2022 - 2026 | Lexus LX600 | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2003 - 2026 | Toyota 4Runner | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2003 - 2011, 2013 - 2021 | Toyota Land Cruiser | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2003 - 2026 | Toyota Sequoia | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2007 - 2015 | Toyota Tacoma | Installation Location: BH1 Installation Time: 30-60 minutes |
| 2003 - 2014 | Toyota Tundra | Installation Location: BH1 Installation Time: 30-60 minutes |
Yes, the CURT Trailer Brake Controller Harness, Select Toyota, Lexus (Packaged) Trailer Brake Control Harness (Part #BKDK51363) is designed to fit the 2010-2023 Lexus GX460.
The CURT Trailer Brake Controller Harness, Select Toyota, Lexus (Packaged) Trailer Brake Control Harness (Part #BKDK51363) fits 2010-2023 Lexus GX460 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Trailer Brake Controller Harness, Select Toyota, Lexus (Packaged) Trailer Brake Control Harness (Part #BKDK51363) fits the following vehicles: 2010-2023 Lexus GX460; 2003-2009 Lexus GX470; 2003-2007 Lexus LX470; 2008-2021 Lexus LX570; 2022-2026 Lexus LX600; 2003-2022 Toyota 4Runner; 2003-2021 Toyota Land Cruiser; 2003-2026 Toyota Sequoia; 2007-2015 Toyota Tacoma; 2003-2014 Toyota Tundra. Always verify your specific year, make, and model before ordering.
The CURT Trailer Brake Controller Harness, Select Toyota, Lexus (Packaged) Trailer Brake Control Harness (Part #BKDK51363) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
The CURT brake control harness is designed for Lexus GX 460, GX 470, LX 470, and LX 570, and Toyota 4Runner, Land Cruiser, Sequoia, Tacoma, and Tundra models. Verify your exact make and model against the compatibility list in the installation instructions. If your vehicle is not listed, contact CURT Manufacturing at 1.877.287.8634 to confirm fitment.
The kit includes the CURT brake control harness with a 5-pin vehicle connector and a black connector for the brake control unit, plus cable ties for securing the harness. The brake control unit itself is not included and must be purchased separately.
The 5-pin vehicle brake control harness connector is located under the dash, to the left of the steering column, near the emergency brake pedal. It will be taped to another harness. The connector is similar in appearance to the CURT brake control harness connector.
1. Locate the 5-pin vehicle brake control harness connector under the dash, left of the steering column, near the emergency brake pedal. 2. Insert the CURT brake control harness connector into the vehicle connector, ensuring it is fully inserted with locking tabs in place. 3. Insert the black connector on the CURT harness into the brake control unit's quick plug connector. 4. Secure the harness with the provided cable ties, avoiding pinch points.
When connecting the CURT brake control harness connector to the vehicle connector, push it in until it seats completely and the locking tabs on the connector engage. This ensures a secure, reliable connection. If the connector does not feel fully seated or the tabs do not lock, remove it and reinsert it.
Pinching the harness can damage the wiring insulation, leading to electrical shorts, loss of brake control function, or safety hazards. Use the provided cable ties to route and secure the harness away from moving parts, sharp edges, and areas where it could be compressed or crushed.
After completing the installation, test the brake control harness for proper function by following the test procedures in the brake control unit instruction manual. The manual states that all steps must be followed to ensure the harness will function properly, and testing is required before use.
Yes. The CURT brake control harness is a connector harness only. You must purchase a compatible brake control unit separately and mount it according to the brake control unit's instruction manual. The harness connects your vehicle's brake system to the brake control unit.
Lexus GX 460, GX 470, LX 470, LX 570; Toyota 4Runner, Land Cruiser, Sequoia, Tacoma, Tundra. Verify your exact model in the compatibility table.
The manual does not specify whether professional installation is required. Contact CURT Manufacturing at 1.877.287.8634 for guidance on installation difficulty and whether a professional installer is recommended for your vehicle.
The manual does not specify what tools are required. Contact CURT Manufacturing at 1.877.287.8634 to confirm whether any tools are needed beyond the cable ties provided in the kit.
The manual does not specify whether the battery must be disconnected. Contact CURT Manufacturing at 1.877.287.8634 for safety guidance before beginning installation.
The manual does not mention drilling, cutting, trimming, or modifications. The harness connects to an existing vehicle connector under the dash. Contact CURT Manufacturing at 1.877.287.8634 if you have concerns about fitment in your specific vehicle.
