Draw-Tite Hardware Kit For Class 1 Trailer Hitch, 1-1/4 Inch 24852 For 2010-2011 Honda Accord Crosstour Draw-tite$39.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
On Sale Today
Original price was $335.00. Current price is $250.71.2010 - 2011 Honda Accord Crosstour
Confirmed to Fit
2012 - 2015 Honda Crosstour
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
You save $84.29 (25%)
Free Shipping
Ships free on all orders
Authorized DealerVerify Fitment
Select your vehicle to confirm this part fits.
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Sep 22 - Fri, Sep 25
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Total for 5 items:
$401.29$485.58

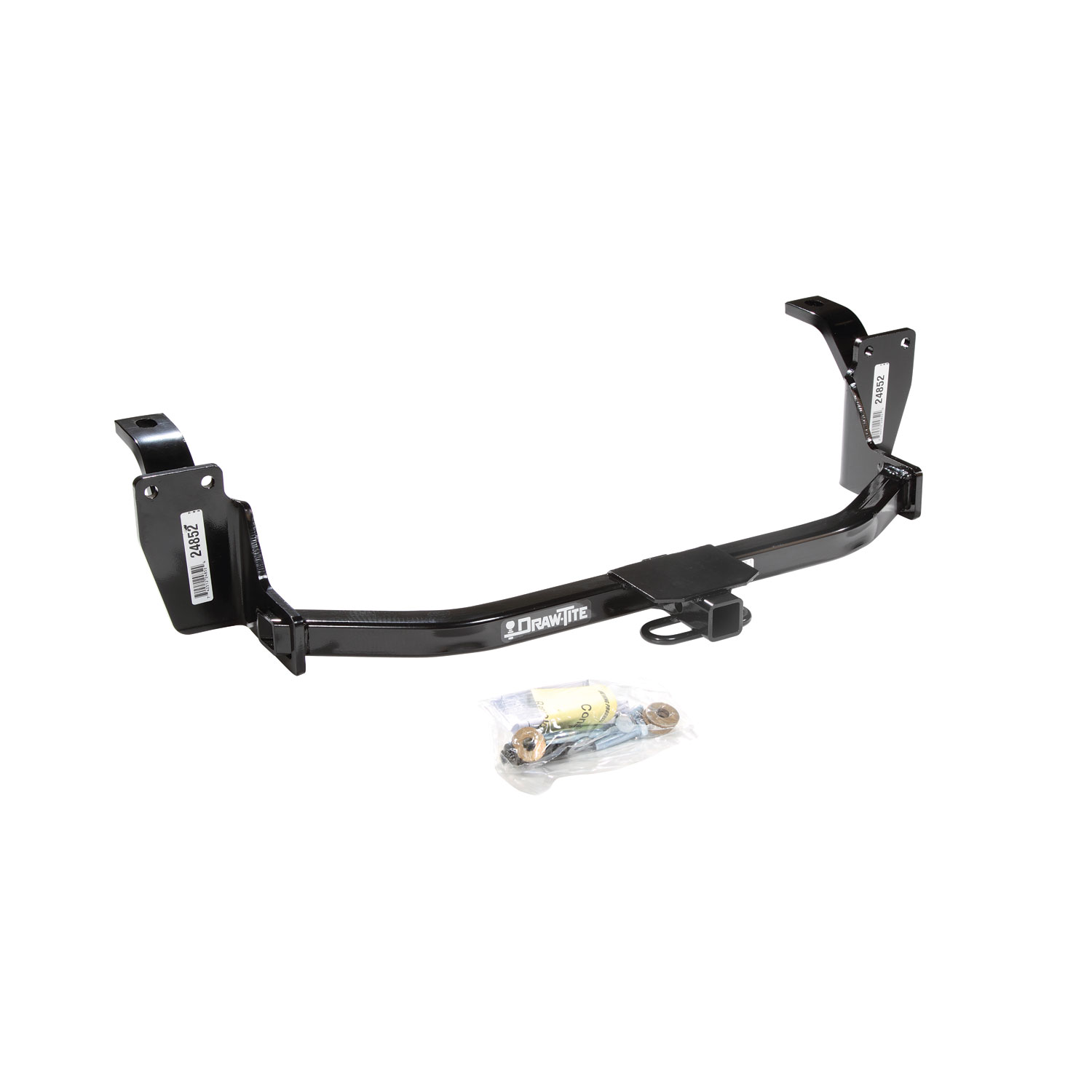

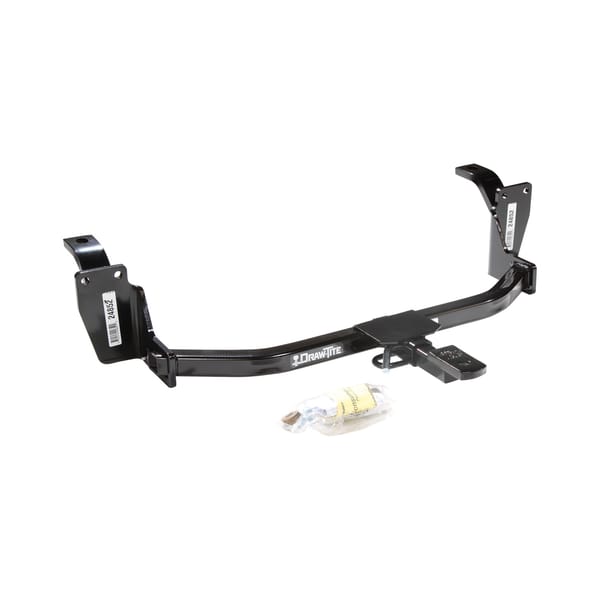

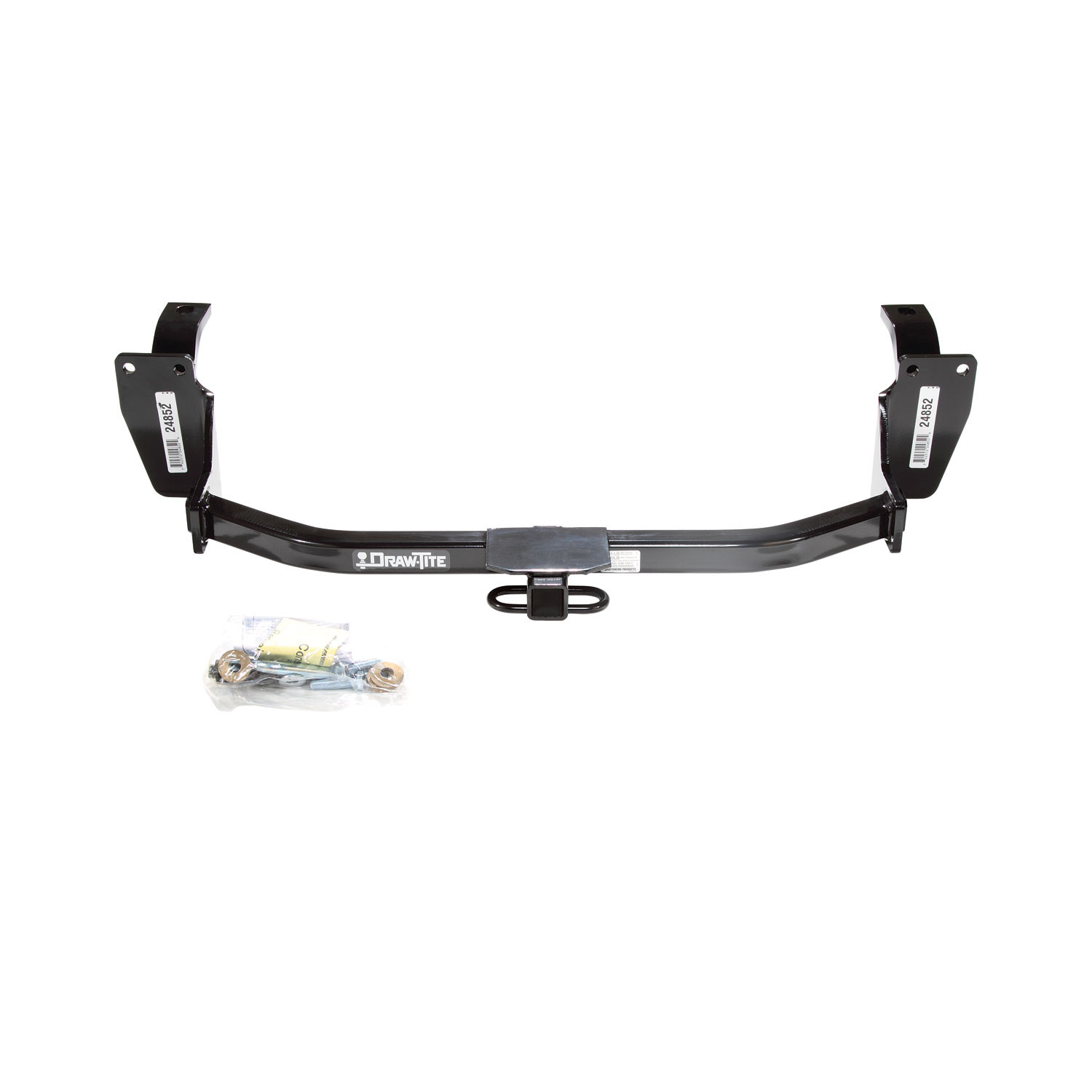

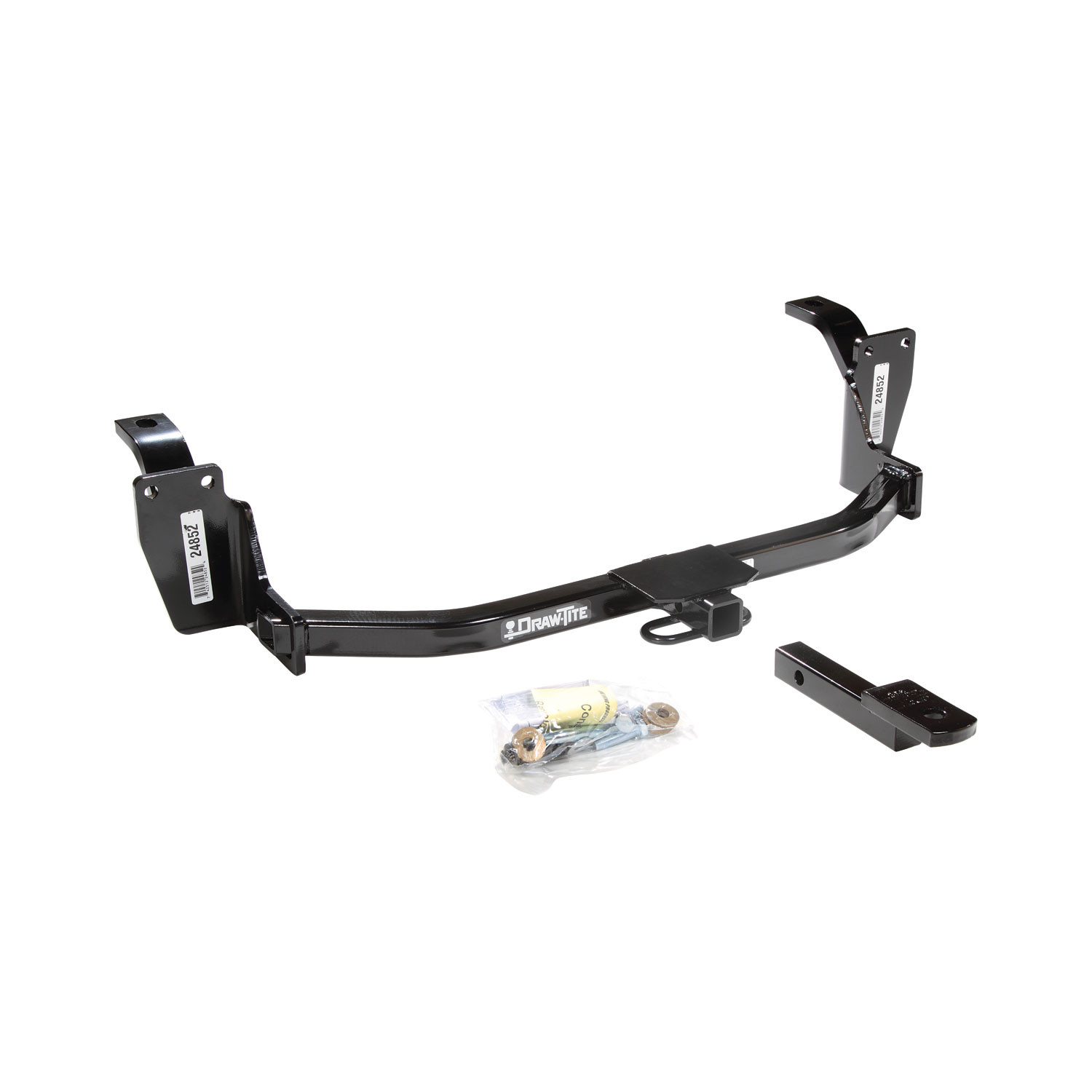

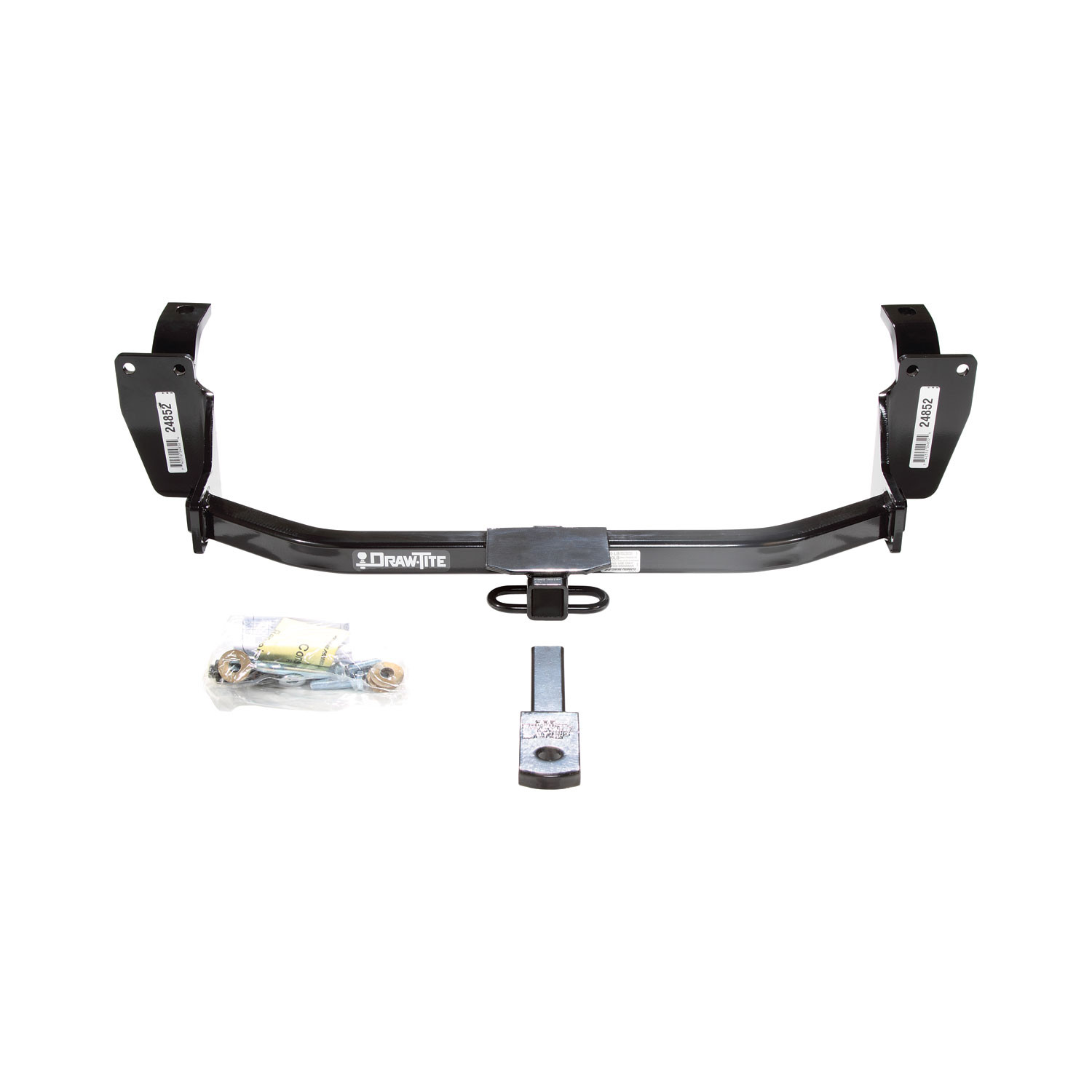

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24852 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 26.3 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda Accord Crosstour, Honda Crosstour 24852 (Part #DT24852) fits 2010-2011 Honda Accord Crosstour models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda Accord Crosstour, Honda Crosstour 24852 (Part #DT24852) fits the following vehicles: 2010-2011 Honda Accord Crosstour; 2012-2015 Honda Crosstour. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda Accord Crosstour, Honda Crosstour 24852 (Part #DT24852) is designed to fit the 2010-2011 Honda Accord Crosstour.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda Accord Crosstour, Honda Crosstour 24852 (Part #DT24852) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 24852 hitch fits all Honda Accord Crosstour models including EX-2WD, EXL-2WD, and EXL-AWD. The installation uses existing weldnuts in the vehicle frame and does not require modifications specific to drivetrain or trim level.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (91 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating.
You will need wrenches in 10mm, 13mm, and 17mm sizes, a torque wrench, spray lubricant, and metal shears. A torque wrench is essential because fasteners must be tightened to specific torque values: 8mm-1.25 bolts to 25 Lb.-Ft. (34 N·M) and 10mm-1.25 bolts to 42 Lb.-Ft. (57 N·M).

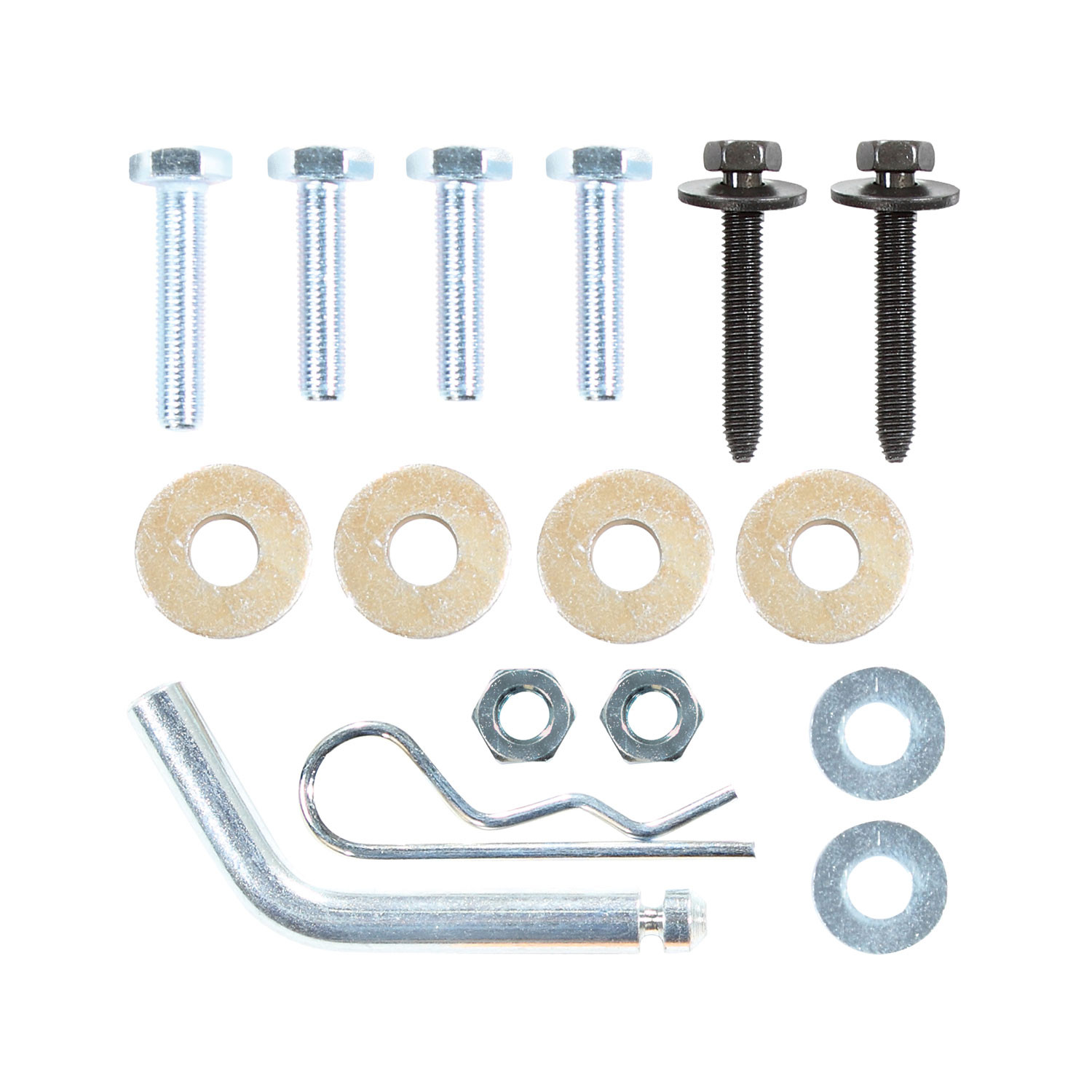

The hitch includes: 2× M8-1.25 × 55mm Grade 9.8 bolts with washers, 4× M10-1.25 × 40mm Grade 8.8 hex bolts, 2× M10-1.25 hex nuts, 4× conical toothed washers (7/16"), and 2× flat washers (3/8"). These are supplied in fastener kit 24852F. The installation also reuses existing 8mm bolts from the vehicle frame.
You do not need to remove the exhaust system completely, but you must lower the mufflers and exhaust hangers to access and trim the muffler heat shields. Drop the mufflers by removing rubber isolator hangers from metal pegs on both sides, and also drop the rubber exhaust hangers located further forward near the rear axle. Spray lubricant on the rubber isolators to help them slide off more easily.
No drilling is required. The hitch uses existing weldnuts in the vehicle frame and existing holes in the frame end panels. However, you must trim the muffler heat shields by cutting out a corner section of approximately 4-1/4" × 4-1/4" from both the driver's side and passenger's side shields using metal shears.
Using metal shears, cut out a corner section of approximately 4-1/4" × 4-1/4" from both the driver's side and passenger's side heat shields. The heat shields must be trimmed and reinstalled before the hitch is installed. Save the bolts that attach the heat shields so you can reinstall them after trimming.
1. Lower mufflers and exhaust hangers by removing rubber isolators from metal pegs. 2. Remove existing 8mm bolts from frame end panels (return to owner). 3. Remove plastic push rivets from bumper cover if needed for access. 4. Remove and trim muffler heat shields (cut 4-1/4" × 4-1/4" corners), then reinstall them. 5. Raise hitch into place and install 8mm bolts through hitch into existing weldnuts. 6. Install 10mm bolts with flat washers through hitch and frame end panels, add conical washers and hex nuts. 7. Install 10mm bolts with conical washers through hitch side arms into existing weldnuts. 8. Torque all fasteners to specification. 9. Reinstall muffler isolator hangers.
Tighten the 8mm-1.25 Grade 9.8 bolts to 25 Lb.-Ft. (34 N·M) using a torque wrench.
Tighten the 10mm-1.25 Grade 8.8 bolts to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Yes. You can remove the plastic push rivets holding the plastic bumper cover on both sides at the bottom of the bumper. Save these rivets as they will be reinstalled. This allows you to pull the bumper cover back for better hand and wrench access during installation.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is recommended to maintain safe operation.
No. The existing 8mm bolts are removed from the frame end panels and returned to the vehicle owner. They are replaced with new supplied 8mm-1.25 × 55mm Grade 9.8 bolts that are installed through the hitch into the existing weldnuts.
No. The muffler heat shields must be removed, trimmed (a 4-1/4" × 4-1/4" corner section cut from each), and then reinstalled before the hitch is installed. The bolts that attach the heat shields are saved and reused to reinstall them after trimming.
The hitch is attached using: 2× M8-1.25 × 55mm Grade 9.8 bolts (with washers) through the hitch into existing weldnuts on both sides; 4× M10-1.25 × 40mm Grade 8.8 bolts (with flat washers) through the hitch and frame end panels, secured with conical toothed washers and M10-1.25 hex nuts; and 4× M10-1.25 × 40mm Grade 8.8 bolts (with conical toothed washers) through the hitch side arms into existing weldnuts.
Yes, the 24852 hitch fits all Honda Accord Crosstour models including EX-2WD, EXL-2WD, and EXL-AWD.
You need wrenches (10mm, 13mm, 17mm), a torque wrench, spray lubricant, and metal shears. A torque wrench is essential for tightening bolts to the correct specifications.
No drilling is required. The hitch uses existing weldnuts and holes in the vehicle frame. However, you must trim the muffler heat shields by cutting a 4-1/4" × 4-1/4" corner section from each using metal shears.
8mm-1.25 bolts: 25 Lb.-Ft. (34 N·M); 10mm-1.25 bolts: 42 Lb.-Ft. (57 N·M). Use a torque wrench for all fasteners.
Maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (91 kg), but do not exceed your vehicle manufacturer's rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry.
Yes. You must lower the mufflers and exhaust hangers by removing rubber isolators from metal pegs to access and trim the muffler heat shields. Spray lubricant on the isolators to help them slide off.
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2011 | Honda Accord Crosstour | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2012 - 2015 | Honda Crosstour | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
