Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
1983 - 2011 Ford Ranger
Confirmed to Fit
1994 - 1997, 2002 - 2009 Mazda B2300
Confirmed to Fit
1998 - 2001 Mazda B2500
Confirmed to Fit
1994 - 2008 Mazda B3000
Confirmed to Fit
1994 - 2009 Mazda B4000
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

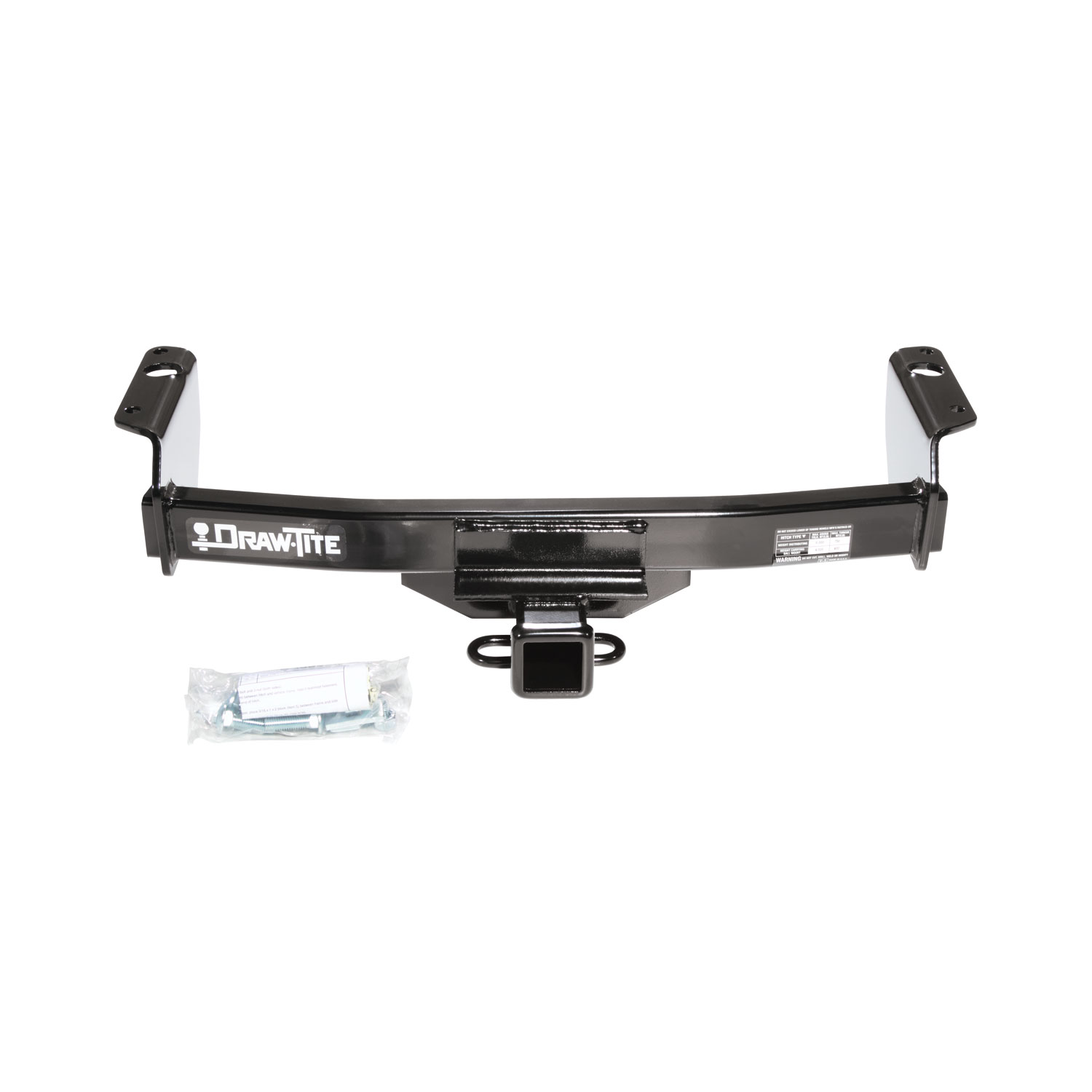

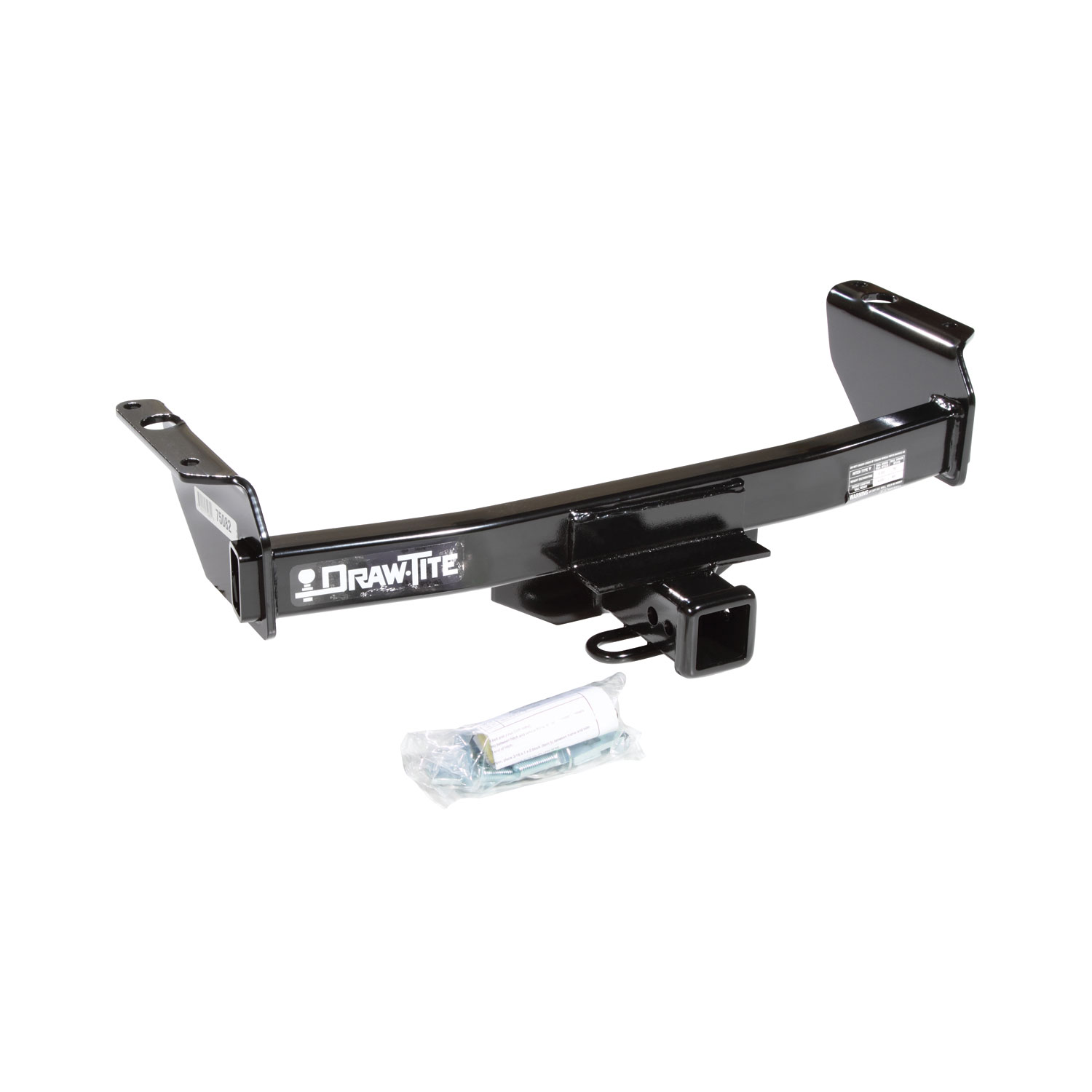

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 6,000 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75082 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30.5 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 400 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 6,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1983 - 2011 | Ford Ranger | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
| 1994 - 1997, 2002 - 2009 | Mazda B2300 | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
| 1998 - 2001 | Mazda B2500 | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
| 1994 - 2008 | Mazda B3000 | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
| 1994 - 2009 | Mazda B4000 | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger, Mazda B2300, Mazda B2500, Mazda B3000, Mazda B4000 75082 (Part #DT75082) fits the following vehicles: 1983-2011 Ford Ranger; 1994-2009 Mazda B2300; 1998-2001 Mazda B2500; 1994-2008 Mazda B3000; 1994-2009 Mazda B4000. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger, Mazda B2300, Mazda B2500, Mazda B3000, Mazda B4000 75082 (Part #DT75082) is designed to fit the 1983-2011 Ford Ranger.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger, Mazda B2300, Mazda B2500, Mazda B3000, Mazda B4000 75082 (Part #DT75082) fits 1983-2011 Ford Ranger models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Ranger, Mazda B2300, Mazda B2500, Mazda B3000, Mazda B4000 75082 (Part #DT75082) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 75082 is designed for Ford Ranger, Mazda B2300, Mazda B3000, and Mazda B4000 vehicles. The hitch is compatible with all these models.
Yes, the hitch is designed to work with step bumpers. When installing on a vehicle with a step bumper, you must remove the rearmost bumper bracket bolt and J-nut from both sides, then position the hitch so it sandwiches the bumper brackets between the hitch and vehicle frame. A 3/16" x 1" x 2" block (Item 5) must be placed between the frame and side brackets at the forward attachment point.
The 75082 hitch has two towing capacities depending on the hitch type: Weight Distributing hitch supports a maximum gross trailer weight of 6,000 lbs (2,724 kg) with a maximum tongue weight of 750 lbs (340.5 kg); Weight Carrying Ball Mount supports a maximum gross trailer weight of 4,000 lbs (1,816 kg) with a maximum tongue weight of 400 lbs (182 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating.
You will need: wrenches in 18mm, 19mm, and 7/8" sizes; a ½" drill bit; and a torque wrench. For 97 and prior model vehicles, a 19mm open end style wrench must be purchased separately to allow removal of the spare tire after hitch installation.

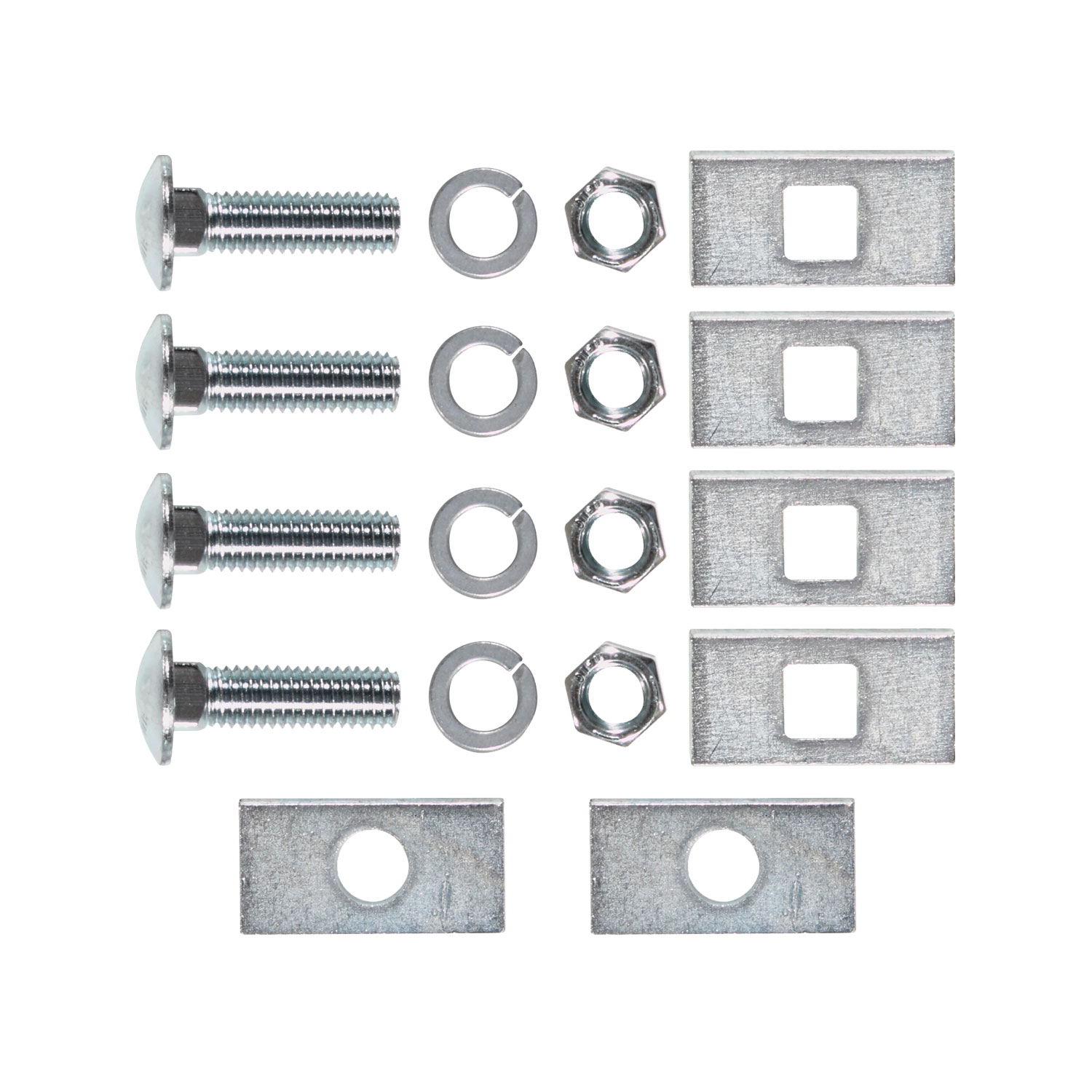

The fastener kit F75082 includes: (4) Carriage Bolts ½-13 x 1-3/4" (Item j); (4) Hex Nuts ½-13 (Item m); (4) Lock Washers ½" (Item l); (4) Blocks ¼" x 1" x 2" (Item k); and (2) Blocks 3/16" x 1" x 2" (Item n). All fasteners are Grade 5 (GR5).
The manual does not require spare tire removal for installation. However, it notes that relocation of the spare tire bracket is not required. For 97 and prior model vehicles, you must purchase a 19mm open end style wrench to allow removal of the spare tire after hitch installation is complete.
1. For vehicles with step bumper, remove the rearmost bumper bracket bolt and J-nut from both sides. 2. Position the hitch on the vehicle, sandwiching bumper brackets (if present) between the hitch and vehicle frame, and install the rearmost fasteners. 3. Using the hitch as a template, drill two ½" holes into the frame at the forward end of the hitch (note: on some models, holes may already exist). 4. Install the remaining fasteners as shown. For vehicles with step bumper, place a 3/16" x 1" x 2" block (Item 5) between the frame and side brackets at the forward attachment point.
Yes, drilling is required. You must drill two ½" holes into the frame at the forward end of the hitch using the hitch as a template. However, on some models these holes may already exist, so check before drilling. Do not use a torch to cut these holes.
All ½" Grade 5 (GR5) fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N*M).
A ½" drill bit is required to drill the two forward attachment holes into the frame.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. All ½" fasteners must be torqued to 75 Lb.-Ft. (102 N*M). Verify that the hitch is in the proper position as shown in the installation diagram.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a detailed maintenance schedule or retorque intervals beyond this general recommendation.
The manual does not specify whether the battery must be disconnected for installation of the 75082 hitch.
The manual does not specify whether professional installation is required or whether a second person is needed to install the 75082 hitch.
Yes, the 75082 is designed for Ford Ranger, Mazda B2300, Mazda B3000, and Mazda B4000. It works with step bumpers and does not require spare tire relocation.
You need wrenches (18mm, 19mm, 7/8"), a ½" drill bit, and a torque wrench. For 97 and prior models, also purchase a 19mm open end wrench for spare tire removal after installation.
All ½" Grade 5 fasteners must be torqued to 75 Lb.-Ft. (102 N*M) using a torque wrench.
Wear eye protection when installing. Do not use a torch to cut holes. Work safely beneath the vehicle. Check fasteners and ball frequently. If removed, plug all holes to prevent water and exhaust fumes from entering. Replace any damaged hitch or ball immediately.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
