Draw-Tite Hardware Kit For Class 3 Trailer Hitch, 2 Inch 76420 For 2024-2025 KIA Telluride Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2025 Hyundai Palisade
Confirmed to Fit
2020 - 2025 Kia Telluride
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

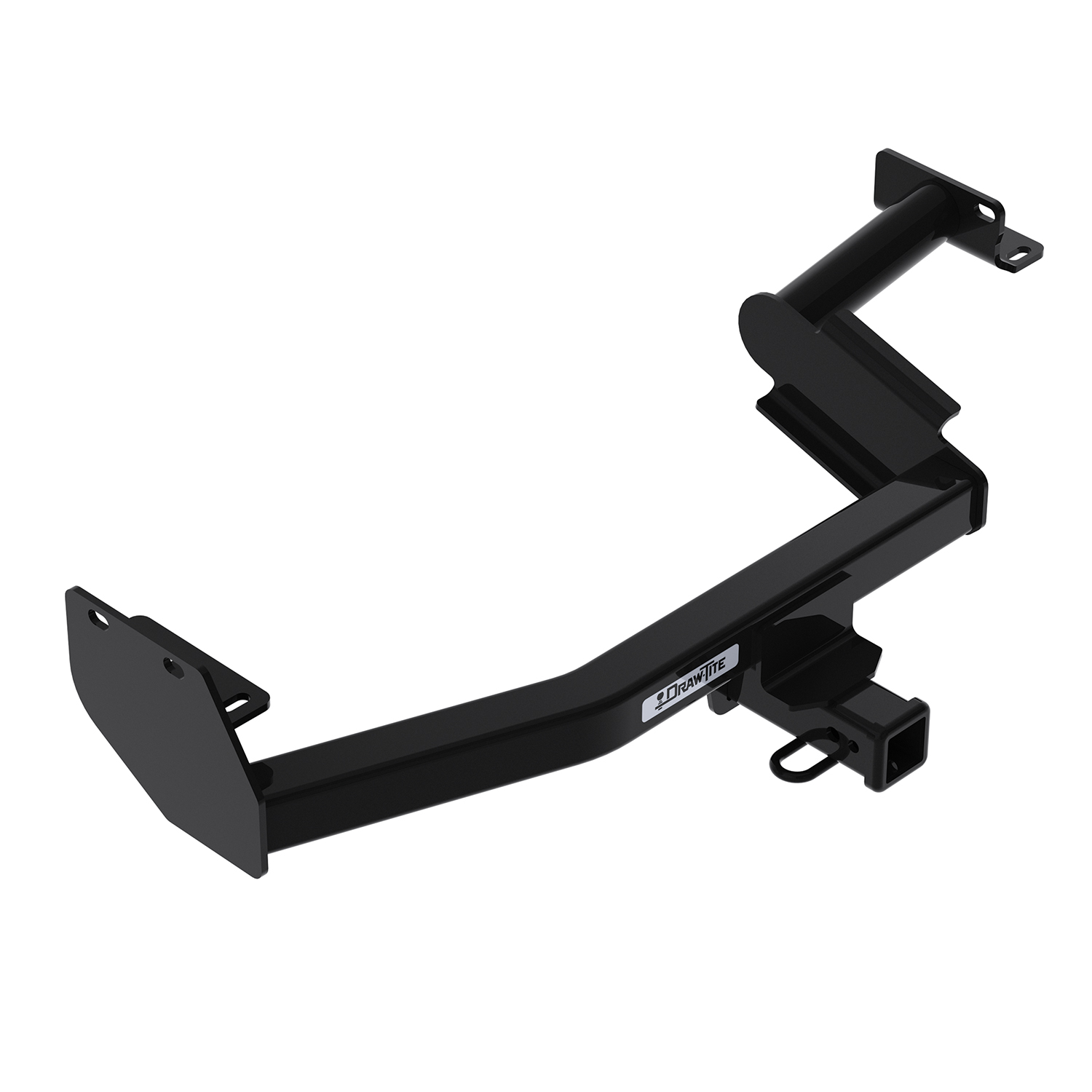

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 6,000 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76420 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 45.6 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 6,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Hyundai Palisade | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2020 - 2025 | Kia Telluride | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Palisade, KIA Telluride 76420 (Part #DT76420) is designed to fit the 2020-2025 Hyundai Palisade.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Palisade, KIA Telluride 76420 (Part #DT76420) fits the following vehicles: 2020-2025 Hyundai Palisade; 2020-2025 Kia Telluride. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Palisade, KIA Telluride 76420 (Part #DT76420) fits 2020-2025 Hyundai Palisade models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Palisade, KIA Telluride 76420 (Part #DT76420) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76420, 84420, and CQT76420 are designed for 2020-Current Kia Telluride models. Visit the manufacturer's website at www.horizonglobal.com for the most up-to-date information regarding specific trim levels and model years.
Yes, part numbers 76420, 84420, and CQT76420 fit 2020-Current Hyundai Palisade models. Check the manufacturer's website at www.horizonglobal.com for the most current information on trim levels and model years.
A weight-carrying hitch has a maximum gross trailer weight of 5000 lb. (2270 kg) and a maximum tongue weight of 500 lb. (227 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
A weight-distributing hitch has a maximum gross trailer weight of 6000 lb. (2721 kg) and a maximum tongue weight of 750 lb. (340 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools include: ratchet, safety glasses, sockets (¾", 16 mm, 19 mm, 20 mm), 6-inch socket extension, torque wrench, lubricant or soapy water, wire brush, exhaust removal pliers, flat-head screwdriver, tape measure, marker, and utility knife.
Yes. You must lower the spare tire before installation. Open the rear hatch to access the spare tire winch, use an M20 socket to lower it, and set it aside. After hitch installation is complete, raise the spare tire back into position, pushing it forward to provide additional clearance from the hitch.
Yes. You must lower the vehicle exhaust before installation. Remove the rear and side hangers and support the exhaust to prevent damage. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. After hitch installation, reinstall the exhaust.
Yes. The exterior trim panel is located on the driver side of the vehicle. Remove the 3 push rivets using a flat-head screwdriver, then carefully pull the trim panel to remove it. Set it aside for reinstallation after the hitch is installed.
Yes. Using a tape measure, marker, and utility knife, you must measure, mark, and trim the lower fascia. Trim 1/2 inch from the bottom and 5-1/2 inches from the side as shown in Figure 2. This is a permanent modification required for proper hitch fitment.
The manual does not indicate that drilling is required. The hitch fasteners are inserted through existing hitch brackets and vehicle frame welds or existing weldnuts. However, the manual does require trimming of the lower fascia using a utility knife.
The installation sequence is: (1) lower spare tire, (2) remove exterior trim panel, (3) trim fascia, (4) lower vehicle exhaust, (5) install hitch A (driver side first with ¾ socket, then passenger side with 19 mm socket), (6) install hitch B (bottom side with 16 mm socket, hand tighten), (7) torque all fasteners to specification, (8) raise exhaust, spare tire, and trim panel.
M10 CL10.9 fasteners must be tightened to 40 Lb.-Ft. (54 N·M) using a torque wrench.
1/2 GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
M12 GR 8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N·M) using a torque wrench.
The hitch includes: (2) hex bolts ½-13 x 4.50 GR5, (5) conical washers ½" (p/n 01292008), (2) hex nuts ½-13, (1) bolt M12X1.75X120 CL8.8, (1) flat washer ½" hardened, (1) hex nut M12X1.75 CL8, (4) bolts M10X1.25X30 CL10.9, and (4) conical washers 7/16" (p/n 01292007). Sort hardware before installation to keep correct conical washers with coordinated bolts.
Items 7 and 8 (M10 bolts and conical washers for hitch B on the bottom side) should be hand-tightened initially. All fasteners are then torqued to specification in Step 7 using a torque wrench.
Yes. It may be necessary to clean debris and corrosion from existing weldnuts in the frame using a wire brush before inserting fasteners through them.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust to prevent damage during removal. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Verify that the ball is properly tightened. Check the hitch frequently to ensure all fasteners remain tight. Proper torque is needed to keep the hitch secure when towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to your vehicle.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Always read and follow all warnings and instructions for your vehicle and other accessories used with the hitch.
A hitch or ball which has been damaged should be removed and replaced. Do not continue towing with damaged equipment.
The average installation time for professional installers is 40 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
The hitch includes a Limited Lifetime Warranty covering material defects in material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Horizon Global Americas Inc. at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290 to make a warranty claim. Retain your purchase receipt to verify you are the original consumer purchaser.
Contact Horizon Global at 800-632-3290 or email TechnicalSupport@horizonglobal.com. Visit www.horizonglobal.com for additional information. For step-by-step photo installation instructions, scan the QR code or visit http://www.draw-tite.com/qr-product.
Yes, part numbers 76420, 84420, and CQT76420 fit 2020-Current Kia Telluride and Hyundai Palisade models. Check www.horizonglobal.com for trim-level specifics.
Weight-carrying: 5000 lb. gross trailer weight, 500 lb. tongue weight. Weight-distributing: 6000 lb. gross trailer weight, 750 lb. tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Ratchet, safety glasses, sockets (¾", 16 mm, 19 mm, 20 mm), 6-inch socket extension, torque wrench, lubricant or soapy water, wire brush, exhaust removal pliers, flat-head screwdriver, tape measure, marker, and utility knife.
Yes. Lower the spare tire using an M20 socket and remove the exhaust rear and side hangers. Both are reinstalled after the hitch is mounted.
Yes. Trim the lower fascia 1/2 inch from the bottom and 5-1/2 inches from the side using a utility knife, tape measure, and marker.
M10 CL10.9: 40 Lb.-Ft. (54 N·M); 1/2 GR5: 75 Lb.-Ft. (102 N·M); M12 GR 8.8: 68 Lb.-Ft. (92 N·M). Use a torque wrench for all fasteners.
Always wear safety glasses during installation. Wear your seatbelt when towing. Slow down and never exceed posted speed limits. Load the trailer heavier in front. If excess sway occurs, ease off the gas and steady the wheel—do not brake or accelerate.
Verify all fasteners are tight and the hitch is securely mounted. Check the ball is properly tightened. Check the hitch frequently to ensure fasteners remain tight during use.
Clean debris and corrosion from the existing weldnuts in the frame using a wire brush before attempting to insert fasteners. This will clear the weldnut openings and allow fasteners to pass through properly.
Check the hitch frequently to ensure all fasteners remain tight. If fasteners have loosened, retighten them to the specified torque values: M10 CL10.9 to 40 Lb.-Ft. (54 N·M), 1/2 GR5 to 75 Lb.-Ft. (102 N·M), and M12 GR 8.8 to 68 Lb.-Ft. (92 N·M).
Verify that the lower fascia has been trimmed correctly: 1/2 inch from the bottom and 5-1/2 inches from the side as shown in Figure 2. Ensure the spare tire is pushed forward when raised to provide additional clearance from the hitch. Check that all fasteners are properly torqued and the hitch is fully seated.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
