Draw-Tite Hardware Kit For Class 3 Trailer Hitch, 2 Inch 76599 For 2019-2023 Hyundai Kona Electric Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2023 Hyundai Kona
Confirmed to Fit
2019 - 2023 Hyundai Kona Electric
Confirmed to Fit
2022 - 2023 Hyundai Kona N
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76599 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2023 | Hyundai Kona | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2019 - 2023 | Hyundai Kona Electric | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2022 - 2023 | Hyundai Kona N | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 35 minutes |

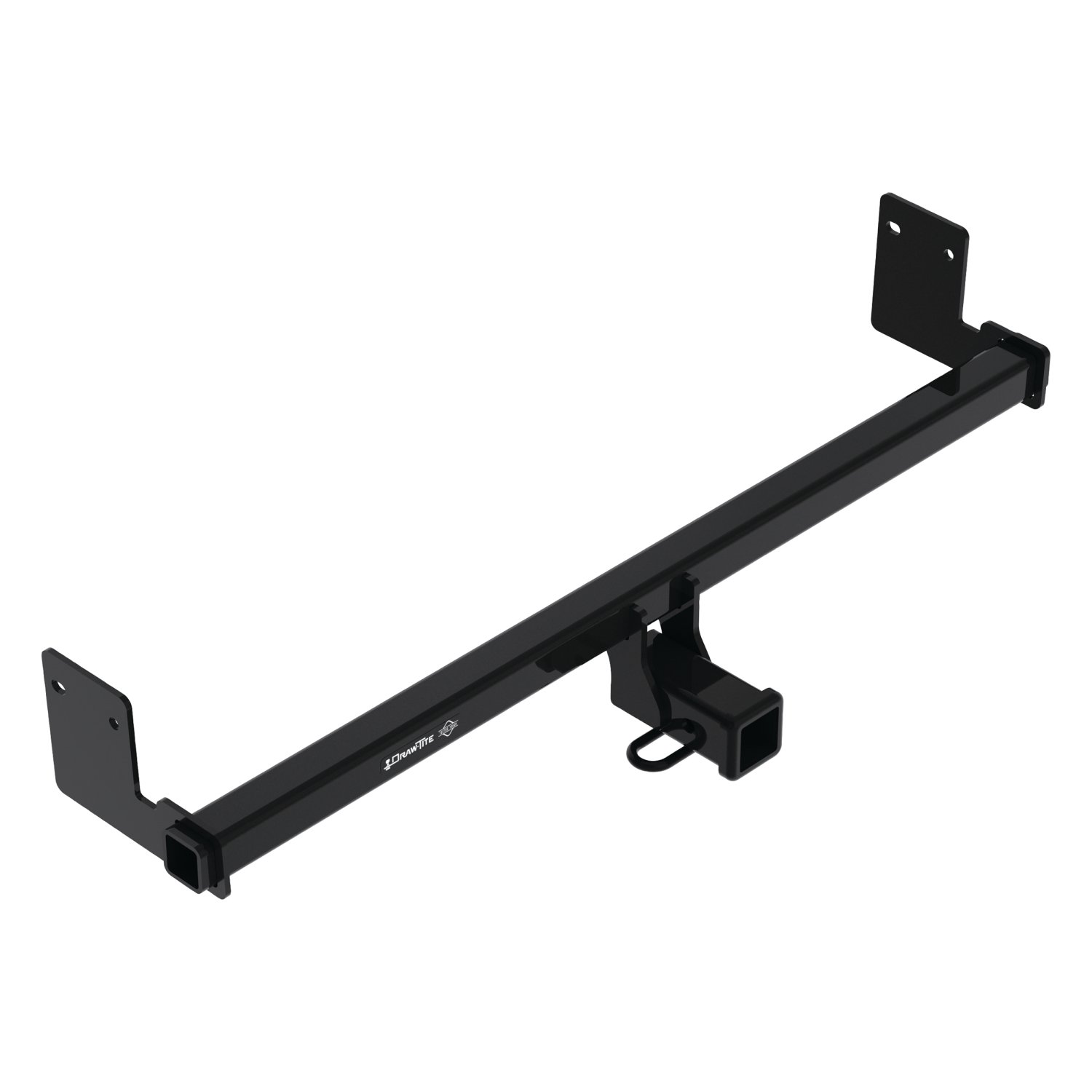

The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Kona, Hyundai Kona Electric, Hyundai Kona N 76599 (Part #DT76599) fits the following vehicles: 2018-2023 Hyundai Kona; 2019-2023 Hyundai Kona Electric; 2022-2023 Hyundai Kona N. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Kona, Hyundai Kona Electric, Hyundai Kona N 76599 (Part #DT76599) is designed to fit the 2018-2023 Hyundai Kona.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Kona, Hyundai Kona Electric, Hyundai Kona N 76599 (Part #DT76599) fits 2018-2023 Hyundai Kona models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Kona, Hyundai Kona Electric, Hyundai Kona N 76599 (Part #DT76599) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76599, 84599, and CQT76599 are designed for 2018-Current Hyundai Kona. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb. (907 kg) and maximum tongue weight is 300 lb. (136 kg) for the weight-carrying type. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10 mm socket, 11/16" socket, 6" socket extension, flathead screwdriver, exhaust removal pliers, and soapy water. Professional installation time is approximately 35 minutes.
Yes. The first installation step requires lowering the muffler by removing the exhaust hanger rod from the rubber isolator on the driver side, passenger side, and forward side of the muffler. Use a stand to support and prevent damage to the muffler.
All 7/16" fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·M). Proper torque is required to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Hitch 76599 is a weight-carrying hitch receiver designed for towing trailers. It is specifically engineered for 2018-Current Hyundai Kona vehicles and has a maximum gross trailer weight rating of 2000 lb. (907 kg) and maximum tongue weight of 300 lb. (136 kg). The hitch mounts to the vehicle frame using carriage bolts and is secured with conical washers and hex nuts.
The manual specifies that part numbers 76599, 84599, and CQT76599 are designed for 2018-Current Hyundai Kona only. For compatibility with other vehicles, contact Horizon Global at 800-632-3290 or visit www.horizonglobal.com for the most up-to-date application information.
Fastener Kit 76599F includes: (4) carriage bolts 7/16"-14 x 1.25, GR5; (4) spacers .109 x .88 x 2.00; (4) conical washers 7/16"; (4) hex nuts 7/16"-14, GR2; and (4) pull wires 7/16". All fasteners are required for proper installation.
Yes. Step 2 of the installation requires removing the passenger side (RH) dust panel. Using a flathead screwdriver, remove (2) plastic rivets and using a 10 mm socket, remove (1) M10 nut. Return the dust panel to the vehicle owner after installation is complete.
The pull wires are used to guide the 7/16" carriage bolts and spacers through the frame access holes. Feed the bolts and spacers through the access holes on the underside of the frame using the pull wires through the mounting holes on the outside face of the frame on both sides. Leave the pull wire attached until you raise the hitch into position, then slide the wires and bolts through the hitch mounting holes and remove the pull wire. Kink the pull wire to keep the spacer independent of the bolt.
The conical washer teeth side must be oriented against the hitch. This is shown in Figure 1 of the installation instructions and is critical for proper fastener engagement and load distribution.
Yes. When installing the hitch, loosely secure the conical washer and 7/16" nuts in Step 3(b). Only after the hitch is in position should you tighten all 7/16" fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M) in Step 4.
The installation sequence is: (1) Lower the muffler by removing exhaust hanger rods from rubber isolators on driver side, passenger side, and forward side; (2) Remove the passenger side dust panel using a flathead screwdriver and 10 mm socket; (3a) Install carriage bolts by removing rubber plugs from frame access holes and feeding bolts and spacers through using pull wires; (3b) Raise the hitch into position and loosely secure conical washers and nuts; (4) Tighten all 7/16" fasteners to 50 Lb.-Ft. (68 N·M); (5) Re-attach the exhaust and re-insert rubber plugs in access holes.
The rubber plugs in frame access holes are located on the underside of the frame forward from the mounting holes. The mounting holes are located on the outside face of the frame on both sides (driver and passenger sides). Access holes must be cleared of rubber plugs before feeding bolts and spacers through.
After installation, verify that the exhaust is properly re-attached and rubber plugs are re-inserted in all frame access holes. Check that all fasteners are tight and the hitch is securely mounted. The manual recommends checking the hitch frequently to ensure all fasteners and ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners are tight and the hitch is securely mounted to the vehicle. This is important for safe towing operation.
The maximum tongue weight is 300 lb. (136 kg). Do not exceed this limit or the lower of your towing vehicle manufacturer's rating. Proper tongue weight distribution is critical for safe towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. If the hitch is damaged, it must be removed and replaced. Use a stand to support the muffler and prevent damage when lowering it. Do not cut, weld, or modify the receiver.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch. Contact Horizon Global at 800-632-3290 for replacement parts or warranty service.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch rating (2000 lb. GVWR, 300 lb. tongue weight). If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Hitch 76599 is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt. Product replacement is the sole remedy under this warranty.
The manual does not specify that the battery must be disconnected for hitch 76599 installation. However, since the installation involves working beneath the vehicle and removing the exhaust, standard vehicle safety precautions should be observed.
No drilling is required. The hitch uses existing frame access holes and mounting holes on the vehicle. The installation uses carriage bolts fed through these pre-existing holes using pull wires. The manual explicitly states: do not cut access or attachment holes with a torch.
No. The manual explicitly states: "DO NOT cut, weld or modify this receiver." The installation is non-permanent and uses only bolted connections to the vehicle frame. All modifications are reversible.
The manual states that the average installation time for professional installers is 35 minutes. It recommends: "If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer." The decision depends on your mechanical skill and comfort level working beneath a vehicle.
The manual does not specify whether a lift or jack is required. However, since the installation involves working beneath the vehicle and accessing frame holes on the underside, you will likely need to raise the vehicle safely. Always use appropriate lifting equipment and safety stands when working beneath a vehicle.
The carriage bolts are 7/16"-14 x 1.25, Grade 5 (GR5). Four bolts are included in Fastener Kit 76599F. These bolts are fed through frame access holes using pull wires and secured with conical washers and hex nuts.
The spacers are .109 x .88 x 2.00 inches. Four spacers are included in Fastener Kit 76599F. The spacers are placed on the carriage bolts and kept independent of the bolt by kinking the pull wire.
You need an 11/16" socket to work with the 7/16" hex nuts. The manual also lists a 10 mm socket for removing the passenger side dust panel nut. A 6" socket extension is recommended for accessing fasteners.
Remove the exhaust hanger rod from the rubber isolator on the driver side, passenger side, and forward side of the muffler. Use a stand to support the muffler and prevent it from being damaged. The muffler must be lowered to provide access to the frame mounting holes.
The pull wires are used to guide the 7/16" carriage bolts and spacers through the frame access holes from underneath the vehicle. The bolts and spacers are fed through the access holes using the pull wires, which pass through the mounting holes on the outside face of the frame. The pull wire is left attached until the hitch is raised into position, then removed after the bolts are threaded through the hitch mounting holes.
Kink the pull wire to keep the spacer independent of the bolt. This prevents the spacer from sliding along the bolt during installation and ensures proper alignment when the fasteners are tightened.
Remove the rubber plugs from the frame access holes located on the underside of the frame forward from the mounting holes. After the hitch installation is complete and the exhaust is re-attached, re-insert the rubber plugs in the access holes. This prevents entry of water and exhaust fumes.
All 7/16" fasteners must be tightened to 68 N·M (which equals 50 Lb.-Ft.). Use a calibrated torque wrench to achieve this specification.
The hex nuts are Grade 2 (GR2), 7/16"-14. Four nuts are included in Fastener Kit 76599F and must be tightened to 50 Lb.-Ft. (68 N·M).
The manual lists all three part numbers (76599, 84599, CQT76599) as having the same applications and specifications for 2018-Current Hyundai Kona. The manual does not explain the differences between these part numbers. Contact Horizon Global at 800-632-3290 or visit www.horizonglobal.com for clarification on which part number is appropriate for your specific vehicle.
Check that all fasteners are tight using a torque wrench. Tighten all 7/16" fasteners to 50 Lb.-Ft. (68 N·M). The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. If fasteners repeatedly loosen, verify that the conical washer teeth side is oriented against the hitch and that all fasteners are torqued to specification.
If the hitch was removed or if access holes were left unplugged, water and exhaust fumes can enter through the frame holes. Plug all holes in the trunk pan or other body panels immediately. If the hitch is removed in the future, ensure all holes are plugged to prevent entry of water and exhaust fumes.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
